59085-030

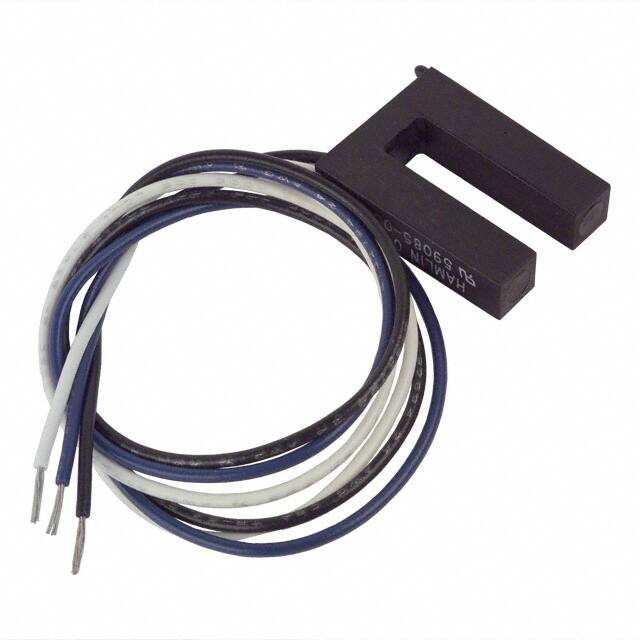

www.breedelectronics.com File E61760(N) 59085 Sensor 59085 Vane Sensor Features and Benefits F eatures Benefits Applications • Sensor and magnet contained • Quick and relaible single screw in single housing • Sensor operates when ferrous vane passes through slot • Normally open,normally closed or change over options • Flying leads mounting with location feature • No standby power requirement • Hermetically sealed, magnetically operated contacts continue to operate long after optical and other technologies fail due to contamination • • • • • Position and limit sensing Security system switch Linear actuators Industrial process control Shaft rotation sensing DIMENSIONS Recommended Activating Positions: Sensors Actuator Must Actuate .100 (2,54) Sensor Must Release .250 (6,35) Note 1 Electrical Specifications and Operating Characteristics Contact Type 59085-040 59085-030 59085-010 F orm B Form C Form A SPST-NC SPDT-CO Standar d Contact Rating Standar d SPST-NO Standar d Watt - max. 10 5 5 Switching Vdc - max. 200 175 175 Breakdown Vdc - min. 250 200 200 A - max. 0.5 0.25 0.25 Carry A - max. 1.2 1.5 1.5 Contact,Initial Ω - max. 0.2 0.2 0.2 Insulation Ω - min. 1010 109 109 Capacitance Contact p F - typ. 0.3 0.3 0.3 Temperature Operating °C -40 to + 105 -40 to + 105 -40 to + 105 Storage °C -65 to + 105 -65 to + 105 -65 to + 105 Operate ms - typ. 1.0 1.0 1.0 Release ms - typ. 1.0 1.0 1.0 Shock 11ms 1⁄2 sine G - max. 100 50 50 Vibration 50-2000 Hz G - max. 30 330 30 Voltage Current Switching Resistance Time Notes: 1. 59085 contains both sensor and magnet.Activation is obtained by inserting an annealed ferrous vane between them.Operate and release positions depend on size and thickness of the vane . 2.Flying Leads are 24 AWG 7/32 PVC, 105 deg. C.,UL 1569.Leads are stripped .250 (6,35),untinned. 3. Underwriters Laboratories recognition. For details on electrical specifications,contact BREEDElectronics Breed Electronics USA Breed Electronics UK Tel: 001 920 648 3000 • Fax:001 920 648 3001 • Email: sales@hamlin.com Tel: +44 (0)1379 649700 • Fax:+44 (0)1379 649702 • Email: uksales@breedtech.com Breed Electronics German y Tel: +49 (0) 6181 953660 • Fax:+49 (0) 6181 9536666 • Email: hamlin-electronics.de@breedtech.com Breed Electronics France Tel: +33 1 46 87 02 02 • Fax:+33 1 46 86 67 86 • Email: hamectrol@hamectrol.fr PA GE 1 OF 1 ISSUE No:1 DATE:08/12/00 INFORMATION PROVIDED ON THIS DATA SHEET IS PROVIDED FOR INFORMATION PURPOSES ONLY AND SHOULD NOT BE RELIED UPON AS BEING ACCURATE FOR ANY PARTICULAR PURPOSE. Product performance may be affected by the application to which the product is put. Upon request,HAMLIN will assist purchasers by providing information specific to any particular application.HAMLIN disclaims any and all liability whatsoever for any purchaser’s reliance upon the information contained on this data sheet without further consultation with authorised representatives of HAMLIN. SIGNED:Antony Howell
