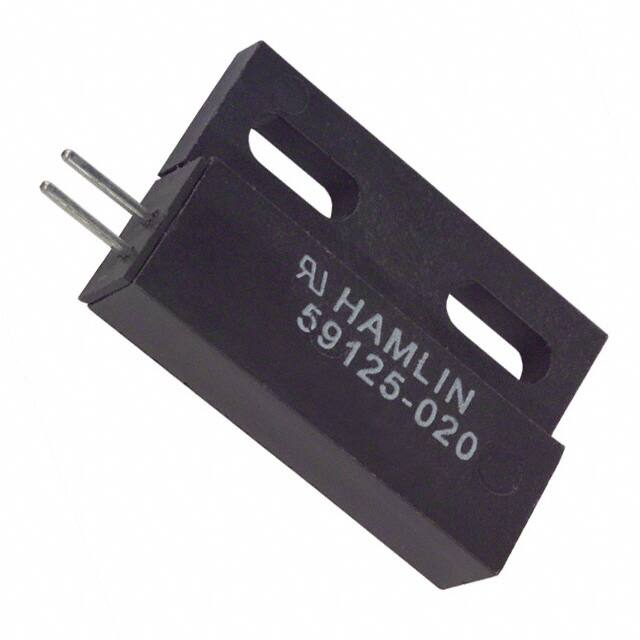

www.breedelectronics.com 59125 Pinned Flange Features and Benefits File E61760(N) 57125 Actuator Features Benefits Applications • 2 Part Magnetically Operated • No standby power requirement • Operates through non-ferrous • Position and limit sensing • Security system switch • Linear actuators Proximity Sensor • Moulded in terminal pins accept push on connector or wire wrap • Case design allows screw down or adhesive mounting • 300mm (12”) Flying leads 59125 Sensor materials such as wood,plastic or aluminium • Hermetically sealed, magnetically operated contacts continue to operate long after optical and other technologies fail due to contamination • Simple installation and adjustment DIMENSIONS Recommended Activating Positions: Sensors and Matching Actuators (Note 2) Must Actuator Sensor Must Actuate Release .150 (3,81) .800 (20,32) 57125-000 Electrical Specifications and Operating Characteristics Contact Type Contact Rating 59125-010 59125-020 59125-040 F orm A, F orm A Form B , SPST-NO , SPST-NO SPST-NC , Standar d High Volta ge Watt - max. 10 10 5 Switching Vdc - max. 200 300 175 Breakdown Vdc - min. 250 450 200 A - max. 0.5 0.5 0.25 Carry A - max. 1.2 1.5 1.5 Contact,Initial Ω - max. 0.2 0.2 0.2 Insulation Ω - min. 1010 1010 109 Capacitance Contact p F - typ. 0.3 0.2 0.3 Temperature Operating °C -40 to + 105 -20 to + 105 -40 to + 105 Storage °C -65 to + 105 -65 to + 105 -65 to + 105 Operate ms - typ. 1.0 1.0 1.0 Release ms - typ. 1.0 1.0 1.0 Shock 11ms 1⁄2 sine G - max. 100 100 50 Vibration 50-2000 Hz G - max. 30 30 30 Voltage Current Switching Resistance Time Notes: 1.Flying Leads are 24 AWG 7/32 PVC, 105 deg. C.,UL 1569.Leads are stripped .250 (6,35),untinned. 2.Order Actuators as a separate item. 3. Underwriters Laboratories recognition. For details on electrical specifications,contact Hamlin,Inc. Breed Electronics USA Breed Electronics UK Tel: 001 920 648 3000 • Fax:001 920 648 3001 • Email: sales@hamlin.com Tel: +44 (0)1379 649700 • Fax:+44 (0)1379 649702 • Email: uksales@breedtech.com Breed Electronics German y Tel: +49 (0) 6181 953660 • Fax:+49 (0) 6181 9536666 • Email: hamlin-electronics.de@breedtech.com Breed Electronics France Tel: +33 1 46 87 02 02 • Fax:+33 1 46 86 67 86 • Email: hamectrol@hamectrol.fr PA GE 1 OF 1 ISSUE No:1 DATE:08/12/00 INFORMATION PROVIDED ON THIS DATA SHEET IS PROVIDED FOR INFORMATION PURPOSES ONLY AND SHOULD NOT BE RELIED UPON AS BEING ACCURATE FOR ANY PARTICULAR PURPOSE. Product performance may be affected by the application to which the product is put. Upon request,HAMLIN will assist purchasers by providing information specific to any particular application.HAMLIN disclaims any and all liability whatsoever for any purchaser’s reliance upon the information contained on this data sheet without further consultation with authorised representatives of HAMLIN. SIGNED:Antony Howell
