Reed Sensors
Flange Mounting Sensor > 59150
59150 Flange Mount Sensor + 57150 Actuator
Description

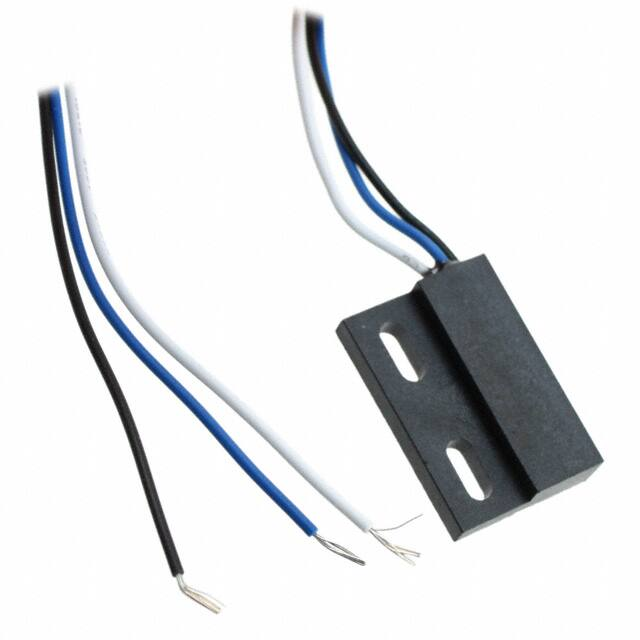

The 59150 is a flange mounting reed sensor 28.57mm x 19.05mm x 6.35mm
(1.125” x 0.750” x 0.250”) with a choice of normally open, normally open high
voltage, normally closed or changeover contacts. Its case design enables screw
or adhesive mounting and the wires exit from top right hand side. It is also
available with left hand exit - see 59145 Series. It is capable of switching up to
265Vac/300Vdc at 10VA. The 59150 functions best with the matching
actuator 57150-000.
Actuator
Note: The 57150 Actuator is sold separately.
Sensor
Features
• Two-part magnetically operated
proximity sensor
• Case design allows screw down or
adhesive mounting
Agency Approvals
Agency
• Customer defined sensitivity
• Choice of cable and connector
• RoHS compliant
Agency File Number
Benefits
E61760
• Hermetically sealed, magnetically
operated contacts continue to
operate long after optical and other
technologies fail due to
contamination
Note: Contact Littelfuse for specific agency approval ratings.
Dimensions
• No standby power requirement
• Operates through non-ferrous
materials such as wood, plastic or
aluminium
• Simple installation and adjustment
Dimensions in mm (inch)
Applications
28.57
(1.125)
14.28
(.562)
9.53
(.375)
Actuator
19.05
(.75)
15.88
(.625)
300
(11.81)
6.35 (.250) NOM.
• Position and limit sensing
• Security system switch
• Linear actuators
• Door switch
3.43
(.135)
3.18x7.82
(.125x.308 LG.)
SLOT 2
6.35
(.250)
28.57
(1.125)
Sensor
15.88
(.625)
3.18x7.82
(.125x.308 LG.)
SLOT 2
9.53
(.375)
14.28
(.562)
19.05
(.75)
6.35
(.250)
3.43
(.135)
6.35
(.250)
Schematics
Switch Type
Black
Black
Black
Blue
White
Black
Black
© 2019 Littelfuse
Revised: 04/29/19
Specifications are subject to change without notice.
1 and 2
3
4
littelfuse.com
Reed Sensors
Flange Mounting Sensor > 59150
59150 Flange Mount Sensor + 57150 Actuator
Electrical Ratings
Normally
Open
Contact Type
Switch Type
Normally Open
High Voltage
Change
Over
Normally
Closed
1
2
3
4
VA/Watt - max.
10
10
5
5
Vdc - max.
Vac - max.
Vdc - min.
200
140
250
300
265
400
175
120
200
175
120
200
Carry
Adc - max.
Aac - max.
Adc - max.
0.5
0.35
1.2
0.4
0.30
1.4
0.25
0.18
1.5
0.25
0.18
1.5
Contact, Initial
Insulation
Ω - max.
Ω - min.
0.2
1010
0.2
1010
0.2
109
0.2
109
Capacitance
Contact
pF - typ.
0.3
0.2
0.3
0.3
Temperature
Operating
°C
-40 to +105
-20 to +105
-40 to +105
-40 to +105
Contact Rating
Voltage
4
Current
4
1
Switching
2
Breakdown
Switching
Resistance
5
3
2
Product Characteristics
Operate Time
6
ms - max.
1.0
1.0
3.0
3.0
Release Time
6
ms - max.
1.0
1.0
3.0
3.0
11ms 1⁄2 sine
G - max.
100
100
50
50
50-2000 Hz
G - max.
30
30
30
30
Shock
7
Vibration
7
Notes:
1. Contact rating - Product of the switching voltage and current should never exceed the wattage rating. Contact Littelfuse for additional load/life information.
2. When switching inductive and/or capacitive loads, the effects of transient voltages and/or currents should be considered. Refer to Application Notes AN108A and AN107 for details.
3. Breakdown Voltage - per MIL-STD-202, Method 301.
4. Electrical Load Life Expectancy - Contact Littelfuse with voltage, current values along with type of load.
5. This resistance value is for 11.81mm wire length. Resistance changes when wire lengthens.
6. Operate (including bounce)/Release Time - per EIA/NARM RS-421-A, diode suppressed coil (Coil II).
7. Shock and Vibration - per EIA/NARM RS-421-A and MIL-STD-202.
8. For custom modifications to the wire length or size, or adding a special connector, please contact Littelfuse.
Sensitivity Options (Using 57150 Actuator)
Select Option
Switch Type
S
T
U
Pull-In
AT
Range
Activate Distance - D
mm (inch)
Average
Pull-In
AT
Range
Activate Distance - D
mm (inch)
Average
Pull-In
AT
Range
Activate Distance - D
mm (inch)
Average
V
Pull-In Activate Distance - D
AT
mm (inch)
Range
Average
1
Normally Open
12-18
13.5 (.531)
17-23
11.2 (.441)
22-28
9.8 (.385)
27-33
9.0 (.357)
2
High Voltage
--
--
17-23
11.2 (.441)
22-28
9.8 (.385)
27-33
9.0 (.357)
3
Change Over
15-20
11.0 (.433)
20-25
9.2 (.362)
25-30
8.5 (.335)
--
--
4 Normally Closed 15-20
11.0 (.433)
20-25
9.2 (.362)
25-30
8.5 (.335)
--
--
Note:
D
1. Pull-In AT Range: These AT values are the bare reed switch AT before modification.
© 2019 Littelfuse
Revised: 04/29/19
Specifications are subject to change without notice.
Sensor
Actuator
2. The activation distance is average value on the final sensor assembly.
littelfuse.com
Reed Sensors
Flange Mounting Sensor > 59150
59150 Flange Mount Sensor + 57150 Actuator
Part Numbering System
Cable Length Specification
Sensor:
Cable Type: 24 AWG 7/32 PVC 105°C UL1430/UL1569
Select Option
Cable Length
mm (inch)
02
300 (11.81)
59150 - X - X - XX - X
Series
Termination Specification
Switch Type
1, 2, 3, or 4
Termination Options
Select
Option
Sensitivity
S, T, U, or V
Description
(Two-wire versions illustrated)
A
Tinned leads (6.4±0.76)mm
F
Untinned leads (6.4±0.76)mm
E
JST type XHP 2.5mm pitch
Cable Length
02
Termination
A, E, or F
Actuator:
57150 - 000
Series
Standard Actuator
000
Note: The 57150 Actuator is sold separately.
Packaging
Packaging Option
Packaging Specification
Bulk
Bulk
Quantity
500
Quantity & Packaging Code
N/A
Taping Width
N/A
Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should
independently evaluate the suitability of and test each product selected for their own applications.
Littelfuse products are not designed for, and may not be used in, all applications. Read complete
Disclaimer Notice at www.littelfuse.com/disclaimier-electronics.
© 2019 Littelfuse
Revised: 04/29/19
Specifications are subject to change without notice.
littelfuse.com
