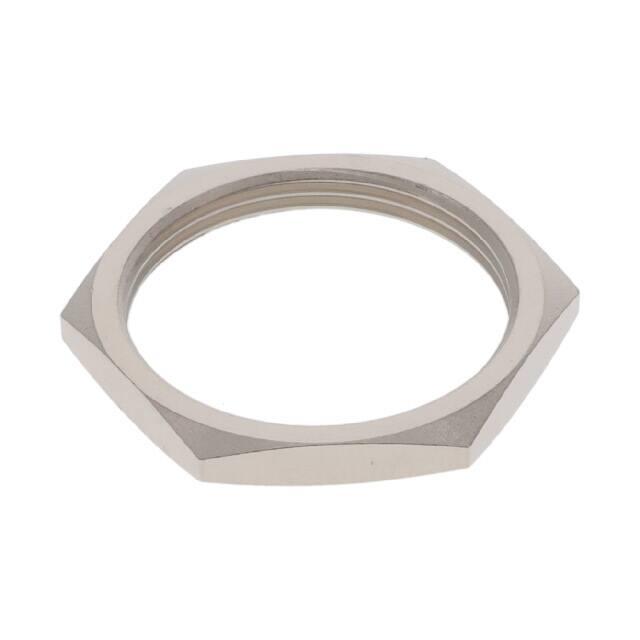

ATP220019

ATP22 Series Anti-Vandal Sealed Pushbutton Switch Pushbutton A Features/Benefits •  Momentary or Lock version •  IP67 sealed & IK10 (Stainless steel bushing) • Capable of up to 3A resistive load •  50,000 life cycle at full load •  Various colors of LED illuminate indicator •  Choices of pushbutton with symbol on Typical Applications •  Control Panels including • • • • spot, ring or power logo car park and traffic light Industrial Instruments Lifts / Escalator Communication equipment Alarm, safety and security systems Specifications Materials FUNCTION: Single pole and double poles CONTACT ARRANGEMENT: N.O. and N.C. MOUNTING TYPE: Threaded front panel mount TORQUE FOR THREADED BODY: 5-14 Nm BUSHING: Stainless steel / Aluminum alloy BASE: PBT (UL 94-A0), PC (UL 94-V2) ACTUATOR: PC; Stainless steel / Aluminum alloy INTERNAL ASSEMBLY: POM / PA66 SPRING: Steel SEALING / O-ring: Silicone TERMINALS: Brass with silver or gold plated CONTACT: Copper, silver plated Mechanical OPERATING LIFE: Momentary 1,000,000 cycles Self-lock 500,000 cycles TOTAL TRAVEL: about 3.2 mm OPERATING FORCE: 1 pole 2.5 ± 1N 2 pole 3.5 ± 1N Electrical CONTACT RATING: Ith 5A/250VAC 3A / 250VAC 3A / 28VDC OPERATING LIFE: 50,000 make-and-break cycles at full load DIELECTRIC STRENGTH: 2,000 V RMS @ sea level INSULATION RESISTANCE: 1,000 MΩ min. @ 500 VDC INITIAL CONTACT RESISTANCE : 50 mΩ max @1A 12VDC Operating Environment OPERATING TEMPERATURE: -20˚C to +55˚C SEALING / PROTECTION: IP67 / IK10 (Stainless steel bushing) NOTE: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, please contact Customer Service. Build-A-Switch To order, simply select desired option from each category and place in the appropriate box. A T P 2 2 Terminal plating Q Silver G Gold Designation ATP22 Series Actuator Style S Standard Termination 03 STD solder lug W1 Wire lead 500mm***** W2 Wire lead 1,000mm***** Actuator Indicator L0 Without LED L3 Moving ring L6 Ring LED* L7 Ring LED + power logo** L8 Ring LED + power logo*** Mechanical function A Momentary E Lock Illumination Color Dual color 0 Without LED A Red & Green 2 White B Red & Blue 3 Red D Blue & Yellow 5 Yellow G Red & Yellow 6 Green H Green & Yellow 7 Blue J Orange & Green Contact arrangement S SPDT D DPDT LED voltage (20mA) 00 Without LED 03 3V 06 6V 12 12V 24 24V 36 36V A1 110V AC A2 220V AC Bushing type B0 Stainless (Round) B3 Al alloy: black anodized (Round) M0 Stainless (Double D-shape)**** * Available on ring color CAP of red/green/blue only ** Power logo and ring with clear color CAP available on double D-shape bushing only *** Power logo and ring with red/green/blue color CAP available on double D-shape bushing only **** Not available on L0/L3/L6 actuator indicator ***** Available upon request, please contact your sales representative for details Third Angle Projection Dimensions are shown: mm (inches) Specifications and dimensions subject to change 5 May 21 A-140 www.ckswitches.com ATP22 Series Anti-Vandal Sealed Pushbutton Switch STANDARD VIEW A DOUBLE-D BUSHING .81 (20.5) 0.8 (2) 1.07 1.38 (27.2) (35) 1.07 1.38 (27.2) (35) M22x1.0 .11 (2.75) .02 (0.5) .51 (13) .11 (2.8) .08 (2) M22x1.0 .11 (2.75) .20 (5) .02 (0.5) .11 (2.8) .20 (5) .51 (13) .20 (5) .20 (5) ACTUATOR STYLE S STANDARD ACTUATOR INDICATOR L0 WITHOUT LED A c t ua t o r L3 & L6 RING LED L7 & L8 POWER & RING A c t ua t o r A c tu a to r Il l u m in a t e d I l l u m in a t e d I l l u m in a t e d Dimensions are shown: mm (inches) Specifications and dimensions subject to change 5 May 21 A-141 www.ckswitches.com Pushbutton ROUND BUSHING ATP22 Series Anti-Vandal Sealed Pushbutton Switch CIRCUIT Pushbutton A SPDT SPDT - SINGLE COLOR LED 3 2 1 R 3 R 2 3 1 R 2 1 DPDT 6 2 3 5 6 R R 45 4 3 23 1 2 1 DPDT - SINGLE COLOR LED 3 1 R 23 1 1 2 SPDT - DUAL COLOR LED 3 6 23 56 12 45 1 4 DPDT - DUAL COLOR LED R R 3 6 23 56 12 45 1 4 TERMINATION 03 .11 .11 (2.75) (2.75) SOLDERLUG .02 .11 .02 (2.8) (0.5) .11 (0.5) (2.8) .51 .51 (13) (13) W1 OR W2 .20 .20 (5) (5) .20 .20 (5) (5) WIRE LEAD L L W ir e ,G r e e n ( Te r m in a l ) W ir e ,G r e e n ( Te r m in a l ) L -1 5 0 m m L -1 5 0 m m 1 .7 7 7 )7 (14. 5 (4 5 ) W ir e ,P u r p l e ( Te r m in a l ) W ir e ,P u r p l e ( Te r m in a l ) W ir e ,B l a c k ( L E D - ) W ir e ,B l a c k ( L E D - ) W ir e ,R e d ( L E D + ) W ir e ,R e d ( L E D + ) H e a t s h r in k t u b e H e a t s h r in k t u b e W ir e a n d t in n e d H e a t s h r in k t u b eW ir e a n d t in n e d Wir e ,Y e l l o w ( Te r m in a l ) H e a t s h r in k t u b e Wir e ,Y e l l o w ( Te r m in a l ) HARDWARE HEX NUT O RING Order PN: ATP22-HN Order PN: ATP22-OR .12 (3) .05 (1.2) ø.74 (ø18.8) .98 (25) M22x1.0 Dimensions are shown: mm (inches) Specifications and dimensions subject to change 5 May 21 A-142 www.ckswitches.com
