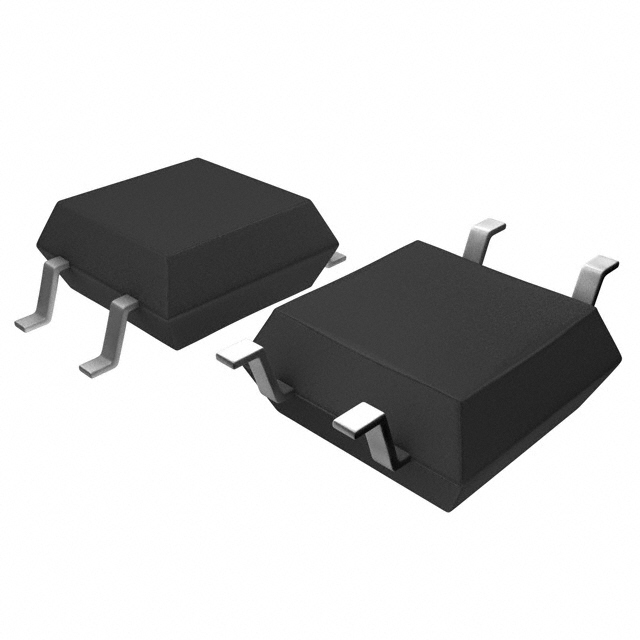

CPC1020NTR

CPC1020N 30V, 1.2ADC Single-Pole Normally Open Relay INTEGRATED CIRCUITS DIVISION Parameter Blocking Voltage Load Current On-Resistance (max) Rating 30 1.2 0.25 Description The CPC1020N is a 30V, single-pole, normally-open (1-Form-A) Solid State Relay. The ultra-low on-resistance of this relay, 0.25, enables high-current operation. Units VP ADC  IXYS Integrated Circuits' patented OptoMOS architecture makes available the optically coupled technology necessary to activate the output's efficient MOSFET switches while providing 1500Vrms input to output isolation. Control of the isolated output is accomplished by means of the highly efficient infrared LED at the input. Features • 1500Vrms Input/Output Isolation • Small 4-Pin SOP Package • Low Drive Power Requirements • High Reliability • No EMI/RFI Generation • Tape & Reel Version Available • Flammability Rating UL 94 V-0 Applications • Sensor Circuitry • Instrumentation • Multiplexers • Data Acquisition • Electronic Switching • I/O Subsystems • Meters (Watt-Hour, Water, Gas) • Medical Equipment—Patient/Equipment Isolation • Industrial Controls Approvals • UL Recognized Component: File E76270 • CSA Certified Component: Certificate 1172007 • TUV EN 62368-1: Certificate # B 082667 0008 Ordering Information Part # CPC1020N CPC1020NTR Description 4-Pin SOP (100/tube) 4-Pin SOP (2000/reel) Pin Configuration + Control – Control 1 4 3 2 Load Load Switching Characteristics of Normally-Open Devices Form-A IF 90% 10% ILOAD ton DS-CPC1020N-R06 www.ixysic.com toff 1 INTEGRATED CIRCUITS DIVISION CPC1020N Absolute Maximum Ratings @ 25ºC Parameter Blocking Voltage Input Power Dissipation 1 Input Control Current Peak (10ms) Reverse Input Voltage Total Power Dissipation 2 Isolation voltage, Input to Output Operational Temperature, Ambient Storage Temperature 1 2 Ratings 30 75 50 1 5 400 1500 -40 to +85 -40 to +125 Units VP mW mA A V mW Vrms °C °C Absolute Maximum Ratings are stress ratings. Stresses in excess of these ratings can cause permanent damage to the device. Functional operation of the device at conditions beyond those indicated in the operational sections of this data sheet is not implied. Typical values are characteristic of the device at +25°C, and are the result of engineering evaluations. They are provided for information purposes only, and are not part of the manufacturing testing requirements. Derate linearly 1.33 mW / ºC Derate output power linearly 3.33 mW / ºC Electrical Characteristics @ 25ºC Parameter Output Characteristics Blocking Voltage Load Current Continuous 1 Peak On-Resistance 2 Off-State Leakage Current Switching Speeds Turn-On Turn-Off Output Capacitance Input Characteristics Input Control Current to Activate Input Control Current to Deactivate Input Voltage Drop Reverse Input Current Input/Output Characteristics Capacitance, Input to Output 1 2 Conditions Symbol Min Typ Max Units IL=1A VDRM 30 - - V IF=2mA t < 10ms IL=1A VL=30VP IL ILPK RON ILEAK - 0.116 - 1.2 3 0.25 1 ADC A  A IF=0mA, VL=25V, f=1MHz ton toff COUT - 0.48 0.65 33 3 3 - IL=1A IF=5mA VR=5V IF IF VF IR 0.1 0.9 - 0.13 1.36 - 2 1.5 10 mA mA V µA VIO=0V, f=1MHz CIO - 3 - pF IF=5mA, VL=10V ms pF Load current derates linearly from 1.2A @ 25oC to 0.58A @85oC. Measurement taken within 1 second of on-time. ESD Rating ESD Rating (Human Body Model) 1000 Volts 2 www.ixysic.com R06 INTEGRATED CIRCUITS DIVISION CPC1020N PERFORMANCE DATA* Typical LED Forward Voltage Drop (N=50, IF=5mA) 25 Device Count (N) Device Count (N) 25 20 15 10 5 20 15 10 5 0 0 1.364 0.093 25 15 10 5 0.40 0.45 0.50 0.55 Turn-On Time (ms) 15 10 1.3 1.2 1.1 -50 -25 0 25 50 Temperature (ºC) 75 100 Typical Turn-On Time vs. LED Forward Current (IL=100mA) 2.5 Turn-Off Time (Ps) 1.5 1.0 0.5 0 0.14 0.12 0.10 10 20 30 40 LED Forward Current (mA) 50 39.4 Typical Load Voltage vs. Load Current (IF=2mA) 0.5 0.0 -0.5 -1.0 -20 0 20 40 60 Temperature (ºC) 80 -1.5 -0.20 -0.15 -0.10 -0.05 0.00 0.05 0.10 0.15 0.20 Load Voltage (V) 100 Typical Turn-Off Time vs. LED Forward Current (IL=100mA) 0.40 680 660 640 620 Typical On-Resistance vs. Temperature (IF=2mA, IL=0.5A) 0.35 0.30 0.25 0.20 0.15 600 0 38.2 38.6 39.0 Blocking Voltage (VP) 1.0 0.16 700 2.0 5 1.5 0.18 0.08 -40 1.0 10 37.8 On-Resistance (:) 1.4 15 0.79 Load Current (A) LED Forward Current (mA) LED Forward Voltage Drop (V) 1.5 0.55 0.63 0.71 Turn-Off Time (ms) Typical IF for Switch Operation vs. Temperature (IL=1A) 0.20 IF=10mA IF=5mA IF=2mA 20 0 Typical LED Forward Voltage Drop vs. Temperature 1.6 0.118 25 20 0.47 1.7 0.114 0.115 0.116 0.117 On-Resistance (:) Typical Blocking Voltage Distribution (N=50) Typical Turn-Off Time Distribution (N=50, IF=5mA, IL=5mA) 0.60 1.8 5 0.113 0 0.35 10 0.133 5 0 Turn-On Time (ms) 0.101 0.109 0.117 0.125 LED Forward Current (mA) Device Count (N) 20 Device Count (N) Device Count (N) Typical Turn-On Time Distribution (N=50, IF=5mA, IL=5mA) 30 15 0 1.366 1.368 1.370 1.372 LED Forward Voltage Drop (V) 25 Typical On-Resistance Distribution (N=50, IF=2mA, IL=1A) 20 Device Count (N) 30 Typical IF for Switch Operation (N=50, IL=100mA) 0.10 0 10 20 30 40 LED Forward Current (mA) 50 -40 -20 0 20 40 60 Temperature (ºC) 80 100 *Unless otherwise noted, data presented in these graphs is typical of device operation at 25ºC. R06 www.ixysic.com 3 INTEGRATED CIRCUITS DIVISION CPC1020N PERFORMANCE DATA* Typical Turn-On Time vs. Temperature (IL=100mA) 3.5 1.2 2.0 1.5 IF=2mA 1.0 IF=5mA 0.5 1.0 0.9 0.8 IF=2mA 0.7 0.6 0.5 0 IF=5mA 0.4 40.5 -20 0 20 40 60 Temperature (ºC) 80 Leakage Current (nA) 39.0 38.5 38.0 37.5 37.0 0 20 40 60 Temperature (ºC) 80 0 1.00 0.75 0.50 0.25 0.0 20 40 60 Temperature (ºC) 80 -40 100 100 110 80 60 40 20 0 -40 -20 0 20 40 60 80 100 Temperature (ºC) 100 39.5 -20 -20 1.25 Typical Leakage Current vs. Temperature Measured Across Pins 3&4 (IF=0mA, VL=30V) Typical Blocking Voltage vs. Temperature (IL=1PA) 40.0 36.5 -40 -40 100 Output Capacitance (pF) -40 Load Current (ADC) Turn-Off Time (ms) Turn-On Time (ms) 2.5 Maximum Load Current vs. Temperature (IF=2mA) 1.50 1.1 3.0 Blocking Voltage (VP) Typical Turn-Off Time vs. Temperature (IL=100mA) Output Capacitance vs. Load Voltage (IF=0mA, f=1MHz) 100 90 80 70 60 50 40 30 -20 0 20 40 60 Temperature (ºC) 80 100 10s 100s 0 5 10 15 Load Voltage (V) 20 25 Energy Rating Curve 3.5 Current (A) 3.0 2.5 2.0 1.5 1.0 0.5 0.0 10Ps 100Ps 1ms 10ms 100ms Time 1s *Unless otherwise noted, data presented in these graphs is typical of device operation at 25ºC. 4 www.ixysic.com R06 INTEGRATED CIRCUITS DIVISION CPC1020N Manufacturing Information Moisture Sensitivity All plastic encapsulated semiconductor packages are susceptible to moisture ingression. IXYS Integrated Circuits classifies its plastic encapsulated devices for moisture sensitivity according to the latest version of the joint industry standard, IPC/JEDEC J-STD-020, in force at the time of product evaluation. We test all of our products to the maximum conditions set forth in the standard, and guarantee proper operation of our devices when handled according to the limitations and information in that standard as well as to any limitations set forth in the information or standards referenced below. Failure to adhere to the warnings or limitations as established by the listed specifications could result in reduced product performance, reduction of operable life, and/or reduction of overall reliability. This product carries a Moisture Sensitivity Level (MSL) classification as shown below, and should be handled according to the requirements of the latest version of the joint industry standard IPC/JEDEC J-STD-033. Device Moisture Sensitivity Level (MSL) Classification CPC1020N MSL 3 ESD Sensitivity This product is ESD Sensitive, and should be handled according to the industry standard JESD-625. Soldering Profile Provided in the table below is the IPC/JEDEC J-STD-020 Classification Temperature (TC) and the maximum dwell time the body temperature of these surface mount devices may be (TC - 5)°C or greater. The Classification Temperature sets the Maximum Body Temperature allowed for these devices during reflow soldering processes. Device Classification Temperature (Tc) Dwell Time (tP) Max Reflow Cycles CPC1020N 260ºC 30 seconds 3 Board Wash IXYS Integrated Circuits recommends the use of no-clean flux formulations. Board washing to reduce or remove flux residue following the solder reflow process is acceptable provided proper precautions are taken to prevent damage to the device. These precautions include but are not limited to: using a low pressure wash and providing a follow up bake cycle sufficient to remove any moisture trapped within the device due to the washing process. Due to the variability of the wash parameters used to clean the board, determination of the bake temperature and duration necessary to remove the moisture trapped within the package is the responsibility of the user (assembler). Cleaning or drying methods that employ ultrasonic energy may damage the device and should not be used. Additionally, the device must not be exposed to halide flux or solvents. R06 www.ixysic.com 5 INTEGRATED CIRCUITS DIVISION CPC1020N MECHANICAL DIMENSIONS CPC1020N 4.089 ± 0.025 (0.161 ± 0.001) Recommended PCB Land Pattern 0.203 ± 0.025 (0.008 ± 0.001) 6.096 ± 0.102 (0.240 ± 0.004) 3.810 ± 0.025 (0.150 ± 0.001) 0.559 ± 0.127 (0.022 ± 0.005) 0.910 ± 0.025 (0.036 ± 0.001) Pin 1 2.54 Typ (0.100 Typ) Package standoff: 0.051 ± 0.051 (0.0020 ± 0.0020) 0.381 ± 0.025 (0.015 ± 0.001) 3.85 (0.152) 1.54 (0.061) 2.030± 0.025 (0.080± 0.001) 0.481 (0.019) 0-0.1 (0-0.004) 0.60 (0.024) 2.54 (0.10) Dimensions mm (inches) Note: 1. Lead dimensions do not include plating: 1000 microinches max. 2. Controlling dimension: mm CPC1020NTR Tape & Reel 330.2 Dia (13.00 Dia) Top Cover Tape Thickness 0.102 Max (0.004 Max) W=12.00 (0.472) B0=4.70 (0.185) K0=2.70 (0.106) K1=2.30 (0.091) A0=6.50 (0.256) P1=8.00 (0.315) User Direction of Feed Dimensions mm (inches) Embossed Carrier Embossment NOTE: All dimensional tolerances per Standard EIA-481-2 except as noted For additional information please visit our website at: https://www.ixysic.com Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at https://www.littelfuse.com/disclaimer-electronics. 6 Specification: DS-CPC1020N-R06 ©Copyright 2021, Littelfuse, Inc. OptoMOS® is a registered trademark of IXYS Integrated Circuits All rights reserved. Printed in USA. 8/5/2021
