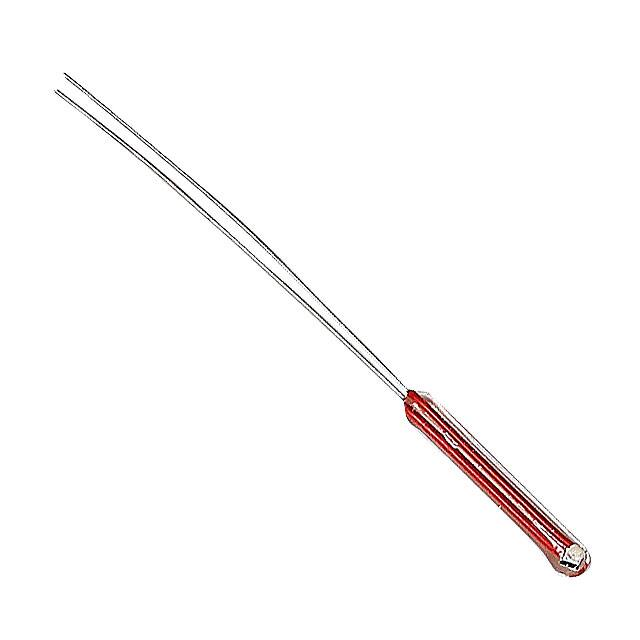

GL202F9J

Leaded Thermistors Glass Coated Chip Thermistor GL Series Glass Probe Thermistors Description Littelfuse high temperature glass probe thermistors feature superior long-term stability and fast thermal response. Their small size and glass encapsulation makes them especially suitable for temperature measurement and control where space is limited and where extreme temperatures, corrosive atmospheres and/or harsh environments are encountered. Littelfuse glass probe thermistors have a wide range of applications within the HVAC/R, Industrial, Medical, Consumer Electronics, Alternative Energy, Telecommunications, Medical and Environmental Systems and Controls markets. Options • Non-standard resistance values and tolerances Dimensions • Two glass body lengths (.500” and 1.000”) Features TINNED SOLDERABLE LEAD WIRES • High temperature D capability to +300°C B C A B C D 1.00” NOM “L” 0.70” NOM 0.0098” NOM DIAM B 1.00” Nom See Specs Table response time • Excellent long-term THERMISTOR ELEMENT LOCATED NEAR TIP OF GLASS BODY stability Part Numbering System P/N: USP3275 GL 10 2 E 1 J Dimensions shown in inches. A • Fast thermal • High reliability A GLASS BODY • Solderable lead wires C D 0.070” Nom 0.0098” Nom Diam Series Resistance Tolerance J = ±5% Resistance @ 25ºC Base Value No Significance R-T Curve Multiplier, power of 10 Ex. 102 = 10 Ω x 102 = 1,000 Ω Note: Not all combinations of Part Number codes are available. Contact Littelfuse for details. © 2018 Littelfuse, Inc. Revised: February 26, 2018 Specifications are subject to change without notice. 1 littelfuse.com Leaded Thermistors Glass Coated Chip Thermistor GL Series Glass Probe Thermistors Specifications Part Number Resistance Ohms @25°C *Resistance Tol. ± % @ 25°C R-T Curve Temperature Coefficient (% / °C) @ 25°C Beta (K) 25-85°C Dim “B” Temperature Rating (°C) GL102E5J 1000 5 E -3.67 3348 0.5 0 0” -55 to +300 GL102E9J 1000 5 E -3.67 3348 1.0 0 0” -55 to +300 GL122E5J 1200 5 E - 3.67 3348 0.5 0 0” -55 to +300 GL122E9J 1200 5 E - 3.8 6 3348 1.0 0 0” -55 to +300 GL202F5J 2000 5 F - 3.8 6 3499 0.5 0 0” -55 to +300 GL202F9J 2000 5 F - 3.8 6 3499 1.0 0 0” -55 to +300 GL502F5J 5000 5 F -3.86 3499 0.5 0 0” -55 to +300 GL502F9J 5000 5 F -3.86 3499 1.0 0 0” -55 to +300 GL103J5J 10000 5 J -4.4 3977 0.5 0 0” -55 to +300 GL103J9J 10000 5 J -4.4 3977 1.0 0 0” -55 to +300 GL104R5J 100000 5 R -4.68 4263 0.5 0 0” -55 to +300 GL104R9J 100000 5 R - 4.6 8 426 3 1.0 0 0” -55 to +300 *Resistance tolerances of ± 1% and 2% are available upon request Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at: www.littelfuse.com/disclaimer-electronics © 2018 Littelfuse, Inc. Revised: February 26, 2018 Specifications are subject to change without notice. 2 littelfuse.com
