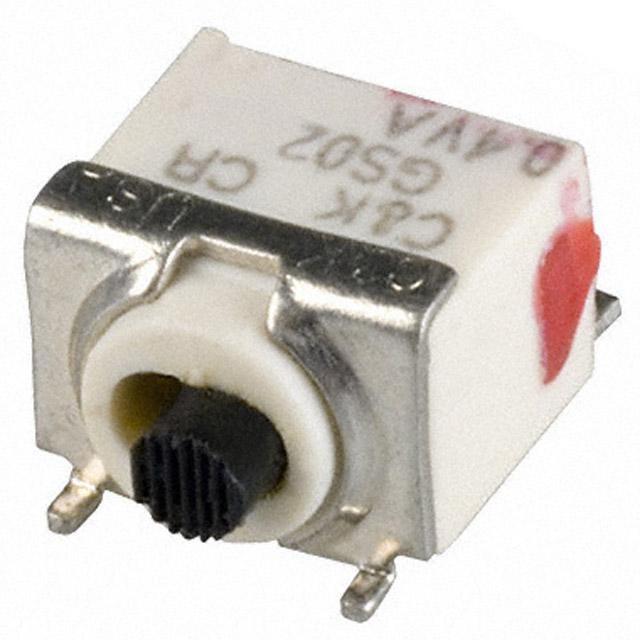

GS02MSABE

GS Series Sealed Ultraminiature Slide Switches Features/Benefits • Ultraminiature design saves PCB space • Sealed construction, process compatible with most PCB wash processes • Available in thru-hole and surface mount • Long life contact design • RoHS compliant Typical Applications • Computer peripherals & network products • Test & measurement equipment • Telephone & cable modems Materials CONTACT RATING: 0.4 VA max. @ 20 V AC or DC max. MECHANICAL & ELECTRICAL LIFE: 40,000 make-and-break cycles at full load. CONTACT RESISTANCE: Below 50 m Ω typ. initial @ 2–4 V DC, 100 mA. INSULATION RESISTANCE: 109 Ω min. DIELECTRIC STRENGTH: 500 Vrms min. @ sea level. STORAGE & OPERATING TEMPERATURE: –40ºC to 85ºC. SOLDERABILITY: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging). PACKAGING: Switches available in embossed anti-static tape and reels per EIA 481A. Some models available on embossed anti-static tape and reels per EIA 481-3, consult Customer Service Center. HOUSING & BASE: Glass filled 4/6, flame retardant, heat stabilized (UL 94V-0). ACTUATOR: Polyetherimide PEI (UL 94V-0), with standard internal seal. SWITCH SUPPORT: Brass, matte-tin plated. MOVABLE CONTACT: Copper with gold plate over nickel plate. STATIONARY CONTACTS: Copper alloy, with gold plate over nickel plate. TERMINALS: Copper alloy, with gold plate over nickel plate. TERMINAL SEAL: Epoxy. All terminals insert molded. NOTE: All models are RoHS compliant and compatible with all options. NOTE: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center. How To Order Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select desired option from each category and place it in the appropriate box. G S B Switch Function 01 SPDT, On-On 02 SPST, Off-On 04 SPST, On-Off E Seal E Epoxy Contact Material B Gold Termination MA Right Angle, PC Thru-hole MC Vertical, PC Thru-hole MSA Right Angle, SMT Dimensions are shown: Inches (mm) Specifications and dimensions subject to change 16 Mar 22 I–17 www.ckswitches.com I Slide Specifications GS Series Sealed Ultraminiature Slide Switches .170 [4,32] SWITCH FUNCTION POS.1 PART NUMBER Slide I ON ON Conn. Terms. 2-1 2-3 GS02MCBE OFF ON OPEN 3-1 GS04MCBE ON OFF Conn. Terms. 1-3 OPEN 1 SHOWN IN POS.1 .080 [2,03] .228 [5,79] SPST .130 [3,3] 2 3 PC MOUNTING .050 [1,27] SPDT .053 [1,33] C & K MARKING ON THIS SIDE 1 2 3 .015 TYP [0,38] .020 TYP [0,51] SPST .100 TYP [2,54] .035 TYP [0,89] SCHEMATIC GS01MCBE Conn. Terms. .041 [1,03] TOTAL TRAVEL POS. 2 .100 TYP [2,54] .276 [7,01] .179 [4,55] GS01MCBE SPDT SEAL Dimensions are shown: Inch (mm) Specifications and dimensions subject to change 16 Mar 22 I–18 www.ckswitches.com GS Series Sealed Ultraminiature Slide Switches SWITCH FUNCTION POS.1 TOTAL TRAVEL POS. 2 SCHEMATIC PART NUMBER Actuator Shown in Pos. 1 PC MOUNTING ON ON Conn. Terms. 2-1 2-3 GS02MABE OFF ON OPEN 3-1 GS04MABE ON OFF Conn. Terms. 1-3 OPEN Conn. Terms. GS01MABE Horizontal Actuation GS02 Model SPDT SPDT SPST SPST GS02-omit hole 2. SWITCH FUNCTION POS.1 TOTAL TRAVEL POS. 2 PART NUMBER GS02 Model Actuator Shown In Pos. 1 PC MOUNTING SMT GS01MSABE ON ON Conn. Terms. 2-1 2-3 GS02MSABE OFF ON OPEN 3-1 GS04MSABE ON OFF Conn. Terms. 1-3 OPEN Conn. Terms GS01MSABE Horizontal Actuation SCHEMATIC SPDT SPST SPST GS02-omit pad 2. SPDT TAPE & REEL FOR PART NUMBERS GS01MSABE, GS02MSABE, GS04MSABE REEL INFORMATION OUTSIDE DIAMETER PILOT HOLE QUANTITY PER REEL 13.00 (330,0) .512 (13,0) 600 Dimensions are shown: Inches (mm) Specifications and dimensions subject to change 16 Mar 22 I–19 www.ckswitches.com I Slide GS01MABE
