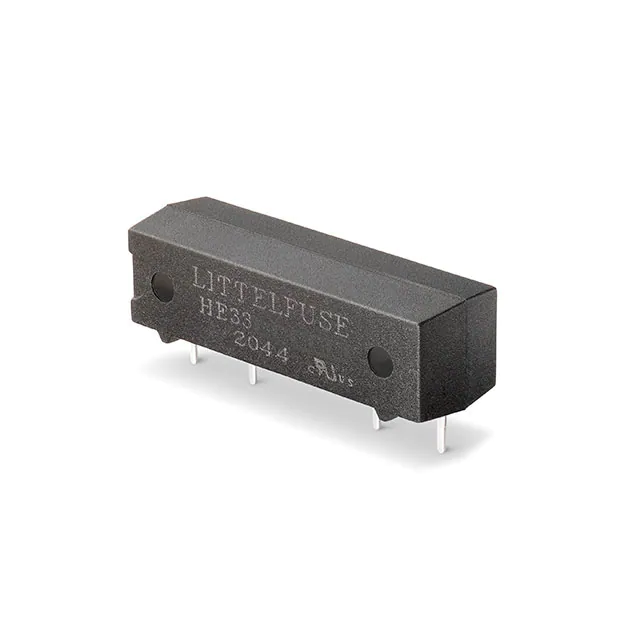

Reed Relay Datasheet H3300 Miniture Single In-line Reed Relay Description The HE3300 is a miniature reed relay in a SIL package with a choice of normally open, normally open high voltage or changeover contacts capable of switching up to 300Vdc at 10W. It is available with 5V, 12V, and 24V coils and has external magnetic shield options. Features & Benefits ■ Single in-line configuration allows high packing densities, minimizing space and cost ■ Lower power coil consumption than competing electromechanical devices ■ Hermetically sealed switching contact is immune to its environment Agency Approvals Agency ■ Transfer molded package gives maximum component protection Agency File Number E47258 ■ High voltage switching version ■ Normally open and change over contact configurations available ■ External magnetic shield option ■ RoHS Compliant ■ UL Recognized to UL 508 as an Industrial Control Switch ■ Miniature single in-line package Note: Not all parts are UL Recognized. Contact Littelfuse for specific parts and agency approval ratings. Applications ■ Security Systems ■ Automatic Test Equipments ■ Telecom Equipments ■ Instrumentation ■ Process Control Systems Dimensions Dimensions in mm (inch) Relay Type Body Type HE3300 L H Transfer Molded 24.13 (.950) 7.00 (.276) 7.40 (.291) External Shield 24.90 (.980) 7.60 (.299) 7.80 (.307) Fig. 1: HE3321A, HE3351A 24.13 (.950) 0.51 (0.020) 0.51 NOM. (0.020) W 3.00 NOM. (.118) 10.16 NOM. (.400) Fig. 2: HE3321C Fig. 3: HE3300 (All) 24.90 (.980) W 0.51 (0.020) 3.00 NOM. (.118) 0.51 NOM. (0.020) 10.16 NOM. (.400) 20.32 NOM. (.800) 20.32 NOM. (.800) 1 2.54 NOM. (.100) H 0.25 NOM. (.010) © 2020 Littelfuse, Inc. Specifications are subject to change without notice. Revised: BA.12/16/20 Reed Relay Datasheet H3300 Miniture Single In-line Reed Relay Table 2 Electrical and Operating Characteristics @ 25°C Characteristics Power, Switching Voltage, Switching 2 Current, Switching3 Resistance Timing Environmental Current, Carry Across Open Contacts Contacts to Coil Contact, Initial Insulation Across Open Contacts Insulation Between Isolated Terminals Operate Time Release Time Temperature, Operating Temperature, Storage5 Vibration Resistance Shock Resistance Contact Type Form A SPST-NO High Voltage Relay Types Form C SPST-CO Standard HE3321A HE3351A HE3321C 10 200 140 0.5 0.35 1.2 250 2500 0.150 1010 1010 1.0 1.0 -40 to +85 -40 to +105 20 50 10 300 265 0.5 0.35 1.5 450 2500 0.150 1010 1010 1.0 1.0 -20 to +85 -40 to +105 20 50 5 175 120 0.25 0.18 1.5 200 2500 0.200 1010 1010 3.0 3.0 -40 to +85 -40 to +105 20 50 Watt - max. Vdc - max. Vac - max. Adc - max. Aac - max. Adc - max. Vdc - min. Vac - min. Ω max. Ω min. Ω min. Contact Rating1 Voltage Hold-off4 Form A SPST-NO Standard ms - max. °C °C G - max. 10-2000 Hz. G - max. 11 ms ½ sine Notes: 1. Contact rating - Product of the switching voltage and current should never exceed the wattage rating. Contact Littelfuse for additional load/lofe information. 2. When switching inductive and/or capacitive loads, the effects of transient voltages and/or currents should be considered. Refer to Application Notes AN108A & AN107 for details. 3. Electrical Load Life Expectancy - Contact Littelfuse with voltage current values along with type of load. 4. Breakdown Voltage - Per MIL-STD-202, Method 301. 5. Storage Temperature - Long time exposure at elevated temperature may degrade solderability of the leads. Table 3 Coil Characteristics @ 25°C Contact Form & Type Electrical & Operating Dimensions Characteristics Part Number Nominal Coil Coil Resistance Voltage ±10% Vdc Ohms Must Operate Vdc Must Maximum Release Coil Voltage Vdc Vdc 1A SPST-NO See Table 2 Column 1 See Figure 1 HE3321A0400 HE3321A1200 HE3321A2400 5 12 24 500 500 2000 3.75 9.0 18.0 0.5 1.0 2.0 22 22 44 1C SPDT-CO See Table 2 Column 3 See Figure 2 HE3321C0500 HE3321C1200 HE3321C2400 5 12 24 125 500 2000 3.75 9.0 18.0 0.5 1.0 2.0 11 22 44 1A SPST-NO High Voltage See Table 2 Column 2 See Figure 1 HE3351A0500 HE3351A1200 HE3351A2400 5 12 24 125 500 2000 3.75 9.0 18.0 0.5 1.0 2.0 11 22 44 2 Top View 2.54mm (0.1") Grid Dot on Case: Pin 1 Numbers not printed on case. 1 2 3 1 2 3 1 2 3 4 5 4 4 © 2020 Littelfuse, Inc. Specifications are subject to change without notice. Revised: BA.12/16/20 Reed Relay Datasheet H3300 Miniture Single In-line Reed Relay HE3300 PCB Layout (Bottom View) HE3321A HE3351A Part Numbering System HE33XX - X - XX - XX HE3321C 0.80 Hole Ø(.032) Model Number HE3321 - Standard HE3351 - High Voltage 5.08 TYP (.200) 10.16 (.400) Contact Type A - Form A (SPST-NO) C - Form C (SPDT-CO) 20.32 (.800) 2.54 (.100) Standard Coil 04 - 5 Volt 12 - 12 Volt 24 - 24 Volt General Options 00 - No Options 40 - External Magnetic Shield Note: Not all combinations of Part Number suffixes are available. Contact Littelfuse for details. Packaging Packaging Option Bulk Packaging Specification Bulk Quantity Quantity & Packaging Code 500 N/A Taping Width N/A Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at http://www.littelfuse.com/disclaimer-electronics. 3 © 2020 Littelfuse, Inc. Specifications are subject to change without notice. Revised: BA.12/16/20
