High Sensitivity Low Power TMR Switch
Position Sensing > LF32115TMR
TMR Unipolar Switch 17 Gauss 200nA Open Drain Sensor
Description
The LF32115TMR TMR Switch is a digital unipolar magnetic switch that
integrates TMR and CMOS technology in order to provide a magnetically
triggered digital switch with high sensitivity, high speed, and low power
consumption.
It contains a TMR magnetic sensor and CMOS signal processing circuitry within
the same package, including an on-chip TMR voltage generator for precise
magnetic sensing, a TMR voltage amplifier and comparator plus a Schmitt
trigger to provide switching hysteresis for noise rejection, CMOS open drain
output and X axis sensing direction.
Functional Block Diagram
Vcc
Power regulator
with temperature
compensation
Osc and
Duty Control
Logic
Vout
TMR
Sensor
Offset
cancellation
An internal band gap regulator is used to provide a temperature compensated
supply voltage for internal circuits, permitting a wide range of supply voltages.
It draws only 200nA (see Features below) resulting in low power operation,
additionally it has fast response, accurate switching points, excellent thermal

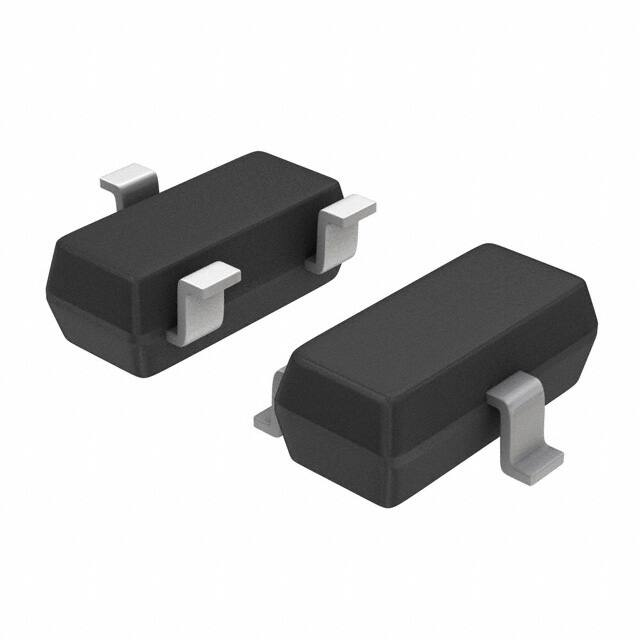

stability, and immunity to stray field interference. It is available in the SOT23-3
package. The output of the LF32115TMR switches low (turns on) when the
magnetic field parallel to the sensing axis exceeds the operate point threshold,
BOP. When the magnetic field is reduced below the release point BRP device
output switches high (turns off). The difference between the BOP and the BRP is
the hysteresis BH of the device.
Driver
Features
GND
GND
TMR Switch Typical Applications Circuit
• Tunneling Magnetoresistance (TMR)
Technology
• Low Power Consumption at 200nA
• X axis sensing direction
• High Frequency up to 50Hz
• Operation with North or South Pole
• 1.8V to 5.5V Operating Range
Benefits
• Low Switching Points for High
Sensitivity
• Excellent Thermal Stability
Vcc
1K
Vcc
TMR Out
0.1µF
Out
GND
GND
Note: It is strongly recommended that an external bypass capacitor be connected in-closeproximity to the device between the supply and ground pins to reduce noise. The recommended
value for the external bypass capacitor is 0.1μF.
• High Tolerance to External Magnetic
Field Interference
Applications
• Proximity Switches
• Utility Meters including Gas, Water
and Heat Meters
• Speed Sensing
• Ultra low power applications
• Rotary and Linear Position sensing
Output Behavior Versus Magnetic Pole
Parameter
South Pole
Test Conditions
Output (volts)
B > BOPS
Low (On)
0 < B < BRPS
High (Off)
Note:
1. When power is turned on under zero magnetic field, the output is “High”.
2. The power-on settling time of the device is 3ms, and the output latches to high level after this
settling time. When a S-pole approaches the pin 1 side, Vout will transition to Low. The correct
state will be obtained after first excursion of the magnetic field beyond BOP or BRP.
3. The device circuitry is activated for a short period of time as awake state, and deactivated the
remainder of the period as sleep state. The device in sleep state will retain the output status of
the last sampled state.
© 2019 Littelfuse
Revised: 10/09/19
Specifications are subject to change without notice.
littelfuse.com
High Sensitivity Low Power TMR Switch
Position Sensing > LF32115TMR
Absolute Maximum Ratings (@TA = +25°C, unless otherwise specified)
Symbol
Characteristics
Values
Unit
VCC
Supply Voltage
7.0
V
VRCC
Reverse Supply Voltage
0.3
V
Output Current
20
mA
Magnetic Flux Density
4000
Gauss
ESD level(HBM)
2
kV
TA
Operating Temperature
-40 ~ 125
°C
Tstg
Storage Temperature
-50 ~ 150
°C
IOUTSINK
B
VESD
Note: Stresses greater than the ‘Absolute Maximum Ratings’ specified above may cause permanent damage to the device. These are stress ratings only; functional operation of the device at these or any
other conditions exceeding those indicated in this specification is not implied. Device reliability may be affected by exposure to absolute maximum rating conditions for extended periods of time.
Electrical Characteristics (@TA = +25°C, Vcc = 3.0V)
Symbol
Characteristics
Min.
Typ.
Max.
Unit
Conditions
Supply Voltage
1.8
3
5.5
V
Operating
Output Stress Voltage
5.5
V
Ileak (average)
Output leak current
1
μA
Output = High,Vcc = 3V,
Vout = 3V
VOH
Output High Voltage
V
Pull-up Resistance = 1Kohm
Roff
Output turn-off Resistance
MΩ
Output = High
Ron
Output turn-on Resistance
10
Ω
Output = Low
VOL
Output Low Voltage
0.1
V
Output = Low, Vcc = 3V,
Isink = 3mA
ICC
Supply Current
200
nA
Output Open
Response Frequency
50
Hz
VCC
Vstress
Freq
Vcc -0.2
10
Magnetic Characteristics (@TA = +25°C, Vcc = 3.0V)
Symbol
Characteristics
Min.
Typ.
Max.
Unit
BOP
Operation Point
9
17
25
Gauss
BRP
Release Point
5
13
20
Gauss
BH
Hysteresis
--
4
--
Gauss
© 2019 Littelfuse
Revised: 10/09/19
Specifications are subject to change without notice.
littelfuse.com
High Sensitivity Low Power TMR Switch
Position Sensing > LF32115TMR
Pin Configuration and Sensing Direction of Magnetic Field
VOUT
VOH
SOT23-3
GND
3
Part Marking Code
BH
DxxxY
VOL
1
2
Vcc
VOUT
N Pole
0
BRP
BOP
+B
S Pole
Part Marking Code:
Cxxxy: C = LF32115TMR; xxx = Julian manufactured date; y = manufactured year
Moisture Sensitivity Level: Rating is 3
Pick and Place Nozzle: Samsung CN140 or equivalent
Pin Name
Pin No. SOT23-3
Pin Function
VOUT
2
Output
GND
3
Ground
VCC
1
Supply Voltage
Part Numbering System
LF - X - X - X - X - X TMR
Littelfuse Brand
Switch Type
Type 1 = Bipolar
2 = Omnipolar
3 = Unipolar
Output
1 = PushPull
2 = Open Drain
Quiescent Current
1 = 200nA
2 = 1.5uA
3 = 0.6mA
Example: LF32115TMR is an Omnipolar, PushPull, 1.5uA, X axis, 17 Gauss
Note: Every combination is NOT offered. Contact Littelfuse for availability.
© 2019 Littelfuse
Revised: 10/09/19
Specifications are subject to change without notice.
Tunneling
Magnetoresistance
Technology Switch
Sensitivity Gauss
1 = 5 Gauss
2 = 7 Gauss
3 = 10 Gauss
4 = 14 Gauss
5 = 17 Gauss
Sensing Axis
1 = X axis
2 = Y axis
3 = Z axis
littelfuse.com
High Sensitivity Low Power TMR Switch
Position Sensing > LF32115TMR
Soldering Profile for Lead-free packages
Tape and Reel
ØA
178±2
ØN
ØB
C
W1
W2
W3
54±2
13.2±0.3
2.2±0.3
8.4±1.5/0.0
12 MAX
1.4±0.4
© 2019 Littelfuse
Revised: 10/09/19
Specifications are subject to change without notice.
littelfuse.com
High Sensitivity Low Power TMR Switch
Position Sensing > LF32115TMR
SOT23-3 Package Information
Symbol
Dimensions in Millimeters
Min
Dimensions in Inches
Nom
Max
Min
Nom
Max
-
-
1.45
-
-
0.057
A1
0.00
-
0.15
0.000
-
0.006
A2
0.90
1.10
1.30
0.035
0.043
0.051
A3
0.60
b
0.39
0.65
0.70
0.024
0.026
0.028
-
0.49
0.015
-
0.019
c
0.12
-
0.19
0.005
-
0.007
D
2.85
2.95
3.05
0.112
0.116
0.120
E
2.60
2.80
3.00
0.102
0.110
0.118
E1
1.55
1.65
1.75
0.061
0.065
0.069
e
0.85
0.95
1.05
0.033
0.037
0.041
e1
1.80
1.90
2.00
0.071
0.075
0.079
L
0.35
0.45
0.60
0.014
0.018
0.024
A
L1
0.59REF
L2
0.25BSC
Ø
0
0
© 2019 Littelfuse
Revised: 10/09/19
Specifications are subject to change without notice.
-
0.023REF
0.01BSC
8
0
0
0
-
80
littelfuse.com
High Sensitivity Low Power TMR Switch
Position Sensing > LF32115TMR
TMR Sensor Position (SOT23-3 Elements)
