GEN2 SiC Schottky Diode
LSIC2SD065A08A, 650V, 8A, TO-220-2L
LSIC2SD065A08A 650 V, 8 A SiC Schottky Barrier Diode
RoHS
Pb
Description
This series of silicon carbide (SiC) Schottky diodes has negligible reverse recovery current, high surge capability, and a
maximum operating junction temperature of 175 °C. These
diodes series are ideal for applications where improvements in efficiency, reliability, and thermal management are
desired.
Features
• AEC-Q101 qualified
• Excellent surge capability
• P
ositive temperature
coefficient for safe
operation and ease of
paralleling
• E
xtremely fast,
temperature-independent
switching behavior
• 1
75 °C maximum
operating junction
temperature

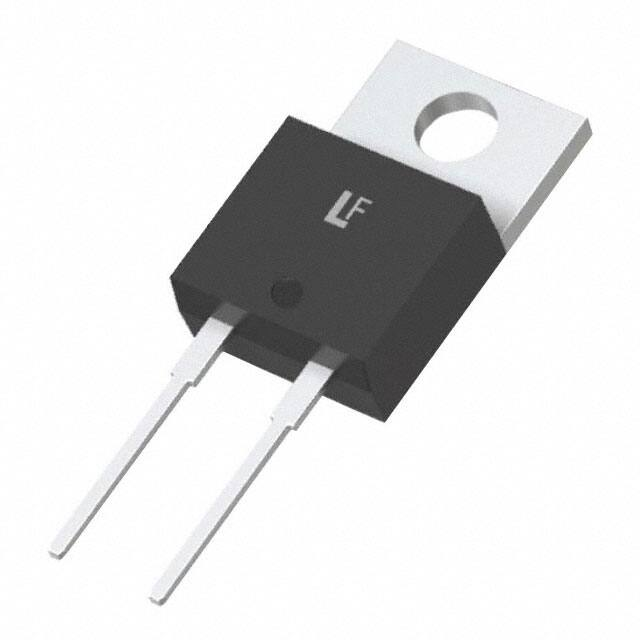

*Image for reference only, for details refer to Dimensions-Package.
Circuit Diagram TO-220-2L
• D
ramatically reduced
switching losses
compared to Si bipolar
diodes
Applications
• B
oost diodes in PFC or
DC/DC stages
Case
Case
• S
witch-mode power
supplies
• Solar inverters
• Industrial motor drives
• EV charging stations
• U
ninterruptible power
supplies
Environmental
1
1
2
• L
ittelfuse “RoHS” logo = RoHS
RoHS conform
2
• L
ittelfuse “HF” logo =
Halogen Free
• L
ittelfuse “Pb-free” logo
= Pb-free lead plating
Pb
Maximum Ratings
Characteristics
Repetitive Peak Reverse Voltage
DC Blocking Voltage
Continuous Forward Current
Non-Repetitive Forward Surge Current
Power Dissipation
Operating Junction Temperature
Symbol
Conditions
Value
Unit
VRRM
-
650
V
VR
TJ = 25 °C
650
V
TC = 25 °C
23
TC = 135 °C
10.7
TC = 150 °C
8
TC = 25 °C, TP = 10 ms, Half sine pulse
40
TC = 25 °C
88
TC = 110 °C
38
IF
IFSM
PTot
A
A
W
TJ
-
-55 to 175
Storage Temperature
TSTG
-
-55 to 150
°C
°C
Soldering Temperature
TSOLD
-
260
°C
© 2020 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/16/20
GEN2 SiC Schottky Diode
LSIC2SD065A08A, 650V, 8A, TO-220-2L
Electrical Characteristics (TJ =25 °C unless otherwise specified)
Characteristics
Symbol
Forward Voltage
VF
Reverse Current
IR
Total Capacitance
C
Total Capacitive Charge
Value
Conditions
QC
Min.
Typ.
Max.
IF = 8 A, TJ = 25 °C
-
1.5
1.8
IF = 8 A, TJ = 175 °C
-
1.85
-
VR = 650 V , TJ = 25 °C
-
