LSIC2SD065C08A

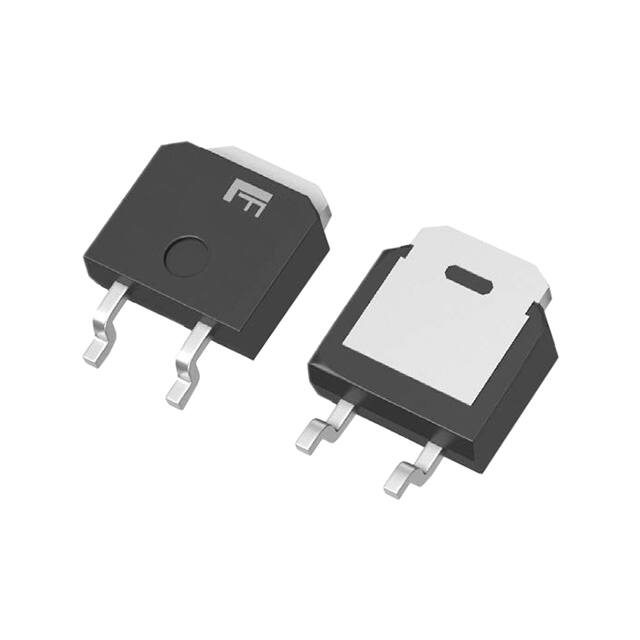

GEN2 SiC Schottky Diode LSIC2SD065C08A, 650 V, 8 A, TO-252-2L (DPAK) LSIC2SD065C08A 650 V, 8 A SiC Schottky Barrier Diode RoHS Pb Description SiC This series of silicon carbide (SiC) Schottky diodes has reverse recovery current, high surge capability, Schottkynegligible Diode and a maximum operating junction temperature of 175 °C. These diodes series are ideal for applications where improvements in efficiency, reliability, and thermal management are desired. Features • AEC-Q101 qualified • Excellent surge capability • P  ositive temperature coefficient for safe operation and ease of paralleling • E  xtremely fast, temperature-independent switching behavior • 1  75 °C maximum operating junction temperature Circuit Diagram TO-252-2L (DPAK) Applications • B  oost diodes in PFC or DC/DC stages Case Case • D  ramatically reduced switching losses compared to Si bipolar diodes • S  witch-mode power supplies • Solar inverters • Industrial motor drives • EV charging stations • U  ninterruptible power supplies Environmental 1 2 1 • L  ittelfuse “RoHS” logo = RoHS conform 2 RoHS • L  ittelfuse “HF” logo = Halogen Free • L  ittelfuse “Pb-free” logo = Pb Pb-free lead plating Maximum Ratings Characteristics Symbol Conditions Value Unit VRRM - 650 V DC Blocking Voltage VR TJ = 25 °C 650 V TC = 25 °C 23 Continuous Forward Current IF TC = 135 °C 10.7 Repetitive Peak Reverse Voltage Non-Repetitive Forward Surge Current IFSM TC = 150 °C 8 TC = 25 °C, TP = 10 ms, Half sine pulse 40 TC = 25 °C 88 TC = 110 °C 38 A A Power Dissipation PTot W Operating Junction Temperature TJ - -55 to 175 °C Storage Temperature TSTG - -55 to 150 °C Soldering Temperature (reflow MSL1) Tsold - 260 °C © 2018 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 01/07/19 GEN2 SiC Schottky Diode LSIC2SD065C08A, 650 V, 8 A, TO-252-2L (DPAK) Electrical Characteristics Characteristics SiCConditions Schottky Diode Symbol Forward Voltage VF Reverse Current IR Total Capacitance Value Min. Typ. Max. IF = 8 A, TJ = 25 °C - 1.5 1.8 IF = 8 A, TJ = 175 °C - 1.85 - VR = 650 V , TJ = 25 °C -
