LSIC2SD170B10
Silicon Carbide Schottky Diode Datasheet
LSIC2SD170B10

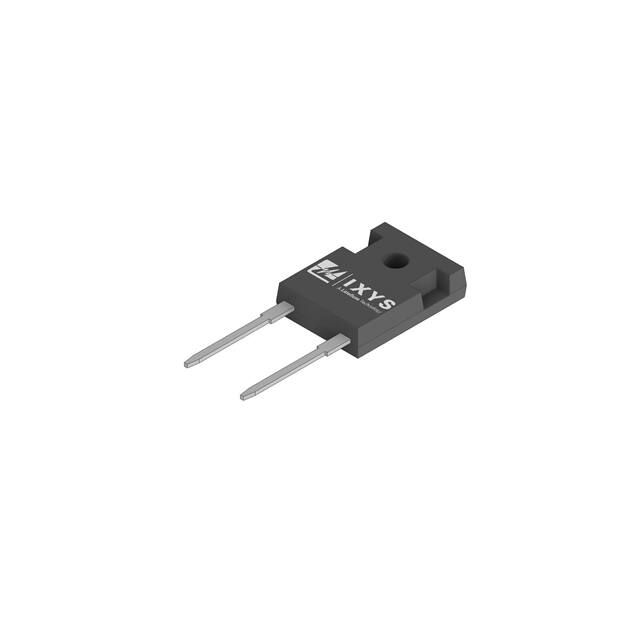

1700 V, 10 A SiC Schottky Barrier Diode
Product Summary
Characteristic
Value
VRRM
Unit
1700
V
35 °C)
15
A
QC (VR: 0-800 V)
74
nC
IF (TC
Features
• Positive temperature coefficient for safe
operation and ease of paralleling
• 175 °C maximum operating junction temperature
• Excellent surge capability
• Extremely fast, temperature-independent
switching behavior
• Dramatically reduced switching losses compared
to Si bipolar diodes
• Zero reverse recovery current
Agency Approvals and Environmental
Environmental Approvals
Applications
Pinout Diagram
• Boost diodes in PFC or DC/DC stages
• Switch-mode power supplies
• Solar inverters
• Uninterruptable power supplies
• Industrial motor drives
• Battery chargers
• High speed rectifier
1
Specifications are subject to change without notice.
Read complete Disclaimer Notice at www.littelfuse.com/disclaimer-electronics.
© 2020 Littelfuse, Inc.
Revised: 8/24/2020
LSIC2SD170B10
Silicon Carbide Schottky Diode Datasheet
1. Maximum Ratings ...........................................................................................................................................3
2. Thermal Characteristics ..................................................................................................................................3
3. Electrical Characteristics .................................................................................................................................3
4. Performance Curves .......................................................................................................................................4
5. VF Model for Simulation ..................................................................................................................................5
6. Package Dimensions ......................................................................................................................................6
7. Part Numbering and Marking ..........................................................................................................................7
8. Packing Options ..............................................................................................................................................7
9. Packing Specifications ....................................................................................................................................7
2
Specifications are subject to change without notice.
Read complete Disclaimer Notice at www.littelfuse.com/disclaimer-electronics.
© 2020 Littelfuse, Inc.
Revised: 8/24/2020
LSIC2SD170B10
Silicon Carbide Schottky Diode Datasheet
1. Maximum Ratings
Characteristic
Symbol
Conditions
Value
Unit
VRRM
-
1700
V
VR
-
1700
V
TC = 25 °C
31
TC = 135 °C
15
TC = 155 °C
10
TC = 25 °C, tp = 10 ms, Half sine pulse
72
A
TC = 25 °C, tp = 10 ms, Half sine pulse
26
A2s
TC = 25 °C
176
TC = 110 °C
76
Repetitive Peak Reverse Voltage
DC Blocking Voltage
Continuous Forward Current
IF
Non-repetitive Forward Surge Current
IFSM
I2t
I2dt
Power Dissipation
PTot
Operating Junction Temperature
A
W
TJ
-
-55 to 175
°C
Storage Temperature
TSTG
-
-55 to 150
°C
Mounting Torque
MD
M3 or 6-32 screw
0.6
Nm
2. Thermal Characteristics
Characteristic
Symbol
Value
Unit
RthJC, max
0.85
°C/W
Thermal Resistance
3. Electrical Characteristics
Characteristic
Forward Voltage
Symbol
VF
Reverse Current
IR
Total Capacitance
C
Total Capacitive Charge
QC
Capacitive Stored Energy
EC
Value
Conditions
Min
Typ
Max
IF = 10 A, TC = 25 °C
-
1.5
1.8
IF = 10 A, TC = 175 °C
-
2.2
-
VR = 1700 V, TC = 25 °C
-
