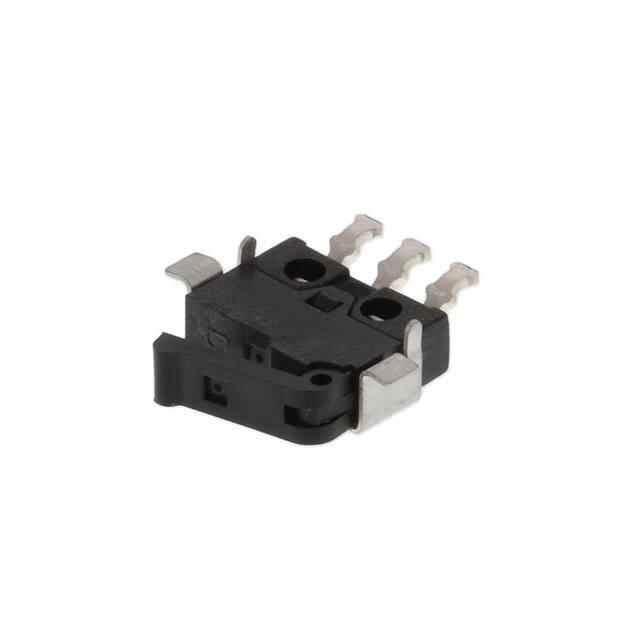

MDS6500AL02CL

MDS Series Mini Size Snap-acting Switches Features/Benefits • Snap-acting tactile feel • Mini package size • Available in vertical or Typical Applications • Detect the presence of a mechanical device • Medical devices • Consumer electronic right angle PCB mount devices • RoHS compliant and • ATCA applications compatible Specifications Materials CONTACT RATING: 300mA @ 30 VDC. BASE: PA9T MECHANICAL & ELECTRICAL LIFE: 30,000 operations. COVER & ACTUATOR: PA9T CONTACT RESISTANCE: 100 m Ω max. inital MOVABLE CONTACT: Copper alloy, silver plated. OPERATING TEMPERATURE: –25ºC to +70ºC. STATIONARY CONTACTS: Copper alloy, silver plated. SOLDERABILITY: According to lead free solder profiles. TERMINALS: Copper alloy, silver plated. PACKAGING: Available in bulk or tape and reel. NOTE: MDS series is RoHS compliant, and compatible. See technical data section of this catalog for RoHS compliant and compatible definitions and specifications. OPERATING FORCE: 50g Max. RELEASE FORCE: 3g Min. NOTE: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center. To order, simply select desired option from each category and place in the appropriate box. For additional options not shown in catalog, consult Customer Service Center. M D S Series MDS SPDT Operating Force 65 50 grams Electrical Rating 00A 300mA @ 30 VDC Actuator L02 Standard lever L03 Higher OP lever Termination Style PS PC Thru-hole, Short PL PC Thru-hole, Long RS PC Thru-hole, Short, Right bend RL PC Thru-hole, Long, Right bend LS PC Thru-hole, Short, Left bend LL PC Thru-hole, Long, Left bend SL SMT, Left SR SMT, Right SV SMT, Vertical CL SMT, Left bracket with pins CR SMT, Right bracket with pins BL SMT, Left bracket no pins BR SMT, Right bracket no pins WC Wire lead, 6 inches Dimensions are shown: mm Specifications and dimensions subject to change 27 Sep 19 J–81 www.ckswitches.com Snap-acting Build-A-Switch J MDS Series Mini Size Snap-acting Switches SERIES 7 2,4 1,3 L02 LEVER 7 40° 1 (COMMON) R0,6 7 1,6 3 NO SCHEMATIC SPDT L03 LEVER "C" 2 NC "D" RECOMMENDED DIRECTION OF CAM ENGAGEMENT "A" "B" OPERATING CHARACTERISTICS LEVER L02 OPERATING POSITION FREE POSITION PRETRAVEL OVER TRAVEL CONTACT RATING OPERATING FORCE 1,6 4 2X 2,7 1,6 8,2 J DIM 'A' DIM 'B' DIM 'C' DIM 'D' 6.7 0.5 8 MAX 1,8 MAX 0.3 MIN 0.3A @ 30 VDC 50 GRAMS F. MAX LEVER L03 7.0 +/-0.5 8.5 MAX 1.8 MAX 0.3 MIN 0.3A @ 30VDC 50 GRAMS F. MAX Snap-acting OPERATING FORCE OPTION CODE OPERATING FORCE 65 50 grams max. ELECTRICAL RATING OPTION CODE ELECTRICAL RATING 00A 300mA @ 30 V DC ACTUATOR L03  HIGHER OP LEVER L02  STANDARD LEVER 2,4 7 2,4 7 1,6 1,3 L03 LEVER L02 LEVER Third Angle Projection Dimensions are shown: mm Specifications and dimensions subject to change 27 Sep 19 J–82 www.ckswitches.com MDS Series Mini Size Snap-acting Switches TERMINATIONS PCB Mounting Pattern   1,5 0,08 TYP 2,5±0,08 2,5±0,08 PCB MOUNTING PL  PC THRU-HOLE, LONG STRAIGHT PS  PC THRU-HOLE, SHORT STRAIGHT COM NO NC 3X 3,1 COM NO NC 3X 2,86 1,3 0,15 TYP 3X 1,5 2,86 3X 1,5 3X 5,3 3X 0,5 1,3 0,15 TYP 0,8 TYP 2,5 TYP 2X 2,5 TYP 3X 0,5 J 3X 1,25 3X 1,5 Snap-acting RL  PC THRU-HOLE, LONG RIGHT BEND RS  PC THRU-HOLE, SHORT RIGHT BEND 3X 0,5 COM NO NC 2,5 TYP 3X 3,1 0,38 3X 0,5 COM NO NC 1,3 TYP 0,8 TYP 2,5 TYP 3X 1,5 1,36 1,25 3X 1,5 0,38 1,3 TYP 0,8 TYP LL  PC THRU-HOLE, LONG LEFT BEND LS  PC THRU-HOLE, SHORT LEFT BEND 3X 1,25 3X 0,5 3X 1,5 0,2 NC 3X 1,5 0,2 NC NO COM 1,3 TYP 0,8 TYP 2,5 TYP 3X 0,5 1,36 COM 1,3 TYP 0,8 TYP 2,5 TYP NO 0,2 3X 3,1 0,38 1,25 3X 1 0,38 Dimensions are shown: mm Specifications and dimensions subject to change 27 Sep 19 J–83 www.ckswitches.com MDS Series Mini Size Snap-acting Switches TERMINATIONS SL  SMT, LEFT MOUNT SR  SMT, RIGHT MOUNT 3X 1,5 3X 2,7 3X 0,4 1,3 TYP 3X 0,8 2,5 3X 0,4 3X 2,7 1,3 TYP 3X 0,5 3X 2,7 3X 2,7 2,5 TYP SMT Mounting Pattern 0.070 (1,8) TYP 0.060 (1,5) TYP 0.098 (2,5) 3X 0,5 3X 0,8 SMT Mounting Pattern 0.070 (1,8) TYP 3X 1,5 0.060 (1,5) TYP TYP 0.098 (2,5) TYP 3X 1,5 1,6 REF SV  SMT, VERTICAL 90 5 COPLANAR TO 0.1mm 3X 0,5 3,1 0,38 3X 2,5 TYP 3,5 3X 2,7 3X 1,25 3X 2,7 3X 1,36 2,5 TYP 3X 1,3 3X 0,8 5 CL  SMT, LEFT BRACKET WITH PINS 11,63 10° 8,7 TO CENTER OF POSTS 0,25 9,2 3,08 OPERATING POS. FROM CENTER OF POST 5,7 ± 0,6 L02 Lever 6,0 ± 0,6 L03 Lever 2X 2,05 8,2 3X 1,3 3X 0,8 TYP 2,5 TYP 2 3,3 8,22 3X 2,7 12 2X 0,85 0,25 2X 1,66 2X 1,78 TYP 2X 0,9 0,05 HOLE 2X 0,76 3X 0,5 3X 2,7 0,05 8,7 2X 1,8 2,5 3X 1,5 2,5 4,6 Dimensions are shown: mm Specifications and dimensions subject to change 27 Sep 19 J–84 www.ckswitches.com MDS Series Mini Size Snap-acting Switches TERMINATIONS CR  SMT, RIGHT BRACKET WITH PINS 11,63 8,7 TO CENTER OF POSTS 10° 0,25 9,2 2X 0,85 3,08 2X1,78 TYP 0,25 2X 1,66 OPERATING POS. FROM CENTER OF POST 5,7 ± 0,6 L02 Lever 6,0 ± 0,6 L03 Lever 2X 2,05 2 3,3 8,22 2,7 12 2X 0,76 0,05 8,2 3X 1,3 2X 0,9 0,05 HOLE 8,7 2X 1,8 3X 0,5 3X 1,5 2,5 2,5 3X 0,8 4,6 3X 2,7 2,5 TYP J Snap-acting BL  SMT, LEFT BRACKET NO PINS 2X 10° 11,65 0,25 9,2 3,08 OPERATING POS. TO CENTER OF SMT PAD 3,45 ± 0,6 L02 Lever 3,75 ± 0,6 L03 Lever 8,2 2X 1,66 6,6 3X 1,8 8,22 OF PADS 12 2X 2,05 2X 1,33 3X 2,7 3X 1,5 3X 0,5 TYP 1,3 TYP 0,8 TYP 2,5 TYP 3X 2,7 TYP 2,5 2,5 Dimensions are shown: mm Specifications and dimensions subject to change 27 Sep 19 J–85 www.ckswitches.com MDS Series Mini Size Snap-acting Switches TERMINATIONS BR  SMT, RIGHT BRACKET NO PINS 11,65 10° 0,25 9,2 3,08 2X 1,66 6,6 3X 1,8 OF PADS 8,22 12 2X 2,05 OPERATING POS. TO CENTER OF SMT PAD 3,45 ± 0,6 L02 Lever 3,75 ± 0,6 L03 Lever 2X 1,33 8,2 3X 2,7 1,3 TYP 0,8 TYP 2,5 TYP 3X 1,5 3X 0,5 3X 2,7 2,5 2,5 Snap-acting J WC  WIRE LEAD, 6 INCHES 152,4 2,7 9,53 SHRINK TUBING NC NO COM 26 AWG UL 1007 WIRE 12,7 Dimensions Dimensions are shown: Inch are shown: mm (mm) Specifications Specifications and dimensions and dimensions subject subject to change to change 27 Sep 19 J–86J–86 www.ckswitches.com www.ckswitches.com MDS Series Mini Size Snap-acting Switches TAPE AND REEL SL  SMT, LEFT MOUNT SR  SMT, RIGHT MOUNT 2 0,1 TYP 1,75 A 0,35 1,5 TYP 4 0,1 TYP 3 11,5 B 24 B 8,6 6,7 12 0,1 TYP A MDS6500AL02SL shown 9,8 13,1 SECTION A-A 5° PULLING-OUT DIRECTION OF THE TAPE SECTION B-B CL  SMT, LEFT MOUNT CR  SMT, RIGHT MOUNT BL  SMT, LEFT MOUNT BR  SMT, RIGHT MOUNT 1,75 2 0,1 TYP 4 0,1 TYP A 0,35 J 4,25 11,5 1,5 24 Snap-acting Snap-acting J 1,5 TYP 13 5,25 MDS6500AL02CL shown 1 16 0,1 TYP A 12 8,6 6,7 SECTION A-A 5° SECTION B-B PULLING-OUT DIRECTION OF THE TAPE SV  SMT, VERTICAL MOUNT 1.5 TYP 2 TYP 4 TYP 8.5 TYP 6 TYP 12 TYP 50 3.5 TYP 10.1 TYP PULLING-OUT DIRECTION OF THE TAPE Supplied in carrier tape meeting the EIA-481-2 standard for 24mm tape. Packaging quantity: SL and SR: 1,600 pieces per reel CL, CR, BL and BR: 1,000 pieces per reel SV: 400 pieces per reel WC: consult factory 27 Sep 19 Dimensions Dimensions areare shown: Inches shown: mm (mm) Specifications Specifications and dimensions and dimensions subject subject to change to change J–87J–87 www.ckswitches.com www.ckswitches.com
