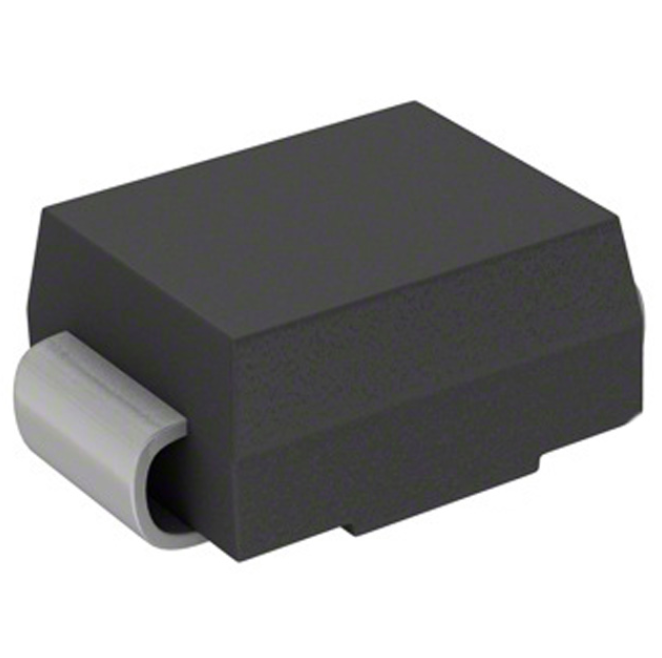

P3500SCLRP

SIDACtor ® Protection Thyristors Baseband Protection (Voice-DS1) SIDACtor® Protection Thyristor Series - DO-214 RoHS Pb e3 Description Series DO-214AA are designed to protect baseband equipment such as modems, line cards, CPE and DSL from damaging overvoltage transients. The series provides a surface mount solution that enables equipment to comply with global regulatory standards. Features and Benefits • Low voltage overshoot • Fails short circuit when surged in excess of ratings • Low on-state voltage • Does not degrade surge capability after multiple surge events within limit. Agency Approvals AGENCY AGENCY FILE NUMBER E133083 • 2nd level interconnect is Pb-free per IPC/JEDEC J-STD-609A.01 • RoHS compliant, leadfree and halogen-free. • Low capacitance Pinout Designation Applicable Global Standards Not Applicable Schematic Symbol • TIA-968-A • GR 1089 Intra-building • TIA-968-B • IEC 61000-4-5 2nd edition • ITU K.20/21/45 Enhanced Level* • ITU K.20/21/45 Basic Level • YD/T 1082 • YD/T 993 • YD/T 950 • GR 1089 Inter-building* *A/B-rated parts require series resistance Electrical Characteristics Part Number Marking VDRM @lDRM=5µA VS @100V/µs IH IS IT P0080SALRP P0220SALRP P0300SALRP P0640SALRP P0720SALRP P0900SALRP P1100SALRP P1300SALRP P1500SALRP P1800SALRP P2100SALRP P2300SALRP P2600SALRP P3100SALRP P3500SALRP P0080SBLRP P0220SBLRP P0300SBLRP P0640SBLRP P0720SBLRP P-8A P22A P03A P06A P07A P09A P11A P13A P15A P18A P21A P23A P26A P31A P35A P-8B P22B P03B P06B P07B V min 6 15 25 58 65 75 90 120 140 170 180 190 220 275 320 6 15 25 58 65 V max 25 32 40 77 88 98 130 160 180 220 240 260 300 350 400 25 32 40 77 88 mA min 50 50 50 150 150 150 150 150 150 150 150 150 150 150 150 50 50 50 150 150 mA max 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 A max 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 VT @IT=2.2 Amps Capacitance @1MHz, 2V bias V max pF min pF max 4 20 35 4 20 40 4 15 40 4 15 40 4 15 40 4 15 40 4 15 40 4 15 40 4 15 40 4 15 35 4 15 35 4 15 35 4 15 35 4 15 35 4 15 35 4 20 50 4 20 50 4 15 50 4 20 50 4 20 50 Table continues on next page. © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 02/23/17 SIDACtor ® Protection Thyristors Baseband Protection (Voice-DS1) Electrical Parameters (continued) Part Number Marking VDRM @lDRM=5µA VS @100V/µs IH IS IT VT @IT=2.2 Amps P09B P11B P13B P15B P18B P21B P23B P26B P31B P35B P45B P-8C P22C P03C P06C P07C P09C P11C P13C P15C P18C P21C P23C P26C P31C P35C P45C P45L V min 75 90 120 140 170 180 190 220 275 320 400 6 15 25 58 65 75 90 120 140 170 180 190 220 275 320 400 400 V max 98 130 160 180 220 240 260 300 350 400 530 25 32 40 77 88 98 130 160 180 220 240 260 300 350 400 530 530 mA min 150 150 150 150 150 150 150 150 150 150 150 50 50 50 150 150 150 150 150 150 150 150 150 150 150 150 150 50 mA max 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 800 A max 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 2.2 V max 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 P0900SBLRP P1100SBLRP P1300SBLRP P1500SBLRP P1800SBLRP P2100SBLRP P2300SBLRP P2600SBLRP P3100SBLRP P3500SBLRP P4500SBLRP P0080SCLRP P0220SCLRP P0300SCLRP P0640SCLRP P0720SCLRP P0900SCLRP P1100SCLRP P1300SCLRP P1500SCLRP P1800SCLRP P2100SCLRP P2300SCLRP P2600SCLRP P3100SCLRP P3500SCLRP P4500SCLRP P4500SCLHLRP* Capacitance @1MHz, 2V bias pF min 20 20 20 20 20 20 20 20 20 20 20 25 25 20 45 45 45 45 40 25 25 25 25 30 30 25 25 20 pF max 50 50 50 50 50 35 50 35 35 35 50 70 70 50 100 100 100 90 85 70 70 70 70 70 70 65 65 50 Notes: - Absolute maximum ratings measured at TA= 25ºC (unless otherwise noted). - Components are bi-directional. - * P4500SCLHLRP is low IH product Series Surge Ratings IPP 0.2/310 1 0.5/700 2 2/10 1 2/10 2 8/20 1 1.2/50 2 10/160 1 10/160 2 10/560 1 10/560 2 5/320 1 9/720 2 10/360 1 10/360 2 10/1000 1 10/1000 2 5/310 1 10/700 2 ITSM 50/60 Hz di/dt A min A min A min A min A min A min A min A min A min A min Amps/µs max A 20 150 150 90 50 75 75 45 75 25 500 B 25 250 250 150 100 100 125 80 100 30 500 C 50 500 400 200 150 200 175 100 200 35 500 Notes: 3 - Peak pulse current rating (IPP) is repetitive and guaranteed for the life of the product. - IPP ratings applicable over temperature range of -40ºC to +85ºC 1 Current waveform in µs - The component must initially be in thermal equilibrium with -40°C < TJ < +150°C 2 Voltage waveform in µs 3 For surge rating of P4500SCLRP 10/700µs min=150A & typical=180A For surge rating of P4500SCLHLRP 10/700µs min=150A © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 02/23/17 SIDACtor ® Protection Thyristors Baseband Protection (Voice-DS1) Thermal Considerations Package Symbol Parameter Value Unit DO-214AA TJ Operating Junction Temperature Range -40 to +150 °C TS Storage Temperature Range -65 to +150 °C R0JA Thermal Resistance: Junction to Ambient 90 °C/W V-I Characteristics tr x td Pulse Waveform IT IS IH IDRM -V +V VT VDRM VS IPP – Peak Pulse Current – %IPP +I 100 Waveform = tr x td 50 Half Value 0 0 -I Normalized VS Change vs. Junction Temperature tr = rise time to peak value td = decay time to half value Peak Value td tr t – Time (µs) Normalized DC Holding Current vs. Case Temperature 2.0 IH 10 8 6 25 °C 4 IH (TC = 25ºC) 12 Ratio of Percent of VS Change – % 14 2 0 -4 -6 1.8 1.6 1.4 1.0 0.8 0.6 0.4 -8 -40 -20 0 20 40 60 80 100 120 140 160 Junction Temperature (TJ) – °C 25°C 1.2 -40 -20 0 20 40 60 80 100 120 140 160 Case Temperature (TC) - ºC Additional Information Datasheet Resources Samples © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 02/23/17 SIDACtor ® Protection Thyristors Baseband Protection (Voice-DS1) Soldering Parameters Pb-Free assembly (see Fig. 1) +150°C +200°C 60-180 secs. - Temperature Min (Ts(min)) Pre Heat - Temperature Max (Ts(max)) - Time (Min to Max) (ts) Average ramp up rate (Liquidus Temp (TL) to peak) 3°C/sec. Max. TS(max) to TL - Ramp-up Rate 3°C/sec. Max. Reflow - Temperature (TL) (Liquidus) +217°C - Temperature (tL) 60-150 secs. Peak Temp (TP) +260(+0/-5)°C Time within 5°C of actual Peak Temp (tp) 30 secs. Max. Ramp-down Rate 6°C/sec. Max. Time 25°C to Peak Temp (TP) 8 min. Max. Do not exceed +260°C Physical Specifications TP tP Critical Zone TL to TP Ramp-up TL TS(max) tL Ramp-down Preheat TS(min) tS 25 time to peak temperature (t 25ºC to peak) Time Environmental Specifications Lead Material Copper Alloy Terminal Finish 100% Matte-Tin Plated UL recognized epoxy meeting flammability classification V-0 Body Material Figure 1 Temperature Reflow Condition Part Numbering High Temp Voltage Blocking 80% Rated VDRM (VAC Peak ) +125°C or +150°C, 504 or 1008 hrs. MIL-STD-750 (Method 1040) JEDEC, JESD22-A-101 Temp Cycling -65°C to +150°C, 15 min. dwell, 10 up to 100 cycles. MIL-STD-750 (Method 1051) EIA/JEDEC, JESD22-A104 Biased Temp & Humidity 52 VDC (+85°C) 85%RH, 504 up to 1008 hrs. EIA/ JEDEC, JESD22-A-101 High Temp Storage +150°C 1008 hrs. MIL-STD-750 (Method 1031) JEDEC, JESD22-A-101 Low Temp Storage -65°C, 1008 hrs. Thermal Shock 0°C to +100°C, 5 min. dwell, 10 sec. transfer, 10 cycles. MIL-STD-750 (Method 1056) JEDEC, JESD22-A-106 Autoclave (Pressure Cooker Test) +121°C, 100%RH, 2atm, 24 up to 168 hrs. EIA/ JEDEC, JESD22-A-102 Resistance to Solder Heat +260°C, 30 secs. MIL-STD-750 (Method 2031) Moisture Sensitivity Level 85%RH, +85°C, 168 hrs., 3 reflow cycles (+260°C Peak). JEDEC-J-STD-020, Level 1 Part Marking P xxx 0 S x L RP TYPE P = SIDACtor MEDIAN VOLTAGE CONSTRUCTION VARIABLE PACKAGE TYPE © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 02/23/17 REEL PACK RoHS COMPLIANT IPP RATING Pxxx xxxxx Part Marking Code (Refer to Electrical Characteristics Table) Date Code SIDACtor ® Protection Thyristors Baseband Protection (Voice-DS1) Dimensions — DO-214AA Pad Outline Case Temperature Measurement Point B D 0.110 (2.8) C A 0.079 (2.0) H E Dimensions 0.079 (2.0) Min Max Min A 0.130 0.156 3.30 Max 3.95 B 0.201 0.220 5.10 5.60 C 0.077 0.087 1.95 2.20 0.159 0.181 4.05 4.60 E 0.030 0.063 0.75 1.60 F 0.075 0.096 1.90 2.45 G 0.002 0.008 0.05 0.20 H 0.077 0.104 1.95 2.65 H- P4500SCLHLRP 0.077 0.096 1.95 2.43 K 0.006 0.016 0.15 0.41 inch (millimeter) G Millimeters D F K Inches Packing Options Package Type S Description Quantity Added Suffix Industry Standard DO-214AA Tape & Reel Pack 2500 RP EIA-481-D Tape and Reel Specification — DO-214AA 0.157 (4.0) 0.472 (12.0) 0.36 (9.2) 0.315 (8.0) 0.059 DIA (1.5) 12.99 (330.0) 0.512 (13.0) Arbor Hole Dia. 0.49 (12.4) Cover tape Dimensions are in inches (and millimeters). Direction of Feed Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at www.littelfuse.com/disclaimer-electronics. © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 02/23/17
