Transient Voltage Suppression Diodes
Surface Mount – 600W > P6SMB series
P6SMB Series
RoHS
Pb e3
Description
The P6SMB series is designed specifically to protect
sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events.
Uni-directional
Features
Bi-directional
Agency Approvals
AGENCY
AGENCY FILE NUMBER
E230531
Maximum Ratings and Thermal Characteristics
(TA=25OC unless otherwise noted)
Symbol
Value
Unit
Peak Pulse Power Dissipation at
TA=25ºC by 10/1000µs Waveform
(Fig.2)(Note 1), (Note 2), (Note 5)
Parameter
PPPM
600
W
Power Dissipation on Infinite Heat
Sink at TL=50OC
PD
5.0
W
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 3)
IFSM
100
A
Maximum Instantaneous Forward
Voltage at 50A for Unidirectional
Only (Note 4)
VF
3.5/5.0
V
Operating Temperature Range
TJ
-65 to 150
°C
Storage Temperature Range
TSTG
-65 to 175
°C
Typical Thermal Resistance Junction
to Lead
RθJL
20
°C/W
Typical Thermal Resistance Junction
to Ambient
RθJA
100
°C/W
Notes:
1. Non-repetitive current pulse , per Fig. 4 and derated above TJ (initial) =25OC per Fig. 3.
2. Mounted on copper pad area of 0.2x0.2” (5.0 x 5.0mm) to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional
device only, duty cycle=4 per minute maximum.
4. VF < 3.5V for single die parts and VF< 5.0V for stacked-die parts.
• 600W peak pulse power
capability at 10/1000μs
waveform, repetition rate
(duty cycles):0.01%
• Excellent clamping
capability
• Low incremental surge
resistance
• Typical IR less than 1μA
when VBR min>12V
• Optimized surface mount
footprint for minimal PCB
space impact
• Low profile package
• Typical failure mode due
to exceeding maximum
ratings is a short circuit
condition
• Whisker test conducted
based on Table 4a and 4c
of JEDEC JESD201A
• IEC 61000-4-2 ESD
30kV(Air), 30kV (Contact)
• EFT protection of data
lines in accordance with
IEC 61000-4-4
• Built-in strain relief
• Fast response time:
typically less than 1.0ps
from 0V to VBR min
• High temperature
to reflow soldering
guaranteed: 260°C/40sec
• VBR @ TJ= VBR@25°C
x (1+αT x (TJ - 25))
(αT:Temperature
Coefficient, typical value
is 0.1%)
• UL Recognized compound
meeting flammability
classification V-0
• Meet MSL level1, per
J-STD-020, LF maximun
peak of 260°C
• Matte tin lead–free plated
• Halogen free and RoHS
compliant
• Pb-free E3 means 2ND level
interconnect is Pb-free
and the terminal finish
material is tin(Sn) (IPC/
JEDEC J-STD-609A.01)
Applications
TVS devices are ideal for the protection of I/O Interfaces,
VCC bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic
applications.
5. The PPPM of stacked-die parts is 800W and please contact littelfuse® for the detail
stacked-die parts.
Functional Diagram
Additional Infomarion
Bi-directional
Cathode
Datasheet
Anode
Uni-directional
© 2018 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/15/18
Resources
Samples
Transient Voltage Suppression Diodes
Surface Mount – 600W > P6SMB series
Electrical Characteristics (T =25°C unless otherwise noted)
A
Reverse
Stand off
Voltage VR
(Volts)
Breakdown
Voltage VBR
(Volts) @ IT
Test
Current
IT
(mA)
Maximum Maximum Maximum
Agency
Clamping
Peak
Reverse
Approval
Voltage VC
Pulse
Leakage IR
@ Ipp
Current Ipp
@ VR
(V)
(A)
(µA)
Part
Number
(Uni)
Part
Number
(Bi)
UNI
BI
P6SMB6.8A
P6SMB6.8CA
6V8A
6V8C
5.80
6.45
7.14
10
10.5
58.1
1000
X
P6SMB7.5A
P6SMB7.5CA
7V5A
7V5C
6.40
7.13
7.88
10
11.3
54.0
500
X
Marking
MIN
MAX
P6SMB8.2A
P6SMB8.2CA
8V2A
8V2C
7.02
7.79
8.61
10
12.1
50.4
200
X
P6SMB9.1A
P6SMB9.1CA
9V1A
9V1C
7.78
8.65
9.55
1
13.4
45.5
50
X
P6SMB10A
P6SMB10CA
10A
10C
8.55
9.50
10.50
1
14.5
42.1
10
X
P6SMB11A
P6SMB11CA
11A
11C
9.40
10.50
11.60
1
15.6
39.1
5
X
P6SMB12A
P6SMB12CA
12A
12C
10.20
11.40
12.60
1
16.7
36.5
5
X
P6SMB13A
P6SMB13CA
13A
13C
11.10
12.40
13.70
1
18.2
33.5
1
X
P6SMB15A
P6SMB15CA
15A
15C
12.80
14.30
15.80
1
21.2
28.8
1
X
P6SMB16A
P6SMB16CA
16A
16C
13.60
15.20
16.80
1
22.5
27.1
1
X
P6SMB18A
P6SMB18CA
18A
18C
15.30
17.10
18.90
1
25.5
24.2
1
X
P6SMB20A
P6SMB20CA
20A
20C
17.10
19.00
21.00
1
27.7
22.0
1
X
P6SMB22A
P6SMB22CA
22A
22C
18.80
20.90
23.10
1
30.6
19.9
1
X
P6SMB24A
P6SMB24CA
24A
24C
20.50
22.80
25.20
1
33.2
18.4
1
X
P6SMB27A
P6SMB27CA
27A
27C
23.10
25.70
28.40
1
37.5
16.3
1
X
P6SMB30A
P6SMB30CA
30A
30C
25.60
28.50
31.50
1
41.4
14.7
1
X

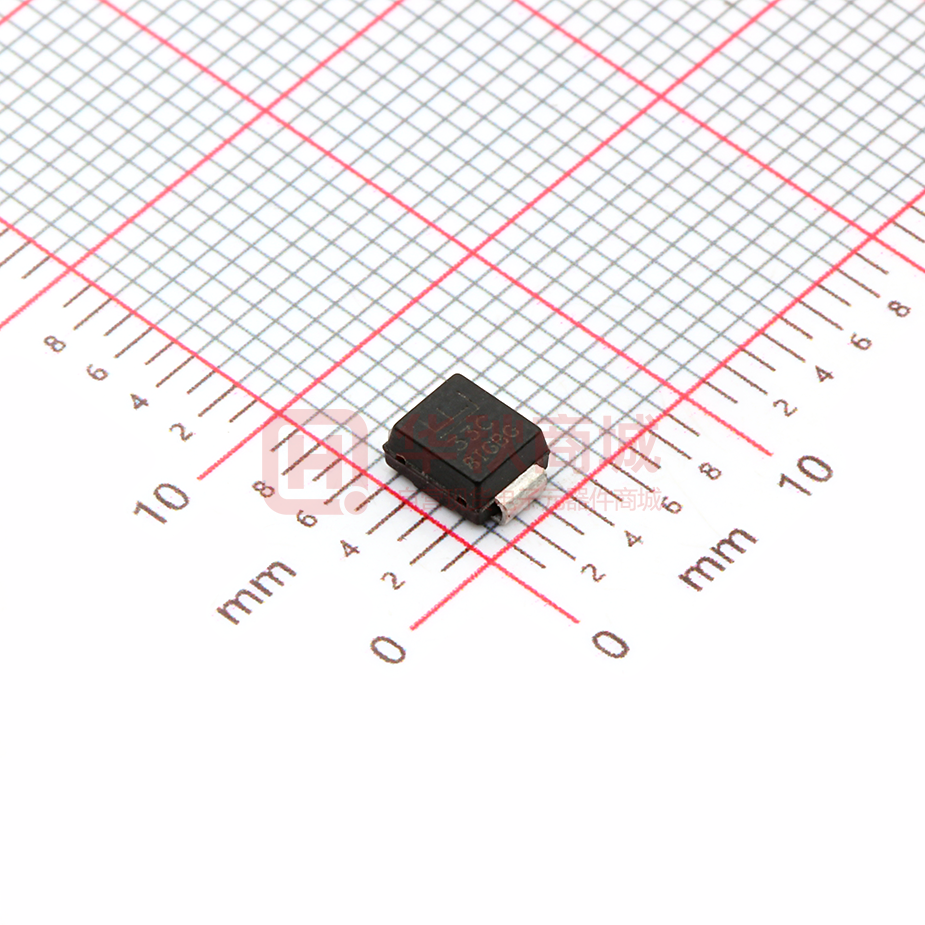

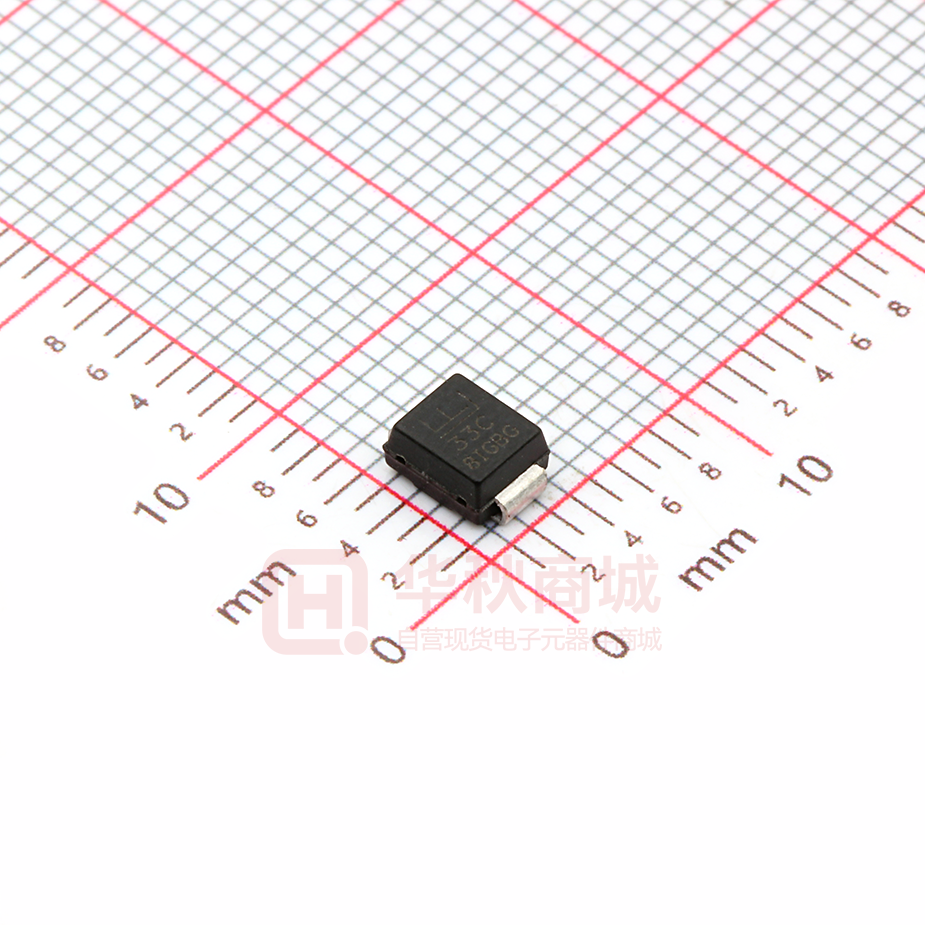

P6SMB33A
P6SMB33CA
33A
33C
28.20
31.40
34.70
1
45.7
13.3
1
X
P6SMB36A
P6SMB36CA
36A
36C
30.80
34.20
37.80
1
49.9
12.2
1
X
P6SMB39A
P6SMB39CA
39A
39C
33.30
37.10
41.00
1
53.9
11.3
1
X
P6SMB43A
P6SMB43CA
43A
43C
36.80
40.90
45.20
1
59.3
10.3
1
X
P6SMB47A
P6SMB47CA
47A
47C
40.20
44.70
49.40
1
64.8
9.4
1
X
P6SMB51A
P6SMB51CA
51A
51C
43.60
48.50
53.60
1
70.1
8.7
1
X
P6SMB56A
P6SMB56CA
56A
56C
47.80
53.20
58.80
1
77.0
7.9
1
X
P6SMB58A
P6SMB58CA
58A
58C
52.78
55.10
60.90
1
79.8
7.7
1
-
P6SMB62A
P6SMB62CA
62A
62C
53.00
58.90
65.10
1
85.0
7.2
1
X
P6SMB68A
P6SMB68CA
68A
68C
58.10
64.60
71.40
1
92.0
6.6
1
X
P6SMB75A
P6SMB75CA
75A
75C
64.10
71.30
78.80
1
103.0
5.9
1
X
P6SMB82A
P6SMB82CA
82A
82C
70.10
77.90
86.10
1
113.0
5.4
1
X
P6SMB91A
P6SMB91CA
91A
91C
77.80
86.50
95.50
1
125.0
4.9
1
X
P6SMB100A
P6SMB100CA
100A
100C
85.50
95.00
105.00
1
137.0
4.5
1
X
P6SMB110A
P6SMB110CA
110A
110C
94.00
105.00
116.00
1
152.0
4.0
1
X
P6SMB120A
P6SMB120CA
120A
120C
102.00
114.00
126.00
1
165.0
3.7
1
X
P6SMB130A
P6SMB150A
P6SMB130CA
P6SMB150CA
130A
150A
130C
150C
111.00
128.00
124.00
143.00
137.00
158.00
1
1
179.0
207.0
3.4
2.9
1
1
X
X
P6SMB160A
P6SMB160CA
160A
160C
136.00
152.00
168.00
1
219.0
2.8
1
X
P6SMB170A
P6SMB170CA
170A
170C
145.00
162.00
179.00
1
234.0
2.6
1
X
P6SMB180A
P6SMB180CA
180A
180C
154.00
171.00
189.00
1
246.0
2.5
1
X
P6SMB200A
P6SMB200CA
200A
200C
171.00
190.00
210.00
1
274.0
2.2
1
X
P6SMB220A
P6SMB220CA
220A
220C
185.00
209.00
231.00
1
328.0
1.9
1
X
P6SMB250A
P6SMB250CA
250A
250C
214.00
237.00
263.00
1
344.0
1.8
1
X
P6SMB300A
P6SMB300CA
300A
300C
256.00
285.00
315.00
1
414.0
1.5
1
X
P6SMB350A
P6SMB350CA
350A
350C
300.00
332.00
368.00
1
482.0
1.3
1
-
P6SMB400A
P6SMB400CA
400A
400C
342.00
380.00
420.00
1
548.0
1.1
1
-
P6SMB440A
P6SMB440CA
440A
440C
376.00
418.00
462.00
1
602.0
1.0
1
-
P6SMB480A
P6SMB480CA
480A
480C
408.00
456.00
504.00
1
658.0
0.9
1
-
P6SMB510A
P6SMB510CA
510A
510C
434.00
485.00
535.00
1
698.0
0.9
1
-
P6SMB530A
P6SMB530CA
530A
530C
451.00
503.50
556.50
1
725.0
0.8
1
-
P6SMB540A
P6SMB540CA
540A
540C
460.00
513.00
567.00
1
740.0
0.8
1
-
P6SMB550A
P6SMB550CA
550A
550C
468.00
522.50
577.50
1
760.0
0.8
1
-
P6SMB600A
P6SMB600CA
600A
600C
512.00
570.00
630.00
1
828.0
0.75
1
-
For bidirectional type having VR of 10 volts and less, the IR limit is double.
For parts without A VBR is ± 10% and VC is 5% higher than with A parts.
© 2018 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/15/18
Transient Voltage Suppression Diodes
Surface Mount – 600W > P6SMB series
I-V Curve Characteristics
Bi-directional
Uni-directional
Ipp
Vc VBR VR
V
IR VF
IT
IT
IR
Vc VBR VR
IR
IT
Ipp
Ipp
PPPM
VR
VBR
VC
IR
VF
V
VR VBR Vc
Peak Pulse Power Dissipation -- Max power dissipation (VC * IPP)
Stand-off Voltage -- Maximum voltage that can be applied to the TVS without operation
Breakdown Voltage -- Maximum voltage that flows though the TVS at a specified test current (IT)
Clamping Voltage -- Peak voltage measured across the TVS at a specified Ippm (peak impulse current)
Reverse Leakage Current -- Current measured at VR
Forward Voltage Drop for Uni-directional
Ratings and Characteristic Curves (T =25°C unless otherwise noted)
A
Figure 1 - TVS Transients Clamping Waveform
Figure 2 - Peak Pulse Power Rating
Voltage Transients
PPPM-Peak Pulse Power (kW)
100
Voltage or Current
Voltage Across TVS
Current Through TVS
Time
TJ initial = TAMB
stacked-die, 800W
at 10/1000µs, 25°C
10
1
0.1
0.001
Single die,600W
at 10/1000µs, 25°C
0.01
0.1
1
10
td-Pulse Width (ms)
continues on next page.
© 2018 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/15/18
Transient Voltage Suppression Diodes
Surface Mount – 600W > P6SMB series
Ratings and Characteristic Curves (T =25°C unless otherwise noted) (Continued)
A
Figure 3 - Peak Pulse Power Derating Curve
Figure 4 - Pulse Waveform
150
IPPM- Peak Pulse Current, % IRSM
Peak Pulse Power (PPP) or Current (IPP)
Derating in Percentage %
100
80
60
40
20
0
0
25
50
75
100 125 150
TJ - Initial Junction Temperature (ºC)
( )
2
50
10/1000µsec. Waveform
as defined by R.E.A
td
1.0
0
2.0
3.0
4.0
t-Time (ms)
Figure 6 - Typical Transient Thermal Impedance
1000
Transient Thermal Impedance (°C/W)
Uni-dire onal V=0V
Bi-direc
1000.00
Cj(pf)
Half Value
IPPM IPPM
0
10000.00
nal V=0V
100.00
Uni-dire onal
Bi-direc nal
V=VR
1.00
1.00
TJ=25°C
Pulse Width(td) is defined
as the point where the peak
current decays to 50% of IPPM
Peak Value
IPPM
100
175
Figure 5 - Typical Junction Capacitance
10.00
tr=10µsec
10.00
100.00
V BR—Reverse Breakdown Voltage(V)
1000.00
100
10
1
0.1
0.001
0.01
0.1
1
10
100
1000
TP - Pulse Duration (s)
Figure 7 - Maximum Non-Repetitive Peak Forward
Surge Current Uni-Directional Only
Figure 8 - Peak Forward Voltage Drop vs Peak Forward
Current (Typical Values)
100.0
Single die
100
IF - Peak Forward Current(A)
IFSM - Peak Forward Surge Current (A)
120
80
60
40
Stacked-die
10.0
1.0
20
0
1
10
Number of Cycles at 60 Hz
100
0.1
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
VF - Peak Forward Voltage(V)
© 2018 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/15/18
Transient Voltage Suppression Diodes
Surface Mount – 600W > P6SMB series
Soldering Parameters
Lead–free
assembly
Pre Heat
- Temperature Min (Ts(min))
150°C
- Temperature Max (Ts(max))
200°C
- Time (min to max) (ts)
60 – 180 secs
Average ramp up rate (Liquidus Temp (TA)
to peak
3°C/second max
TS(max) to TA - Ramp-up Rate
3°C/second max
Reflow
- Temperature (TA) (Liquidus)
217°C
- Time (min to max) (ts)
60 – 150 seconds
Peak Temperature (TP)
260+0/-5 °C
Time within 5°C of actual peak
Temperature (tp)
20 – 40 seconds
Ramp-down Rate
6°C/second max
Time 25°C to peak Temperature (TP)
8 minutes Max.
Do not exceed
260°C
Physical Specifications
tp
TP
Ramp-up
TL
Temperature (T)
Reflow Condition
tL
Critical Zone
TL to TP
Ts(max)
Ramp-down
Ts(min)
ts
Preheat
25˚C
t 25˚C to Peak
Time (t)
Environmental Specifications
High Temp. Storage
JESD22-A103
HTRB
JESD22-A108
Temperature Cycling
JESD22-A104
Weight
0.003 ounce, 0.093 grams
Case
JEDEC DO214AA. Molded plastic body
over glass passivated junction
MSL
JEDEC-J-STD-020, Level 1
Polarity
Color band denotes cathode except for
bidirectional versions
H3TRB
JESD22-A101
Terminal
Matte Tin-plated leads, Solderable per
JESD22-B102
RSH
JESD22-A111
Dimensions
DO-214AA (SMB J-Bend)
Cathode Band
(for Uni-directional products only)
C
A
B
H
D
F
E
G
J
K
L
I
Solder Pads
(all dimensions in mm)
© 2018 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/15/18
Dimensions
Inches
Millimeters
Min
Max
Min
Max
A
0.076
0.086
1.930
2.200
B
0.160
0.187
4.060
4.750
C
0.130
0.155
3.300
3.940
D
0.078
0.103
1.990
2.610
E
0.030
0.060
0.760
1.520
F
-
0.008
-
0.203
G
0.205
0.220
5.210
5.590
H
0.006
0.012
0.152
0.305
I
0.089
-
2.260
-
J
0.085
-
2.160
-
K
-
0.107
-
2.740
L
0.085
-
2.160
-
Transient Voltage Suppression Diodes
Surface Mount – 600W > P6SMB series
Part Numbering System
Part Marking System
P6SMB XXX C A
F
Cathode Band
5% VBR VOLTAGE TOLERANCE
BI-DIRECTIONAL
XX
VBR VOLTAGE
YMXXX
SERIES
(for uni-directional products only)
Littelfuse Logo
Marking Code
Trace Code Marking
Y:Year Code
M: Month Code
XXX: Lot Code
Packaging
Part number
Component
Package
P6SMBxxxXX
DO-214AA
Packaging
Option
Quantity
3000
Tape & Reel - 12mm tape/13” reel
Packaging
Specification
EIA STD RS-481
Tape and Reel Specification
0.157
(4.0)
Cathode
0.47
(12.0)
0.315
(8.0)
0.059 DIA
(1.5)
Cover tape
13.0 (330)
0.80 (20.2)
Arbor Hole Dia.
0.49
(12.5)
Dimensions are in inches
(and millimeters).
Direction of Feed
Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and
test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications.
Read complete Disclaimer Notice at www.littelfuse.com/disclaimer-electronics.
© 2018 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/15/18
很抱歉,暂时无法提供与“P6SMB33CA”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 5+0.75501
- 20+0.68467
- 100+0.61432
- 500+0.54398
- 1000+0.51116
- 2000+0.48771
