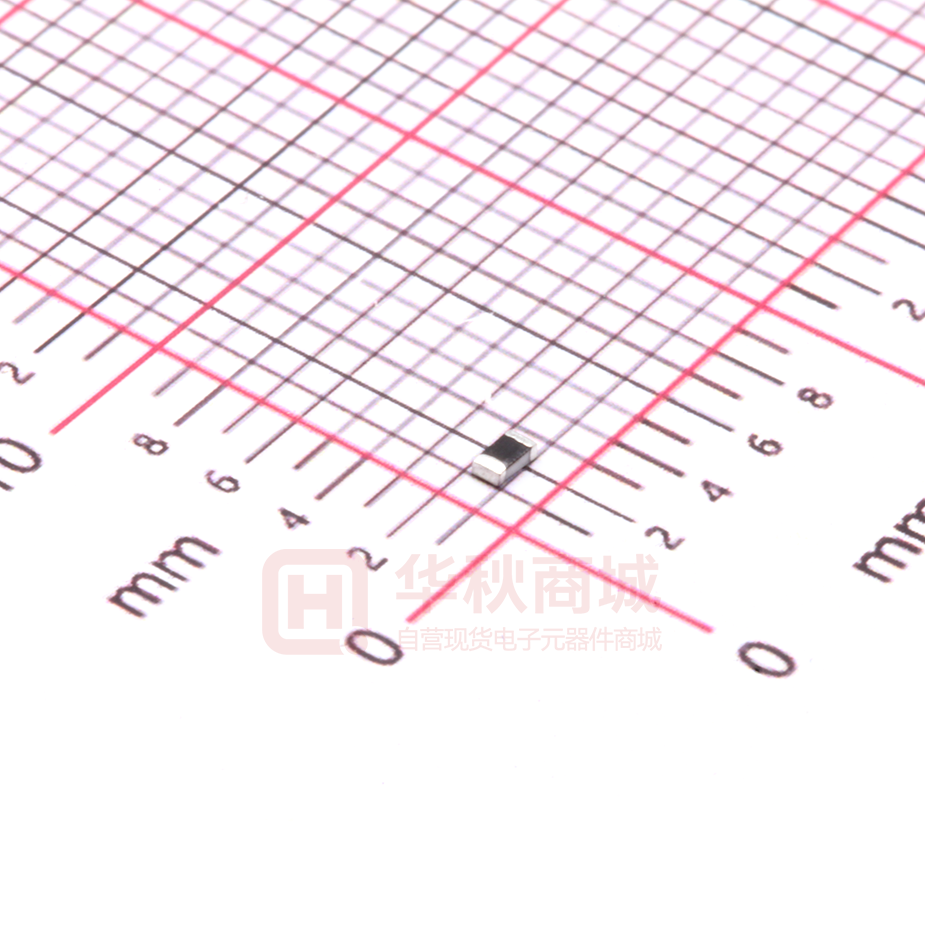

PESD0603-240/RF1256-000

PESD PROTECTION DEVICES Littelfuse’s Polymer ESD (PESD) line of devices helps protect I/O ports on HDMI 1.3, portable video players, LCD and plasma TVs, USB 2.0, digital visual interface (DVI) and antenna switches. PESD devices shunt electrostatic discharge away from sensitive circuitry in HDTV equipment, printers, laptops, cellular phones and other portable devices. PESD devices offer many advantages over traditional protection devices, such as multi layer varistors (MLVs), which may degrade or distort the signal in high data rate circuits. Compared to miniature gas discharge tubes (GDTs), PESD devices provide a more compact form factor and an economical solution for the shrinking profiles of today’s compact information appliances. Available in a range of form factors, our PESD protection devices provide low capacitance and meet transmission line pulse (TLP) testing, as well as IEC61000-4-2 testing. BENEFITS APPLICATIONS • ESD protection for high frequency application (HDMI 1.3) • HDMI 1.3 interfaces • Smaller form factor for board space savings • Cellular phones • Helps protect sensitive electronic circuits against damage caused by electrostatic discharge (ESD) events • Antennas • LCD & plasma TVs • Portable video players • Portable devices (PDA, DSC, Bluetooth) • Assists equipment to pass IEC 61000-4-2, level 4 testing • Printer ports • Satellite radios FEATURES • USB 2.0 and IEEE 1394 interfaces • DVI • RoHS compliant • GPS systems • Lead free • Halogen free (refers to: Br≥900ppm, Cl≥900ppm, Br+Cl≥1500ppm) • 0.25 pF (typ) capacitance • Low-leakage current • Low-clamping voltage • Fast response time (< 1ns) • Capable of withstanding numerous ESD strikes • Compatible with standard reflow installation procedures • Thick film technology • Bi-directional protection RoHS Compliant, ELV Compliant HF Halogen Free Specifications subject to change without notice. ©2016 Littelfuse, Inc. 61 PESD Protection Devices Table E1 — Electrical Characteristics Symbol Continuous Max Operating Voltage Typ Trigger Voltage* Typ Clamping Voltage† Typ Capacitance @1 MHz, 1VRMS Typ Leakage Current Max Leakage Current @ Max VDC IL(MAX) VDC VT(TLP) VC(TLP) CP IL(TYP) Unit V V V pF µA µA PESD0402-140 14 250 40 0.25 < 0.01 10.0 PESD0402-240 24 250 40 0.25 < 0.01 10.0 PESD0603-240 24 215 45 0.25 < 0.01 10.0 PESD1206Q-240 24 250 45 0.25 < 0.01 10.0 Notes : * TLP test method at 1kV. † Measured 30ns after pulse initiation. Typical capacitance value is at 0V and max operating voltage bias. Capacitance (pF) Figure E1 — Capacitance vs. Frequency 0.30 0.28 0.26 0.24 0.22 0.20 0.18 0.16 0.14 0.12 0.10 0.08 0.06 0.04 0.02 0 0 500 1000 1500 2000 2500 3000 Frequency (MHz) Figure E2 — Eye Diagram Performance at 3.4 GHz Figure E3 — Insertion Loss Diagram 0.1 0 Insertion Loss (dB) -0.1 -0.25dB at 3.4GHz -0.2 -0.3 -0.4 -0.5 -0.6 -0.7 -0.8 -0.9 -1.0 0.3 1 10 100 1000 6000 Frequency (MHz) 62 Specifications subject to change without notice. ©2016 Littelfuse, Inc. HF Halogen Free RoHS Compliant, ELV Compliant PESD Protection Devices Figures E4-E5 — PESD Device Protection for HDMI (PESD devices provide electrostatic discharge protection) Figure E4 HDMI HDMI Transmitter or Transmitter or Receiver Receiver HDMI Port HDMI Port TX0+ TX0+ TX0- TX0TX01+ TX01+ TX01- TX01TX02+ TX02+ TX02- TX02TC+ TC+ TCTC- Outside World Outside World TX0+ TX0+ TX0- TX0TX01+ TX01+ TX01- TX01TX02+ TX02+ TX02- TX02TC+ TC+ TCTC- Outside World Outside World ESD Protection ESD Protection for HDMI for HDMI (1206Q) (1206Q) HDMI HDMI Transmitter Transmitter or or Receiver Receiver HDMI Port HDMI Port PESD Devices PESD Devices PESD Devices PESD Devices GND Two PESD1206Q Two PESD1206Q Arrays Arrays GND GND GND ChassisChassis ChassisChassis Table E2 — Dimensions in Millimeters (Inches*) A Part Number Min B Max C Min Max Min D Max E Min Max Min Max — — — — E6 — — — — E6 0.20 0.60 E7 0.90 1.10 0.23 0.43 0.10 0.30 0.40 0.60 (0.035) (0.043) (0.009) (0.017) (0.004) (0.012) (0.016) (0.024) 1.50 1.70 0.45 0.55 0.10 0.50 0.70 0.95 (0.059) (0.067) (0.018) (0.022) (0.004) (0.020) (0.028) (0.037) PESD1206Q-240 3.10 3.30 0.40 0.60 0.10 0.30 1.50 1.70 0.20 0.60 (0.122) (0.130) (0.016) (0.024) (0.004) (0.012) (0.059) (0.067) (0.008) (0.024) *The dimensions in inches are rounded approximations. D Figure Min PESD0402-240 PESD0603-240 F Max PESD0402-140 (0.008)A (0.024) A Figures E6-E7 — Dimension Figures F B C B E Figure E7 Figure E6 D D A A D A B B Figure E5 ESD Protection ESD Protection for HDMI for HDMI (0402 (0402 and 0603) and 0603) A A A A B B F B E C D F C B E (Side View) B B C B F E C (Side View) C CC (Drawing not to Scale) C (Drawing not to Scale) A A B Table E3 — Environmental Specifications B F Test Conditions E F C 85°C, 85% RH, VDC (max), 1000 hrs Thermal Shock -55°C to 125°C, 30 min Dwell, 1000 Cycles IL % 10 µA Bias Heat Test 125°C, VDC (max), 1000 hrs IL % 10 µA Bias Low Temp Test -55°C, VDC (max), 1000 hrs IL % 10 µA Solderability 250°C ± 5°C, 3 ±1s 95% Coverage IL % 10 µA Solder Heat 260°C, 10s 90% Coverage Vibration 10 to 50Hz, 60s Cycle, 2 hrs Each in X-Y-Z-Direction No Physical Damage Solvent Resistance IPA Ultrasonic 300s No Physical Damage Shock 1500G, 0.5ms Each, X-Y-Z Axis 3 Times Each Axis No Physical Damage HF Halogen Free C Pass / Fail Criteria Bias Humidity Test RoHS Compliant, ELV Compliant E Specifications subject to change without notice. ©2016 Littelfuse, Inc. 63 PESD Protection Devices Table E4 — General Characteristics Storage Temperature -40°C to +85°C Operating Temperature -55°C to +125°C ESD Voltage Capability Contact Discharge Mode: 8kV (Typ), 15kV (max) (Tested per IEC 61000-4-2) Air Discharge Mode: 15kV (Typ), 25kV (max) [1 Pulse: per Customer Request] ESD Pulse Withstand 100 Pulses (Tested per IEC 61000-4-2, Level 4, Contact Method) Table E5 — Materials Information RoHS Compliant Directive 2002/95/EC Compliant RoHS 2.0 Directive 2011/65/EU Compliant ELV Compliant Directive 2000/53/EC Compliant Halogen Free Halogen Free Refers to: Br#900ppm, Cl#900ppm, Br+Cl#1500ppm Table E6 — Recommended Pad Layout in Millimeters and (Inches*) V Part Number PESD0402-140 W Min Max — — PESD0402-240 PESD0603-240 — PESD1206Q-240 Max Y Min Max Z Min Max Min Figure Max 0.60 0.70 0.30 0.40 0.80 0.90 2.10 2.20 (0.024) (0.028) (0.012) (0.016) (0.031) (0.035) (0.083) (0.087) — Part Number X Min E8 0.90 1.00 0.50 0.60 1.00 1.10 2.70 2.80 (0.035) (0.039) (0.020) (0.024) (0.039) (0.043) (0.106) (0.110) V W X Y Z Typ Typ Typ Typ Typ 3.20 2.20 0.50 0.80 1.00 (0.126) (0.087) (0.020) (0.031) (0.039) E8 Figure E9 *The dimensions in inches are rounded approximations. Figure E8 Figure E9 X X V V W W Z W Y Z W Y Z Z X X Y Y Note: Solder thickness 0.15 to 0.2mm. Table E7 — Solder Reflow Recommendations Temperature Ramp-up 1 From Ambient to Preheating Temperature 30s to 60s B Preheating 140°C - 160°C 60s to 120s C Temperature Ramp-up 2 From Preheating to Main Heating Temperature 20s to 40s D Main Heating at 200°C at 220°C at 240°C at 260°C 60s to 70s 50s to 60s 30s to 40s 5s to 10s From Main Heating Temperature to 100°C 4°C/s (max) E 64 Cooling Preheating 300 Temperature (˚C) A Specifications subject to change without notice. ©2016 Littelfuse, Inc. Soldering Cooling D E 250 200 150 100 50 0 A Reflow Profile B C Times (s) HF Halogen Free RoHS Compliant, ELV Compliant PESD Protection Devices Table E8 — Tape Specifications Tape Dimension EIA Mark 0402 0603 1206Q Dimension (mm) Tolerance Dimension (mm) Tolerance Dimension (mm) Tolerance W 8.00 ±0.30 8.00 ±0.30 8.00 ±0.30 P0 4.00 ±0.10 4.00 ±0.10 4.00 ±0.10 P1 2.00 ±0.05 4.00 ±0.05 4.00 ±0.05 P2 2.00 ±0.05 2.00 ±0.05 2.00 ±0.05 A0 0.63 ±0.03 1.27 ±0.15 2.02 ±0.20 B0 1.13 ±0.03 2.02 ±0.20 3.62 ±0.20 D0 1.50 ±0.10 1.50 ±0.10 1.50 ±0.10 F 3.50 ±0.05 3.50 ±0.05 3.50 ±0.05 E1 1.75 ±0.10 1.75 ±0.10 1.75 ±0.10 T 0.48 ±0.03 0.60 ±0.03 0.75 ±0.05 Figure E10 P0 P2 T E1 A0 D0 F W B0 P1 Table E9 — Reel Specifications Figure E11 Reel Dimensions (0402, 0603 & 1206Q) EIA Mark Dimension (mm) A max 180.0 N min 60.5 W1 max 9.5 W2 max 14.0 W2 W1 A RoHS Compliant, ELV Compliant HF Halogen Free Specifications subject to change without notice. ©2016 Littelfuse, Inc. N 65 PESD Protection Devices Parameter Definitions Operation Voltage (VDC) Defined as DC voltage, under which device is in OFF state and leakage current below certain threshold. Leakage Current (IL) Current through device under Operation Voltage VDC. Trigger Voltage (VT) Voltage at which the device switches from the OFF to the ON state, during the IEC waveform or the TLP system. Clamping Voltage (VC) Voltage cross device under 8kV per IEC or measured by TLP system. Typically measured 30ns after initiation of the ESD pulse (for TLP, both 30ns and 60ns are sometimes used). Capacitance (CP) Capacitance of the device measured at 1MHz with 0V and max operating voltage bias. Part Numbering System PESD xxxx Q - 240 Operating Voltage Designator 14 x 10˚ = 14VDC 24 x 10˚ = 24VDC Package Type Q - Array of 4 Elements EIA Size Series Warning : Application Limitations for PESD0402-140, PESD0402-240, PESD0603-240 and PESD1206Q-240: These parts are not intended to be used on power lines or for power bus applications. Users should independently evaluate the suitability of and test each product selected for their own application. Notice: Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications.  Littelfuse products are not designed for, and shall not be used for, any purpose (including, without limitation, military, aerospace, medical, life-saving, lifesustaining or nuclear facility applications, devices intended for surgical implant into the body, or any other application in which the failure or lack of desired operation of the product may result in personal injury, death, or property damage) other than those expressly set forth in applicable Littelfuse product documentation.  Warranties granted by Littelfuse shall be deemed void for products used for any purpose not expressly set forth in applicable Littelfuse documentation.  Littelfuse shall not be liable for any claims or damages arising out of products used in applications not expressly intended by Littelfuse as set forth in applicable Littelfuse documentation.  The sale and use of Littelfuse products is subject to Littelfuse Terms and Conditions of Sale, unless otherwise agreed by Littelfuse. 66 Specifications subject to change without notice. ©2016 Littelfuse, Inc. HF Halogen Free RoHS Compliant, ELV Compliant
