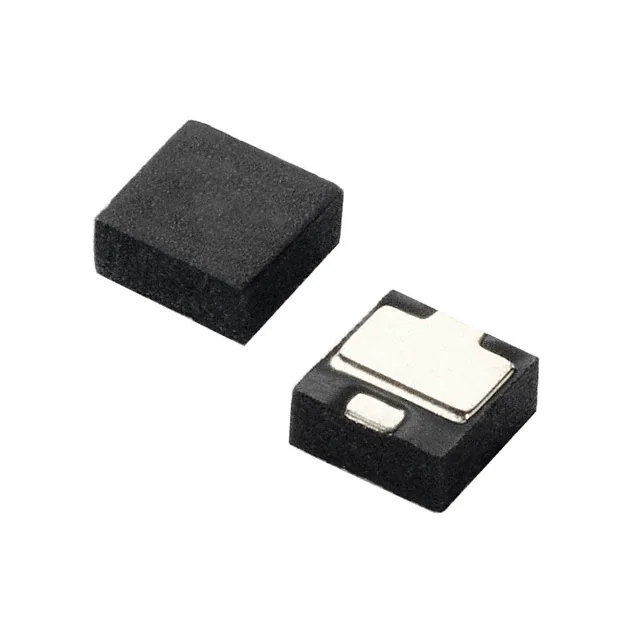

PLED Open LED Protectors
PLED5 QFN Series
RoHS
31/12/2018
PLED6N
LFPCN41214
Description
This PLED5 Open LED Protector component provides three
methods for increasing the reliability of LED lighting:
1) If one of the LEDs in an array fails open, this device
provides a substitute electronic path so that the string
continues to function
2) It protects against ESD events up to ± 8 kV for contact
discharges and ± 15 kV for air discharges per the IEC
61000-4-2 electrostatic immunity standard.
3) It provides protection in the case of accidental reverse
battery or power connection.
Schematic Symbol
MT1
High reliability of lighting functions such as traffic lighting,
aircraft lighting, advertising lighting, and runway lighting
demand the use of a component such as the PLED5.
MT1
Control
Circuit
Control
Circuit
Littelfuse offers over current component for implementation
in power circuits that can also enhance the reliability of
circuit operation. Our full line of circuit protection products
can be viewed at www.littelfuse.com.
MT2
MT2
Pinout
Features & Benefits
• Reverse Battery/Power
Protection
MT2
MT2
• Low Turn-On (Trigger
Voltage)
• ESD, IEC 61000-4-2, ±8kV • Ideal for MR16, PAR type
contact, ±15 kV air
lamps
• Open LED bypass up to
500 mA
MT1
MT1
• Fast Switching
• Resets After Power Cycle
Electrical Characteristics
Part
Marking
Symbol
Parameter
Conditions
PLED5Q12
Px5
VAK
Input Voltage
VTO
Turn-On Voltage
IS
Switching Current
VOS
On-State Voltage
IAK= 350 mA
IOS
On-State Current
(with adequate heat sinking)
VOSR
Reverse On-State Voltage
I = 350 mA
IOSR
Reverse On-State Current
IDRM
Leakage Current
VESD
ESD Withstand Voltage1
MIN
4.65
TYP
4.9
1
1
VAK = 3.5 V
100
MAX
Unit
40
V
5.15
V
20
mA
1.3
V
500
mA
1.4
V
500
mA
150
μA
IEC 61000-4-2 (Contact)
±8
kV
IEC 61000-4-2 (Air)
± 15
kV
Notes:
1
Parameter is guaranteed by design and/or component characterization.
© 2018 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/11/18
PLED Open LED Protectors
Thermal Considerations
Package
QFN
Symbol
Parameter
Value
Unit
TOP
Operating Temperature
-40 to 85
ºC
TJ
Maximum Junction Temperature
150
ºC
TSTOR
Storage Temperature
-65 to 150
ºC
V-I Characteristics
Switching Current vs Temperature
+IAK
IS, SWITCHING CURRENT (mA)
5
0.5A
-VAK
-1v
5.0 v
1.0 v
+VAK
4
3
2
1
-0.5A
0
-40
-IAK
Turn On Voltage vs Temperature
IDRM, LEAKAGE CURRENT (µA)
4.9
160
4.8
4.7
-40
10
60
110
160
100
80
60
40
20
0
-50
Q1
LED
Driver
MT1
PLED5
Control
Circuit
110 kΩ, 1/4 W
MT2
MT1
Vbat
12 Vdc
Q2
2N2222
PLED5
Control
Circuit
MT2
PWM
MT1
Control
Circuit
PLED5
MT2
© 2018 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/11/18
50
100
150
Ordering Information
LED Application and Interference Test Circuit
2.0 Ω, 1/4 W
0
TA, AMBIENT TEMPERATURE (ºC)
TA, AMBIENT TEMPERATURE (ºC)
-
110
120
4.6
+
60
Leakage Current vs Temperature
5
VT O, TURN-ON VOLTAGE (V)
10
TA, AMBIENT TEMPERATURE (ºC)
Catalog Number
Package Type
Quantity Per Reel
PLED5Q12
QFN
3000 Pieces
PLED Open LED Protectors
Part Numbering System
Part Marking System
PLED 5 Q12
LF
Device Type
P5xx
PLED: LED Protector
Package Type:
Typical VBR
Pin 1
Q12: 2.0x2.0 mmQFN
Year
Code
Month
Code
Package Dimensions - QFN
Device Dimensions:
D1
D
L
b
Millimetres
Dimension
Symbol
Min
Max
A
0.700/0.800
0.800/0.900
A1
0.000
0.050
0.203REF
L
k
e
E
b
Bottom View
Top View
Side View
Recommended
Soldering Pad Dimensions:
1.924
2.076
E
1.924
2.076
D1
1.580
1.780
E1
0.820
1.020
0.200MIN.
k
0.550
b
0.650
1.045TYP.
0.254
0.406
Millimetres
Inches
L
0.57
0.51
0.23
1.04
1.12
0.36
D
e
1.88
0.75
0.57
A1
A3
A
E1
A3
0.75
Tolerance: -0 / + 0.05mm
Tape and Reel Specification - QFN
t
E
D
P2
W
AO
LF
P5xx
Pin 1
KO
BO
P
Max
Min
Max
1.65
1.85
0.065
0.073
F
3.45
3.55
0.136
0.140
D1
1.00
-
0.040
-
D
F
D1
Min
E
1.50 min
0.059 min
P
3.90
4.10
0.154
0.161
W
7.70
8.30
0.303
0.327
P2
1.95
2.05
0.077
0.081
A0
2.20
2.30
0.086
0.090
B0
2.20
2.30
0.086
0.090
K0
0.64
0.74
0.025
0.029
t
0.20 typ
0.007 typ
© 2018 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 10/11/18
