SG90

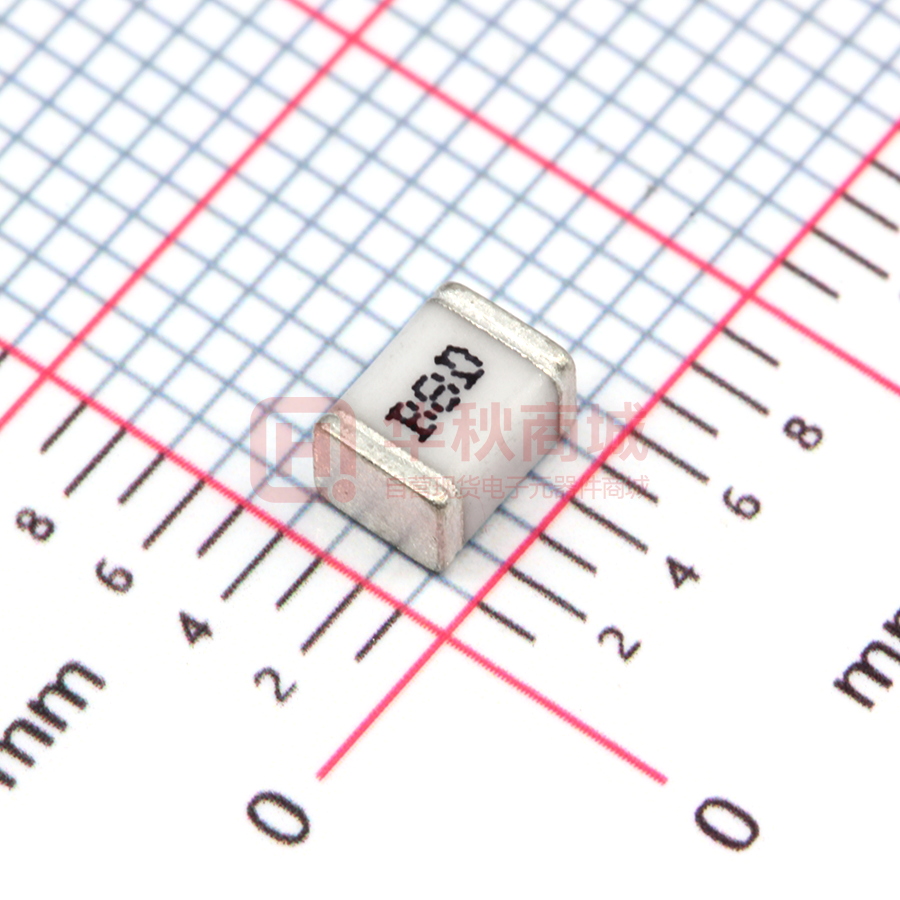

Gas Discharge Tubes SG Series SG Series RoHS Description Littelfuse SG series GDT offers high surge ratings in a miniature package. It’s designed for surface mounting on PCB with small size 4.5x3.2x2.7mm. Low insertion loss is perfectly suited to broadband equipment applications. The capacitance does not vary with voltage, and will not cause operational problems with ADSL2+, where capacitance variation across Tip and Ring is undesirable. These devices are extremely robust and are able to divert a 1000A pulse without destruction. Features Agency Approvals AGENCY • RoHS compliant and Lead-free • GHz working frequency • Excellent stability on multiple pulse duty cycle • Excellent response to fast rising transients. • Ultra Low Insertion Loss • 1-2KA surge capability tested with 8/20μS pulse as defined by IEC 61000-4-5 AGENCY FILE NUMBER E128662 2 Electrode GDT Graphical Symbol Additional Information Applications • Communication Datasheet Resources • Ultra small devices offered in a variety of mounting lead forms • Non-Radioactive • Low capacitance (1GΩ (at 50VDC) >1GΩ (at 100VDC) SG200 140 200 260 550 700 SG230 SG300 SG300Q SG350 SG350Q SG400 SG420 SG420Q SG450Q SG500Q SG600Q 172 225 210 263 263 300 315 315 370 400 450 650 700 580 750 600 800 800 650 680 950 1100 800 850 650 900 700 950 1000 750 750 1050 1200 230 300 300 350 350 400 420 420 450 500 600 288 375 390 437 437 500 525 525 500 600 750 (x10 @50Hz) (x10 @8/20µs) 2A 2kA MAX ~10 V ~1.0 A (10/1000µs 100 cycles) ~60 V 1GΩ (at 50VDC)
