SL1002A090SM

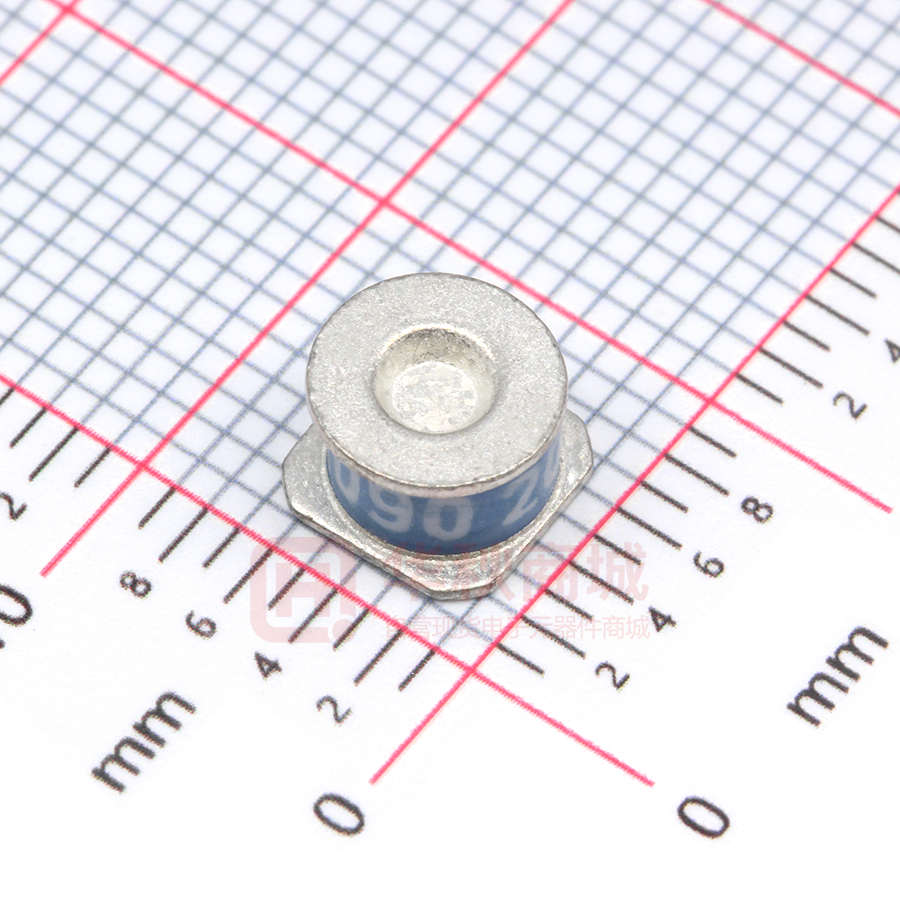

Gas Discharge Tubes SL1002A Series RoHS SL1002A Series Description The Broadband Optimized™ SL1002A series has been especially developed for use in broadband equipment. Special design features provide high levels of protection against fast rising transients in the 100V/μs to 1kV/μs range usually caused by lightning disturbances. These devices have ultra low capacitance (typically 1.2pF or less) and present insignificant signal losses up to 1.5GHz. These devices are extremely robust and are able to divert a 5000A pulse without destruction. For AC Power Cross of long duration, overcurrent protection is recommended. Agency Approvals Features AGENCY AGENCY FILE NUMBER E128662 2 Electrode GDT Graphical Symbol Additional Information Datasheet Resources Samples • RoHS compliant/Leadfree • Ultra low insertion loss • Surface mountable • 5kA surge capability tested with 8/20μS– Pulse as defined by IEC 61000-4-5 • Excellent response to fast rising transients • Can be used to meet Telcordia GR1089 without series resistance • 10/700 6kV capability, as per ITU-T Rec. K.21, enhanced test level • 2000 A 2/10μs surge rating • Meet FCC part 68 10/160μs waveform, 200A test and 10/560μs waveform 100A test • Halogen-free Applications • Broadband equipment • ADSL equipment • XDSL equipment • Satellite and CATV equipment • General telecom equipment © 2015 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 11/06/15 Gas Discharge Tubes SL1002A Series Electrical Characteristics Device Specifications (at 25°C) Part Number Life Ratings Impulse Impulse Insulation CapaciDC Breakdown Breakdown Breakdown Resistance tance in Volts1,2 in Volts3,4 in Volts3,4 (@100V/s) (@1MHz (@100V/µs) MIN TYP MAX SL1002A075 60 75 90 SL1002A090 72 90 108 (@1kV/µs) 0V Bias) MAX MIN 400 650 109 Ω (at 50V) 600 700 800 900 SL1002A230 184 230 276 SL1002A250 200 250 300 SL1002A260 210 260 310 SL1002A350 280 350 420 SL1002A470 376 470 564 900 1000 SL1002A600 480 600 720 1100 1200 SL1002A600SP 570 600 780 1200 1300 MAX 109 Ω 1.2 pF (at 100V) Arc Voltage (on state voltage) @1Amp Min Surge Life Nominal Impulse Discharge (@100A Current 10/1000µs) (8/20µs) Nominal AC Discharge Current DC Holdover Voltage5 TYP TYP ~15 V 300 shots6 10 shots7 (@ 5kA) 5A 135 V Product Characteristics Product Marking Littelfuse 'LF' Mark, voltage and date code Voltage vs. Time Characteristics Voltage (V) Max dynamic breakover voltage Hold-over voltage On-State voltage 0 200 400 600 Time (ns) © 2015 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 11/06/15 800 1000 1200 @ 2/10 µs @ 10/350 µs 2 kA 1.5 kA 50 V Notes: 1. At delivery AQL 0.65 level II, DIN ISO 2859 2. In ionized mode 3. In ionized mode, tested according to ITU-T Rec. K.12 4. Comparable to the silicon measurement Switching Voltage (Vs) 5. Reference REA PE-80, 0.2A. Tested to ITU-T Rec. K.12 and REA PE-80 < 150 msecs. 6. 300 Applications [150(+) & 150(-)] 7. 10x[5x (+) & 5x (-)] Applications Construction = Ceramic Insulator Device Finish = Dull Tin-plated 17.5 +/-12.5 microns (1 Application) (10x1s @50-60Hz) 109 Ω (at 500V) Materials Max Impulse Discharge Current Glow to Arc Transition Current < 0.5 Amps Glow Voltage ~60 - 140 Volts Storage and Operational Temperature -40 to +90°C Gas Discharge Tubes SL1002A Series Insertion Loss Characteristics Typical Insertion Loss Characteristics (90V) Typical Insertion Loss Characteristics (600V) 2 2 0 0 -2 -2 -4 -6 S21 [dB] S21 [dB] -4 -8 -10 -6 -8 -10 -12 -12 -14 -14 -16 -18 1.E+07 1.E+08 1.E+09 1.E+10 1.E+11 -16 1.E+07 1.E+08 1.E+09 Frequency [Hz] 1.E+10 1.E+11 Frequency [Hz] Device Dimensions 'C' Type Core Devices 'SM' Type Surface Mount Devices Dimensions are in millimeters [and inches] TOP VIEW PROFILE VIEW Ø6.0 ± 0.15 [0.236 ± 0.0059] Dimensions are in millimeters [and inches] SEMI–PROFILE VIEW TOP VIEW 4.1 ± 0.2 [0.161 ± 0.0079] PROFILE VIEW 6.2 ± 0.15 3.9 Ref [0.154 Ref] 3.6 ± 0.2 [0.142 ± 0.0079] SEMI–PROFILE VIEW 3.6 ± 0.2 [0.142 ± 0.0079] Ø6.2 ± 0.15 Ø6.0 ± 0.15 4.1 ± 0.2 [0.161 ± 0.0079] 7. 0.50 5 0.50 ± 2 0. SOLDER PAD LAYOUT 1.30 [0.051] 5.00 [0.197] 3.50 [0.138] © 2015 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 11/06/15 Gas Discharge Tubes SL1002A Series Soldering Parameters - Reflow Soldering (Surface Mount Devices) Pb-free assembly Pre Heat - Temperature Min (Ts(min)) 150°C - Temperature Max (Ts(max)) 200°C - Time (Min to Max) (ts) 60 – 180 seconds Average Ramp-up Rate (Liquidus Temp (TL) to peak) 3°C/second max. TS(max) to TL - Ramp-up Rate 5°C/second max. Reflow - Temperature (TL) (Liquidus) 217°C - Temperature (tL) 60 – 150 seconds 260+0/-5 °C Time within 5°C of Actual Peak Temperature (tp) 10 – 30 seconds Ramp-down Rate 6°C/second max. Time 25°C to Peak Temperature (TP) 8 minutes max. Do not exceed 260°C Critical Zone TL to TP Ramp-up TL TS(max) tL Ramp-down Preheat TS(min) 25 Peak Temperature (TP) tP TP Temperature Reflow Condition tS time to peak temperature (t 25ºC to peak) Time Soldering Parameters - Wave Soldering (Thru-Hole Devices) Recommended Process Parameters: 280 Wave Parameter 260 240 Lead-Free Recommendation Preheat: 220 (Depends on Flux Activation Temperature) 200 180 160 140 120 100 80 60 40 Time (Seconds) Cooling Time Preheat Time Dwell Time Soldering Parameters - Hand Soldering Solder Iron Temperature: 350° C +/- 5°C Heating Time: 5 seconds max. © 2015 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 11/06/15 230 240 220 210 200 190 180 170 160 150 140 130 120 110 90 100 80 70 60 50 40 20 0 0 30 20 10 Temperature (°C) - Measured on bottom side of board 300 (Typical Industry Recommendation) Temperature Minimum: 100° C Temperature Maximum: Preheat Time: 150° C 60-180 seconds Solder Pot Temperature: 280° C Maximum Solder Dwell Time: 2-5 seconds Gas Discharge Tubes SL1002A Series Packaging ‘C’ Type Core Items: Package bulk pack in polybag, 1000 pcs/bag 'SM' Type Surface Mount Items: Packaged tape and reel carrier, 1000 pcs/reel (specifications below) Dimensions are in millimeters [and inches] Dimensions are in millimeters [and inches] 275.0 [10.83] 6.5 ± 0.1 [0.256 ± 0.004] 0.40 [0.016] 1.50 +0.10 0 [0.059 +0.004 ] 0 100.0 [3.94] 2 ± 0.1 [0.079 ± 0.004] 10x4=40 ± 0.2 [10x0.157=1.575 ± 0.008] 8 ± 0.1 [0.315 ± 0.004] 4 ± 0.1 [0.157 ± 0.004] 1.75 ± 0.1 [0.069 ± 0.004] 6.5 ± 0.1 [0.256 ± 0.004] 7.5 ± 0.1 [0.295 ± 0.004] 16 ± 0.3 [0.630 ± 0.012] 3° 1.50 [0.059] 76.0 [2.99] R0.30 max. [0.012] 25.0 [0.98] 17.7 [0.697] Direction of Feed Part Numbering System and Ordering Information SL1002 A XXX XX Surge Capability Voltage Pin Configuration C = Core (Packed in polybag, 1000pcs/bag) SM = Surface Mount (Packed in carrier and tape, 1000pcs/reel) © 2015 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 11/06/15
