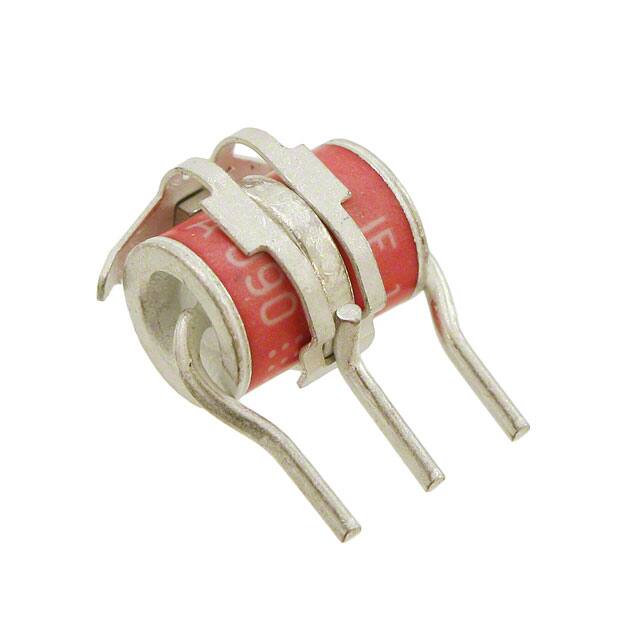

SL1024A090RF

厂商：
HAMLIN
封装：
轴向
描述：
GDT 90V 10KA T/H FAIL SHORT

数据手册：

下载SL1024A090RF.pdf

立即购买

详情介绍
数据手册
价格&库存

SL1024A090RF 数据手册

Gas Discharge Tube (GDT) Products SL1021A/B, SL1024A/B and PMT8 Series SL1021A/B, SL1024A/B and PMT8 Series ® Description GDT circuit protection devices dissipate electrical surge energy safely within a contained plasma gas. Commonly used to help protect sensitive telecom and networking equipment and lines, GDTs protect from damage that may result from lightning strikes and equipment switching operations. The Littelfuse GDT series described in this document are available in a variety of leaded and surface mount forms and offered with and without optional failsafe clip. Please refer to the electrical speciﬁcations, dimension and packaging options section of this document for additional information. SL1021A/B and SL1024A/B Series: SL1021A/B and SL1024A/B series GDTs are designed to offer high levels of performance on fast rising transients in the range of 100V/μS to 1KV/μS, which are those most likely created by induced lightning disturbances. These devices feature ultra low capacitance (typically 1.5pF or less) and are extremely robust with SL102xA devices able to divert a 10,000 Amp pulse without destruction, and SL102xB sufﬁx devices able to divert a 20,000 Amp pulse without destruction. These series offer optimized internal geometry which provide low insertion loss at high frequencies, ideal for the protection of broadband and other high speed transmission equipment. PMT8 Series: PMT8 GDT's are telecom grade devices designed to meet the recommendations in CCITT-K12 and Bellcore GR-1361-CORE. The three electrode conﬁguration is used in applications where simultaneous crowbar action of two signal lines is required. Agency Approvals AGENCY AGENCY FILE NUMBER E128662 ® 3 Electrode GDT Graphical Symbol a b a = TIP b = RING e = GROUND (center electrode) e Features • RoHS compliant • Low insertion loss • Excellent response to fast rising transients • Ultra low capacitance • 10KA (A sufﬁx devices) / 20KA (B sufﬁx devices) surge capability tested with 8/20μs pulse as deﬁned by IEC 61000-4-5 • Available with thermal failsafe option (add ‘F’ sufﬁx to part number) Product Characteristics Materials Dull Tin Plate 17.5 ± 12.5 Microns. with ceramic insulator Product Marking ‘LF’ mark, voltage& date code: SL102xA - Red/White text SL102xB & PMT8 - Blue/White text Glow to arc transition current ~ 1Amp Glow Voltage ~60-200 Volts Storage and Operation Temperature -40 to +90°C Transverse Voltage (Delay Time) < 0.2μSec (Tested to ITU-T Rec. K.12) Arc Voltage ~10 to 35 Volts Holdover Voltage

下载 PDF

SL1024A090RF

1. 物料型号：SL1024A

2. 器件简介：SL1024A是一款由Littelfuse公司生产的瞬态电压抑制二极管（TVS），主要用于保护电子设备免受静电放电（ESD）和电气过载的损害。

3. 引脚分配：SL1024A通常采用SOD-523封装，具有两个引脚，一个为阳极（Anode），另一个为阴极（Cathode）。

4. 参数特性： - 击穿电压（Vr）：在指定电流下，二极管开始导通的电压。 - 最大反向漏电流（Ir）：在最大反向工作电压下，二极管的漏电流。 - 最大箝位电压（Vc）：在特定脉冲电流下，二极管能够限制电压的最大值。 - 脉冲峰值电流（Ip）：二极管能够承受的峰值脉冲电流。

5. 功能详解：SL1024A能够在电路中迅速响应电压突波，通过将过高的电压箝制在一个安全的水平，从而保护下游的电子元件不受损害。

6. 应用信息：SL1024A广泛应用于各种电子设备的ESD保护，如手机、电脑、家用电器等。

7. 封装信息：SL1024A通常采用SOD-523封装，这是一种小型的表面贴装封装形式，适合自动化装配。

SL1024A090RF 价格&库存

-> 查询更多价格&库存

很抱歉，暂时无法提供与“SL1024A090RF”相匹配的价格&库存，您可以联系我们找货
