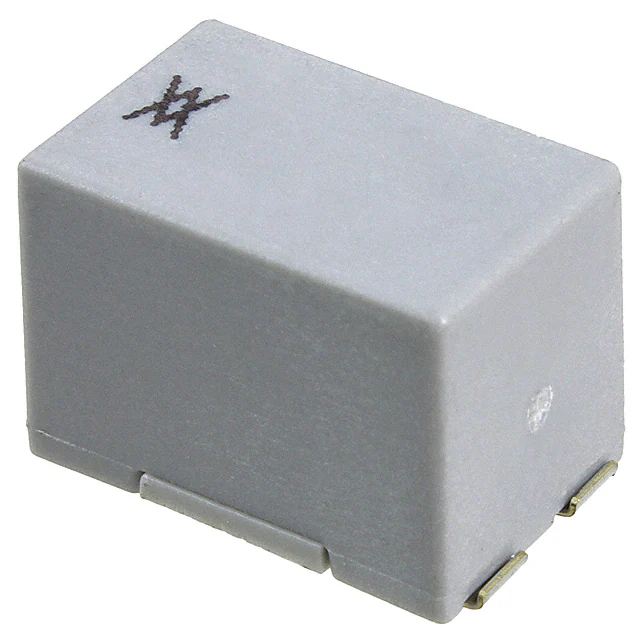

TSM600-250F-2

PRODUCT: TSM600-250F PolySwitch® PTC Devices DOCUMENT: SCD26006 REV LETTER: E REV DATE: JULY 26, 2016 PAGE NO.: 1 OF 2 Overcurrent Protection Device Specification Status: RELEASED Max Electrical Rating at 20°C Operating Voltage: 250VDC Interrupt Current: 3ARMS Fault Voltage: 600VRMS Lead Material: Tin plated brass Configuration: Two PPTC devices per TSM600 part Case Material: Nylon Resin (UL94 V-0) 1000V dielectric rating Marking: Manufacturer’s Mark TSM600 Part Identification Lot Identification Terminal Description: T1 = Tip In T4 = Tip Out R2 = Ring In R3 = Ring Out TABLE I. DIMENSIONS: A B C D E F G MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX MIN MAX mm: 17.0 17.6 11.2 11.7 10.4 11.2 4.8 5.2 2.5 2.8 0.6 1.0 2.2 3.1 in: (0.671) (0.691) (0.440) (0.460) (0.410) (0.440) (0.187) (0.203) (0.099) (0.111) (0.022) (0.038) (0.087) (0.122) TABLE II. PERFORMANCE RATINGS @ 20°C (unless otherwise noted): IHOLD (A) 20°C 0.250 TIME TO TRIP @3A (Seconds) R MIN R TYP R1 MAX* TYP MAX MIN MAX Tripped state Power Dissipation @ 250V (Watts) TYPICAL 1.0 3.5 7.0 0.8 6 -40 85 2 RESISTANCE (Ω)** @ 20° C 60°C 0.140 OPERATING TEMPERATURE (°C) * Maximum device resistance, measured 1-hour post reflow or post trip. ** Resistance per PPTC device. Additional Ratings @ 20°C Resistance Matched: Line Balance: 0.5 Ohm measured 24 hours after reflow installation 0.5 Ohm, 59 dB @ 4 kHz minimum*** Storage Temperature: Storage Humidity: -40° to 85° C Per IPC/JEDEC J-STD-020A Level 2a ***Tested in accordance with IEEE 455 with a device having a series longitudinal balance value of at least 60dB Agency Recognitions: Reference Documents: Precedence: Effectivity: UL, CSA PS300 This specification takes precedence over documents referenced herein. Reference documents shall be the issue in effect on the date of invitation for bid. MATERIALS INFORMATION ROHS Compliant © 2016 Littelfuse,Inc Specifications are subject to change without notice. Revised July 26, 2016 ELV Compliant Pb-Free Littelfuse.com PolySwitch® PTC Devices Overcurrent Protection Device PRODUCT: TSM600-250F DOCUMENT: SCD26006 REV LETTER: E REV DATE: JULY 26, 2016 PAGE NO.: 2 OF 2 Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and shall not be used for, any purpose (including, without limitation, military, aerospace, medical, lifesaving, life-sustaining or nuclear facility applications, devices intended for surgical implant into the body, or any other application in which the failure or lack of desired operation of the product may result in personal injury, death, or property damage) other than those expressly set forth in applicable Littelfuse product documentation. Warranties granted by Littelfuse shall be deemed void for products used for any purpose not expressly set forth in applicable Littelfuse documentation. Littelfuse shall not be liable for any claims or damages arising out of products used in applications not expressly intended by Littelfuse as set forth in applicable Littelfuse documentation. The sale and use of Littelfuse products is subject to Littelfuse Terms and Conditions of Sale, unless otherwise agreed by Littelfuse. © 2016 Littelfuse,Inc Specifications are subject to change without notice. Revised July 26, 2016 Littelfuse.com
