USP5510

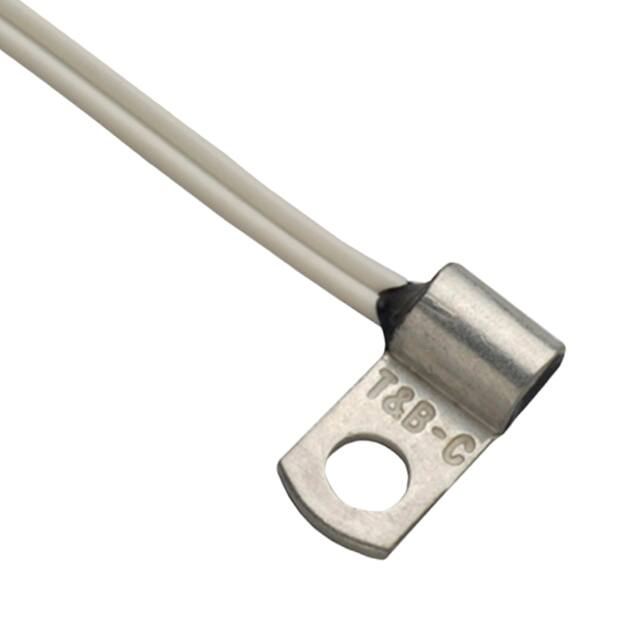

Thermistor Probes and Assemblies Surface Temperature Sensing USP5510 Thermistor Probe Description Littelfuse offers Flag Terminal probe housings suitable for a wide range of temperature sensing applications. If the dimensions on this product won’t work for your requirements, please contact us for further assistance. Features • High Accuracy • #6 Mounting Hole • Teflon Insulated • 150°C Max Operating Temperature Lead Wire Dimensions D 28 AWG, STRANDED CONDUCTOR, SINGLE CONDUCTOR, TEFLON INSULATED LEAD WIRES Part Numbering System E A C USP 5510 F B Thermistor Probe THERMISTOR ELEMENT POTTED IN BARREL OF FLAG TERMINAL Dimensions in inches. A B C D E A B 0.145” 0.250” 12.0” 0.645” 0.310” ± 0.070” ± 0.750” ± 0.025” ± 0.015” STRIP0.250” ± 0.070” Strip NOM #6 STUD 12.0” ± 0.750” No Significance F Note: Not all combinations of Part Number codes are available. Contact Littelfuse for details. 0.220” NOM DIAM C P/N: USP5510 0.645” ± 0.025” D E F 0.310” ± 0.015” 0.145” Nom Stud 0.220” Nom Diam Specifications Part Number Resistance Ohms @25°C Accuracy (°C) 0 - 70°C R-T Curve Temperature Coefficient (% / °C) @ 25°C Beta (K) 0-50°C Temperature Rating (°C) USP5510 10000 0.5 J -4.4 3892 -55 to +150 Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at: www.littelfuse.com/disclaimer-electronics © 2018 Littelfuse, Inc. Revised: March 2, 2018 Specifications are subject to change without notice. 1 littelfuse.com
