V20E320P

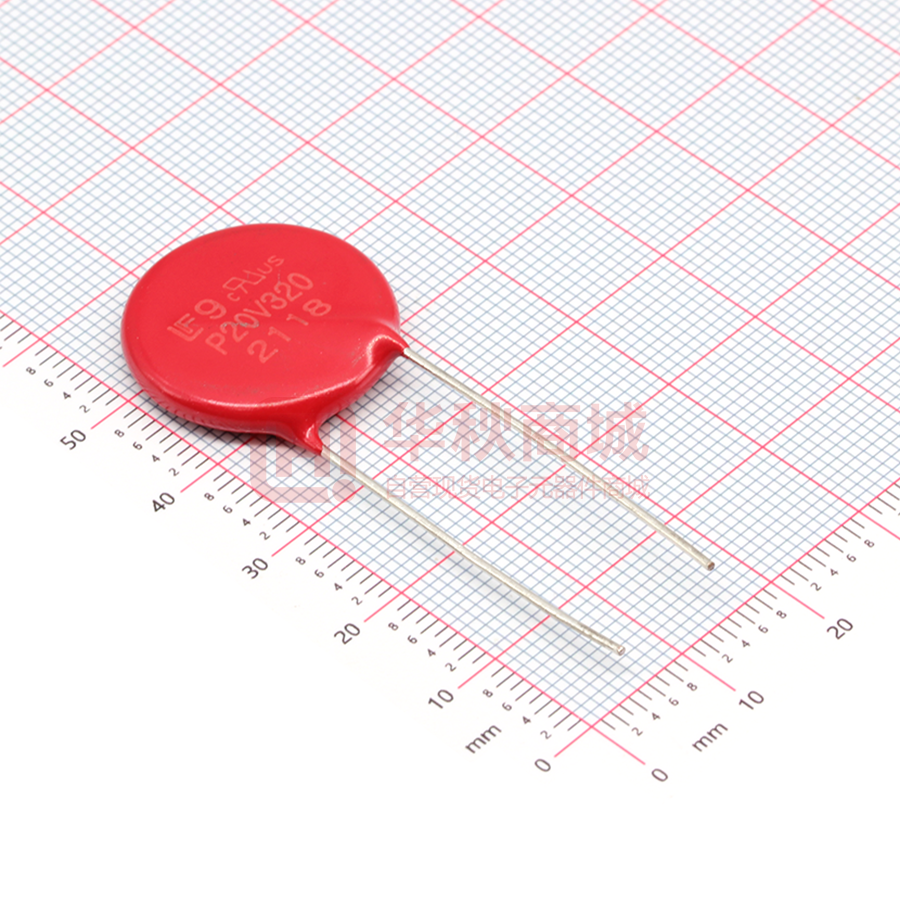

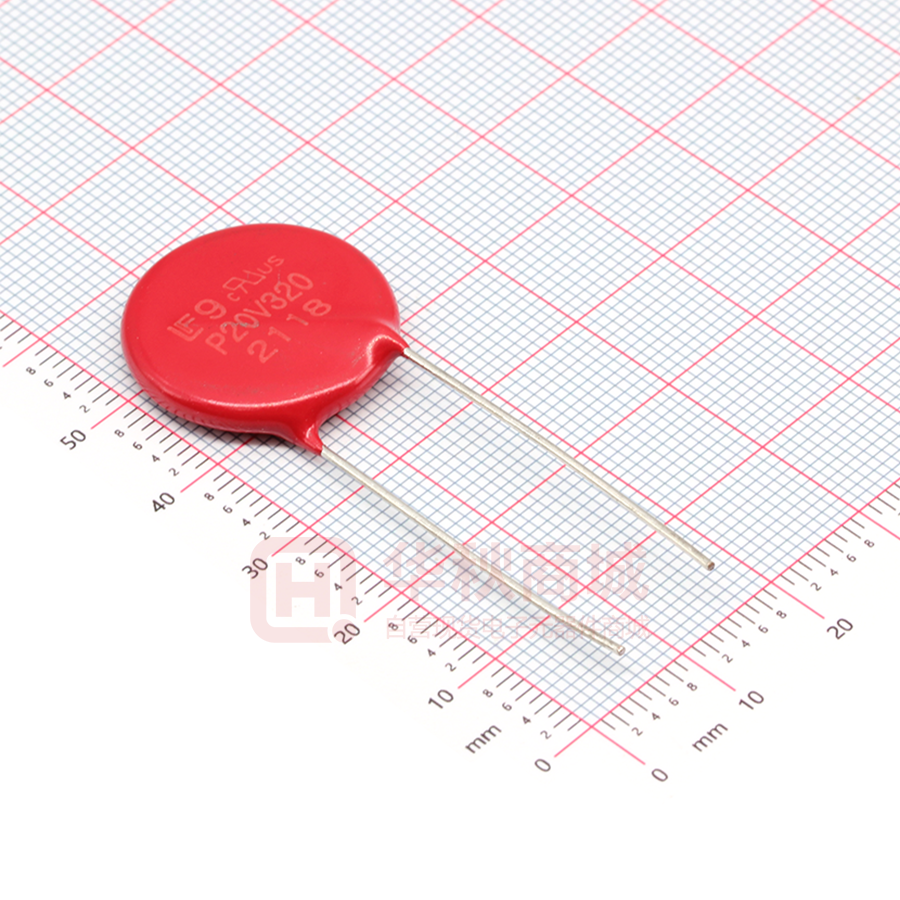

Metal-Oxide Varistors (MOVs) Radial Lead Varistors > UltraMOV® Varistor Series UltraMOV® Varistor Series RoHS Description The UltraMOV® Metal Oxide Varistor Series is designed for applications requiring high peak surge current ratings and high energy absorption capability. UltraMOV® varistors are primarily intended for use in AC Line Voltage applications such as Surge Protection Device (SPD), Uninterruptable Power Supplies (UPS), AC Power Taps, AC Power Meters, or other products that require voltage clamping of high transient surge currents from sources such as lightning, inductive load switching, or capacitor bank switching. These devices are produced in radial lead package sizes of 7, 10,14 and 20mm and offered in a variety of lead forms. UltraMOV® varistor are manufactured with recognized epoxy encapsulation and are rated for ambient temperatures up to 85ºC with no derating. This Series is LASER-branded and is supplied in bulk, ammo pack (fanfold), or tape and reel packaging. Agency Approvals Agency Agency Approval Agency File Number UL1449 E3201163 CECC 42201-006 IEC 61051-1 IEC 61051-2 IEC 60950-1 (Annex Q) for 14mm and 20mm only 1168951 CSA C22.2 No. 1 91788 CECC 42201-006 IEC 61051-1 IEC 61051-2 IEC 60950-1 (Annex Q) for 10mm, 14mm and 20mm only IECQ-C BSI 14.00011 IEC/EN 61051-1 IEC 61051-2 IEC 61051-2-2 IEC 60950-1 (Annex Q) for 10mm, 14mm and 20mm only J 503242422 Notes: . Epoxy coated only. 2. Phenolic coated only. 3. All epoxy coated sizes are UL Recognized while only 10mm, 14mm, and 20mm phenolic coated parts are UL recognized. Features • Lead–free, Halogen-Free • Custom voltage and RoHS compliant types available • High peak surge • Standard lead form and current rating (ITM) up lead space options to 10kA, single 8 x • High operating 20 pulse, (20mm) temperature range up to 125°C (phenolic coating • Standard operating option). 10mm, 14mm voltage range compatible and 20mm devices are with common AC UL Recognized and line voltages (130 TUV certified with 800V VAC to 625 VAC) isolation voltage rating • Characterized for maximum standby current (Leakage) Absolute Maximum Ratings • For ratings of individual members of a series, see Device Ratings and Specifications chart Continuous UltraMOV® Varistor Series Units 130 to 625 V 1,750 to 10,000 A 12.5 to 400 J Steady State Applied Voltage: AC Voltage Range (VM(AC)RMS) Transients: Single-Pulse Peak Current (ITM) 8x20µs Wave (See Figure 2) Single-Pulse Energy Range (WTM) 2ms Square Wave Operating Ambient Temperature Range (TA) for Epoxy coated -55 to +85 ºC Operating Ambient Temperature Range (TA) for Phenolic coated -55 to +125 ºC Storage Temperature Range (TSTG) for Epoxy coated -55 to +125 ºC Storage Temperature Range (TSTG) for Phenolic coated -55 to +150 ºC Temperature Coefficient (a ) of Clamping Voltage (VC) at Specified Test Current UltraMOV® Varistor Series UltraMOV® Series Ratings & Specifications Epoxy Coated Models Part Branding Number V07E130P V10E130P V14E130P V20E130P V07E140P V10E140P V14E140P V20E140P V07E150P V10E150P V14E150P V20E150P V07E175P V10E175P V14E175P V20E175P V07E230P V10E230P V14E230P V20E230P V07E250P V10E250P V14E250P V20E250P V07E275P V10E275P V14E275P V20E275P V07E300P V10E300P V14E300P V20E300P V07E320P V10E320P V14E320P V20E320P V07E385P V10E385P V14E385P V20E385P V07E420P V10E420P V14E420P V20E420P V07E440P V10E440P V14E440P V20E440P V07E460P V10E460P P7V130 P10V130 P14V130 P20V130 P7V140 P10V140 P14V140 P20V140 P7V150 P10V150 P14V150 P20V150 P7V175 P10V175 P14V175 P20V175 P7V230 P10V230 P14V230 P20V230 P7V250 P10V250 P14V250 P20V250 P7V275 P10V275 P14V275 P20V275 P7V300 P10V300 P14V300 P20V300 P7V320 P10V320 P14V320 P20V320 P7V385 P10V385 P14V385 P20V385 P7V420 P10V420 P14V420 P20V420 P7V440 P10V440 P14V440 P20V440 P7V460 P10V460 Phenolic Coated Models Maximum Rating (85°C) Continuous Transient RMS Volts DC Volts Energy 2ms Part Number Branding VM(AC) VM(DC) WTM V07P130P V10P130P V14P130P V20P130P V07P140P V10P140P V14P140P V20P140P V07P150P V10P150P V14P150P V20P150P V07P175P V10P175P V14P175P V20P175P V07P230P V10P230P V14P230P V20P230P V07P250P V10P250P V14P250P V20P250P V07P275P V10P275P V14P275P V20P275P V07P300P V10P300P V14P300P V20P300P V07P320P V10P320P V14P320P V20P320P V07P385P V10P385P V14P385P V20P385P V07P420P V10P420P V14P420P V20P420P V07P440P V10P440P V14P440P V20P440P V07P460P V10P460P P7P130 P10P130 P14P130 P20P130 P7P140 P10P140 P14P140 P20P140 P7P150 P10P150 P14P150 P20P150 P7P175 P10P175 P14P175 P20P175 P7P230 P10P230 P14P230 P20P230 P7P250 P10P250 P14P250 P20P250 P7P275 P10P275 P14P275 P20P275 P7P300 P10P300 P14P300 P20P300 P7P320 P10P320 P14P320 P20P320 P7P385 P10P385 P14P385 P20P385 P7P420 P10P420 P14P420 P20P420 P7P440 P10P440 P14P440 P20P440 P7P460 P10P460 (V) 130 130 130 130 140 140 140 140 150 150 150 150 175 175 175 175 230 230 230 230 250 250 250 250 275 275 275 275 300 300 300 300 320 320 320 320 385 385 385 385 420 420 420 420 440 440 440 440 460 460 (V) 170 170 170 170 180 180 180 180 200 200 200 200 225 225 225 225 300 300 300 300 320 320 320 320 350 350 350 350 385 385 385 385 420 420 420 420 505 505 505 505 560 560 560 560 585 585 585 585 615 615 (J) 12.5 25 50 100 13.5 27.5 55 110 15 30 60 120 17 35 70 135 20 42 80 160 25 50 100 170 28 55 110 190 30 60 125 250 32 67 136 273 36 75 150 300 40 80 160 320 44 85 170 340 48 90 Peak Current 8 x 20µs ITM 1x Pulse (A) 1750 3500 6000 10000 1750 3500 6000 10000 1750 3500 6000 10000 1750 3500 6000 10000 1750 3500 6000 10000 1750 3500 6000 10000 1750 3500 6000 10000 1750 3500 6000 10000 1750 3500 6000 10000 1750 3500 6000 10000 1750 3500 6000 10000 1750 3500 6000 10000 1750 3500 Specifications (25°C) Maximum Varistor Voltage Clamping Typical at 1mA DC Test Voltage Capacitance Current 8 x 20µs ITM 2 x Pulse VNOM Min VNOM Max VC IPK f = 1MHz (A) 1200 2500 4500 6500 1200 2500 4500 6500 1200 2500 4500 6500 1200 2500 4500 6500 1200 2500 4500 6500 1200 2500 4500 6500 1200 2500 4500 6500 1200 2500 4500 6500 1200 2500 4500 6500 1200 2500 4500 6500 1200 2500 4500 6500 1200 2500 4500 6500 1200 2500 (V) 184.5 184.5 184.5 184.5 198 198 198 198 216 216 216 216 243 243 243 243 324 324 324 324 351 351 351 351 387 387 387 387 423 423 423 423 459 459 459 459 558 558 558 558 612 612 612 612 643.5 643.5 643.5 643.5 675 675 (V) 225.5 225.5 225.5 225.5 242 242 242 242 264 264 264 264 297 297 297 297 396 396 396 396 429 429 429 429 473 473 473 473 517 517 517 517 561 561 561 561 682 682 682 682 748 748 748 748 786.5 786.5 786.5 786.5 825 825 (V) 340 340 340 340 360 360 360 360 395 395 395 395 455 455 455 455 595 595 595 595 650 650 650 650 710 710 710 710 775 775 775 775 840 840 840 840 1025 1025 1025 1025 1120 1120 1120 1120 1180 1180 1180 1180 1240 1240 (A) 10 25 50 100 10 25 50 100 10 25 50 100 10 25 50 100 10 25 50 100 10 25 50 100 10 25 50 100 10 25 50 100 10 25 50 100 10 25 50 100 10 25 50 100 10 25 50 100 10 25 (pF) 180 450 1000 1900 160 400 900 1750 150 360 800 1600 130 350 700 1400 100 250 550 1100 90 220 500 1000 80 200 450 900 70 180 400 800 65 170 380 750 60 160 360 700 55 140 300 600 50 130 260 500 45 120 © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 09/14/17 Metal-Oxide Varistors (MOVs) Radial Lead Varistors > UltraMOV® Varistor Series Ratings & Specifications (Continued...) Epoxy Coated Models Phenolic Coated Models Part Branding Number V14E460P V20E460P V07E510P V10E510P V14E510P V20E510P V10E550P V14E550P V20E550P V10E625P V14E625P V20E625P P14V460 P20V460 P7V510 P10V510 P14V510 P20V510 P10V550 P14V550 P20V550 P10V625 P14V625 P20V625 Maximum Rating (85°C) Continuous Transient RMS Volts DC Volts Energy 2ms Part Number Branding VM(AC) VM(DC) WTM V14P460P V20P460P V07P510P V10P510P V14P510P V20P510P V10P550P V14P550P V20P550P V10P625P V14P625P V20P625P P14P460 P20P460 P7P510 P10P510 P14P510 P20P510 P10P550 P14P550 P20P550 P10P625 P14P625 P20P625 (V) 460 460 510 510 510 510 550 550 550 625 625 625 (V) 615 615 670 670 670 670 745 745 745 825 825 825 (J) 180 360 52 92 185 365 95 190 370 100 200 400 Specifications (25°C) Maximum Varistor Voltage Clamping Typical at 1mA DC Test Voltage Capacitance Current 8 x 20µs Peak Current 8 x 20µs ITM 1x Pulse (A) 6000 10000 1750 3500 6000 10000 3500 6000 10000 3500 6000 10000 ITM 2 x Pulse VNOM Min VNOM Max VC IPK f = 1MHz (A) 4500 6500 1200 2500 4500 6500 2500 4500 6500 2500 4500 6500 (V) 675 675 738 738 738 738 819 819 819 900 900 900 (V) 825 825 902 902 902 902 1001 1001 1001 1100 1100 1100 (V) 1240 1240 1355 1355 1355 1355 1500 1500 1500 1650 1650 1650 (A) 50 100 10 25 50 100 25 50 100 25 50 100 (pF) 220 400 40 110 200 350 100 180 300 90 160 250 NOTE: 1. Average power dissipation of transients should not exceed 0.25W, 0.4W, 0.6W and 1.0W for 7mm, 10mm, 14mm, and 20mm model sizes, respectively. Current Energy and Power Dissipation Ratings device. The operating values of a MOV need to be derated at high temperatures as shown above. Because varistors only dissipate a relatively small amount of average power they are not suitable for repetitive applications that involve substantial amounts of average power dissipation. Should transients occur in rapid succession, the average power dissipation is the energy (watt-seconds) per pulse times the number of pulses per second. The power so developed must be within the specifications shown on the Device Ratings and Specifications Table for the specific Figure 1B - Power Derating for Phenolic Coated 100 100 90 90 PERCENT OF RATED VALUE PERCENT OF RATED VALUE Figure 1A - Power Derating for Epoxy Coated 80 70 60 50 40 30 20 80 70 60 50 40 30 20 10 10 0 -55 50 60 70 80 90 100 110 120 AMBIENT TEMPERATURE ( oC) 130 0 -55 140 150 70 80 90 100 110 100 01 = Virtual Origin of Wave T = Time from 10% to 90% of Peak T1 = Rise Time = 1.25 x T T2 = Decay Time Example - For an 8/20 µs Current Waveform: 8µs = T1 = Rise Time 20µs = T2 = Decay Time 90 50 10 O1 T T1 TIME T2 © 2017 Littelfuse, Inc. O1 =without Virtual Origin of Wave Specifications are subject to change notice. T = Time From 10% to 90% Revised: 09/14/17 120 130 140 150 FIGURE 1. CURRENT, ENERGY AND POWER DERATING CURVE CURVE PERCENT OF PEAK VALUE 60 AMBIENT TEMPERATURE ( oC) FIGURECurrent 1. CURRENT, ENERGY AND POWER DERATING Peak Pulse Test Waveform Figure 2 50 of Peak T1 = Virtual Front time = 1.25 • t T = Virtual Time to Half Value (Impulse Duration) Metal-Oxide Varistors (MOVs) Radial Lead Varistors > UltraMOV® Varistor Series Transient V-I Characteristics Curves Maximum Clamping Voltage for 7mm Parts 10000 10000 MODEL SIZE = 7MM MODEL SIZE = 7MM T = -55oC TO 85oC TAA = -55oC TO 85oC 130 to 510V M(AC) RATING 130 to 510V M(AC) RATING MAXIMUM CLAMP MAXIMUM CLAMP VOLTAGE VOLTAGE MAXIMUM MAXIMUMPEAK PEAKVOLTAGE VOLTAGE(V) (V) V7E130(P)-V7E510(P) 1000 1000 460 420 440 460 420 440 MAXIMUM MAXIMUM LEAKAGE LEAKAGE 510 510 230 250 230 275 250 275 300 320 300 385 320 385 175 150 175 130 140 150 130 140 100 100 -6 10 10-6 Figure 3 10-5 10-5 10-4 10-4 0.001 0.001 0.01 0.01 0.1 0.1 PEAK CURRENT (A) PEAK CURRENT (A) 1 1 10 10 100 100 1000 1000 10000 10000 1000 1000 10000 10000 FIGURE 3. FIGURE 3. Maximum Clamping Voltage for 10mm Parts 10000 10000 MODEL SIZE = 10MM MODEL SIZE = 10MM T = -55oC TO 85oC TAA = -55oC TO 85oC 130 to 625V M(AC) RATING RATING 130 to 625V M(AC) MAXIMUM MAXIMUMPEAK PEAKVOLTAGE VOLTAGE(V) (V) V10E130(P)-V10E625(P) MAXIMUM CLAMP MAXIMUM CLAMP VOLTAGE VOLTAGE 510 550 510 625 550 625 MAXIMUM MAXIMUM LEAKAGE LEAKAGE 1000 1000 230 250 230 275 250 275 300 320 300 385 320 385 420 460 440 420 460 440 175 150 175 130 140 150 130 140 100 100 -6 10 10-6 Figure 4 10-5 10-5 10-4 10-4 0.001 0.001 0.01 0.01 0.1 0.1 PEAK CURRENT (A) PEAK CURRENT (A) 1 1 10 10 100 100 FIGURE 4. FIGURE 4. Maximum Clamping Voltage for 14mm Parts V14E130(P) - V14E625(P) 10000 MODEL SIZE = 14MM TA = -55oC TO 85oC 130 to 625VM(AC) RATING MAXIMUM PEAK VOLTAGE (V) MAXIMUM CLAMP VOLTAGE 625 MAXIMUM LEAKAGE 550 510 420 460 440 385 320 300 275 250 230 1000 150 175 130 140 Figure 5 100 10-6 10-5 10-4 0.001 0.01 0.1 1 10 100 1000 10000 PEAK CURRENT (A) FIGURE 5. 10000 MODEL SIZE = 20MM TA = -55oC TO 85oC 130 to 625V M(AC) RATING © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 09/14/17 MAXIMUM PEAK VOLTAGE (V) VOLTAGE Metal-Oxide Varistors (MOVs) 625 MAXIMUM LEAKAGE 550 510 420 460 440 385 320 300 275 250 230 Radial Lead Varistors > UltraMOV® Varistor Series 1000 150 175 130 140 100 Transient V-I Characteristics10-6Curves 10-5 10-4 0.001 0.01 0.1 1 10 100 1000 10000 PEAK CURRENT (A) FIGURE 5. Maximum Clamping Voltage for 20mm Parts V20E130(P) - V20E625(P) 10000 MODEL SIZE = 20MM TA = -55oC TO 85oC 130 to 625V M(AC) RATING MAXIMUM PEAK VOLTAGE (V) MAXIMUM CLAMP VOLTAGE 625 MAXIMUM LEAKAGE 550 510 420 460 440 385 320 300 275 250 230 1000 150 175 130 140 100 10-6 Figure 6 10-5 10-4 0.001 0.01 0.1 1 10 100 1000 10000 PEAK CURRENT (A) FIGURE 6. Pulse Rating Curves Repetitive Surge Capability for 7mm Parts V7E130(P) - V7E460(P) 10000 MODEL SIZE = 7MM TA = -55oC TO 85oC 130 to 460VM(AC) RATING 1 1000 2 SURGE CURRENT (A) 15 10 4 10 5 10 6 10 2 10 3 100 ∞ 10 1 10 Figure 7 100 1000 10000 IMPULSE DURATION (μs) FIGURE 7. Additional Information 10000 MODEL SIZE = 10MM TA = -55oC TO 85oC 130 to 625VM(AC) RATING 1 2 15 Datasheet SURGE CURRENT (A) 1000 10 4 10 2 10 3 Resources 10 5 Samples 10 6 100 ∞ 10 1 10 © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 09/14/17 100 1000 IMPULSE DURATION (μs) FIGURE 8. 10000 10 4 SURGE CURRENT (A) 15 10 2 10 3 100 10 5 10 6 Metal-Oxide Varistors (MOVs) Radial Lead Varistors > UltraMOV® Varistor Series ∞ 10 1 10 Pulse Rating Curves 100 1000 10000 IMPULSE DURATION (μs) FIGURE 7. Repetitive Surge Capability for 10mm Parts V10E130(P) - VIOE625(P) 10000 MODEL SIZE = 10MM TA = -55oC TO 85oC 130 to 625VM(AC) RATING 1 2 15 SURGE CURRENT (A) 1000 10 4 10 2 10 5 10 3 10 6 100 ∞ 10 Figure 8 1 10 100 1000 10000 IMPULSE DURATION (μs) FIGURE 8. Repetitive Surge Capability for 14mm Parts V14E130(P) -V14E625(P) 10000 10000 11 MODELSIZE SIZE= =14MM 14MM MODEL oC oC oCoC TA TO TA==-55 -55 TO8585 130 130toto625V 625V RATING M(AC) M(AC)RATING 22 15 15 22 1010 1000 1000 4 10 10 4 5 10 10 5 6 10 10 6 SURGE CURRENT (A) SURGE CURRENT (A) 33 1010 100 100 ∞∞ 10 10 Figure 9 1 1 10 10 100 100 1000 1000 100000 100000 SURGE CURRENT (A) SURGE CURRENT (A) MODEL SIZE = 20MM oC = -55oCSIZE TO 85 TA MODEL = 20MM oC TO 85oC = -55 TA to 130 625V M(AC) RATING 130 to 625VM(AC) RATING 1 10000 10000 10000 10000 FIGURE 9. FIGURE 9. Repetitive Surge Capability for 20mm Parts V20E130(P) -V20E625(P) IMPULSE DURATION (μs) IMPULSE DURATION (μs) 1 2 215 15 10 2 10 2 3 10 10 3 1000 1000 10 4 5 10 10 4 510 6 10 10 6 100 100 ∞ ∞ 10 10 Figure 10 1 1 10 10 100 100 1000 IMPULSE DURATION (μs) 1000 10000 10000 IMPULSE DURATION (μs) FIGURE 10. FIGURE 10. © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 09/14/17 Metal-Oxide Varistors (MOVs) Radial Lead Varistors > UltraMOV® Varistor Series Wave Solder Profile Non Lead–free Profile Lead–free Profile 300 300 250 TEMPERATURE (ºC) TEMPERATURE (ºC) Maximum Wave 260C Maximum Wave 240C 250 200 150 100 50 200 150 100 50 0 0 0 0.5 1 Figure 11 1.5 2 2.5 3 3.5 TIME(MINUTES) Physical Specifications 4 0 0.5 1 Figure 12 1.5 2 2.5 3 3.5 TIME(MINUTES) Environmental Specifications Lead Material Copper Clad Steel Wire Operating Temperature -55°C to +85°C Soldering Characteristics Solderability per MIL–STD–202, Method 208 Storage Temperature -55°C to +125°C Insulating Material Cured, flame retardant epoxy polymer meets UL94V–0 requirements Humidity Aging +85°C, 85% RH, 1000 hours +/-10% typical voltage change Device Labeling Marked with LF, voltage, UL/CSA logos, and date code Thermal Shock +85°C to -40°C 5 times +/-10% typical voltage change Solvent Resistance MIL–STD–202, Method 215 Moisture Sensitivity Level 1, J-STD-020 Phenolic Coating Option -- UltraMOV® Varistor Series for Hi-Temperature Operating Conditions: • Phenolic Coated UltraMOV® Varistor Series devices are available with improved maximum operating temperature 125°C. • These devices also have improved temperature cycling performance capability. • Ratings and Specifications are as per standard UltraMOV® Series except Hi–Pot Encapsulation (Isolation Voltage Capability) = 800V. • Phenolic Coating is HALOGEN FREE. To order: change 'E' (Epoxy coating) in part number to 'P' (Phenolic coating; e.g. V20P230) • See Part Numbering System section of this series for more information. • Contact factory for further details. • Product marking: LF 9 P20P230 Lead-Free, YYWW Halogen-Free & RoHS Compliant Indicator Phenolic Coated Option Identifier NOTE: 10mm, 14mm and 20mm devices are UL recognized and TUV certified with 800V isolation voltage rating. © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 09/14/17 4 Metal-Oxide Varistors (MOVs) Radial Lead Varistors > UltraMOV® Varistor Series Product Dimensions (mm) Lead form options L2 and L4 (refer to table below) Lead form options L1 and L3 (refer to table below) *SEATING ATRIM PLANE LTRIM *Seating plane interpretation per IEC-717 (not available on tape or ammo pack) Dimension A VRMS Voltage Model 7mm Size 10mm Size Min. mm (in) Max. mm (in) 130-320 - 385-625 - 14mm Size Min. mm (in) Max. mm (in) Min. mm (in) 12 (0.472) - 16 (0.630) - 13 (0.512) - 17 (0.689) - 20mm Size Max. mm (in) Min. mm (in) Max. mm (in) 20 (0.787) - 26.5 (1.043) 20.5 (0.807) - 28 (1.102) ØD All - 9 (0.354) - 12.5 (0.492) - 17 (0.669) - 23 (0.906) e (Note 2) All 4 (0.157) 6 (0.236) 6.5 (0.256) 8.5 (0.335) 6.5 (0.256) 8.5 (0.335) 9 (0.354) 11 (0.433) 130-320 1.5 (0.059) 3.5 (0.138) 1.5 (0.059) 3.5 (0.138) 1.5 (0.059) 3.5 (0.138) 1.5 (0.059) 3.5 (0.138) 385-625 2.5 (0.098) 5.5 (0.217) 2.5 (0.098) 5.5 (0.217) 2.5 (0.098) 5.5 (0.217) 2.5 (0.098) 5.5 (0.217) 130-320 - 5.6 (0.220) - 5.6 (0.220) - 5.6 (0.220) - 5.6 (0.220) 385-510 - 7.3 (0.287) - 7.3 (0.287) - 7.3 (0.287) - 7.3 (0.287) 550-625 - 8.3 (0.327) - 8.3 (0.327) - 8.3 (0.327) - -8.3 (0.327) Øb All 0.585 (0.023) 0.685 (0.027) 0.76 (0.030) 0.86 (0.034) 0.76 (0.030) 0.86 (0.034) 0.76 (0.030) (Note 2) 0.86 (0.034) (Note 2) A TRIM All - 15 (0.591) - 19.5 (0.768) - 22.5 (0.886) - 29.0 (1.142) e1 (Note 3) E L (L2) All 25.4 (1.00) - 25.4 (1.00) - 25.4 (1.00) - 25.4 (1.00) - *L (L4) All 2.41 (0.095) 4.69 (0.185) 2.41 (0.095) 4.69 (0.185) 2.41 (0.095) 4.69 (0.185) 2.41 (0.095) 4.69 (0.185) NOTES: 1. Measurements displayed in Millimeters (Inches in parentheses). 2. Standard lead space. 3. For in-line lead option L3, dimension e1 is “zero”. Straight lead form option L1 shown. For information about bulk packaging quantities, please refer to the Ordering Notes section at the end of this document. © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 09/14/17 P P DP E E DP DP DH DH DP P P DP DP P2 P2 Metal-Oxide Varistors (MOVs) P2 P2 DH DH Radial Lead Varistors > UltraMOV® Varistor Series H0 H0 H0 H0 W0 W2 W1 W0 W2 W1 Db Db DH DH C C SEATING PLANE SEATING PLANE H1 H1 C C SEATING PLANE SEATING PLANE H1 H1 E E DP DP DH DH W0 W2 W1 W0 W2 W1 Db Db W W Tape Specifications for Reel and Ammo Pack Items W (Refer to dimensions on following page) DD0 W DD0 DD0 F 7mm Devices t F P1 P1 P0 P0 DD0 DP DH DP DP DH DH DP DH DP P DP P2 DP H1 H0 D0 H1 D0 H0 DD0 DD0 DP b C b Db Db C b SEATING PLANE SEATING PLANE P1 P0 P1 P1 P0 P0 P1 P1 P0 P0 W0 W2 W1 W0 W2 W1 W0 W2 W1 W0 W2 W1 W t F b W W W0 W2 W1W D0 Crimped Leads "L2" t t Crimped Leads "ZS" "L2" F Straight Leads D0 Straight Leads "ZS" INLINE LEADS "L3" P Crimped Leads t P1 P2 "L2" F P0 P2 P DP Crimped Leads P2 "L2" DP PDP P DP P DP DP P2 P2 DP E DP H1 DH H Db Ho Ho H DD0 DD0 DD0 P1 P1 P0 P1 "L3" In Line Leads P0 P1 In Line LeadsP1"L3" P0 P0 Under-crimped Leads "ZU" DD0 Under-crimped Leads "ZU" P1 "L3" In Line Leads P2 P0 t F F F t t t F E P DP DP LEADS "L1" DH In Line LeadsP2"L3" STRAIGHT DP DP DH P DP DP P P2 E E DP H1 DD0 H0 DD0 DD0 DD0 b Db P1 b P1 P1 P0 b t F F t Straight Leads "L1" P1 P0 Straight Leads "L1" © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 09/14/17 t t F DP DP DP P H1 H1 H E E DH E W DH DH DH DH E DP DH DH W0W2 W1 b W0W2 W1 W H b W D0 D0H W2 W1 W0 W W t W0W2 W1 D0 P1 P1 P0 P1 "L1" Straight Leads D0 Straight Leads P0 "L1" P1 F t b P0 t F P0 D0 t H1 P0 D0 Straight Leads "L1" P1 "L1" Straight Leads t F F F DP W D0 D0H F DP W W0W2 W1 W W W t F Db P1P0 P1 P2 W0W2 W1 W0W2 W1 W0 W2 W1 W0 W2 W1 W0W2 W1 W U DP W2 W1 W0 W H H1 UDH DH Db Db Db DH W2 W1 W0 DH DH DH U UU P0 "L3" P1 In Line Leads P0 P1 P0 "L3" InDD0 Line Leads Under-crimped P0 Leads "ZU" P2 Leads "ZU" P Under-crimped P1 In Line Leads P2 "L3" P DP b DH E DP Db H H DH E E E DH STRAIGHT LEADS "L1" In Line Leads P2 "L3" P DH W2 W1 W0 H E E DP DH DP DH DPDH DH H1 H1 t W U P0 DH DH t t DH DP P DH DH t F F F P DP P DP P DP DP W W W t F E DP H1 P1P0 P1 P0 P1 P1 P0 P0 P0 H0 H1 H1 H0 H1 Ho Ho H0 H1 DD0 W2 W1 W W W W t P P2 W0 t F F W W0 W2 W1 t F b H1 W Db P0 P1 H1 DD0 DD0 H W0 W2 W1 W0 W2 W1 W0 W2 W1 W0 W2 W1 W C DP W0 W2 W1 W0 W2 W1 W0 W2 W1 W U Db Db Db DH DH Db Db C b SEATING PLANE P2 W0 W2 W1 U U U W0 W2 W1 Db E DP Crimped Leads "L2" D0 Crimped Leads "L2" Straight Leads P1 F P2 "ZS" P LEADS INLINE "L3" Straight "ZS" CrimpedLeads Leads "L2" P DP DP P2P0 DH DH DH U H b P2 UDH H1 H1 H1 H1 SEATING PLANE Crimped Leads "L2" P2 P2 DH DH DH DH W0 W2 W1 b E DP H1 DH E E E DH DP DP DH DP DH DH P P2 W E DH D0 H0 DD0 DD0 D0 W t t F F F H1 H0 H1 H1 H0 H H H0 H1 D0 DH C SEATING PLANE H1 DH E E E DH DP DP DH DP DH DH DP C SEATING PLANE H1 DH DH E DH DP P P2 DH W0 W2 W1 H0 H1 HH0 H DH DH DH E DP P DP P DP P DP DP P2 P2 P2 DH C SEATING PLANE H1 H1 H1 E E E E DP C SEATING PLANE P DP P2 DH P P2 E P2 E P DP P DP P DP t Crimped Leads "ZT" CRIMPED LEADS "L2" Crimped Leads "ZT" P P P2 P2 P2 t F F 10, 14 and 20mm Devices Crimped Leads "ZT" CRIMPED LEADS "L2" Crimped Leads "ZT" P2 P1 P1 P0 P0 t Straight Leads "L1" P0 Straight Leads "L1" b t F F t t F F t W0W2 W1 W W Metal-Oxide Varistors (MOVs) Radial Lead Varistors > UltraMOV® Varistor Series Tape Specifications for Reel and Ammo Pack Items (Refer to drawings on previous page) • • • • • • • • • Conforms to ANSI and EIA specifications. Can be supplied to IEC Publication 286-2. Radial devices on tape are offered with crimped leads, straight leads, or in-line leads. See Ordering Information. For 10mm devices 'P' (component pitch) is 12.7mm when 'F' (lead space) is 5mm. 7mm parts are available on tape and reel up to 460 VAC only 10mm parts are available on tape and reel up to 510 VAC only 14mm and 20mm parts are available on tape and reel up to 550 VAC only 7mm devices with 7.5mm lead spacing option will be taped at 25.4mm component pitch and 500 pieces per reel 10mm devices with 5.0mm lead spacing option will be taped at 12.7mm component pitch and 1000 pieces per reel Symbol Description Model Size 7mm 10mm 14mm 20mm B1 Component Top to Seating Plane 15 Max 19.5 Max 22.5 Max 29 Max C Crimp Length 2.4 Typ 2.6 Typ 2.6 Typ 2.6 Typ P Pitch of Component 12.7 +/- 1.0 25.4 +/- 1.0 25.4 +/- 1.0 25.4 +/- 1.0 P0 Feed Hole Pitch 12.7 +/- 0.2 12.7 +/- 0.2 12.7 +/- 0.2 12.7 +/- 0.2 P1 Feed Hole Center to Pitch 3.85 +/- 0.7 8.85 +/- 0.7 8.85 +/- 0.7 7.70 +/- 0.7 P2 Hole Center to Component Center 6.35 +/- 0.7 12.7 +/- 0.7 12.7 +/- 0.7 12.7 +/- 0.7 F Lead to Lead Distance 5.0 +/- 0.8 7.5 +/- 0.8 7.5 +/- 0.8 10.0 +/- 0.8 Δh Component Alignment 2.0 Max 2.0 Max 2.0 Max 2.0 Max 18.0 +1.0 / -0.5 18.0 +1.0 / -0.52 18.0 +1.0 / -0.5 18.0 +1.0 / -0.5 12.0 +/- 0.3 12.0 +/- 0.3 12.0 +/- 0.3 12.0 +/- 0.3 9.0 +0.75 / -0.50 9.0 +0.75 / - 0.50 9.0 +0.75 / 0.50 9.0 +0.75 / -0.50 0.5 Max 0.5 Max 0.5 Max 0.5 Max 18.0 +2.0 / -0.0 18.0 +2.0 / -0.0 18.0 +2.0 / -0.0 18.0 +2.0 / -0.0 16.0 +/- 0.5 16.0 +/- 0.5 16.0 +/- 0.5 16.0 +/- 0.5 W Tape Width W0 Hold Down Tape Width W1 Hole Position W2 Hold Down Tape Position H Height from Tape Center to Component Base H0 Seating Plane Height H1 Component Height 32.0 Max 36.0 Max 40.0 Max 46.5 Max D0 Feed Hole Diameter 4.0 +/- 0.2 4.0 +/- 0.2 4.0 +/- 0.2 4.0 +/- 0.2 t Total Tape Thickness 0.7 +/- 0.2 0.7 +/- 0.2 0.7 +/- 0.2 0.7 +/- 0.2 3° Max, 1.00mm 3° Max, 1.00mm 3° Max, 1.00mm 3° Max, 1.00mm Δp Component Alignment For information on tape and reel packaging quantities, please refer to the Ordering Notes section at the end of this document. Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at www.littelfuse.com/disclaimer-electronics. © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 09/14/17 Metal-Oxide Varistors (MOVs) Radial Lead Varistors > UltraMOV® Varistor Series Part Numbering System BASE PART CODES (See Ratings & Specifications tables and notes below) OPTION CODES (See notes below) V XX E XXX P LX X X XXXXX For “VARISTOR” OTHER NONSTANDARD OPTIONS X2855: Nickel barrier coated wire option (see notes below) DISC DIAMETER: 07, 10, 14, or 20 (mm) NONSTANDARD LEAD SPACING OPTIONS: Blank: Standard lead spacing (see Dimensions Table) 5: 5mm Lead Spacing 7: 7.5mm Lead Spacing 1: 10mm Lead Spacing ENCAPSULATION: E = Epoxy P = Phenolic (Halogen Free) VM(AC)RMS : 130 to 625 (V) LEAD-FREE, HALOGEN-FREE AND RoHS COMPLIANT INDICATOR UltraMOV™ is a trademark of Littelfuse, Inc. PACKAGING: B: Bulk Pack T: Tape and Reel A: Ammo Pack LEAD FORMATION: L1: Straight L2: Crimped L3: In-Line L4: Trim/Crimp (Bulk pack only) Ordering Notes: For standard parts, use the BASE PART designator only. For parts with non-standard options (such as additional form, packaging and lead space options) use, BASE PART + OPTION CODE. OPTION CODE items are subject to availability and minimum order requirements. Please contact a Littelfuse representative if you require additional information PACKAGING: Littelfuse UltraMOV® varistors are shipped standard in bulk pack with straight leads and lead spacing outlined in the dimensions sections of this document. Contact a Littelfuse representative to discuss non-standard options. Standard Part Default Conditions Device Size Part # Lead Space Packaging 7mm V07E– 5.0-/+1 Bulk OPTION CODES: 10mm V10E– 7.5-/+1 Bulk X2855: Nickel Barrier COATED WIRE OPTION 14mm V14E– 7.5-/+1 Bulk All standard parts use tinned copper clad steel wire. Nickel Barrier Coated Wire is available as an option, consisting of Copper Wire with a flashing of Nickel followed by a top coating of Tin. 20mm V20E– 10.0-/+1 Bulk To order: append standard model BASE PART number with "X2855." Example: Standard Model Order As V18ZA40P V18ZA40PX2855 Standard Bulk Pack Quantity Varistor Voltage Standard Bulk Pack Quantity Varistor Model Size 7mm 10mm 14mm 20mm 130 – 275 1500 1000 700 500 300 – 460 1500 700 600 400 510 – 625 1500 700 500 400 Tape & Reel Quantity © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 09/14/17 Shipping Quantity Per Reel Varistor Voltage 7mm 10mm 14mm 20mm 130 – 275 1000 500 500 500 300 – 625 1000 500 400 400
