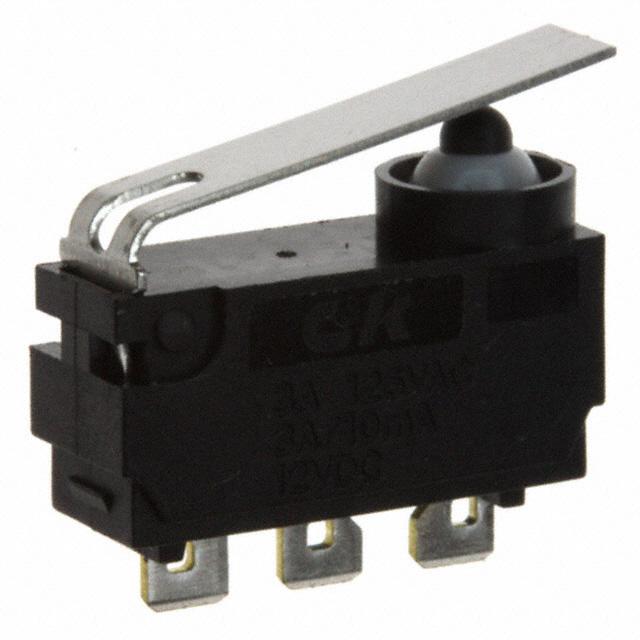

ZMSH03130T10SSC

ZMS Series Mini Size Snap-acting Switches Features/Benefits • Reliable snap-acting mechanism • Long electrical and mechanical life • Compact size - ideal when space is limited • Various PCB terminals & actuators • RoHS compatible • IP67 for standalone switch except the Typical Applications • PCB detection switch • Communication devices • Testing equipment • Security/Alarm systems • Consumer electronics • Automotive: door latch, seat position detection, EV charging metal terminal part; Full IP67 protection when potted with wire version Snap-acting J UL61058-1 UL1054 Specifications Materials CONTACT RATING: 3A@ 125 V AC/ 3A@ 12 V DC, 0.01A @ 12 V DC ELECTRICAL LIFE: 100,000 cycles @ 0.01A 12V DC 100,000 cycles @ 3A 12 V DC 6,000 cycles @ 3A 125 V AC MECHANICAL LIFE: 500,000 cycles INSULATION RESISTANCE: 100 M ohm min. DIELECTRIC STRENGTH: 500 Vrms. OPERATING TEMPERATURE: -40˚C + 85˚C. OPERATING FORCE: 130 grams. CASE: Nylon COVER/ACTUATOR: PBT MOVABLE CONTACTS: 3 Amp silver alloy, 0.01A gold plating over silver alloy STATIONARY CONTACTS: 3 Amp silver alloy, 0.01 A gold plating over silver alloy TERMINALS: Brass, silver plated LEVER: Stainless steel *L  ow Level=conditions where no arcing occurs during switching, i.e., 0.4 VA max. @ 20 V AC or DC max. NOTE: Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center. Sealing cap could possibly be damaged in case of contacts with oils or greases. Please try to avoid direct contact. If more support is needed, consult Customer Service Centre. Build-A-Switch To order, simply select desired option from each category and place in the appropriate box. For additional options not shown in catalog, consult Customer Service Center. Z M S Series ZMS SP, Mom. Over Travel H High Travel Electrical Rating 00 0.01 A @ 12 V DC 03 3A 125 V AC 3A 12 V DC Operating Force 130 130 grams / 4.59 Actuator P00 Pin plunger T10 .25 lever Terminations T11 .28 simulated roller P PC Thru-hole L Left form, PC Thru-hole R Right form, PC Thru-hole S Solder type J Wire leads out bottom * K Wire leads out right side * W Wire leads out left side * Mounting Styles S Std (No support post) L Support post left R Support post right * Standard Wire: 20 AWG UL 1007 Circuitry C SPDT W SPST N.C. Y SPST N.O. Dimensions are shown: Inch (mm) Specifications and dimensions subject to change 31 May 21 J–22 www.ckswitches.com ZMS Series Mini Size Snap-acting Switches SERIES ZMSH  HIGH OVER TRAVEL 14,7 ( .579 ) PT 12,2 ( .480 ) 1,7 ( .067 ) 8,1 7,5 ( .295 ) ( .319 ) NC NO OP ø2 ( .079 ) FP 0,5 ( .020 ) COM 2,5 ( .10 ) 4,13 (.163 ) 2,8 ( .110 ) 4,13 ( .16 ) 5,4 ( .213 ) ELECTRICAL RATING UL61058-1 UL1054 CONTACT MATERIAL OPTION CODE 03 Gold plating over silver alloy ELECTRICAL RATING ELECTRICAL RATING 0.01 AMP @ 12 V DC 0.1 AMP @ 12 V DC 10m AMP @ 12 V DC 5E5 3 AMPS @ 125 V AC 3 AMPS @ 12 V DC Silver alloy J Snap-acting 00 MOVABLE CONTACT / STATIONARY CONTACT ENEC 3 AMPS @ 12 V DC 1E5 Consult Customer Service center for availability and delivery of nonstandard ratings. OPERATING FORCE OPTION CODE 130 BASIC SWITCH OPERATING FORCE (OZ./GRAMS) 130 4.59 Third Angle Projection Dimensions are shown: Inches (mm) Specifications and dimensions subject to change 31 May 21 J–23 www.ckswitches.com ZMS Series Mini Size Snap-acting Switches ACTUATOR P00  PIN PLUNGER T11   LEVER T10  .25 LEVER 14,7 ( .579 ) 12,2 ( .480 ) PT OP 18,6 ( .7323 ) 14,7 ( .579 ) 12,2 ( .480 ) 14,7 ( .5787 ) PT PT FP OP OP FP FP 12,2 ( .4803 ) 9,05 ( .3563 ) approved SWITCH CHARACTERISTICS Snap-acting J High Overtravel min. (H) .415 ± .012 (10.55 ± .3) .012 (0.3) 0.068 (1,72) 0.152 (3.85) .440 ± .020 (11.2 ±.5) 0.020 (0,5) 0.084 (2,14) 0.186 (4.8) .539 ± .032 (13.7 ± .8) 0.030 (0,7) 0.101 (2,57) Maximum Operate Force (grams/oz.) Minimum Release Force (grams/oz.) Free Position Max Maximum Pre-travel P00 130 4.59 13 0.45 .472 (12) 0.032 (0,8) T10 195 6.88 55 1.93 .604 (15.35) T11 160 5.64 45 1.58 .726 (18.45) P00  PIN PLUNGER (IP67) T11   .28 LEVER (IP67) 14,7 ( .579 ) 12,2 ( .480 ) PT 12,2 ( .480 ) OP Blue (NO) Operate Position T10  .25 LEVER (IP67) 14,7 ( .579 ) Gray NC Maximum Differential Actuator code 18,6 ( .7323 ) 14,7 ( .5787 ) PT PT FP 12,2 ( .4803 ) FP OP OP FP Black (COM) SWITCH CHARACTERISTICS “J” TERMINATION ONLY Maximum Operate Force (grams/oz.) Minimum Release Force (grams/oz.) Free Position Max Maximum Pre-travel Operate Position Maximum Differential High Overtravel min. (H) P00 130 4.59 13 0.45 .650 (16.50) 0.032 (0,8) .593 ± .020 (15.05 ± 0.5) .012 (0.3) 0.068 (1,72) T10 195 6.88 55 1.93 .781 (19.85) 0.152 (3.85) .618 ± .028 (15.7 ± .7) 0.020 (0.5) 0.084 (2,14) T11 160 5.64 45 1.58 .904 (22.95) 0.188 (4.8) .717 ± .039 (18.2 ± 1.0) 0.030 (0.7) 0.101 (2,57) Actuator code Dimensions are shown: Inch (mm) Specifications and dimensions subject to change 31 May 21 J–24 www.ckswitches.com ZMS Series Mini Size Snap-acting Switches TERMINATIONS L  LEFT FOOTED, PC THRU-HOLE P  PC THRU-HOLE PC MOUNT (2) 2.5 holes (.098) 9.53 (.375) 5.85 (0.230) 0.23 (.010) 0,6 ± 0,1 ( .024±.003) 5,08 ( .200) 5,08 ( .200) 5,08 (.200) 0,5±0,05 ( .020±.001) 2,8 ( .110) 2,5 ( .098) 1,35/1,50 (.053) (.059) To center 2,05 of terminal (.081 ) 2,85 (.1122 ) 5,08 (.200) 5.08 (.200) 0,5 0,6 (.0197 ) (.0236) 2,8 (.1102 ) 5,08 (.2000 ) 5,08 (.2000 ) 10.16 (.400 ) (3) 1.35 to 1.50 holes (.053) to (.059) PC MOUNTING HOLE R  RIGHT FOOTED, PC THRU-HOLE 5 (.197) 2,05 (.081) To center of terminal (IP67) (IP67) GREY (NC) 12.0 (472) 5.08 (.200) 3.17 (0.125) STRIP ENDS 12 (.472) 304.8 (12.00) 10.16 (.400) (3) 1.35 to 1.50 holes (.053) to (.059) 2,85 (.112 ) 304,8 (12.00) K  RIGHT SIDE J WIRE LEADS BOTTOM Black Blue Grey 3.17 (COM) (NO) (NC) (.125) Strip Ends BLUE (NO) BLACK (COM) S  SOLDER TYPE W  LEFT SIDE (IP67) 304,8 (12.00) Standard Wire: 20 AWG UL 1007 GREY (NC) 3,17 (0.125) STRIP ENDS 1,7 ( .067 ) 4,13 ( .163 ) 2,5 ( .098 ) 4,13 ( .163 ) 0,5 ( .0197 ) 2,8 ( .1102 ) 12 (.472) BLUE (NO) BLACK (COM) MOUNTING STYLES S  STD (NO SUPPORT POST) L  SUPPORT POST LEFT R  SUPPORT POST RIGHT 5 ( .197 ) 2X 5 ( .197 ) ø2.60 (1,02) 2.60 (.102) CIRCUITRY C  SPDT (Single Pole, Double Throw) W  SPST, NC (Single Pole, Single Throw, Normally Closed) Y  SPST, NO (Single Pole, Single Throw, Normally Open) Third Angle Projection Dimensions are shown: Inches (mm) Specifications and dimensions subject to change 31 May 21 J–25 www.ckswitches.com J Snap-acting 0,5 (.020) 2,8 (.110 ) 5,4 (.213 ) PC MOUNT (2) 2.5 holes 9.53 (.098) (.375) 5.85 0.23 (0.230) (.010)
