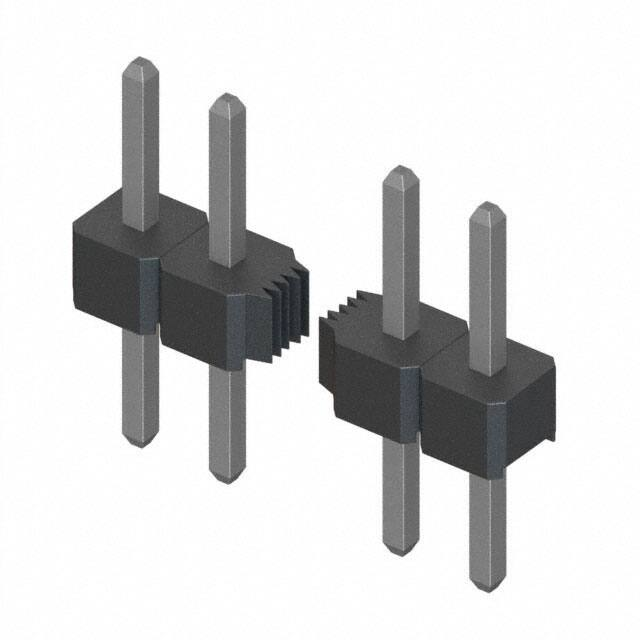

M22 Connectors Male Vertical PC Tail Suitable for use with female PCB connectors and jumper sockets shown on pages 125 to 127. 4.2mm mating length also suitable for use with female crimp connectors shown on page 128. Pin headers can be cut into smaller sizes. For alternatives pin lengths, see pin header variants on page 134. single row B Mating Length 2.00 ø 0.80 Recommended PC Board Pattern 1.50 Tail 2.00 0.50 square Calculation double row A 2.00 x No. of contacts per row B 2.00 x (No. of contacts per row - 1) A B 2.00 Mating Length B 2.00 ø0.80 1.50 Tail 2.00 2.00 0.50 square Recommended PC Board Pattern HOW TO ORDER M22 - XXX  XX  XX Series code Finish connector type Single Double 201 05 Gold 46 Tin Mating Length Tail 202 3.50mm 3.40mm 251 252 3.50mm 2.30mm No. OF CONTACTS PER ROW 271 272 4.20mm 2.30mm 02 to 50 All dimensions in mm. www.harwin.com 129 2mm (.079") PITCH A B 2.00
