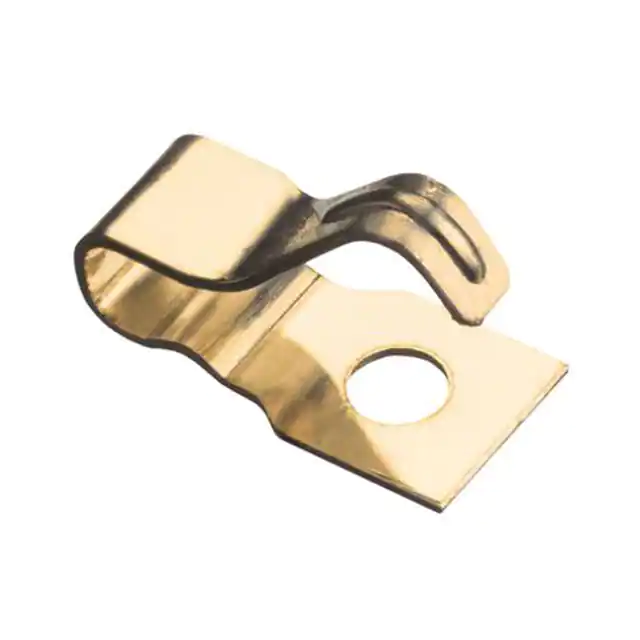

S7151-45R

DRAWING No.: Customer Information Sheet IF IN DOUBT - ASK S7151-05R NOTES: 1. QUANTITY PER REEL = 2,000. 2. THIS PRODUCT IS TAPED AND REELED IN GENERAL ACCORDANCE WITH EIA-481-2 (ELECTRONICS INDUSTRIES ASSOCIATION). NOT TO SCALE C 8.00 TYP THIRD ANGLE PROJECTION ALL DIMENSIONS IN mm 2.00 TYP 4.00 TYP 1.75 1.50 +0.10 TYP 0 3.30 0.35 PICK & PLACE AREA 5.50 2.80 RECOMMENDED PCB LAYOUT (TOLERANCE = 0.05) 12.00 0.30 SECTION Y-Y 3.05 SECTION 4.50 0.90 3.60 1.70 1.50 3.00 3.15 0.10 330 SPECIFICATION: MATERIAL = PHOSPHOR BRONZE, 0.15mm THICK FINISH = GOLD FLASH OVER 1.25µm MIN NICKEL ELECTRICAL: CONTACT RESISTANCE = 50m MAX CURRENT RATING = 1A MECHANICAL: DURABILITY = 10,000 CYCLES MINIMUM FORCE AT WORKING HEIGHT = 0.49N ENVIRONMENTAL: OPERATING TEMPERATURE = -20°C TO +70°C 2.40 1.90 0.10 X-X COMPONENT DETAILS (TOLERANCE = 0.15) REEL DETAILS 13.0 +0.5 -0.2 MGP FINISHED REELING DIRECTION 5 NAME ISS. COMPONENT AT WORKING HEIGHT 06.10.22 DATE APPROVED: MGP CHECKED: AB DRAWN: 31836 CN/CO S.BENNETT CUSTOMER REF.: 4.60 ASSEMBLY DRG: 2.30 0.10 1.70 0.10 www.harwin.com technical @harwin.com THIS DRAWING AND ANY INFORMATION OR DESCRIPTIVE MATTER SET OUT HEREON ARE CONFIDENTIAL AND COPYRIGHT PROPERTY OF THE HARWIN GROUP AND MUST NOT BE DISCLOSED, LOANED, COPIED OR USED FOR MANUFACTURING, TENDERING OR FOR ANY OTHER PURPOSE WITHOUT THEIR WRITTEN PERMISSION. TOLERANCES X. X.X X.XX X.XXX = = = = 1mm 0.50mm 0.20mm 0.01mm ANGLES = 5 UNLESS STATED TITLE: MATERIAL: SEE ABOVE FINISH: S/AREA: SMT SPRING CONTACT (3.00mm HIGH) IN TAPE AND REEL DRAWING NUMBER: SEE ABOVE mm² S7151-45R SHT 2 OF 2
