FX1-216S-1.27DS

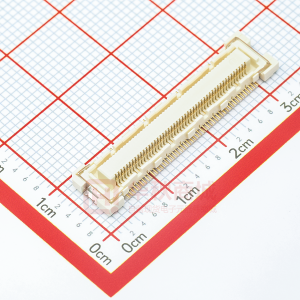

1.27mm Pitch Connector FX1 Series DIN duplex density mount has been achieved. (DIN 96 contacts and FX1 192 (96x2) Photo 1 sFeatures 1. High density and space saved-DIN Duplex Mount Achieved The alignment of the mating area in 4-row allows to duplex the number of contacts in the nearly equivalent mount square as for the conventional DIN connector.(Refer to photo (1).) Sequence Structure (Pin contact sequence) Figure 2 2. High Current and High Voltage Two-thirds of total contact numbers are used for half pitch signaling contact, while the other one-third thereof is used for the power ground contact. Power ground contact corresponds to high current (1A) and high voltage (250V). 3. Sequence Structure Considering insertion/extraction in active power mode and maintenance on the end user side, the FX series is designed in a mechanism that can afford the time different contact at three steps. (For details, refer to Figure (2) as shown on the right.) FX1V (3 step sequence) Mating Power Supply Removal Ground Signal *FX1 Series (2 step sequence) 1 2 4. Mis-insertion Prevent Provide the insertion guide on both ends of connector, and widen an inductive area in order to prevent mis-insertion. Row B Row A, row C *FX1 Series (3 step sequence) 1 2 3 B1 to B4, B45 to B52, B93 to B96 B5 to B44, B53 to B92 Row A, row C Setting row B to ground, if active cable insertion and extraction are performed as power supply, arc will occur between contact and contact. The row B contact structure is constructed to separate arc occurrence point a and normal contact point b, and minimizes affects on the contact. A134 sProduct Specifications Current rating Voltage rating 0.5A Signal Contact: 125V AC Operating Temperature Range-55 to 85ç (Note 1) Storage Temperature Range -10 to +60ç(Note 2) Rating Signal Contact: Power Supply Contact: 1A Power Supply Contact: 250V AC Operating Humidity Range -40 to 80% Operating Humidity Range -40 to 70% (Note 2) Item 1. Insulation Resistance 2. Withstanding Voltage 3. Contact Resistance 4. Vibration 5. Humidity (Steady state) 6. Temperature Cycle 1000M ohms min. Specification 250V DC 1 minute 100mA Condition No flashover or insulation breakdown. 60m ohms max. (conductor resistance included) Signal contact Power supply contact 300V AC 600V AC No electrical discontinuity of 1µs or more Contact resistance: 70m ohms max. Insulation resistance: 1000M ohms min. Contact resistance: 70m ohms max. Insulation resistance: 1000M ohms min. Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions. 96 hours at temperature of 40ç and humidity of 90% to 95% (-55ç: 30 minutes¡15- to 35ç: 5 minutes max.¡ (-85ç: 30 minutes¡15- to 35ç: 5 minutes max.) 5 cycles 500 cycles 7. Durability (Mating/un-mating) Contact resistance: 70 m ohms max. Note 1: Includes temperature rise caused by current flow. Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation. sMaterial qFX1 Series Parts Insulator Header Receptacle Straight header Contact Right angle header Receptacle Prefixed pin Material PPS PPS/ PTB Brass Phosphor bronze Phosphor bronze Phosphor bronze Finish Black Remarks UL94V-0 Contact area:Gold plated Lead area:Tin-lead plated Tin-lead plated ________ ________ qFXV Series Parts Insulator Header Receptacle Contact Prefixed pin Material LCP PPS/ PTB Phosphor bronze Phosphor bronze Finish Black Remarks UL94V-0 Contact area:Gold plated Lead area:Tin-lead plated Tin-lead plated ________ ________ A135 sOrdering Information qFX1 Series FX1 q - 192 P - 1.27 DSA L w e r t y q Series Name : FX1 r Contact pitch: 1.27mm t Contact type: DS : Right angle DSA : Straight y L: Board prefixed pin w Number of contacts : 192, 216 e Connector type : P-header : S-receptacle Note: The cleaning type only is applied on the header side to FX1 series. qFX1V Series FX1V q A - 192 P - DSA L w e r t y q Series Name : FX1V r Connector type: P-header S-receptacle t Contact type: DS : Right angle DSA : Straight y L: Board prefixed pin w A: Cleaning type (header side only) Blank: No cleaning type e Number of contacts : 288 Note 1. Cleaning type: the liquid escape hole is added at dip cleaning. No cleaning type: no liquid escape hole is added at dip cleaning. Note 2. The FX1V series omits the contact pitch. BApplication Pattern A136 FX1 Series sReceptacle : Right Angle Type BPCB mounting pattern Applicable board thickness t=1.6mm Unit: mm Part Number FX1-144S-1.27DS FX1-144S-1.27DSL FX1-192S-1.27DS FX1-192S-1.27DSL FX1-216S-1.27DS FX1-216S-1.27DSL CL No. 571-0003-7 571-0053-5 571-0004-0 571-0054-8 571-0005-2 571-0055-0 Number of Contacts 144 192 216 A 73.29 93.61 103.77 B 68.08 88.4 98.56 C 59.69 80.01 90.17 D ____ 67.31 ____ 87.63 ____ 97.79 A137 sHeader : Straight Type BPCB mounting pattern Applicable board thickness t=1.6mm Unit: mm Part Number FX1-144P-1.27DSA FX1-144P-1.27DSAL FX1-192P-1.27DSA FX1-192P-1.27DSAL FX1-216P-1.27DSA FX1-216P-1.27DSAL CL No. 571-0303-0 571-0353-9 571-0304-3 571-0354-1 571-0305-6 571-0355-4 Number of Contacts 144 192 216 A 73.29 93.61 103.77 B 59.69 80.01 90.17 D ____ 69.85 ____ 90.17 ____ 100.33 A138 sHeader : Right Angle Type BPCB mounting pattern Applicable board thickness t=1.6mm Part Number FX1-144P-1.27DS FX1-144P-1.27DSL CL No. 571-0203-6 571-0253-4 Number of Contacts 144 A139 FX1V Series sReceptacle : Right Angle Type BPCB mounting pattern Recommended board thickness t=1.6mm (lead length: 3mm) Part Number FX1V-288S-DS FX1V-288S-DSL CL No. 571-0606-2 571-0656-0 sHeader : Straight Type Liquid escape hole With hole : Cleaning type Without hole : No Cleaning type BPCB mounting pattern Recommended board thickness t=1.6mm (lead length: 3.4mm) Part Number FX1V-288P-DSA FX1V-288P-DSAL FX1VA-288P-DSA FX1VA-288P-DSAL CL No. 571-0906-6 571-0956-4 571-1006-0 571-1056-9 A140 BPrecautions 1. Soldering (1)In the case of manual soldering, complete services under the condition of soldering iron bit temperature below 300ç for 2 seconds max. Please be sure to coat the contacts with solder so that no force is given. (2)In the case of dip soldering bath, complete service under the condition of soldering iron bit temperature below 260ç for 5 seconds max. 2. Prefixed function If the prefixed function is required, please use to the board prefixed pin type. A141
