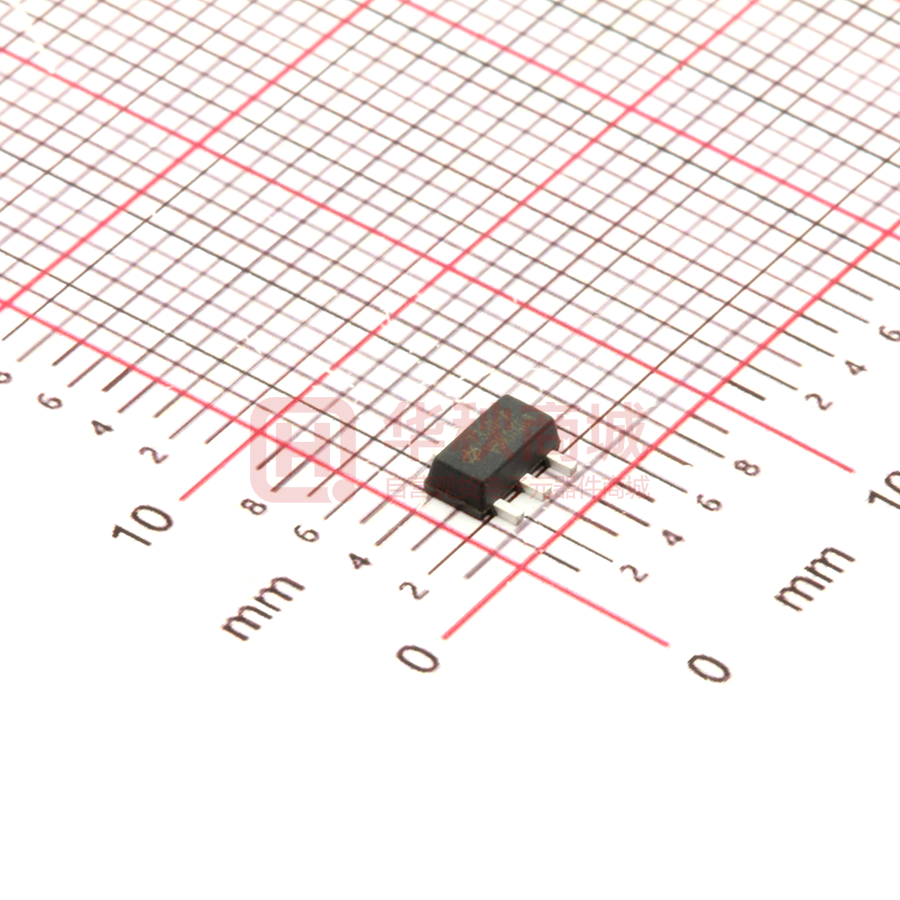

HT7350-A

HT73xx Series Low Power Consumption LDO Features General Description • Ultra low quiescent current: 3.5µA (typ.) The HT73XX series is a set of three-terminal, low power, high voltage regulators implemented in CMOS technology. The series features extremely low quiescent current which is typically 3.5µA . They allow input voltages as high as 12V. The device provides large current with a significantly small dropout voltage. • High input voltage (up to 12V) • Output voltage: 1.8V, 2.5V, 2.7V, 3.0V, 3.3V, 3.5V, 4.15V, 5.0V • Output voltage accuracy: tolerance ±3% • Maximum output current: 250mA • Low dropout voltage The HT73XX consists of a high-precision voltage reference, an error correction circuit, and a current limited output driver. They are available with several fixed output voltages ranging from 1.8V to 5.0V. CMOS technology ensures low dropout voltage and low current consumption. Although designed primarily as fixed voltage regulators, these devices can be used with external components to generate variable voltages and currents. • Low temperature coefficient • 3-pin TO92, 3-pin SOT89 package Applications • Battery-powered equipment • Voltage regulator for microprocessor • Voltage regulator for LAN cards • Wireless Communication equipment • Audio/Video equipment Selection Table Part No. Output Voltage HT7318 1.8V HT7325 2.5V HT7327 2.7V HT7330 3.0V HT7333 3.3V HT7335 3.5V HT7341 4.15V HT7350 5.0V Package Marking SOT89 TO92 73xx-A (for SOT89) 73xx-A (for TO92) Note: ″xx″ stands for output voltages. Rev. 1.60 1 August 04, 2018 HT73xx Block Diagram             Pin Assignment TO92 SOT89 73xx-A 73xx-A 1 2 3 GND VIN VOUT 1 2 3 GND VIN VOUT Pin Description Pin No. Pin Name Description SOT89 TO92 1 1 GND Ground pin 2 2 VIN Input pin 3 3 VOUT Output pin Absolute Maximum Ratings* Supply Voltage .......................... VSS−0.3V to VSS+14V Operating Temperature .........................−40°C to 85°C Storage Temperature ...........................−50°C to 125°C Power Consumption (*2)..................................500mW Power Consumption (*1)................................. 500mW Note: These are stress ratings only. Stresses exceeding the range specified under ″Absolute Maximum Ratings″ may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability. *1: applied to TO92 *2: applied to SOT89 The guaranteed specifications apply only for the test conditions listed. Rev. 1.60 2 August 04, 2018 HT73xx Electrical Characteristics HT7318, +1.8V Output Type Ta=25°C Symbol Parameter Test Conditions VIN Conditions VOUT Output Voltage 2.8V IOUT=40mA IOUT(MAX) Maximum Output Current 2.8V VOUT ≥ 1.62V ∆VOUT* Load Regulation 2.8V 1mA ≤ IOUT ≤ 60mA VDROP** Dropout Voltage ISS Quiescent Current              VIN        IOUT=40mA 2.8V No load Line Regulation — IOUT=40mA 2.8V ≤ VIN ≤ 12V Input Voltage — — Temperature Coefficient  — IOUT=40mA 2.8V −40°C < Ta < 85°C Min. Typ. Max. Unit 1.746 1.800 1.854 V 150 — — mA — 45 90 mV — 170 — mV — 3.5 7 µA — 0.2 0.3 %/V — — 12 V — ±0.7 — mV/°C HT7325, +2.5V Output Type Ta=25°C Symbol Parameter Test Conditions VIN Conditions VOUT Output Voltage 3.5V IOUT=40mA IOUT(MAX) Maximum Output Current 3.5V VOUT ≥ 2.25V ∆VOUT* Load Regulation 3.5V 1mA ≤ IOUT ≤ 60mA VDROP** Dropout Voltage ISS Quiescent Current              VIN        IOUT=40mA 3.5V No load Line Regulation — IOUT=40mA 3.5V ≤ VIN ≤ 12V Input Voltage — — Temperature Coefficient  — IOUT=40mA 3.5V −40°C < Ta < 85°C Min. Typ. Max. Unit 2.425 2.500 2.575 V 180 — — mA — 45 90 mV — 110 — mV — 3.5 7.0 µA — 0.2 0.3 %/V — — 12 V — ±0.7 — mV/°C HT7327, +2.7V Output Type Ta=25°C Symbol Parameter Test Conditions VIN Conditions VOUT Output Voltage 3.7V IOUT=40mA IOUT(MAX) Maximum Output Current 3.7V VOUT ≥ 2.43V ∆VOUT* Load Regulation 3.7V 1mA ≤ IOUT ≤ 80mA VDROP** Dropout Voltage ISS Quiescent Current              VIN         Rev. 1.60 — IOUT=40mA 3.7V No load Line Regulation — IOUT=40mA 3.7V ≤ VIN ≤ 12V Input Voltage — — Temperature Coefficient IOUT=40mA 3.7V −40°C < Ta < 85°C 3 Min. Typ. Max. Unit 2.619 2.700 2.781 V 200 — — mA — 45 90 mV — 100 — mV — 3.5 7.0 µA — 0.2 0.3 %/V — — 12 V — ±0.7 — mV/°C August 04, 2018 HT73xx HT7330, +3.0V Output Type Ta=25°C Symbol Parameter Test Conditions VIN Conditions VOUT Output Voltage 4.0V IOUT=40mA IOUT(MAX) Maximum Output Current 4.0V VOUT ≥ 2.70V ∆VOUT* Load Regulation 4.0V 1mA ≤ IOUT ≤ 80mA VDROP** Dropout Voltage ISS Quiescent Current              VIN        IOUT=40mA 4.0V No load Line Regulation — IOUT=40mA 4.0V ≤ VIN ≤ 12V Input Voltage — — Temperature Coefficient  — IOUT=40mA 4.0V −40°C < Ta < 85°C Min. Typ. Max. Unit 2.910 3.000 3.090 V 250 — — mA — 45 90 mV — 95 — mV — 3.5 7.0 µA — 0.2 0.3 %/V — — 12 V — ±0.7 — mV/°C HT7333, +3.3V Output Type Ta=25°C Symbol Parameter Test Conditions VIN Conditions VOUT Output Voltage 4.3V IOUT=40mA IOUT(MAX) Maximum Output Current 4.3V VOUT ≥ 2.97V ∆VOUT* Load Regulation 4.3V 1mA ≤ IOUT ≤ 80mA VDROP** Dropout Voltage ISS Quiescent Current              VIN        IOUT=40mA 4.3V No load Line Regulation — IOUT=40mA 4.3V ≤ VIN ≤ 12V Input Voltage — — Temperature Coefficient  — IOUT=40mA 4.3V −40°C < Ta < 85°C Min. Typ. Max. Unit 3.201 3.300 3.399 V 250 — — mA — 45 90 mV — 90 — mV — 3.5 7.0 µA — 0.2 0.3 %/V — — 12 V — ±0.7 — mV/°C HT7335, +3.5V Output Type Ta=25°C Symbol Parameter Test Conditions VIN Conditions VOUT Output Voltage 4.5V IOUT=40mA IOUT(MAX) Maximum Output Current 4.5V VOUT ≥ 3.15V ∆VOUT* Load Regulation 4.5V 1mA ≤ IOUT ≤ 80mA VDROP** Dropout Voltage ISS Quiescent Current              VIN         Rev. 1.60 — IOUT=40mA 4.5V No load Line Regulation — IOUT=40mA 4.5V ≤ VIN ≤ 12V Input Voltage — — Temperature Coefficient IOUT=80mA 4.5V −40°C < Ta < 85°C 4 Min. Typ. Max. Unit 3.395 3.500 3.605 V 250 — — mA — 45 90 mV — 80 — mV — 3.5 7.0 µA — 0.2 0.3 %/V — — 12 V — ±0.7 — mV/°C August 04, 2018 HT73xx HT7341, +4.15V Output Type Ta=25°C Symbol Parameter Test Conditions VIN Conditions VOUT Output Voltage 5.15V IOUT=40mA IOUT(MAX) Maximum Output Current 5.15V VOUT ≥ 3.74V ∆VOUT* Load Regulation 5.15V 1mA ≤ IOUT ≤ 80mA VDROP** Dropout Voltage ISS Quiescent Current              VIN        — 5.15V No load Line Regulation — IOUT=40mA 6.0V ≤ VIN ≤ 12.0V Input Voltage — — Temperature Coefficient  IOUT=40mA IOUT=80mA 5.15V −40°C < Ta < 85°C Min. Typ. Max. Unit 4.025 4.150 4.275 V 250 — — mA — 45 90 mV — 60 — mV — 3.5 7.0 µA — 0.2 0.3 %/V — — 12 V — ±0.7 — mV/°C HT7350, +5.0V Output Type Ta=25°C Symbol Parameter Test Conditions VIN Conditions VOUT Output Voltage 6.0V IOUT=40mA IOUT(MAX) Maximum Output Current 6.0V VOUT ≥ 4.50V ∆VOUT* Load Regulation 6.0V 1mA ≤ IOUT ≤ 100mA VDROP** Dropout Voltage ISS Quiescent Current              VIN         — IOUT=40mA 6.0V No load Line Regulation — IOUT=40mA 6.0V ≤ VIN ≤ 12.0V Input Voltage — — Temperature Coefficient IOUT=80mA 6.0V −40°C < Ta < 85°C Min. Typ. Max. Unit 4.850 5.000 5.150 V 250 — — mA — 45 90 mV — 60 — mV — 3.5 7.0 µA — 0.2 0.3 %/V — — 12 V — ±0.7 — mV/°C Note: ″*″ Regulation is measured at constant junction temperature, using pulsed ON time. ″**″ Dropout is measured at constant junction temperature, using pulsed ON time, and the criterion is VOUT inside target value ±2%. Application Circuits                                     5           Rev. 1.60       August 04, 2018 HT73xx Package Information Note that the package information provided here is for consultation purposes only. As this information may be updated at regular intervals users are reminded to consult the Holtek website for the latest version of the Package/ Carton Information. Additional supplementary information with regard to packaging is listed below. Click on the relevant section to be transferred to the relevant website page. • Package Information (include Outline Dimensions, Product Tape and Reel Specifications) • The Operation Instruction of Packing Materials • Carton information Rev. 1.60 6 August 04, 2018 HT73xx 3-pin TO92 Outline Dimensions         Symbol Nom. Max. A 0.173 0.180 0.205 B 0.170 — 0.210 C 0.500 0.580 — D — 0.015 BSC — E — 0.010 BSC — F — 0.050 BSC — G — 0.035 BSC — H 0.125 0.142 0.165 Symbol Rev. 1.60 Dimensions in inch Min. Dimensions in mm Min. Nom. Max. A 4.39 4.57 5.21 B 4.32 — 5.33 C 12.70 14.73 — D — 0.38 BSC — E — 2.54 BSC — F — 1.27 BSC — G — 0.89 BSC — H 3.18 3.61 4.19 7 August 04, 2018 HT73xx 3-pin SOT89 Outline Dimensions          Symbol Dimensions in inch Min. Nom. Max. A 0.173 — 0.185 B 0.053 — 0.072 C 0.090 — 0.106 D 0.031 — 0.047 E 0.155 — 0.173 F 0.014 — 0.019 G 0.017 — 0.022 H — 0.059 BSC — I 0.055 — 0.063 J 0.014 — 0.017 Symbol Rev. 1.60  Dimensions in mm Min. Nom. Max. A 4.40 — 4.70 B 1.35 — 1.83 C 2.29 — 2.70 D 0.80 — 1.20 E 3.94 — 4.40 F 0.36 — 0.48 G 0.44 — 0.56 H — 1.50 BSC — I 1.40 — 1.60 J 0.35 — 0.44 8 August 04, 2018 HT73xx Copyright© 2018 by HOLTEK SEMICONDUCTOR INC. The information appearing in this Data Sheet is believed to be accurate at the time of publication. However, Holtek assumes no responsibility arising from the use of the specifications described. The applications mentioned herein are used solely for the purpose of illustration and Holtek makes no warranty or representation that such applications will be suitable without further modification, nor recommends the use of its products for application that may present a risk to human life due to malfunction or otherwise. Holtek's products are not authorized for use as critical components in life support devices or systems. Holtek reserves the right to alter its products without prior notification. For the most up-to-date information, please visit our web site at http://www.holtek.com.tw. Rev. 1.60 9 August 04, 2018
