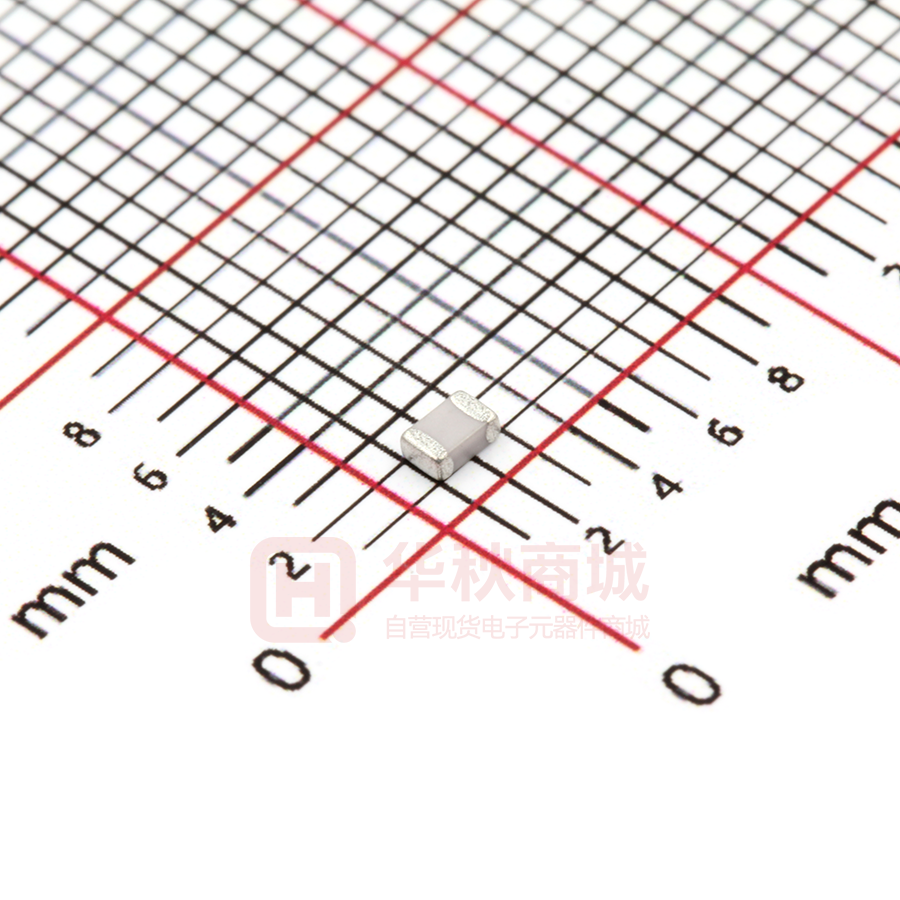

C0805N470J102T

Holy Stone Enterprise Co., Ltd. CERAMIC CAPACITOR CATALOG HVC Se r i e s Co m m e r i c a l g r a d e Hi g h Vo l t a g e 1 0 0 0 V a n d Ove r www.holystone.com.tw www.holystonecaps.com HVC Series - High Voltage Capacitors Holy Stone Multilayer Ceramic Chip Capacitors [ High Voltage NP0 and X7R Capacitors ] HVC Series Holy Stone high voltage products are designed and manufactured to meet the general requirements of international standards. The product offering is well suited for commercial and industrial applications and includes NP0 (C0G) and X7R characteristics in sizes 0603 to 2225 and with working voltages up to 8KV.  Features  Special internal electrode design offers the highest voltage rating  Surface mount suitable for wave and reflow soldering  High reliability  RoHS compliant  Applications  Suitable for LAN/WLAN interface, Back-Lighting Inverter, DC-DC Converters, Ballast, Modems and Power Supplies.  Summary of Specifications Operation Temperature -55 ℃ ~ +125 ℃ Rated Voltage 1000 Vdc to 8000 Vdc Temperature Coefficient NP0 : ± 30ppm/ ℃ , -55 ℃ ~ +125 ℃ (EIA Class Ι ) X7R : ± 15% -55 ℃ ~ +125 ℃ (EIA Class Ⅱ ) , Dissipation Factor NP0 : Q≧1000 , X7R : D.F.≦2.5% Insulation Resistance 10GΩ or 500/CΩ whichever is smaller Aging NP0 : 0% , X7R : Typically 2.5% per decade of time Dielectric Strength 100V ≦ V ＜ 500V : 200% Rated Voltage 500V ≦ V ＜ 1000V : 150% Rated Voltage 1000V≦ V : 120% Rated Voltage  How To Order C Product Code C: MLCC (Multilayer Ceramic Chip of Capacitor) 1206 X Chip Size Dielectric Ex.: 0603 0805 1206 1210 1808 1812 1825 2220 2225 Ex.: N: NP0 X: X7R 102 Capacitance Unit : pF Ex.: 2R0:2.0pF 100:10×100 471:47×101 102:10×102 K Tolerance Ex.: C:+/-0.25pF D:+/-0.50pF J :+/- 5% K :+/-10% M:+/-20% 202 Rated Voltage Ex.: 101: 100Vdc 251: 250Vdc 501: 500Vdc 631: 630Vdc 102: 1000Vdc 202: 2000Vdc 302: 3000Vdc 402: 4000Vdc 502: 5000Vdc 802: 8000Vdc T Packaging T: T/R 7” R: T/R 13” B: Bulk X Special Requirement Ex.: O: Arc Prevention Coating X: Polymer Termination (Super Term) HVC Series – High Voltage Capacitors Holy Stone Capacitance Range Chart Temperature Coefficient – NP0 ( 0 ± 30ppm/℃ ) 0805 1KV 1KV 2KV 1206 2.5KV 3KV 1210 1KV 1KV 2KV 1808 3KV 5KV 1KV 1812 2KV 3KV NPO 1825 1KV 2208 5KV 2KV 2211 5KV 1KV 2KV 2220 3KV 4KV 5KV 1KV 2KV 2225 3KV 5KV Capacitance Range 2R0 3R3 3R9 5R0 8R2 100 120 150 180 220 270 330 390 470 560 680 820 101 121 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 Temperature Rated Size Characteristic Voltage Temperature Characteristic X7R Temperature Characteristic X7R 1KV Voltage 1.5KV Voltage Size Size Temperature Characteristic Voltage Size X7R 2.5KV 1206 101 151 181 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 Size 101 151 181 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 X7R Voltage 101 151 181 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 Temperature Characteristic 101 151 181 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 HVC Series – High Voltage Capacitors Holy Stone Capacitance Range Chart Temperature Coefficient – X7R ( ± 15% ) Capacitance Range (pF) 0805 1206 1210 1808 1812 2220 2225 Capacitance Range (pF) 1206 2220 2225 Capacitance Range (pF) 0805 1206 1210 2KV 1808 1812 1825 2220 2225 Capacitance Range (pF) HVC Series – High Voltage Capacitors Holy Stone Capacitance Range Chart Temperature Coefficient – X7R ( ± 15% ) Capacitance Range (pF) Voltage Size 101 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 Temperature Characteristic 1206 1808 1812 X7R 3KV 1825 2220 2225 Voltage X7R 4KV Size 101 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 Capacitance Range (pF) Temperature Characteristic 1808 2225 Capacitance Range (pF) Voltage Size 360 390 470 560 680 820 101 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 Temperature Characteristic 1808 1812 X7R 5KV 2208 2211 2220 Voltage Size X7R 8KV 2211 360 390 470 560 680 820 101 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 Capacitance Range (pF) Temperature Characteristic HVC Series – High Voltage Capacitors Holy Stone Thickness (mm) Cap. Cap. Size Rated Voltage Tol. 1KV 2R0 1206 D/1.25±0.2mm J (2pF) 1808 D/1.25±0.2mm J C1808N2R0J102T 3R3 1206 D/1.25±0.2mm J (3.3pF) 1808 D/1.25±0.2mm J C1808N3R3J102T 3R9 1206 D/1.25±0.2mm J (3.9pF) 1808 D/1.25±0.2mm J C1808N3R9J102T 1206 C/1.0 +0.1mm -0.05mm J C1206N5R0J102T 5R0 1206 D/1.25±0.2mm J (5pF) 1808 D/1.25±0.2mm J C1808N5R0J102T 8R2 1206 D/1.25±0.2mm J (8.2pF) 1808 D/1.25±0.2mm J C1808N8R2J102T 0805 B/0.85±0.15mm J C0805N100J102T 1206 C/1.0 +0.1mm -0.05mm J C1206N100J102T 100 1206 D/1.25±0.2mm J C1206N100J102T (10pF) 1210 D/1.25±0.2mm J C1210N100J102T 1808 D/1.25±0.2mm J C1808N100J102T 0805 B/0.85±0.15mm J C0805N120J102T 1206 C/1.0 +0.1mm -0.05mm J C1206N120J102T 120 1206 D/1.25±0.2mm J (12pF) 1210 D/1.25±0.2mm J C1210N120J102T 1808 D/1.25±0.2mm J C1808N120J102T 0805 B/0.85±0.15mm J C0805N150J102T 1206 C/1.0 +0.1mm -0.05mm J C1206N150J102T 150 1206 D/1.25±0.2mm J C1206N150J102T (15pF) 1210 D/1.25±0.2mm J C1210N150J102T 1808 D/1.25±0.2mm J C1808N150J102T 0805 B/0.85±0.15mm J C0805N180J102T 1206 B/0.85±0.15mm J C1206N180J102T 180 1206 D/1.25±0.2mm J C1206N180J102T (18pF) 1210 D/1.25±0.2mm J C1210N180J102T 1808 D/1.25±0.2mm J C1808N180J102T 0805 B/0.85±0.15mm J C0805N220J102T 1206 B/0.85±0.15mm J C1206N220J102T 1206 C/1.0 +0.1mm -0.05mm J C1206N220J102T 220 1206 D/1.25±0.2mm J C1206N220J102T (22pF) 1210 D/1.25±0.2mm J C1210N220J102T 1808 D/1.25±0.2mm J C1808N220J102T 1812 D/1.25±0.2mm J C1812N220J102T 0805 B/0.85±0.15mm J C0805N270J102T 1206 B/0.85±0.15mm J C1206N270J102T 270 1206 D/1.25±0.2mm J C1206N270J102T (27pF) 1210 D/1.25±0.2mm J C1210N270J102T 1808 D/1.25±0.2mm J C1808N270J102T Catalog Number Rated Voltage Rated Voltage 2KV 2.5KV C1206N2R0J202T C1808N2R0J202T C1206N3R3J202T C1808N3R3J202T C1206N3R9J202T C1808N3R9J202T C1206N5R0J202T C1808N5R0J202T C1206N8R2J202T C1808N8R2J202T C1206N100J202T C1808N100J202T C1206N120J202T C1808N120J202T C1206N150J202T C1808N150J202T C1206N180J202T C1808N180J202T C1206N220J202T C1808N220J202T C1206N270J202T C1808N270J202T HVC Series – High Voltage Capacitors Holy Stone Thickness (mm) Cap. Cap. Size Rated Voltage Tol. 1KV 0805 B/0.85±0.15mm J C0805N330J102T 1206 B/0.85±0.15mm J C1206N330J102T 1206 C/1.0 +0.1mm -0.05mm J C1206N330J102T 330 1206 D/1.25±0.2mm J C1206N330J102T (33pF) 1210 D/1.25±0.2mm J C1210N330J102T 1808 D/1.25±0.2mm J C1808N330J102T 1812 D/1.25±0.2mm J C1812N330J102T 0805 B/0.85±0.15mm J C0805N390J102T 1206 B/0.85±0.15mm J C1206N390J102T 390 1206 D/1.25±0.2mm J C1206N390J102T (39pF) 1210 D/1.25±0.2mm J C1210N390J102T 1808 D/1.25±0.2mm J C1808N390J102T 1812 D/1.25±0.2mm J C1812N390J102T 0805 B/0.85±0.15mm J C0805N470J102T 1206 B/0.85±0.15mm J C1206N470J102T 470 1206 D/1.25±0.2mm J C1206N470J102T (47pF) 1210 D/1.25±0.2mm J C1210N470J102T 1808 D/1.25±0.2mm J C1808N470J102T 1812 D/1.25±0.2mm J C1812N470J102T 0805 C/1.0 +0.1mm -0.05mm J C0805N560J102T 1206 B/0.85±0.15mm J C1206N560J102T 560 1206 D/1.25±0.2mm J C1206N560J102T (56pF) 1210 D/1.25±0.2mm J C1210N560J102T 1808 D/1.25±0.2mm J C1808N560J102T 0805 C/1.0 +0.1mm -0.05mm J C0805N680J102T 1206 B/0.85±0.15mm J C1206N680J102T 1206 C/1.0 +0.1mm -0.05mm J C1206N680J102T 680 1206 D/1.25±0.2mm J C1206N680J102T (68pF) 1210 D/1.25±0.2mm J C1210N680J102T 1808 D/1.25±0.2mm J C1808N680J102T 1812 D/1.25±0.2mm J C1812N680J102T 0805 C/1.0 +0.1mm -0.05mm J C0805N820J102T 1206 B/0.85±0.15mm J C1206N820J102T 820 1206 D/1.25±0.2mm J C1206N820J102T (82pF) 1210 D/1.25±0.2mm J C1210N820J102T 1808 D/1.25±0.2mm J C1808N820J102T 1812 D/1.25±0.2mm J C1812N820J102T 0805 C/1.0 +0.1mm -0.05mm J C0805N101J102T 1206 B/0.85±0.15mm J C1206N101J102T 1206 D/1.25±0.2mm J C1206N101J102T 101 1210 D/1.25±0.2mm J C1210N101J102T (100pF) 1808 D/1.25±0.2mm J C1808N101J102T 1812 D/1.25±0.2mm J C1812N101J102T 1812 F/2.0±0.2mm J Catalog Number Rated Voltage 2KV Rated Voltage 2.5KV C1206N330J202T C1808N330J202T C1206N390J202T C1808N390J202T C1206N470J202T C1206N470J252T C1808N470J202T C1206N560J202T C1808N560J202T C1206N680J202T C1808N680J202T C1812N680J202T C1206N820J202T C1808N820J202T C1812N820J202T C1206N101J202T C1808N101J202T C1812N101J202T C1812N101J202T HVC Series – High Voltage Capacitors Holy Stone Cap. 121 (120pF) 151 (150pF) 181 (180pF) 221 (220pF) 271 (270pF) Size Thickness (mm) 0805 1206 1206 1210 1808 1812 0805 1206 1206 1206 1210 1808 1812 1812 0805 1206 1206 1206 1210 1808 1808 1812 1206 1206 1206 1206 1210 1808 1808 1812 1206 1206 1206 1210 1808 1808 1812 1812 D/1.25±0.2mm B/0.85±0.15mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm B/0.85±0.15mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm B/0.85±0.15mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm Cap. Rated Voltage Tol. 1KV J C0805N121J102T J C1206N121J102T J C1206N121J102T J C1210N121J102T J C1808N121J102T J C1812N121J102T J C0805N151J102T J C1206N151J102T J J C1206N151J102T J C1210N151J102T J C1808N151J102T J C1812N151J102T J C1812N151J102T J C0805N181J102T J C1206N181J102T J J C1206N181J102T J C1210N181J102T J C1808N181J102T J C1808N181J102T J C1812N181J102T J C1206N221J102T J C1206N221J102T J J C1206N221J102T J C1210N221J102T J C1808N221J102T J J C1812N221J102T J C1206N271J102T J C1206N271J102T J C1206N271J102T J C1210N271J102T J C1808N271J102T J J C1812N271J102T J Catalog Number Rated Voltage 2KV C1206N121J202T C1808N121J202T C1812N121J202T C1206N151J202T C1206N151J202T C1808N151J202T C1812N151J202T C1812N151J202T C1206N181J202T C1206N181J202T C1808N181J202T C1812N181J202T C1206N221J202T C1206N221J202T C1808N221J202T C1812N221J202T C1206N271J202T C1206N271J202T C1808N271J202T C1812N271J202T Rated Voltage 2.5KV HVC Series – High Voltage Capacitors Holy Stone Thickness (mm) Cap. Cap. Size Rated Voltage Tol. 1KV 1206 C/1.0 +0.1mm -0.05mm J C1206N331J102T 1206 E/1.6±0.2mm J C1206N331J102T 1210 D/1.25±0.2mm J C1210N331J102T 331 1210 E/1.6±0.2mm J C1210N331J102T (330pF) 1808 E/1.6±0.2mm J C1808N331J102T 1808 F/2.0±0.2mm J 1812 D/1.25±0.2mm J C1812N331J102T 1812 E/1.6±0.2mm J 1206 D/1.25±0.2mm J C1206N391J102T 1206 E/1.6±0.2mm J 1210 D/1.25±0.2mm J C1210N391J102T 391 1808 E/1.6±0.2mm J C1808N391J102T (390pF) 1808 F/2.0±0.2mm J 1812 D/1.25±0.2mm J C1812N391J102T 1812 E/1.6±0.2mm J 2220 D/1.25±0.2mm J C2220N391J102T 1206 D/1.25±0.2mm J C1206N471J102T 1206 E/1.6±0.2mm J C1206N471J102T 1210 D/1.25±0.2mm J C1210N471J102T 1210 E/1.6±0.2mm J C1210N471J102T 471 1808 E/1.6±0.2mm J C1808N471J102T (470pF) 1808 F/2.0±0.2mm J 1812 D/1.25±0.2mm J C1812N471J102T 1812 E/1.6±0.2mm J 1812 F/2.0±0.2mm J C1812N471J102T 1206 D/1.25±0.2mm J C1206N561J102T 1210 D/1.25±0.2mm J C1210N561J102T 1210 E/1.6±0.2mm J C1210N561J102T 561 1808 E/1.6±0.2mm J C1808N561J102T (560pF) 1808 F/2.0±0.2mm J 1812 D/1.25±0.2mm J C1812N561J102T 1812 F/2.0±0.2mm J 1206 D/1.25±0.2mm J C1206N681J102T 1206 E/1.6±0.2mm J C1206N681J102T 1210 D/1.25±0.2mm J C1210N681J102T 681 1808 E/1.6±0.2mm J C1808N681J102T (680pF) 1808 F/2.0±0.2mm J 1812 D/1.25±0.2mm J C1812N681J102T 1812 F/2.0±0.2mm J Catalog Number Rated Voltage 2KV C1206N331J202T C1808N331J202T C1812N331J202T C1206N391J202T C1808N391J202T C1812N391J202T C1808N471J202T C1812N471J202T C1812N471J202T C1808N561J202T C1812N561J202T C1808N681J202T C1812N681J202T Rated Voltage 2.5KV HVC Series – High Voltage Capacitors Holy Stone Cap. 821 (820pF) 102 (1nF) 122 (1.2nF) 152 (1.5nF) 182 (1.8nF) 222 (2.2nF) 272 (2.7nF) 332 (3.3nF) 392 (3.9nF) Size 1206 1210 1808 1808 1812 1812 2220 1206 1210 1808 1808 1812 1812 2220 1210 1808 1812 1812 2220 1210 1808 1812 2220 1210 1808 1812 2220 1210 1808 1812 2211 2220 2220 1210 1812 2220 1210 1812 2220 2220 1812 2220 Thickness (mm) E/1.6±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm E/1.6±0.2mm F/2.0±0.2mm H/2.8±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm F/2.0±0.2mm D/1.25±0.2mm G/2.4±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm F/2.0±0.2mm D/1.25±0.2mm Cap. Rated Voltage Tol. 1KV J C1206N821J102T J C1210N821J102T J C1808N821J102T J J C1812N821J102T J J C2220N821J102T J C1206N102J102T J C1210N102J102T J C1808N102J102T J C1808N102J102T J C1812N102J102T J J C2220N102J102T J C1210N122J102T J C1808N122J102T J C1812N122J102T J J C2220N122J102T J C1210N152J102T J C1808N152J102T J C1812N152J102T J C2220N152J102T J C1210N182J102T J C1808N182J102T J C1812N182J102T J C2220N182J102T J C1210N222J102T J C1808N222J102T J C1812N222J102T J J C2220N222J102T J J C1210N272J102T J C1812N272J102T J C2220N272J102T J C1210N332J102T J C1812N332J102T J C2220N332J102T J C2220N332J102T J C1812N392J102T J C2220N392J102T Catalog Number Rated Voltage 2KV C1808N821J202T C1812N821J202T C1808N102J202T C1812N102J202T C1812N122J202T C1812N152J202T C2211N222J202T C2220N222J202T Rated Voltage 2.5KV HVC Series – High Voltage Capacitors Holy Stone Cap. Size 1812 472 2220 (4.7nF) 2225 562 1812 (5.6nF) 2220 682 1812 (6.8nF) 2220 822 2220 (8.2nF) 103 2220 (10nF) 2225 123 2220 (12nF) 2225 153 2220 (15nF) 2225 183 2220 (18nF) Thickness (mm) F/2.0±0.2mm D/1.25±0.2mm G/2.4±0.2mm F/2.0±0.2mm D/1.25±0.2mm G/2.4±0.2mm D/1.25±0.2mm Catalog Number Cap. Rated Voltage Rated Voltage Rated Voltage Tol. 1KV 2KV 2.5KV J C1812N472J102T J C2220N472J102T J C2225N472J202T J C1812N562J102T J C2220N562J102T J C1812N682J102T J C2220N682J102T E/1.6±0.2mm J C2220N822J102T E/1.6±0.2mm I/3.2±0.2mm F/2.0±0.2mm F/2.0±0.2mm G/2.4±0.2mm F/2.0±0.2mm J J J J J J C2220N103J102T C2225N103J102T C2225N103J202T C2220N123J102T C2225N123J102T C2220N153J102T C2225N153J102T I/3.2±0.2mm J C2220N183J102T HVC Series – High Voltage Capacitors Holy Stone Cap. 2R0 (2pF) 3R3 (3.3pF) 3R9 (3.9pF) 5R0 (5pF) 8R2 (8.2pF) 100 (10pF) 120 (12pF) Size 1206 1808 1812 2208 2211 2220 1206 1808 1812 2208 2211 2220 1206 1808 1812 2208 2211 2220 1206 1808 1808 1812 2208 2211 2220 1206 1808 1812 2208 2211 2220 1206 1808 1808 1812 2208 2211 2220 1206 1808 1808 1812 2208 2211 2220 Thickness (mm) D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm F/2.0±0.2mm D/1.25±0.2mm Catalog Number Cap. Rated Voltage Rated Voltage Tol. 3KV 4KV J C1206N2R0J302T J C1808N2R0J302T J C1812N2R0J302T J J J C2220N2R0J302T J C1206N3R3J302T J C1808N3R3J302T J C1812N3R3J302T J J J C2220N3R3J502T J C1206N3R9J302T J C1808N3R9J302T J C1812N3R9J302T J J J C2220N3R9J302T J C1206N5R0J302T J C1808N5R0J302T J J C1812N5R0J302T J J J C2220N5R0J302T J C1206N8R2J302T J C1808N8R2J302T J C1812N8R2J302T J J J C2220N8R2J302T J C1206N100J302T J C1808N100J302T J J C1812N100J302T J J J C2220N100J302T J C1206N120J302T J C1808N120J302T J J C1812N120J302T J J J C2220N100J302T Rated Voltage 5KV C2208N2R0J502T C2211N2R0J502T C2220N2R0J502T C2208N3R3J502T C2211N3R3J502T C2220N3R3J502T C2208N3R9J502T C2211N3R9J502T C2220N3R9J502T C1808N5R0J502T C2208N5R0J502T C2211N5R0J502T C2220N5R0J502T C2208N8R2J502T C2211N8R2J502T C2220N8R2J502T C1808N100J502T C2208N100J502T C2211N100J502T C2220N100J502T C1808N120J502T C2208N120J502T C2211N120J502T C2220N120J502T HVC Series – High Voltage Capacitors Holy Stone Cap. 150 (15pF) 180 (18pF) 220 (22pF) 270 (27pF) 330 (33pF) 390 (39pF) Size 1206 1808 1808 1812 2208 2211 2220 1206 1808 1812 2208 2211 2220 1206 1808 1808 1812 2208 2211 2220 1206 1808 1812 2208 2211 2220 1206 1808 1808 1812 2208 2211 2220 2220 1206 1808 1812 2208 2211 2220 Thickness (mm) D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm F/2.0±0.2mm E/1.6±0.2mm Catalog Number Cap. Rated Voltage Rated Voltage Tol. 3KV 4KV J C1206N150J302T J C1808N150J302T J J C1812N150J302T J J J C2220N150J302T J C1206N180J302T J C1808N180J302T J C1812N180J302T J J J C2220N180J302T J C1206N220J302T J C1808N220J302T J J C1812N220J302T J J J C2220N220J302T J C1206N270J302T J C1808N270J302T J C1812N270J302T J J J C2220N270J302T J C1206N330J302T J C1808N330J302T J J C1812N330J302T J J J C2220N330J302T J J C1206N390J302T J C1808N390J302T J C1812N390J302T J J J C2220N390J302T Rated Voltage 5KV C1808N150J502T C2208N150J502T C2211N150J502T C2220N150J502T C2208N180J502T C2211N180J502T C2220N180J502T C1808N220J502T C2208N220J502T C2211N220J502T C2220N220J502T C2208N270J502T C2211N270J502T C2220N270J502T C1808N330J502T C2208N330J502T C2211N330J502T C2220N330J502T C2208N390J502T C2211N390J502T C2220N390J502T HVC Series – High Voltage Capacitors Holy Stone Cap. 470 (47pF) 560 (56pF) 680 (68pF) 820 (82pF) 101 (100pF) 121 (120pF) 151 (150pF) 181 (180pF) 221 (220pF) Size 1206 1808 1808 1812 2211 2220 1808 1808 1812 2211 2220 2225 1808 1808 1812 2211 2220 1808 1808 1812 2220 1808 1808 1812 1812 2220 2225 1808 1808 1812 2220 1808 1808 1812 1812 2220 1808 1808 1812 1808 1812 1812 2225 Thickness (mm) E/1.6±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm E/1.6±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm E/1.6±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm F/2.0±0.2mm E/1.6±0.2mm F/2.0±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm E/1.6±0.2mm E/1.6±0.2mm E/1.6±0.2mm F/2.0±0.2mm E/1.6±0.2mm F/2.0±0.2mm E/1.6±0.2mm D/1.25±0.2mm F/2.0±0.2mm E/1.6±0.2mm F/2.0±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm Catalog Number Cap. Rated Voltage Rated Voltage Tol. 3KV 4KV J C1206N470J302T J C1808N470J302T J J C1812N470J302T J J C2220N470J302T J C1808N560J302T J J C1812N560J302T J J C2220N560J302T J J C1808N680J302T J J C1812N680J302T J J C2220N680J302T J C1808N820J302T J J C1812N820J302T J C2220N820J302T J C1808N101J302T J J C1812N101J302T J C1812N101J302T J C2220N101J302T J J C1808N121J302T J C1808N121J302T J C1812N121J302T J C2220N121J302T J C1808N151J302T J J C1812N151J302T J C1812N151J302T J C2220N151J302T J C1808N181J302T J C1808N181J302T J C1812N181J302T J C1808N221J302T J C1812N221J302T J C1812N221J302T J C2225N221J302T Rated Voltage 5KV C1808N470J502T C2211N470J502T C2220N470J502T C1808N560J502T C2211N560J502T C2220N560J502T C2225N560J502T C1808N680J502T C2211N680J502T C2220N680J502T C1808N820J502T C2220N820J502T C1808N101J502T C2220N101J502T C2225N101J502T C2220N121J502T C1808N151J502T HVC Series – High Voltage Capacitors Holy Stone Cap. Size 1808 271 1812 (270pF) 1812 1808 331 1812 (330pF) 1812 391 1808 (390pF) 1812 471 1808 (470pF) 1812 561 1808 (560pF) 1812 681 1808 (680pF) 1812 821 1808 (820pF) 1812 102 1808 (1nF) 1812 122 1808 (1.2nF) 1812 2220 222 2220 (2.2nF) 2225 2225 332 2225 (3.3nF) Thickness (mm) F/2.0±0.2mm E/1.6±0.2mm F/2.0±0.2mm F/2.0±0.2mm E/1.6±0.2mm F/2.0±0.2mm F/2.0±0.2mm E/1.6±0.2mm F/2.0±0.2mm E/1.6±0.2mm F/2.0±0.2mm E/1.6±0.2mm F/2.0±0.2mm F/2.0±0.2mm F/2.0±0.2mm F/2.0±0.2mm F/2.0±0.2mm G/2.4±0.2mm F/2.0±0.2mm H/2.8±0.2mm F/2.0±0.2mm G/2.4±0.2mm F/2.0±0.2mm G/2.4±0.2mm I/3.2±0.2mm Catalog Number Cap. Rated Voltage Rated Voltage Rated Voltage Tol. 3KV 4KV 5KV J C1808N271J302T J C1812N271J302T J C1812N271J302T J C1808N331J302T J C1812N331J302T J C1812N331J302T J C1808N391J302T J C1812N391J302T J C1808N471J302T J C1812N471J302T J C1808N561J302T J C1812N561J302T J C1808N681J302T J C1812N681J302T J C1808N821J302T J C1812N821J302T J C1808N102J302T J C1812N102J302T J C1808N122J302T J C1812N122J302T J C2220N222J302T J C2220N222J302T J C2225N222J302T J C2225N222J302T J C2225N332J302T HVC Series – High Voltage Capacitors Holy Stone Cap. Size Thickness 101 1206 B/0.85±0.15mm (100pF) 1206 D/1.25+-0.15mm 1206 B/0.85±0.15mm 151 1206 D/1.25+-0.15mm (150pF) 1808 D/1.25+-0.15mm 1812 D/1.25+-0.15mm 1206 B/0.85±0.15mm 181 1808 D/1.25+-0.15mm (180pF) 1812 D/1.25+-0.15mm 0805 B/0.85±0.15mm 0805 C/1.0+-0.1mm 1206 B/0.85±0.15mm 221 1206 D/1.25+-0.15mm (220pF) 1210 C/1.0+-0.1mm 1808 D/1.25+-0.15mm 1812 D/1.25+-0.15mm 0805 B/0.85±0.15mm 0805 C/1.0+-0.1mm 1206 B/0.85±0.15mm 271 1206 D/1.25+-0.15mm (270pF) 1210 C/1.0+-0.1mm 1808 D/1.25+-0.15mm 1812 D/1.25+-0.15mm 0805 B/0.85±0.15mm 0805 C/1.0+-0.1mm 1206 B/0.85±0.15mm 331 1206 D/1.25+-0.15mm (330pF) 1210 C/1.0+-0.1mm 1808 D/1.25+-0.15mm 1812 D/1.25+-0.15mm 0805 B/0.85±0.15mm 0805 C/1.0+-0.1mm 391 1206 B/0.85±0.15mm (390pF) 1210 C/1.0+-0.1mm 1808 D/1.25+-0.15mm 1812 D/1.25+-0.15mm 0805 B/0.85±0.15mm 0805 C/1.0+-0.1mm 1206 B/0.85±0.15mm 471 1206 D/1.25+-0.15mm (470pF) 1210 C/1.0+-0.1mm 1210 D/1.25+-0.15mm 1808 D/1.25+-0.15mm 1812 D/1.25+-0.15mm Cap. Tol. K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage 1KV C1206X101K102T C1206X101K102T C1206X151K102T C1206X151K102T Rated Voltage 1.5KV Rated Voltage 2KV Rated Voltage 2.5KV C1206X101K202T C1808X151K202T C1812X151K202T C1206X181K102T C1808X181K202T C1812X181K202T C0805X221K102T C0805X221K102T C1206X221K102T C1206X221K102T C1206X221K152T C1808X221K102T C1812X221K102T C0805X271K102T C1206X271K102T C1206X271K152T C1812X271K102T C0805X331K102T C1206X331K102T C1206X331K102T C1206X331K152T C1812X331K102T C0805X391K102T C1206X391K102T C1812X391K102T C0805X471K102T C0805X471K102T C1206X471K102T C1206X471K102T C1812X471K102T C1206X391K152T C1206X471K152T C0805X221K202T C1206X221K202T C1206X221K202T C1210X221K202T C1808X221K202T C1812X221K202T C0805X271K202T C1206X271K202T C1206X271K202T C1210X271K202T C1808X271K202T C1812X271K202T C0805X331K202T C1206X331K202T C1206X331K202T C1210X331K202T C1808X331K202T C1812X331K202T C0805X391K202T C1206X391K202T C1210X391K202T C1808X391K202T C1812X391K202T C0805X471K202T C1206X471K202T C1206X471K202T C1210X471K202T C1808X471K202T C1812X471K202T C1206X221K252T HVC Series – High Voltage Capacitors Holy Stone Cap. 561 (560pF) 681 (680pF) 821 (820pF) 102 (1nF) 122 (1.2nF) Size Thickness Cap. Tol. 0805 0805 1206 1206 1210 1808 1812 0805 0805 1206 1206 1210 1808 1812 0805 0805 1206 1206 1210 1808 1812 0805 1206 1206 1206 1206 1210 1210 1808 1812 2220 2220 2225 0805 1206 1206 1210 1808 1812 2220 2225 B/0.85±0.15mm C/1.0+-0.1mm B/0.85±0.15mm D/1.25+-0.15mm C/1.0+-0.1mm D/1.25+-0.15mm D/1.25+-0.15mm B/0.85±0.15mm C/1.0+-0.1mm B/0.85±0.15mm D/1.25+-0.15mm C/1.0+-0.1mm D/1.25+-0.15mm D/1.25+-0.15mm B/0.85±0.15mm C/1.0+-0.1mm B/0.85±0.15mm D/1.25+-0.15mm C/1.0+-0.1mm D/1.25+-0.15mm D/1.25+-0.15mm C/1.0+-0.1mm B/0.85±0.15mm C/1.0+-0.1mm D/1.25+-0.15mm E/1.6±0.2mm C/1.0+-0.1mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6±0.2mm D/1.25+-0.15mm C/1.0+-0.1mm B/0.85±0.15mm C/1.0+-0.1mm C/1.0+-0.1mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage 1KV C0805X561K102T C1206X561K102T C1206X561K102T C1812X561K102T C0805X681K102T C0805X681K102T C1206X681K102T C1206X681K102T Rated Voltage 1.5KV C1206X561K152T C1206X681K152T C1812X681K102T C0805X821K102T C1206X821K102T C1206X821K102T C1812X821K102T C0805X102K102T C1206X102K102T C1206X102K102T C1206X102K102T C1206X821K152T C1206X821K152T Rated Voltage 2KV Rated Voltage 2.5KV C0805X561K202T C1206X561K202T C1206X561K202T C1210X561K202T C1808X561K202T C1812X561K202T C0805X681K202T C1206X681K202T C1206X681K202T C1210X681K202T C1808X681K202T C1812X681K202T C0805X821K202T C1206X821K202T C1210X821K202T C1808X821K202T C1812X821K202T C1206X102K152T C1210X102K102T C1808X102K102T C1812X102K102T C2220X102K102T C1206X102K202T C1206X102K202T C1206X102K202T C1206X102K202T C1210X102K202T C1210X102K202T C1808X102K202T C1812X102K202T C2220X102K202T C2220X102K202T C2225X102K202T C1206X102K252T C1206X102K252T C0805X122K102T C1206X122K102T C1206X122K152T C1808X122K102T C1812X122K102T C2220X122K102T C1206X122K202T C1210X122K202T C1808X122K202T C1812X122K202T C2220X122K202T C2225X122K202T C1206X122K252T HVC Series – High Voltage Capacitors Holy Stone Cap. 152 (1.5nF) 182 (1.8nF) 222 (2.2nF) 272 (2.7nF) Size Thickness Cap. Tol. 0805 1206 1206 1206 1206 1210 1210 1808 1812 2220 2225 0805 1206 1206 1210 1808 1812 1812 2220 2225 0805 1206 1206 1206 1206 1210 1210 1210 1808 1808 1812 1812 1825 2220 2225 1206 1206 1210 1210 1808 1808 1812 1825 2220 2225 C/1.0+-0.1mm B/0.85±0.15mm C/1.0+-0.1mm D/1.25+-0.15mm E/1.6+-0.2mm C/1.0+-0.1mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm C/1.0+-0.1mm B/0.85±0.15mm C/1.0+-0.1mm C/1.0+-0.1mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm C/1.0+-0.1mm B/0.85±0.15mm C/1.0+-0.1mm D/1.25+-0.15mm E/1.6+-0.2mm C/1.0+-0.1mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm B/0.85±0.15mm D/1.25+-0.15mm D/1.25+-0.15mm G/2.4±0.2mm D/1.25+-0.15mm F/2.0±0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage 1KV C0805X152K102T C1206X152K102T Rated Voltage 1.5KV C1206X152K152T C1206X152K102T C1206X152K102T Rated Voltage 2KV C1206X152K202T Rated Voltage 2.5KV C1206X152K252T C1206X152K202T C1210X152K202T C1210X152K202T C1808X152K202T C1812X152K202T C2220X152K202T C2225X152K202T C1808X152K102T C1812X152K102T C2220X152K102T C0805X182K102T C1206X182K102T C1206X182K152T C1206X182K202T C1210X182K202T C1808X182K202T C1812X182K202T C1812X182K202T C2220X182K202T C2225X182K202T C1206X182K252T C1206X222K152T C1206X222K202T C1206X222K202T C1206X222K202T C1210X222K202T C1210X222K202T C1210X222K202T C1206X222K252T C1808X182K102T C1812X182K102T C2220X182K102T C0805X222K102T C1206X222K102T C1206X222K102T C1206X222K102T C1206X222K152T C1210X222K102T C1210X222K102T C1808X222K102T C1808X222K202T C1812X222K202T C1812X222K202T C1825X222K202T C2220X222K202T C2225X222K202T C1812X222K102T C2220X222K102T C1206X272K102T C1206X272K102T C1206X272K152T C1206X272K202T C1206X272K202T C1206X272K202T C1808X272K102T C1812X272K102T C2220X272K102T C1808X272K202T C1812X272K202T C1825X272K202T C2220X272K202T C2225X272K202T C1206X272K252T HVC Series – High Voltage Capacitors Holy Stone Cap. Size 1206 1206 1206 1210 1210 1808 332 1808 (3.3nF) 1812 1812 1825 2220 2220 2225 1206 1206 1206 1210 392 1210 (3.9nF) 1808 1812 1825 2220 2225 1206 1206 1206 1210 1210 1210 1210 472 1808 (4.7nF) 1808 1812 1812 1825 2220 2220 2220 2225 Thickness Cap. Tol. B/0.85±0.15mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm B/0.85±0.15mm D/1.25+-0.15mm E/1.6+-0.2mm E/1.6+-0.2mm G/2.4±0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm B/0.85±0.15mm D/1.25+-0.15mm E/1.6+-0.2mm C/1.0+-0.1mm F/2.0+-0.2mm E/1.6+-0.2mm G/2.4+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm G/2.4+-0.2mm D/1.25+-0.15mm K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage 1KV C1206X332K102T C1206X332K102T Rated Voltage 1.5KV C1206X332K152T C1210X332K102T Rated Voltage 2KV C1206X332K202T C1206X332K202T C1210X332K202T C1210X332K202T Rated Voltage 2.5KV C1206X332K252T C1808X332K102T C1808X332K202T C1812X332K202T C1812X332K202T C1825X332K202T C2220X332K202T C2220X332K202T C2225X332K202T C1812X332K102T C1812X332K102T C2220X332K102T C1206X392K102T C1206X392K152T C1808X392K102T C1812X392K102T C2220X392K102T C1206X472K102T C1206X472K102T C1206X472K152T C1206X392K202T C1206X392K202T C1210X392K202T C1210X392K202T C1808X392K202T C1812X392K202T C1825X392K202T C2220X392K202T C2225X392K202T C1206X472K202T C1206X472K202T C1210X472K102T C1210X472K102T C1210X472K202T C1210X472K202T C1808X472K102T C1812X472K102T C2220X472K102T C1808X472K202T C1812X472K202T C1812X472K202T C1825X472K202T C2220X472K202T C2220X472K202T C2220X472K202T C2225X472K202T C1206X392K252T C1206X472K252T HVC Series – High Voltage Capacitors Holy Stone Cap. Size 1206 1206 1206 1210 1210 1210 562 1808 (5.6nF) 1808 1812 1812 1825 2220 2225 1206 1206 1206 1210 1210 1210 1210 682 1808 (6.8nF) 1808 1808 1812 1812 1825 2220 2220 2225 1206 1206 1210 1210 822 1808 (8.2nF) 1812 1812 1825 2220 2225 Thickness Cap. Tol. B/0.85±0.15mm D/1.25+-0.15mm E/1.6+-0.2mm C/1.0+-0.1mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm B/0.85±0.15mm D/1.25+-0.15mm E/1.6+-0.2mm C/1.0+-0.1mm D/1.25+-0.15mm F/2.0+-0.2mm G/2.4+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm C/1.0+-0.1mm E/1.6+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm G/2.4+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage 1KV C1206X562K102T C1206X562K102T Rated Voltage 1.5KV C1206X562K152T Rated Voltage 2KV Rated Voltage 2.5KV C1206X562K202T C1206X562K252T C1210X562K102T C1210X562K102T C1210X562K202T C1808X562K102T C1808X562K202T C1812X562K202T C1812X562K202T C1825X562K202T C2220X562K202T C2225X562K202T C1812X562K102T C2220X562K102T C1206X682K102T C1206X682K102T C1206X682K152T C1206X682K152T C1206X682K202T C1206X682K202T C1210X682K102T C1210X682K102T C1210X682K202T C1210X682K202T C1808X682K102T C1808X682K202T C1812X682K202T C1812X682K202T C1825X682K202T C2220X682K202T C2220X682K202T C2225X682K202T C1812X682K102T C1812X682K102T C2220X682K102T C1206X822K102T C1206X822K152T C1210X822K102T C1210X822K202T C1808X822K102T C1812X822K102T C2220X822K102T C1812X822K202T C1812X822K202T C1825X822K202T C2220X822K202T C2225X822K202T HVC Series – High Voltage Capacitors Holy Stone Cap. 103 (10nF) 123 (12nF) 153 (15nF) 183 (18nF) Size Thickness Cap. Tol. 1206 1206 1206 1210 1210 1808 1808 1812 1812 1812 1812 1825 2220 2220 2225 2225 1206 1210 1808 1812 1812 1825 2220 2225 1206 1210 1808 1808 1812 1812 1812 1825 2220 2225 2225 1206 1210 1808 1812 1812 1825 2220 2220 2225 C/1.0+-0.1mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm F/2.0+-0.2mm H/2.8+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm H/2.8+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage 1KV C1206X103K102T C1206X103K102T Rated Voltage 1.5KV Rated Voltage 2KV C1206X103K152T C1210X103K102T C1210X103K202T C1808X103K102T C1808X103K102T C1812X103K102T C1812X103K102T C2220X103K102T C1812X103K202T C1812X103K202T C1812X103K202T C1825X103K202T C2220X103K202T C2220X103K202T C2225X103K202T C2225X103K202T C1206X123K102T C1210X123K102T C1808X123K102T C1812X123K102T C2220X123K102T C1206X153K102T C1210X153K102T C1808X153K102T C1808X153K102T C1812X153K102T C1812X153K102T C2220X153K102T C2225X153K102T C2225X153K102T C1206X183K102T C1210X183K102T C1808X183K102T C1812X183K102T C1812X123K202T C1825X123K202T C2220X123K202T C2225X123K202T C1812X153K202T C1812X153K202T C1825X153K202T C2220X153K202T C2225X153K202T C1812X183K202T C1825X183K202T C2220X183K102T C2220X183K202T C2225X183K202T Rated Voltage 2.5KV HVC Series – High Voltage Capacitors Holy Stone Cap. 223 (22nF) 273 (27nF) 333 (33nF) 393 (39nF) Size Thickness Cap. Tol. 1206 1210 1808 1812 1812 1825 2220 2220 2225 1210 1808 1812 1812 1812 1825 2220 2220 2225 1210 1210 1808 1812 1812 1812 1825 2220 2220 2220 2225 1210 1808 1812 1812 1825 2220 2220 2225 2225 E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm G/2.4+-0.2mm G/2.4+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm E/1.6+-0.2mm F/2.0+-0.2mm G/2.4+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm H/2.8+-0.2mm G/2.4+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm H/2.8+-0.2mm F/2.0+-0.2mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm H/2.8+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm H/2.8+-0.2mm K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage 1KV C1206X223K102T C1210X223K102T C1808X223K102T C1812X223K102T C1812X223K102T C2220X223K102T C2220X223K102T C1210X273K102T C1808X273K102T C1812X273K102T C1812X273K102T C1812X273K102T Rated Voltage 1.5KV Rated Voltage 2KV C1812X223K202T C1825X223K202T C2220X223K152T C2220X223K202T C2225X223K202T C1812X273K202T C1825X273K202T C2220X273K102T C2220X273K202T C2225X273K202T C1210X333K102T C1210X333K102T C1808X333K102T C1812X333K102T C1812X333K102T C1812X333K202T C1825X333K202T C2220X333K102T C2220X333K202T C2220X333K202T C2225X333K202T C1210X393K102T C1808X393K102T C1812X393K102T C1812X393K102T C1825X393K202T C2220X393K102T C2220X393K102T C2220X393K202T C2225X393K202T C2225X393K202T Rated Voltage 2.5KV HVC Series – High Voltage Capacitors Holy Stone Cap. 473 (47nF) 563 (56nF) 683 (68nF) 823 (82nF) 104 (100nF) 124 (120nF) 154 (150nF) Size Thickness Cap. Tol. 1210 1808 1812 1812 2220 2220 2220 2220 2225 2225 2225 1812 2220 2220 2225 2225 2225 1812 2220 2225 2225 2225 1812 2220 2225 2225 1812 2220 2225 2225 2225 1812 2220 1812 2220 G/2.4+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm G/2.4+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm G/2.4+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm G/2.4+-0.2mm G/2.4+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm H/2.8+-0.2mm G/2.4+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm I/3.2±0.2mm G/2.4+-0.2mm E/1.6+-0.2mm H/2.8+-0.2mm F/2.0+-0.2mm K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K 184 2220 F/2.0+-0.2mm (180nF) 224 2220 F/2.0+-0.2mm (220nF) 2220 H/2.8+-0.2mm Catalog Number Rated Voltage 1KV C1210X473K102T C1808X473K102T C1812X473K102T C1812X473K102T C2220X473K102T Rated Voltage 1.5KV Rated Voltage 2KV C2220X473K152T C2220X473K202T C2220X473K102T C2225X473K102T C2225X473K102T C2220X473K152T C2225X473K152T C2225X473K202T C1812X563K102T C2220X563K102T C2220X563K102T C2225X563K102T C2225X563K102T C2225X563K102T C1812X683K102T C2220X683K102T C2225X683K102T C2220X563K202T C2225X563K202T C2225X683K152T C2225X683K202T C1812X823K102T C2220X823K102T C2225X823K102T C2225X823K202T C1812X104K102T C2220X104K102T C2225X104K102T C2225X104K102T C2225X104K202T C1812X124K102T C2220X124K102T C1812X154K102T C2220X154K102T K C2220X184K102T K K C2220X224K102T C2220X224K102T Rated Voltage 2.5KV HVC Series – High Voltage Capacitors Holy Stone Cap. Size 101 2211 (100pF) 1206 151 1808 (150pF) 2220 181 1206 (180pF) 1808 1206 221 1808 (220pF) 2211 1206 271 1808 (270pF) 1812 2211 1206 1808 331 1808 (330pF) 2220 2211 1206 391 1808 (390pF) 1808 2211 1206 1808 1808 471 1812 (470pF) 2211 2211 2220 1206 1808 561 1808 (560pF) 1808 2211 1206 1808 1808 1808 681 1812 (680pF) 1812 1825 2220 2211 2211 Thickness Cap. Rated Voltage Tol. 3KV E/1.6±0.2mm K B/0.85±0.15mm D/1.25±0.2mm E/1.6±0.2mm B/0.85±0.15mm D/1.25±0.2mm B/0.85±0.15mm D/1.25±0.2mm E/1.6±0.2mm B/0.85±0.15mm D/1.25±0.2mm E/1.6±0.2mm E/1.6±0.2mm B/0.85±0.15mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm F/2.0±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm E/1.6±0.2mm G/2.4+-0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm F/2.0±0.2mm G/2.4+-0.2mm F/2.0±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm H/2.8+-0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm H/2.8+-0.2mm K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage Rated Voltage 4KV 5KV Rated Voltage 8KV C2211X101K502T C1206X151K302T C1808X151K302T C1808X151K402T C2220X151K502T C1206X181K302T C1808X181K302T C1808X181K402T C1206X221K302T C1808X221K302T C1808X221K402T C1808X221K502T C2211X221K502T C2211X221K802T C1206X271K302T C1808X271K302T C1808X271K402T C1808X271K502T C1812X271K302T C2211X271K802T C1206X331K302T C1808X331K302T C1808X331K402T C1808X331K502T C2220X331K502T C2211X331K802T C1206X391K302T C1808X391K302T C1808X391K402T C1808X391K502T C2211X391K802T C1206X471K302T C1808X471K302T C1808X471K302T C1808X471K402T C1808X471K502T C1812X471K502T C2211X471K502T C2211X471K502T C2211X471K802T C2220X471K502T C1206X561K302T C1808X561K302T C1808X561K402T C1808X561K502T C2211X561K802T C1206X681K302T C1808X681K302T C1808X681K302T C1808X681K402T C1808X681K502T C1812X681K302T C1812X681K302T C1825X681K302T C2220X681K302T C2211X681K502T C2211X681K802T HVC Series – High Voltage Capacitors Holy Stone Cap. 821 (820pF) 102 (1nF) 122 (1.2nF) 152 (1.5nF) 182 (1.8nF) Size 1206 1808 1808 1812 1812 1825 2211 2220 1206 1808 1808 1808 1812 1812 1825 2211 2211 2220 2220 1206 1808 1812 1812 1825 2220 1808 1808 1812 1812 1825 2220 2220 1808 1808 1812 1825 2220 2211 Thickness D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm H/2.8+-0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm G/2.4±0.2mm Cap. Rated Voltage Tol. 3KV K C1206X821K302T K C1808X821K302T K K C1812X821K302T K C1812X821K302T K C1825X821K302T K K C2220X821K302T K C1206X102K302T K C1808X102K302T K K C1808X102K302T K C1812X102K302T K C1812X102K302T K C1825X102K302T K K K C2220X102K302T K K C1206X122K302T K C1808X122K302T K C1812X122K302T K C1812X122K302T K C1825X122K302T K C2220X122K302T K C1808X152K302T K C1808X152K302T K C1812X152K302T K C1812X152K302T K C1825X152K302T K C2220X152K302T K K C1808X182K302T K C1808X182K302T K C1812X182K302T K C1825X182K302T K C2220X182K302T K Catalog Number Rated Voltage Rated Voltage 4KV 5KV Rated Voltage 8KV C1808X821K402T C2211X821K802T C1808X102K502T C1808X102K402T C1808X102K502T C1812X102K502T C2211X102K502T C2211X102K502T C2220X102K502T C2220X102K502T C2220X122K502T C2220X152K502T C2211X182K502T HVC Series – High Voltage Capacitors Holy Stone Cap. 222 (2.2nF) 272 (2.7nF) 332 (3.3nF) 392 (3.9nF) 472 (4.7nF) 562 (5.6nF) Size 1808 1808 1812 1812 1825 2211 2220 2220 2220 2225 2225 1808 1812 1812 1825 2220 2225 2211 1808 1808 1812 1812 1812 1825 2220 2220 2225 1808 1812 1825 2220 2225 1808 1812 1812 1825 2220 2220 2220 2220 2225 2225 1808 1812 1825 2220 2225 Thickness D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm H/2.8±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm G/2.4±0.2mm E/1.6±0.2mm D/1.25±0.2mm G/2.4±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm H/2.8±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm H/2.8±0.2mm D/1.25±0.2mm D/1.25±0.2mm G/2.4±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm E/1.6±0.2mm H/2.8±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm G/2.4±0.2mm H/2.8±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm Cap. Rated Voltage Tol. 3KV K C1808X222K302T K C1808X222K302T K C1812X222K302T K C1812X222K302T K C1825X222K302T K K C2220X222K302T K K C2220X222K302T K C2225X222K302T K K C1808X272K302T K C1812X272K302T K C1812X272K302T K C1825X272K302T K C2220X272K302T K C2225X272K302T K K C1808X332K302T K C1808X332K302T K C1812X332K302T K C1812X332K302T K C1812X332K302T K C1825X332K302T K C2220X332K302T K K C2225X332K302T K C1808X392K302T K C1812X392K302T K C1825X392K302T K C2220X392K302T K C2225X392K302T K C1808X472K302T K C1812X472K302T K C1812X472K302T K C1825X472K302T K C2220X472K302T K K C2220X472K302T K K C2225X472K302T K K C1808X562K302T K C1812X562K302T K C1825X562K302T K C2220X562K302T K C2225X562K302T Catalog Number Rated Voltage Rated Voltage 4KV 5KV C2211X222K502T C2220X222K502T C2220X222K502T C2225X222K402T C2211X272K502T C2220X332K502T C2220X472K502T C2220X472K502T C2225X472K402T Rated Voltage 8KV HVC Series – High Voltage Capacitors Holy Stone Cap. Size Thickness 1812 E/1.6±0.2mm 682 1825 D/1.25±0.2mm (6.8nF) 2220 D/1.25±0.2mm 2225 D/1.25±0.2mm 1812 F/2.0±0.2mm 822 1825 E/1.6±0.2mm (8.2nF) 2220 E/1.6±0.2mm 2225 D/1.25±0.2mm 1812 F/2.0±0.2mm 1825 E/1.6±0.2mm 103 2220 E/1.6±0.2mm (10nF) 2220 F/2.0±0.2mm 2220 H/2.8±0.2mm 2225 D/1.25±0.2mm 1825 E/1.6±0.2mm 123 2220 E/1.6±0.2mm (12nF) 2225 D/1.25±0.2mm 1825 F/2.0±0.2mm 153 2220 F/2.0±0.2mm (15nF) 2225 E/1.6±0.2mm 1825 G/2.4±0.2mm 183 2220 G/2.4±0.2mm (18nF) 2225 E/1.6±0.2mm 223 2225 E/1.6±0.2mm (22nF) 273 2225 F/2.0±0.2mm (27nF) 333 2225 G/2.4±0.2mm (33nF) Catalog Number Cap. Rated Voltage Rated Voltage Rated Voltage Tol. 3KV 4KV 5KV K C1812X682K302T K C1825X682K302T K C2220X682K302T K C2225X682K302T K C1812X822K302T K C1825X822K302T K C2220X822K302T K C2225X822K302T K C1812X103K302T K C1825X103K302T K C2220X103K302T K C2220X103K302T K C2220X103K302T K C2225X103K302T K C1825X123K302T K C2220X123K302T K C2225X123K302T K C1825X153K302T K C2220X153K302T K C2225X153K302T K C1825X183K302T K C2220X183K302T K C2225X183K302T K C2225X223K302T K C2225X273K302T K C2225X333K302T Rated Voltage 8KV
