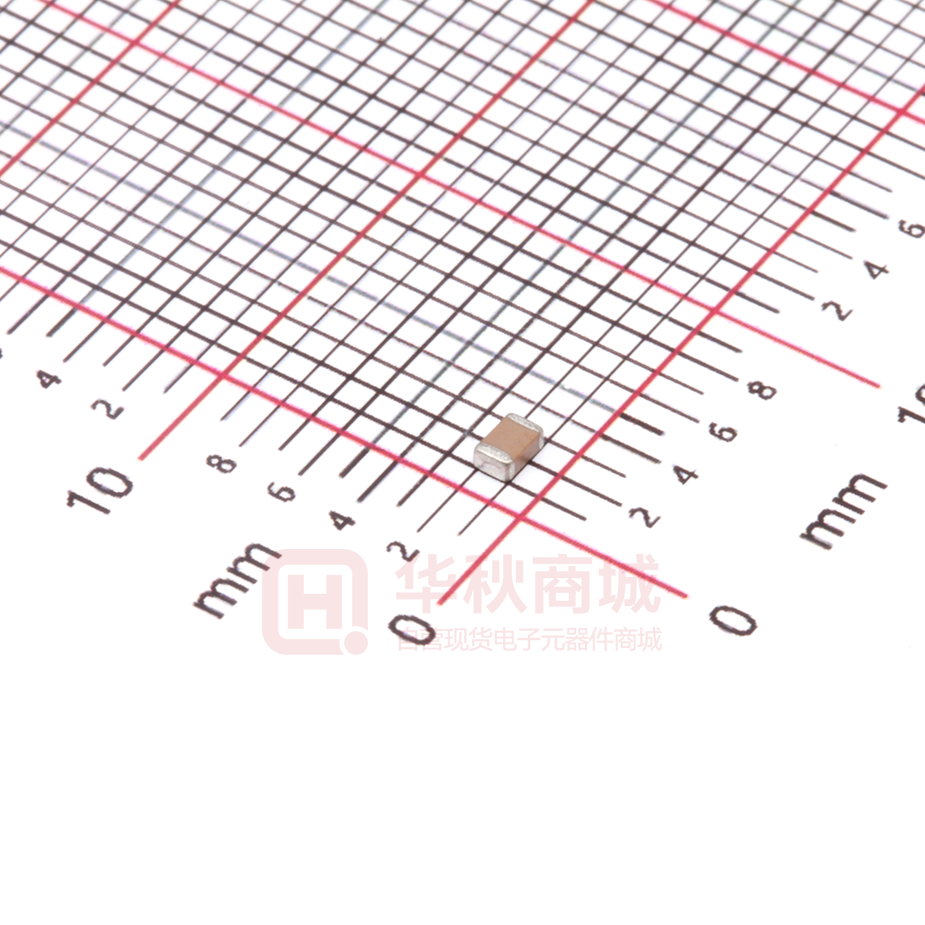

C0805X683K101T

Holy Stone Enterprise Co., Ltd. CERAMIC CAPACITOR CATALOG MVC Series Commerical grade Middle Voltage 100V to 630V www.holystone.com.tw www.holystonecaps.com MVC Series - Middle Voltage Capacitors Holy Stone Multilayer Ceramic Chip Capacitors [ Middle Voltage NP0 and X7R Capacitors ] MVC Series Holy Stone middle voltage products are designed and manufactured to meet the general requirements of international standards. The product offering is well suited for commercial and industrial applications and includes NP0 (C0G) and X7R characteristics in sizes 0603 to 2225 and with working voltages up to 630V.  Features  Special internal electrode design offers the highest voltage rating  Surface mount suitable for wave and reflow soldering  High reliability  RoHS compliant  Applications  Suitable for LAN/WLAN interface, Back-Lighting Inverter, DC-DC Converters, Ballast, Modems and Power Supplies.  Summary of Specifications Operation Temperature -55 ℃ ~ +125 ℃ Rated Voltage 100Vdc to 630Vdc Temperature Coefficient NP0 : ± 30ppm/ ℃ , -55 ℃ ~ +125 ℃ (EIA Class Ι ) X7R : ± 15% -55 ℃ ~ +125 ℃ (EIA Class Ⅱ ) , Dissipation Factor NP0 : Q≧1000 , X7R : D.F.≦2.5% Insulation Resistance 10GΩ or 500/CΩ whichever is smaller Aging NP0 : 0% , X7R : Typically 2.5% per decade of time Dielectric Strength 100V ≦ V ＜ 500V : 200% Rated Voltage 500V ≦ V ＜ 1000V : 150% Rated Voltage  How To Order C Product Code C: MLCC (Multilayer Ceramic Chip of Capacitor) 1206 X Chip Size Dielectric Ex.: 0603 0805 1206 1210 1808 1812 1825 2220 2225 Ex.: N: NP0 X: X7R 102 Capacitance Unit : pF Ex.: 2R0:2.0pF 100:10×100 471:47×101 102:10×102 K Tolerance Ex.: C:+/-0.25pF D:+/-0.50pF J :+/- 5% K :+/-10% M:+/-20% 631 Rated Voltage Ex.: 101: 100Vdc 251: 250Vdc 501: 500Vdc 631: 630Vdc T Packaging T: T/R 7” R: T/R 13” B: Bulk X Special Requirement Ex.: O: Arc Prevention Coating X: Polymer Termination (Super Term) MVC Series – Middle Voltage Capacitors Holy Stone Capacitance Range Chart Temperature Coefficient – NP0 ( 0 ± 30ppm/℃ ) Size 0603 0805 1206 1210 1808 NPO 1812 1825 2220 2225 Rated Voltage 100V 200V 250V 100V 200V 250V 500V 100V 200V 250V 500V 630V 100V 200V 250V 500V 630V 500V 630V 100V 200V 250V 500V 630V 100V 200V 250V 500V 630V 100V 200V 250V 500V 630V 100V 200V 250V 500V 630V Capacitance Range (pF) 2R0 3R3 3R9 5R0 8R2 100 120 150 180 220 270 330 390 470 560 680 820 101 121 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 104 Temperature Characteristic Temperature Characteristic X7R Temperature Characteristic X7R Voltage Voltage 250V Size Size Temperature Characteristic Voltage Size X7R 300V 1812 101 121 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 155 225 335 475 106 Size 101 121 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 155 225 335 475 106 X7R Voltage 101 121 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 155 225 335 475 106 Temperature Characteristic 101 121 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 155 225 335 475 106 MVC Series – Middle Voltage Capacitors Holy Stone Capacitance Range Chart Temperature Coefficient – X7R ( ± 15% ) Capacitance Range (pF) 0603 0805 1206 100V 1210 1812 2220 1825 2225 Capacitance Range (pF) 0805 1206 200V 1210 1812 2220 2225 Capacitance Range (pF) 0603 0805 1206 1210 1812 2220 2225 Capacitance Range (pF) X7R Temperature Characteristic X7R Temperature Characteristic X7R Voltage Voltage 500V Voltage Size Size 0805 1206 630V 1210 1808 1812 2220 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 Size 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 Temperature Characteristic 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 392 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 154 184 224 274 334 394 474 564 684 824 105 MVC Series – Middle Voltage Capacitors Holy Stone Capacitance Range Chart Temperature Coefficient – X7R ( ± 15% ) Capacitance Range (pF) 1206 450V 1210 1812 2220 Capacitance Range (pF) 0805 1206 1210 1808 1812 2220 2225 Capacitance Range (pF) MVC Series – Middle Voltage Capacitors Holy Stone Cap Size 0603 2R0 0805 (2.0pF) 1206 0603 3R3 0805 (3.3pF) 1206 0603 3R9 0805 (3.9pF) 1206 0603 5R0 0805 (5.0pF) 1206 0603 8R2 0805 (8.2pF) 1206 0603 0805 100 0805 (10pF) 1206 1210 0603 120 0805 (12pF) 1206 1210 0603 0805 150 0805 (15pF) 1206 1210 0603 0805 180 0805 (18pF) 1206 1210 0603 220 0805 (22pF) 1206 1210 0603 0805 270 0805 (27pF) 1206 1210 Thickness Cap. Tol. B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm A/0.6±0.1mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm A/0.6±0.1mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm A/0.6±0.1mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm A/0.6±0.1mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm A/0.6±0.1mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm A/0.6±0.1mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J Catalog Number Rated Voltage Vdc 100V C0603N2R0J101T C0805N2R0J101T C1206N2R0J101T C0603N3R3J101T C0805N3R3J101T C1206N3R3J101T C0603N3R9J101T C0805N3R9J101T C1206N3R9J101T C0603N5R0J101T C0805N5R0J101T C1206N5R0J101T C0603N8R2J101T C0805N8R2J101T C1206N8R2J101T C0603N100J101T C0805N100J101T C0805N100J101T C1206N100J101T C1210N100J101T C0603N120J101T C0805N120J101T C1206N120J101T C1210N120J101T C0603N150J101T C0805N150J101T C0805N150J101T C1206N150J101T C1210N150J101T C0603N180J101T C0805N180J101T C0805N180J101T C1206N180J101T C1210N180J101T C0603N220J101T C0805N220J101T C1206N220J101T C1210N220J101T C0603N270J101T C0805N270J101T C0805N270J101T C1206N270J101T C1210N270J101T Rated Voltage Vdc 200V C0603N2R0J201T C0805N2R0J201T C1206N2R0J201T C0603N3R3J201T C0805N3R3J201T C1206N3R3J201T C0603N3R9J201T C0805N3R9J201T C1206N3R9J201T C0603N5R0J201T C0805N5R0J201T C1206N5R0J201T C0603N8R2J201T C0805N8R2J201T C1206N8R2J201T C0603N100J201T C0805N100J201T C0805N100J201T C1206N100J201T C1210N100J201T C0603N120J201T C0805N120J201T C1206N120J201T C1210N120J201T C0603N150J201T C0805N150J201T C1206N150J201T C1210N150J201T C0603N180J201T C0805N180J201T C0805N180J201T C1206N180J201T C1210N180J201T C0603N220J201T C0805N220J201T C1206N220J201T C1210N220J201T C0603N270J201T C0805N270J201T C0805N270J201T C1206N270J201T C1210N270J201T Rated Voltage Vdc 250V C0603N2R0J251T C0805N2R0J251T C1206N2R0J251T C0603N3R3J251T C0805N3R3J251T C1206N3R3J251T C0603N3R9J251T C0805N3R9J251T C1206N3R9J251T C0603N5R0J251T C0805N5R0J251T C1206N5R0J251T C0603N8R2J251T C0805N8R2J251T C1206N8R2J251T C0603N100J251T C0805N100J251T C0805N100J251T C1206N100J251T C1210N100J251T C0603N120J251T C0805N120J251T C1206N120J251T C1210N120J251T C0603N150J251T C0805N150J251T C0805N150J251T C1206N150J251T C1210N150J251T C0603N180J251T C0805N180J251T C1206N180J251T C1210N180J251T C0603N220J251T C0805N220J251T C1206N220J251T C1210N220J251T C0603N270J251T C0805N270J251T C0805N270J251T C1206N270J251T C1210N270J251T MVC Series – Middle Voltage Capacitors Holy Stone Cap 330 (33pF) 390 (39pF) 470 (47pF) 560 (56pF) 680 (68pF) 820 (82pF) 101 (100pF) 121 (120pF) Size Thickness Cap. Tol. 0603 0805 0805 1206 1210 0603 0805 0805 1206 1210 0603 0805 0805 1206 1206 1210 0603 0805 0805 1206 1206 1210 0603 0805 0805 1206 1206 1210 1812 0603 0805 1206 1210 1812 0603 0805 1206 1206 1210 1812 0603 0805 1206 1210 1812 B/0.85±0.15mm A/0.6±0.1mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm A/0.6±0.1mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm A/0.6±0.1mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm A/0.6±0.1mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm A/0.6±0.1mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J Catalog Number Rated Voltage Vdc 100V C0603N330J101T C0805N330J101T C0805N330J101T C1206N330J101T C1210N330J101T C0603N390J101T C0805N390J101T Rated Voltage Vdc 200V C0603N330J201T C0805N330J201T C0805N330J201T C1206N330J201T C1210N330J201T C0603N390J201T C0805N390J201T C1206N390J101T C1210N390J101T C0603N470J101T C0805N470J101T C0805N470J101T C1206N470J101T C1206N470J101T C1210N470J101T C0603N560J101T C0805N560J101T C0805N560J101T C1206N560J101T C1206N560J101T C1210N560J101T C0603N680J101T C0805N680J101T C1206N390J201T C1210N390J201T C0603N470J201T C0805N470J201T C0805N470J201T C1206N470J201T C1206N470J201T C1210N470J201T C0603N560J201T C0805N560J201T C0805N560J201T C1206N560J201T C1210N680J101T C1812N680J101T C0603N820J101T C0805N820J101T C1206N820J101T C1210N820J101T C1812N820J101T C0603N101J101T C0805N101J101T C1206N101J101T C1210N680J201T C1812N680J201T C0603N820J201T C0805N820J201T C1206N820J201T C1210N820J201T C1812N820J201T C0603N101J201T C0805N101J201T C1206N101J201T C1206N101J201T C1210N101J201T C1812N101J201T C0603N121J201T C0805N121J201T C1206N121J201T C1210N121J201T C1812N121J201T C1210N560J201T C0603N680J201T C0805N680J201T C0805N680J201T C1206N680J101T C1206N680J201T C1210N101J101T C1812N101J101T C0603N121J101T C0805N121J101T C1206N121J101T C1210N121J101T C1812N121J101T Rated Voltage Vdc 250V C0603N330J251T C0805N330J251T C0805N330J251T C1206N330J251T C1210N330J251T C0603N390J251T C0805N390J251T C0805N390J251T C1206N390J251T C1210N390J251T C0603N470J251T C0805N470J251T C1206N470J251T C1206N470J251T C1210N470J251T C0603N560J251T C0805N560J251T C0805N560J251T C1206N560J251T C1210N560J251T C0603N680J251T C0805N680J251T C0805N680J251T C1206N680J251T C1206N680J251T C1210N680J251T C1812N680J251T C0603N820J251T C0805N820J251T C1206N820J251T C1210N820J251T C1812N820J251T C0603N101J251T C0805N101J251T C1206N101J251T C1206N101J251T C1210N101J251T C1812N101J251T C0603N121J251T C0805N121J251T C1206N121J251T C1210N121J251T C1812N121J251T MVC Series – Middle Voltage Capacitors Holy Stone Cap 151 (150pF) 181 (180pF) 221 220pF) 271 (270pF) 331 (330pF) 391 (390pF) 471 (470pF) Size Thickness Cap. Tol. 0603 0805 0805 1206 1206 1210 1812 0603 0805 1206 1206 1210 1812 0603 0805 1206 1206 1210 1812 0603 0805 1206 1210 1812 0603 0805 1206 1206 1210 1812 0603 0805 0805 1206 1206 1210 1812 0603 0805 1206 1206 1210 1812 B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J Catalog Number Rated Voltage Vdc 100V C0603N151J101T C0805N151J101T C0805N151J101T C1206N151J101T C1210N151J101T C1812N151J101T C0603N181J101T C0805N181J101T C1206N181J101T C1210N181J101T C1812N181J101T C0603N221J101T C0805N221J101T C1206N221J101T C1206N221J101T C1210N221J101T C1812N221J101T C0603N271J101T C0805N271J101T C1206N271J101T C1210N271J101T C1812N271J101T C0603N331J101T C0805N331J101T C1206N331J101T C1210N331J101T C1812N331J101T C0603N391J101T C0805N391J101T Rated Voltage Vdc 200V C0603N151J201T C0805N151J201T C0805N151J201T C1206N151J201T C1206N151J201T C1210N151J201T C1812N151J201T C0603N181J201T C0805N181J201T C1206N181J201T C1210N181J201T C1812N181J201T C0603N221J201T C0805N221J201T C1206N221J201T C1206N221J201T C1210N221J201T C1812N221J201T C0603N271J201T C0805N271J201T C1206N271J201T C1210N271J201T C1812N271J201T C0603N331J201T C0805N331J201T C1206N331J201T C1206N331J201T C1210N331J201T C1812N331J201T C0603N391J201T C0805N391J201T C1206N391J101T C1206N391J201T C1206N391J201T C1210N391J101T C1210N391J201T C1812N391J101T C1812N391J201T C0603N471J101T C0603N471J201T C0805N471J101T C0805N471J201T C1206N471J101T C1206N471J201T C1206N471J101T C1210N471J101T C1210N471J201T C1812N471J101T C1812N471J201T Rated Voltage Vdc 250V C0603N151J251T C0805N151J251T C0805N151J251T C1206N151J251T C1206N151J251T C1210N151J251T C1812N151J251T C0603N181J251T C0805N181J251T C1206N181J251T C1206N181J251T C1210N181J251T C1812N181J251T C0603N221J251T C0805N221J251T C1206N221J251T C1206N221J251T C1210N221J251T C1812N221J251T C0603N271J251T C0805N271J251T C1206N271J251T C1210N271J251T C1812N271J251T C0603N331J251T C0805N331J251T C1206N331J251T C1210N331J251T C1812N331J251T C0603N391J251T C0805N391J251T C0805N391J251T C1206N391J251T C1206N391J251T C1210N391J251T C1812N391J251T C0603N471J251T C0805N471J251T C1206N471J251T C1206N471J251T C1210N471J251T C1812N471J251T MVC Series – Middle Voltage Capacitors Holy Stone Cap 561 (560pF) 681 (680pF) 821 (820pF) 102 (1nF) 122 (1.2nF) 152 (1.5nF) Size Thickness Cap. Tol. 0603 0805 1206 1210 1812 0805 1206 1206 1210 1812 0805 1206 1210 1812 0805 0805 1206 1206 1206 1210 1812 1825 2220 2225 0805 0805 1206 1206 1210 1812 1825 2220 2225 0805 1206 1206 1206 1210 1210 1812 1825 2220 2225 B/0.85±0.15mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm D/1.25±0.2mm E/1.6±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm D/1.25±0.2mm B/0.85±0.15mm E/1.6±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm E/1.6±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J Catalog Number Rated Voltage Vdc 100V C0603N561J101T C0805N561J101T C1206N561J101T C1210N561J101T C1812N561J101T C0805N681J101T C1206N681J101T C1206N681J101T C1210N681J101T C1812N681J101T C0805N821J101T C1206N821J101T C1210N821J101T C1812N821J101T C0805N102J101T Rated Voltage Vdc 200V C0603N561J201T C0805N561J201T C1206N561J201T C1210N561J201T C1812N561J201T C0805N681J201T C1206N681J201T Rated Voltage Vdc 250V C0603N561J251T C0805N561J251T C1206N561J251T C1210N561J251T C1812N561J251T C0805N681J251T C1206N681J251T C1210N681J201T C1812N681J201T C0805N821J201T C1206N821J201T C1210N821J201T C1812N821J201T C0805N102J201T C1210N681J251T C1812N681J251T C0805N821J251T C1206N821J251T C1210N821J251T C1812N821J251T C0805N102J251T C0805N102J251T C1206N102J251T C1206N102J251T C1206N102J251T C1210N102J251T C1812N102J251T C1825N102J251T C2220N102J251T C2225N102J251T C0805N122J251T C0805N122J251T C1206N122J251T C1206N102J101T C1206N102J201T C1210N102J101T C1812N102J101T C1825N102J101T C2220N102J101T C2225N102J101T C0805N122J101T C1206N102J201T C1210N102J201T C1812N102J201T C1825N102J201T C2220N102J201T C2225N102J201T C0805N122J201T C1206N122J101T C1206N122J201T C1206N122J201T C1210N122J101T C1210N122J201T C1812N122J101T C1812N122J201T C1825N122J101T C1825N122J201T C2220N122J101T C2220N122J201T C2225N122J101T C2225N122J201T C0805N152J101T C0805N152J201T C1206N152J101T C1206N152J201T C1206N152J101T C1210N122J251T C1812N122J251T C1825N122J251T C2220N122J251T C2225N122J251T C0805N152J251T C1206N152J251T C1206N152J251T C1206N152J251T C1210N152J101T C1210N152J201T C1210N152J251T C1210N152J101T C1812N152J101T C1812N152J201T C1812N152J251T C1825N152J101T C1825N152J201T C1825N152J251T C2220N152J101T C2220N152J201T C2220N152J251T C2225N152J101T C2225N152J201T C2225N152J251T MVC Series – Middle Voltage Capacitors Holy Stone Cap 182 (1.8nF) 222 (2.2nF) 272 (2.7nF) 332 (3.3nF) Size Thickness 0805 1206 1210 1812 1825 2220 2225 0805 1206 1206 1206 1210 1210 1210 1812 1812 1825 2220 2225 0805 1206 1206 1210 1812 1825 2220 2225 0805 1206 1206 1210 1210 1812 1825 2220 2225 B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm E/1.6±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm E/1.6±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm Cap. Tol. J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J Catalog Number Rated Voltage Vdc 100V C0805N182J101T C1206N182J101T C1210N182J101T C1812N182J101T C1825N182J101T C2220N182J101T C2225N182J101T C0805N222J101T C1206N222J101T C1206N222J101T C1206N222J101T C1210N222J101T Rated Voltage Vdc 200V C0805N182J201T C1206N182J201T C1210N182J201T C1812N182J201T C1825N182J201T C2220N182J201T C2225N182J201T C0805N222J201T C1206N222J201T Rated Voltage Vdc 250V C0805N182J251T C1206N182J251T C1210N182J251T C1812N182J251T C1825N182J251T C2220N182J251T C2225N182J251T C0805N222J251T C1206N222J251T C1206N222J201T C1206N222J251T C1210N222J201T C1210N222J251T C1210N222J201T C1210N222J101T C1812N222J101T C1812N222J201T C1812N222J251T C1812N222J251T C1825N222J101T C1825N222J201T C1825N222J251T C2220N222J101T C2220N222J201T C2220N222J251T C2225N222J101T C2225N222J201T C2225N222J251T C0805N272J101T C0805N272J201T C0805N272J251T C1206N272J101T C1206N272J201T C1206N272J251T C1206N272J101T C1206N272J251T C1210N272J101T C1210N272J201T C1210N272J251T C1812N272J101T C1812N272J201T C1812N272J251T C1825N272J101T C1825N272J201T C1825N272J251T C2220N272J101T C2220N272J201T C2220N272J251T C2225N272J101T C2225N272J201T C2225N272J251T C0805N332J101T C0805N332J201T C0805N332J251T C1206N332J101T C1206N332J201T C1206N332J251T C1206N332J101T C1206N332J251T C1210N332J101T C1210N332J201T C1210N332J251T C1210N332J201T C1812N332J101T C1812N332J201T C1812N332J251T C1825N332J101T C1825N332J201T C1825N332J251T C2220N332J101T C2220N332J201T C2220N332J251T C2225N332J101T C2225N332J201T C2225N332J251T MVC Series – Middle Voltage Capacitors Holy Stone Cap 392 (3.9nF) 472 (4.7nF) 562 (5.6nF) 682 (6.8nF) Size Thickness Cap. Tol. 0805 1206 1206 1206 1210 1210 1812 1812 1825 2220 2225 0805 1206 1206 1206 1210 1210 1812 1825 2220 2225 0805 1206 1206 1206 1210 1210 1812 1812 1825 2220 2225 0805 1206 1206 1210 1210 1812 1825 2220 2225 D/1.25±0.2mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm E/1.6±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm D/1.25±0.2mm E/1.6±0.2mm C/1.0 +0.1mm -0.05mm E/1.6±0.2mm D/1.25±0.2mm G/2.4±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J Catalog Number Rated Voltage Rated Voltage Rated Voltage Vdc 100V Vdc 200V Vdc 250V C0805N392J101T C0805N392J201T C0805N392J251T C1206N392J101T C1206N392J201T C1206N392J251T C1206N392J251T C1210N392J101T C1210N392J201T C1210N392J251T C1210N392J101T C1812N392J101T C1812N392J201T C1812N392J251T C1812N392J201T C1825N392J101T C1825N392J201T C1825N392J251T C2220N392J101T C2220N392J201T C2220N392J251T C2225N392J101T C2225N392J201T C2225N392J251T C0805N472J101T C1206N472J101T C1206N472J101T C1206N472J201T C1206N472J251T C1206N472J251T C1210N472J101T C1210N472J201T C1210N472J251T C1210N472J101T C1812N472J101T C1812N472J201T C1812N472J251T C1825N472J101T C1825N472J201T C1825N472J251T C2220N472J101T C2220N472J201T C2220N472J251T C2225N472J101T C2225N472J201T C2225N472J251T C0805N562J101T C1206N562J101T C1206N562J201T C1206N562J251T C1206N562J101T C1210N562J101T C1210N562J201T C1210N562J251T C1812N562J101T C1812N562J201T C1812N562J251T C1825N562J101T C1825N562J201T C1825N562J251T C2220N562J101T C2220N562J201T C2220N562J251T C2225N562J101T C2225N562J201T C2225N562J251T C0805N682J101T C1206N682J101T C1206N682J201T C1206N682J251T C1210N682J101T C1210N682J201T C1210N682J251T C1210N682J101T C1812N682J101T C1812N682J201T C1812N682J251T C1825N682J101T C1825N682J201T C1825N682J251T C2220N682J101T C2220N682J201T C2220N682J251T C2225N682J101T C2225N682J201T C2225N682J251T MVC Series – Middle Voltage Capacitors Holy Stone Cap 822 (8.2nF) 103 (10nF) 123 (12nF) 153 (15nF) 183 (18nF) Size Thickness Cap. Tol. 0805 1206 1206 1210 1812 1825 2220 2225 0805 1206 1206 1210 1210 1812 1825 1825 2220 2220 2225 0805 1206 1210 1210 1812 1825 1825 2220 2225 1210 1812 1825 1825 2220 2220 2225 1210 1812 1825 1825 2220 2225 D/1.25±0.2mm B/0.85±0.15mm E/1.6±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm E/1.6±0.2mm C/1.0 +0.1mm -0.05mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J Catalog Number Rated Voltage Vdc 100V C0805N822J101T C1206N822J101T Rated Voltage Vdc 200V Rated Voltage Vdc 250V C1206N822J201T C1210N822J201T C1812N822J201T C1825N822J201T C2220N822J201T C2225N822J201T C1206N822J251T C1206N822J251T C1210N822J251T C1812N822J251T C1825N822J251T C2220N822J251T C2225N822J251T C1210N822J101T C1812N822J101T C1825N822J101T C2220N822J101T C2225N822J101T C0805N103J101T C1206N103J101T C1206N103J201T C1206N103J101T C1206N103J201T C1206N103J251T C1210N103J101T C1210N103J201T C1210N103J251T C1210N103J251T C1812N103J101T C1812N103J201T C1812N103J251T C1825N103J101T C1825N103J201T C1825N103J251T C2220N103J101T C2220N103J201T C2220N103J251T C2225N103J101T C2225N103J201T C2225N103J251T C0805N123J101T C1206N123J101T C1210N123J101T C1210N123J101T C1812N123J101T C1812N123J201T C1812N123J251T C1825N123J101T C1825N123J201T C1825N123J251T C2220N123J101T C2220N123J201T C2220N123J251T C2225N123J101T C2225N123J201T C2225N123J251T C1210N153J101T C1812N153J101T C1812N153J201T C1812N153J251T C1825N153J101T C1825N153J201T C1825N153J251T C2220N153J101T C2220N153J201T C2220N153J251T C2225N153J101T C2225N153J201T C2225N153J251T C1210N183J101T C1812N183J101T C1812N183J201T C1812N183J251T C1825N183J101T C1825N183J201T C1825N183J251T C2220N183J101T C2220N183J201T C2220N183J251T C2225N183J101T C2225N183J201T C2225N183J251T MVC Series – Middle Voltage Capacitors Holy Stone Cap 223 (22nF) 273 (27nF) 333 (33nF) 393 (39nF) 473 (47nF) 563 (56nF) Size 1210 1812 1825 1825 2220 2225 1210 1812 1812 1825 1825 2220 2220 2220 2225 1210 1812 1825 1825 2220 2220 2225 1210 1812 1825 1825 2220 2220 2225 1812 1812 1825 1825 2220 2220 2225 1812 1825 1825 2220 2225 Thickness D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm E/1.6±0.2mm D/1.25±0.2mm Cap. Tol. J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J Catalog Number Rated Voltage Rated Voltage Vdc 100V Vdc 200V C1210N223J101T C1812N223J101T C1812N223J201T C1825N223J101T C1825N223J201T C2220N223J101T C2220N223J201T C2225N223J101T C2225N223J201T C1210N273J101T C1812N273J101T C1812N273J201T C1825N273J101T C1825N273J201T C2220N273J101T C2220N273J201T C2225N273J101T C2225N273J201T C1210N333J101T C1812N333J101T C1825N333J101T C1825N333J201T C2220N333J101T C2220N333J201T C2225N333J101T C2225N333J201T C1210N393J101T C1812N393J101T C1825N393J101T C1825N393J201T C2220N393J101T C2220N393J201T C2225N393J101T C1812N473J101T C1812N473J101T C1825N473J101T C1825N473J201T C2220N473J101T C2220N473J201T C2225N473J101T C1812N563J101T C1825N563J101T C1825N563J201T C2220N563J101T C2225N563J101T Rated Voltage Vdc 250V C1812N223J251T C1825N223J251T C2220N223J251T C2225N223J251T C1812N273J251T C1825N273J251T C2220N273J251T C2225N273J251T C1825N333J251T C2220N333J251T C2225N333J251T C1825N393J251T C2220N393J251T C1825N473J251T C2220N473J251T C1825N563J251T MVC Series – Middle Voltage Capacitors Holy Stone Cap Size 1812 1812 683 1825 (68nF) 1825 2225 1812 104 1825 (100nF) 1825 Thickness D/1.25±0.2mm F/2.0±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm E/1.6±0.2mm G/2.4±0.2mm Cap. Tol. J J J J J J J J Catalog Number Rated Voltage Vdc 100V C1812N683J101T C1812N683J101T C1825N683J101T Rated Voltage Vdc 200V Rated Voltage Vdc 250V C1825N683J201T C1825N683J251T C2225N683J101T C1812N104J101T C1825N104J101T C1825N104J201T C1825N104J251T MVC Series – Middle Voltage Capacitors Holy Stone Cap Size Thickness Cap. Tol. 2R0 (2.0pF) 3R3 (3.3pF) 3R9 (3.9pF) 5R0 (5.0pF) 8R2 (8.2pF) 0805 1808 0805 1808 0805 1808 0805 1808 0805 1808 0805 0805 1206 1206 1210 1808 0805 0805 1206 1210 1808 0805 1206 1210 1808 0805 1206 1206 1210 1808 0805 1206 1206 1210 1808 0805 1206 1206 1210 1808 B/0.85±0.15mm D/1.25±0.2mm B/0.85±0.15mm D/1.25±0.2mm B/0.85±0.15mm D/1.25±0.2mm B/0.85±0.15mm D/1.25±0.2mm B/0.85±0.15mm D/1.25±0.2mm A/0.6±0.1mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm A/0.6±0.1mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm A/0.6±0.1mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm A/0.6±0.1mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm A/0.6±0.1mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm A/0.6±0.1mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J 100 (10pF) 120 (12pF) 150 (15pF) 180 (18pF) 220 (22pF) 270 (27pF) Catalog Number Rated Voltage Vdc 500V C0805N2R0J501T C1808N2R0J501T C0805N3R3J501T C1808N3R3J501T C0805N3R9J501T C1808N3R9J501T C0805N5R0J501T C1808N5R0J501T C0805N8R2J501T C1808N8R2J501T C0805N100J501T C0805N100J501T C1206N100J501T C1206N100J501T C1210N100J501T C1808N100J501T C0805N120J501T C0805N120J501T C1206N120J501T C1210N120J501T C1808N120J501T C0805N150J501T C1206N150J501T C1210N150J501T C1808N150J501T C0805N180J501T C1206N180J501T C1206N180J501T C1210N180J501T C1808N180J501T C0805N220J501T C1206N220J501T C1206N220J501T C1210N220J501T C1808N220J501T C0805N270J501T C1206N270J501T C1206N270J501T C1210N270J501T C1808N270J501T Rated Voltage Vdc 630V C1808N2R0J631T C1808N3R3J631T C1808N3R9J631T C1808N5R0J631T C1808N8R2J631T C1206N100J631T C1206N100J631T C1210N100J631T C1808N100J631T C1206N120J631T C1210N120J631T C1808N120J631T C1206N150J631T C1210N150J631T C1808N150J631T C1206N180J631T C1206N180J631T C1210N180J631T C1808N180J631T C1206N220J631T C1206N220J631T C1210N220J631T C1808N220J631T C1206N270J631T C1206N270J631T C1210N270J631T C1808N270J631T MVC Series – Middle Voltage Capacitors Holy Stone Cap 330 (33pF) 390 (39pF) 470 (47pF) 560 (56pF) 680 (68pF) 820 (82pF) 101 (100pF) Size Thickness 0805 0805 1206 1206 1206 1210 1808 0805 0805 1206 1206 1210 1808 0805 1206 1206 1210 1808 0805 1206 1206 1206 1210 1808 0805 0805 1206 1206 1210 1808 1812 0805 1206 1206 1210 1808 1812 0805 0805 1206 1206 1206 1210 1808 1812 A/0.6±0.1mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm A/0.6±0.1mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm A/0.6±0.1mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm A/0.6±0.1mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm A/0.6±0.1mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm Cap. Tol. J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J Catalog Number Rated Voltage Rated Voltage Vdc 500V Vdc 630V C0805N330J501T C0805N330J501T C1206N330J501T C1206N330J631T C1206N330J501T C1206N330J631T C1206N330J631T C1210N330J501T C1210N330J631T C1808N330J501T C1808N330J631T C0805N390J501T C0805N390J501T C1206N390J501T C1206N390J631T C1206N390J501T C1206N390J631T C1210N390J501T C1210N390J631T C1808N390J501T C1808N390J631T C0805N470J501T C1206N470J501T C1206N470J631T C1206N470J501T C1206N470J631T C1210N470J501T C1210N470J631T C1808N470J501T C1808N470J631T C0805N560J501T C1206N560J501T C1206N560J631T C1206N560J501T C1206N560J631T C1210N560J501T C1210N560J631T C1808N560J501T C1808N560J631T C0805N680J501T C0805N680J501T C1206N680J501T C1206N680J631T C1206N680J501T C1210N680J501T C1210N680J631T C1808N680J501T C1808N680J631T C1812N680J501T C1812N680J631T C0805N820J501T C1206N820J501T C1206N820J631T C1206N820J501T C1210N820J501T C1210N820J631T C1808N820J501T C1808N820J631T C1812N820J501T C1812N820J631T C0805N101J501T C0805N101J501T C1206N101J501T C1206N101J631T C1206N101J501T C1206N101J631T C1206N101J631T C1210N101J501T C1210N101J631T C1808N101J501T C1808N101J631T C1812N101J501T C1812N101J631T MVC Series – Middle Voltage Capacitors Holy Stone Cap 121 (120pF) 151 (150pF) 181 (180pF) 221 (220pF) 271 (270pF) 331 (330pF) Size Thickness Cap. Tol. 0805 1206 1206 1206 1210 1808 1812 0805 0805 1206 1206 1206 1210 1808 1812 0805 0805 1206 1206 1210 1808 1812 0805 0805 1206 1206 1206 1210 1808 1812 0805 0805 1206 1206 1210 1808 1812 0805 1206 1206 1206 1210 1808 1812 B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm E/1.6±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm E/1.6±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J Catalog Number Rated Voltage Vdc 500V C0805N121J501T C1206N121J501T C1206N121J501T C1206N121J501T C1210N121J501T C1808N121J501T C1812N121J501T C0805N151J501T C0805N151J501T C1206N151J501T C1206N151J501T C1206N151J501T C1210N151J501T C1808N151J501T C1812N151J501T C0805N181J501T C0805N181J501T C1206N181J501T C1206N181J501T C1210N181J501T C1808N181J501T C1812N181J501T C0805N221J501T C0805N221J501T C1206N221J501T C1206N221J501T C1206N221J501T C1210N221J501T C1808N221J501T C1812N221J501T C0805N271J501T C0805N271J501T C1206N271J501T C1206N271J501T C1210N271J501T C1808N271J501T C1812N271J501T C0805N331J501T C1206N331J501T C1206N331J501T C1206N331J501T C1210N331J501T C1808N331J501T C1812N331J501T Rated Voltage Vdc 630V C1206N121J631T C1206N121J631T C1206N121J631T C1210N121J631T C1808N121J631T C1812N121J631T C1206N151J631T C1206N151J631T C1210N151J631T C1808N151J631T C1812N151J631T C1206N181J631T C1210N181J631T C1808N181J631T C1812N181J631T C1206N221J631T C1206N221J631T C1206N221J631T C1210N221J631T C1808N221J631T C1812N221J631T C1206N271J631T C1206N271J631T C1210N271J631T C1808N271J631T C1812N271J631T C1206N331J631T C1206N331J631T C1210N331J631T C1808N331J631T C1812N331J631T MVC Series – Middle Voltage Capacitors Holy Stone Cap 391 (390pF) 471 (470pF) 561 (560pF) 681 (680pF) 821 (820pF) 102 (1nF) Size Thickness Cap. Tol. 0805 1206 1206 1210 1808 1812 0805 0805 1206 1206 1206 1210 1808 1812 0805 1206 1206 1210 1808 1812 0805 1206 1206 1210 1808 1812 1206 1206 1210 1808 1812 1206 1206 1210 1210 1808 1812 1825 2220 B/0.85±0.15mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm B/0.85±0.15mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm B/0.85±0.15mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm E/1.6±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J Catalog Number Rated Voltage Vdc 500V C0805N391J501T C1206N391J501T C1206N391J501T C1210N391J501T C1808N391J501T C1812N391J501T C0805N471J501T C0805N471J501T C1206N471J501T C1206N471J501T C1206N471J501T C1210N471J501T C1808N471J501T C1812N471J501T C0805N561J501T C1206N561J501T C1206N561J501T C1210N561J501T C1808N561J501T C1812N561J501T C0805N681J501T C1206N681J501T C1206N681J501T C1210N681J501T C1808N681J501T C1812N681J501T C1206N821J501T C1206N821J501T C1210N821J501T C1808N821J501T C1812N821J501T C1206N102J501T C1206N102J501T C1210N102J501T C1210N102J501T C1808N102J501T C1812N102J501T C1825N102J501T C2220N102J501T Rated Voltage Vdc 630V C1206N391J631T C1210N391J631T C1808N391J631T C1812N391J631T C1206N471J631T C1206N471J631T C1210N471J631T C1808N471J631T C1812N471J631T C1206N561J631T C1206N561J631T C1210N561J631T C1808N561J631T C1812N561J631T C1206N681J631T C1206N681J631T C1210N681J631T C1808N681J631T C1812N681J631T C1206N821J631T C1206N821J631T C1210N821J631T C1808N821J631T C1812N821J631T C1206N102J631T C1206N102J631T C1210N102J631T C1808N102J631T C1812N102J631T C1825N102J631T C2220N102J631T MVC Series – Middle Voltage Capacitors Holy Stone Cap 122 (1.2nF) 152 (1.5nF) 182 (1.8nF) 222 (2.2nF) 272 (2.7nF) 332 (3.3nF) Size Thickness Cap. Tol. 1206 1206 1210 1210 1808 1812 1825 2220 1206 1206 1210 1210 1808 1812 1812 1825 2220 1206 1210 1210 1808 1812 1825 2220 1206 1206 1210 1210 1808 1812 1812 1825 2220 1206 1210 1812 1825 2220 1206 1210 1210 1812 1825 2220 B/0.85±0.15mm E/1.6±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85±0.15mm E/1.6±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm C/1.0 +0.1mm -0.05mm E/1.6±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm C/1.0 +0.1mm -0.05mm E/1.6±0.2mm E/1.6±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm C/1.0 +0.1mm -0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J Catalog Number Rated Voltage Vdc 500V C1206N122J501T C1206N122J501T C1210N122J501T C1210N122J501T C1808N122J501T C1812N122J501T C1825N122J501T C2220N122J501T C1206N152J501T C1206N152J501T C1210N152J501T C1210N152J501T C1808N152J501T C1812N152J501T Rated Voltage Vdc 630V C1206N122J631T C1210N122J631T C1808N122J631T C1812N122J631T C1825N122J631T C2220N122J631T C1206N152J631T C1206N152J631T C1210N152J631T C1808N152J631T C1812N152J631T C1812N152J631T C1825N152J501T C1825N152J631T C2220N152J501T C2220N152J631T C1206N182J501T C1206N182J631T C1210N182J501T C1210N182J501T C1210N182J631T C1808N182J501T C1808N182J631T C1812N182J501T C1812N182J631T C1825N182J501T C1825N182J631T C2220N182J501T C2220N182J631T C1206N222J501T C1206N222J631T C1206N222J501T C1206N222J631T C1210N222J501T C1210N222J501T C1210N222J631T C1808N222J501T C1808N222J631T C1812N222J501T C1812N222J631T C1812N222J501T C1825N222J501T C1825N222J631T C2220N222J501T C2220N222J631T C1206N272J501T C1206N272J631T C1210N272J501T C1210N272J631T C1812N272J501T C1812N272J631T C1825N272J501T C1825N272J631T C2220N272J501T C2220N272J631T C1206N332J501T C1206N332J631T C1210N332J501T C1210N332J631T C1210N332J501T C1812N332J501T C1812N332J631T C1825N332J501T C1825N332J631T C2220N332J501T C2220N332J631T MVC Series – Middle Voltage Capacitors Holy Stone Cap 392 (3.9nF) 472 (4.7nF) 562 (5.6nF) 682 (6.8nF) 822 (8.2nF) 103 (10nF) 123 (12nF) 153 (15nF) 183 (18nF) 223 (22nF) 273 (27nF) 333 (33nF) Size 1206 1210 1210 1812 1812 1825 2220 1206 1210 1812 1812 1825 2220 1206 1210 1812 1812 1825 2220 1210 1812 1825 2220 1812 1825 2220 1825 2220 2225 1825 2220 2225 1825 2220 2225 1825 2220 1825 2220 1825 2220 1825 1825 Thickness E/1.6±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm F/2.0±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm E/1.6±0.2mm D/1.25±0.2mm G/2.4±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm E/1.6±0.2mm D/1.25±0.2mm E/1.6±0.2mm E/1.6±0.2mm E/1.6±0.2mm E/1.6±0.2mm E/1.6±0.2mm E/1.6±0.2mm E/1.6±0.2mm F/2.0±0.2mm E/1.6±0.2mm E/1.6±0.2mm F/2.0±0.2mm F/2.0±0.2mm F/2.0±0.2mm F/2.0±0.2mm F/2.0±0.2mm G/2.4±0.2mm Cap. Tol. J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J J Catalog Number Rated Voltage Vdc 500V C1206N392J501T C1210N392J501T C1210N392J501T C1812N392J501T C1812N392J501T C1825N392J501T C2220N392J501T C1206N472J501T C1210N472J501T C1812N472J501T C1812N472J501T C1825N472J501T C2220N472J501T C1206N562J501T C1210N562J501T C1812N562J501T C1825N562J501T C2220N562J501T C1210N682J501T C1812N682J501T C1825N682J501T C2220N682J501T C1812N822J501T C1825N822J501T C2220N822J501T C1825N103J501T C2220N103J501T C2225N103J501T C1825N123J501T C2220N123J501T C2225N123J501T C1825N153J501T C2220N153J501T C2225N153J501T C1825N183J501T C2220N183J501T C1825N223J501T C2220N223J501T C1825N273J501T C2220N273J501T C1825N333J501T Rated Voltage Vdc 630V C1206N392J631T C1210N392J631T C1812N392J631T C1825N392J631T C2220N392J631T C1206N472J631T C1210N472J631T C1812N472J631T C1825N472J631T C2220N472J631T C1210N562J631T C1812N562J631T C1812N562J631T C1825N562J631T C2220N562J631T C1210N682J631T C1812N682J631T C1825N682J631T C2220N682J631T C1812N822J631T C1825N822J631T C2220N822J631T C1825N103J631T C2220N103J631T C2225N103J631T C1825N123J631T C2220N123J631T C2225N123J631T C1825N153J631T C2220N153J631T C2225N153J631T C1825N183J631T C2220N183J631T C1825N223J631T C2220N223J631T C1825N273J631T C2220N273J631T C1825N333J631T MVC Series – Middle Voltage Capacitors Holy Stone Cap Size 393 (39nF) 473 (47nF) 1825 1825 1825 1825 Thickness F/2.0±0.2mm G/2.4±0.2mm G/2.4±0.2mm I/3.2±0.2mm 563 1825 G/2.4±0.2mm (56nF) 683 1825 G/2.4±0.2mm (68nF) 104 1825 G/2.4±0.2mm (100nF) Cap. Tol. J J J J Catalog Number Rated Voltage Vdc 500V C1825N393J501T Rated Voltage Vdc 630V C1825N393J631T C1825N473J501T C1825N473J631T J C1825N563J501T J C1825N683J501T J C1825N104J501T MVC Series – Middle Voltage Capacitors Holy Stone Cap. Size Thickness 0603 101 0805 (100pF) 1206 121 0603 (120pF) 0603 181 0805 (180pF) 1206 0603 0805 221 0805 (220pF) 1206 1206 1812 0603 0805 271 0805 (270pF) 1206 1206 1812 0603 0805 331 0805 (330pF) 1206 1206 1812 0603 0805 391 0805 (390pF) 1206 1206 1812 0603 0805 471 0805 (470pF) 1206 1206 1812 0603 0805 561 0805 (560pF) 1206 1206 1812 B/0.85+-0.15mm D/1.25±0.2mm B/0.85+-0.15mm Cap. Rated Voltage Tol. Vdc 100V K C0603X101K101T K K B/0.85+-0.15mm K C0603X121K101T B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K C0603X181K101T Catalog Number Rated Voltage Rated Voltage Rated Voltage Vdc 200V Vdc 250V Vdc 300V C0603X101K251T C0805X101K201T C0805X101K251T C1206X101K201T C1206X101K251T C0603X121K251T C0603X181K251T C0805X181K201T C0805X181K251T C1206X181K201T C1206X181K251T C0603X221K101T C0603X221K251T C0805X221K101T C0805X221K201T C0805X221K251T C0805X221K101T C1206X221K101T C1206X221K201T C1206X221K251T C1206X221K101T C1206X221K201T C1206X221K251T C1812X221K251T C0603X271K101T C0603X271K251T C0805X271K101T C0805X271K201T C0805X271K251T C0805X271K101T C1206X271K101T C1206X271K201T C1206X271K251T C1206X271K101T C1812X271K251T C0603X331K101T C0603X331K251T C0805X331K101T C0805X331K201T C0805X331K251T C0805X331K101T C0805X331K251T C1206X331K101T C1206X331K201T C1206X331K251T C1206X331K101T C1206X331K251T C1812X331K251T C0603X391K101T C0603X391K251T C0805X391K101T C0805X391K201T C0805X391K251T C0805X391K101T C0805X391K251T C1206X391K101T C1206X391K201T C1206X391K251T C1206X391K101T C1812X391K251T C0603X471K101T C0603X471K251T C0805X471K101T C0805X471K201T C0805X471K251T C0805X471K101T C1206X471K101T C1206X471K201T C1206X471K251T C1206X471K101T C1206X471K201T C1206X471K251T C1812X471K251T C0603X561K101T C0603X561K251T C0805X561K101T C0805X561K201T C0805X561K251T C0805X561K101T C0805X561K251T C1206X561K101T C1206X561K201T C1206X561K251T C1206X561K101T C1206X561K201T C1812X561K251T MVC Series – Middle Voltage Capacitors Holy Stone Cap. 681 (680pF) 821 (820pF) 102 (1nF) 122 (1.2nF) 152 (1.5nF) 182 (1.8nF) 222 (2.2nF) Size Thickness 0603 0805 0805 1206 1206 1812 0603 0805 0805 1206 1206 1812 0603 0805 0805 1206 1206 1812 2220 0603 0805 0805 1206 1206 1812 2220 0603 0805 0805 1206 1206 1812 2220 0603 0805 0805 1206 1206 1812 2220 0603 0805 0805 1206 1206 1812 2220 2225 B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm Cap. Rated Voltage Tol. Vdc 100V K C0603X681K101T K C0805X681K101T K C0805X681K101T K C1206X681K101T K C1206X681K101T K K C0603X821K101T K C0805X821K101T K C0805X821K101T K C1206X821K101T K C1206X821K101T K K C0603X102K101T K C0805X102K101T K C0805X102K101T K C1206X102K101T K C1206X102K101T K K C2220X102K101T K C0603X122K101T K C0805X122K101T K C0805X122K101T K C1206X122K101T K C1206X122K101T K K C2220X122K101T K C0603X152K101T K C0805X152K101T K C0805X152K101T K C1206X152K101T K C1206X152K101T K K C2220X152K101T K C0603X182K101T K C0805X182K101T K C0805X182K101T K C1206X182K101T K C1206X182K101T K K C2220X182K101T K C0603X222K101T K C0805X222K101T K C0805X222K101T K C1206X222K101T K C1206X222K101T K K C2220X222K101T K C2225X222K101T Catalog Number Rated Voltage Rated Voltage Rated Voltage Vdc 200V Vdc 250V Vdc 300V C0603X681K251T C0805X681K201T C0805X681K251T C1206X681K201T C1206X681K251T C1206X681K201T C1812X681K251T C0603X821K251T C0805X821K201T C0805X821K251T C0805X821K251T C1206X821K201T C1206X821K251T C1206X821K251T C1812X821K251T C0603X102K251T C0805X102K201T C0805X102K251T C1206X102K201T C1206X102K251T C1206X102K201T C1206X102K251T C1812X102K251T C2220X102K251T C0603X122K251T C0805X122K201T C0805X122K251T C1206X122K201T C1206X122K251T C1812X122K251T C2220X122K251T C0603X152K251T C0805X152K201T C0805X152K251T C1206X152K201T C1206X152K251T C1206X152K201T C1206X152K251T C1812X152K251T C2220X152K251T C0603X182K251T C0805X182K201T C0805X182K251T C1206X182K201T C1206X182K251T C1812X182K251T C2220X182K251T C0603X222K251T C0805X222K201T C0805X222K251T C1206X222K201T C1206X222K251T C1206X222K201T C1206X222K251T C1812X222K251T C2220X222K251T C2225X222K251T MVC Series – Middle Voltage Capacitors Holy Stone Cap. 272 (2.7nF) 332 (3.3nF) 392 (3.9nF) 472 (4.7nF) 562 (5.6nF) Size Thickness 0603 0805 0805 1206 1206 1812 2220 2225 0603 0805 0805 1206 1206 1812 2220 1825 2225 0603 0805 0805 1206 1206 1812 2220 1825 2225 0603 0805 0805 1206 1206 1812 2220 1825 2225 0603 0805 0805 1206 1206 1812 2220 1825 2225 B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm Cap. Rated Voltage Tol. Vdc 100V K C0603X272K101T K C0805X272K101T K C0805X272K101T K C1206X272K101T K C1206X272K101T K K C2220X272K101T K C2225X272K101T K C0603X332K101T K C0805X332K101T K C0805X332K101T K C1206X332K101T K C1206X332K101T K K C2220X332K101T K C1825X332K101T K C2225X332K101T K C0603X392K101T K C0805X392K101T K C0805X392K101T K C1206X392K101T K C1206X392K101T K K C2220X392K101T K C1825X392K101T K C2225X392K101T K C0603X472K101T K C0805X472K101T K C0805X472K101T K C1206X472K101T K C1206X472K101T K K C2220X472K101T K C1825X472K101T K C2225X472K101T K C0603X562K101T K C0805X562K101T K C0805X562K101T K C1206X562K101T K C1206X562K101T K K C2220X562K101T K C1825X562K101T K C2225X562K101T Catalog Number Rated Voltage Rated Voltage Rated Voltage Vdc 200V Vdc 250V Vdc 300V C0603X272K251T C0805X272K201T C0805X272K251T C0805X272K201T C1206X272K201T C1206X272K251T C1206X272K201T C1812X272K251T C2220X272K251T C2225X272K251T C0603X332K251T C0805X332K201T C0805X332K251T C1206X332K201T C1206X332K251T C1206X332K201T C1206X332K251T C1812X332K251T C2220X332K251T C2225X332K251T C0603X392K251T C0805X392K201T C0805X392K251T C0805X392K201T C0805X392K251T C1206X392K201T C1206X392K251T C1206X392K251T C1812X392K251T C2220X392K251T C0805X472K201T C0805X472K201T C1206X472K201T C1206X472K201T C2225X392K251T C0603X472K251T C0805X472K251T C0805X472K251T C1206X472K251T C1206X472K251T C1812X472K251T C2220X472K251T C2225X472K251T C0603X562K251T C0805X562K201T C0805X562K251T C1206X562K201T C1206X562K251T C1812X562K251T C2220X562K251T C2225X562K251T MVC Series – Middle Voltage Capacitors Holy Stone Cap. 682 (6.8nF) 822 (8.2nF) 103 (10nF) 123 (12nF) Size Thickness 0603 0805 0805 1206 1206 1812 2220 1825 2225 0603 0805 0805 1206 1206 1812 2220 1825 2225 0603 0805 0805 1206 1206 1206 1206 1210 1812 2220 1825 2225 0603 0805 0805 1206 1206 1210 1812 2220 1825 2225 B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm E/1.6±0.2mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25±0.2mm D/1.25±0.2mm D/1.25±0.2mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm Cap. Rated Voltage Tol. Vdc 100V K C0603X682K101T K C0805X682K101T K C0805X682K101T K C1206X682K101T K C1206X682K101T K K C2220X682K101T K C1825X682K101T K C2225X682K101T K C0603X822K101T K C0805X822K101T K C0805X822K101T K C1206X822K101T K C1206X822K101T K K C2220X822K101T K C1825X822K101T K C2225X822K101T K C0603X103K101T K C0805X103K101T K C0805X103K101T K C1206X103K101T K C1206X103K101T K C1206X103K101T K C1206X103K101T K C1210X103K101T K C1812X103K101T K C2220X103K101T K C1825X103K101T K C2225X103K101T K C0603X123K101T K C0805X123K101T K C0805X123K101T K C1206X123K101T K C1206X123K101T K C1210X123K101T K C1812X123K101T K C2220X123K101T K C1825X123K101T K C2225X123K101T Catalog Number Rated Voltage Rated Voltage Rated Voltage Vdc 200V Vdc 250V Vdc 300V C0603X682K251T C0805X682K201T C0805X682K251T C0805X682K201T C1206X682K251T C1206X682K201T C1812X682K251T C2220X682K251T C2225X682K251T C0603X822K251T C0805X822K201T C0805X822K251T C0805X822K201T C1206X822K201T C1206X822K251T C1812X822K251T C2220X822K251T C0805X103K201T C0805X103K201T C1206X103K201T C1206X103K201T C2225X822K251T C0603X103K251T C0805X103K251T C0805X103K251T C1206X103K251T C1206X103K251T C1210X103K201T C1210X103K251T C1812X103K201T C1812X103K251T C2220X103K201T C2220X103K251T C2225X103K201T C2225X103K251T C0805X123K201T C0805X123K251T C0805X123K201T C0805X123K251T C1206X123K201T C1206X123K251T C1210X123K201T C1210X123K251T C1812X123K201T C1812X123K251T C2220X123K201T C2220X123K251T C2225X123K201T C2225X123K251T MVC Series – Middle Voltage Capacitors Holy Stone Cap. 153 (15nF) 183 (18nF) 223 (22nF) 273 (27nF) Size Thickness 0603 0805 0805 1206 1206 1210 1812 2220 1825 2225 0603 0805 0805 1206 1206 1210 1812 2220 1825 2225 0603 0805 0805 1206 1206 1210 1812 2220 1825 2225 0603 0805 0805 1206 1206 1210 1812 2220 1825 2225 B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm Cap. Rated Voltage Tol. Vdc 100V K C0603X153K101T K C0805X153K101T K C0805X153K101T K C1206X153K101T K C1206X153K101T K C1210X153K101T K C1812X153K101T K C2220X153K101T K C1825X153K101T K C2225X153K101T K C0603X183K101T K C0805X183K101T K C0805X183K101T K C1206X183K101T K C1206X183K101T K C1210X183K101T K C1812X183K101T K C2220X183K101T K C1825X183K101T K C2225X183K101T K C0603X223K101T K C0805X223K101T K C0805X223K101T K C1206X223K101T K C1206X223K101T K C1210X223K101T K C1812X223K101T K C2220X223K101T K C1825X223K101T K C2225X223K101T K C0603X273K101T K C0805X273K101T K C0805X273K101T K C1206X273K101T K C1206X273K101T K C1210X273K101T K C1812X273K101T K C2220X273K101T K C1825X273K101T K C2225X273K101T Catalog Number Rated Voltage Rated Voltage Vdc 200V Vdc 250V C0805X153K201T C0805X153K251T C1206X153K201T C1206X153K201T C1210X153K201T C1812X153K201T C2220X153K201T C1206X153K251T C1206X153K251T C1210X153K251T C1812X153K251T C2220X153K251T C2225X153K201T C2225X153K251T C0805X183K201T C0805X183K251T C1206X183K201T C1206X183K251T C1210X183K201T C1210X183K251T C1812X183K201T C1812X183K251T C2220X183K201T C2220X183K251T C2225X183K201T C2225X183K251T C0805X223K201T C0805X223K201T C1206X223K201T C1206X223K201T C1210X223K201T C1812X223K201T C2220X223K201T C0805X223K251T C0805X223K251T C1206X223K251T C1206X223K251T C1210X223K251T C1812X223K251T C2220X223K251T C2225X223K201T C2225X223K251T C0805X273K201T C0805X273K251T C0805X273K251T C1206X273K201T C1206X273K251T C1206X273K251T C1210X273K201T C1210X273K251T C1812X273K201T C1812X273K251T C2220X273K201T C2220X273K251T C2225X273K201T C2225X273K251T Rated Voltage Vdc 300V MVC Series – Middle Voltage Capacitors Holy Stone Cap. 333 (33nF) 393 (39nF) 473 (47nF) 563 (56nF) Size Thickness 0603 0805 0805 1206 1206 1210 1812 2220 2220 1825 2225 0603 0805 0805 1206 1206 1210 1812 2220 1825 2225 0603 0805 0805 0805 1206 1206 1210 1812 2220 2220 1825 2225 0603 0805 0805 0805 1206 1206 1206 1210 1812 2220 1825 2225 B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm E/1.6+-0.2mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm E/1.6+-0.2mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm Cap. Rated Voltage Tol. Vdc 100V K C0603X333K101T K C0805X333K101T K C0805X333K101T K C1206X333K101T K C1206X333K101T K C1210X333K101T K C1812X333K101T K C2220X333K101T K K C1825X333K101T K C2225X333K101T K C0603X393K101T K C0805X393K101T K C0805X393K101T K C1206X393K101T K C1206X393K101T K C1210X393K101T K C1812X393K101T K C2220X393K101T K C1825X393K101T K C2225X393K101T K C0603X473K101T K C0805X473K101T K C0805X473K101T K K C1206X473K101T K C1206X473K101T K C1210X473K101T K C1812X473K101T K C2220X473K101T K K C1825X473K101T K C2225X473K101T K K C0805X563K101T K C0805X563K101T K K C1206X563K101T K C1206X563K101T K K C1210X563K101T K C1812X563K101T K C2220X563K101T K C1825X563K101T K C2225X563K101T Catalog Number Rated Voltage Rated Voltage Vdc 200V Vdc 250V C0805X333K201T C0805X333K251T C0805X333K251T C1206X333K201T C1206X333K251T C1206X333K201T C1206X333K251T C1210X333K201T C1210X333K251T C1812X333K201T C1812X333K251T C2220X333K201T C2220X333K251T C2220X333K251T C2225X333K201T C2225X333K251T C0805X393K201T C0805X393K251T C1206X393K201T C1206X393K251T C1210X393K201T C1210X393K251T C1812X393K201T C1812X393K251T C2220X393K201T C2220X393K251T C2225X393K201T C2225X393K251T C0805X473K201T C1206X473K201T C1206X473K201T C1210X473K201T C1812X473K201T C2220X473K201T C0805X473K251T C1206X473K251T C1206X473K251T C1210X473K251T C1812X473K251T C2220X473K251T C2220X473K251T C2225X473K201T C2225X473K251T C0805X563K201T C0805X563K251T C1206X563K201T C1206X563K251T C1206X563K251T C1206X563K251T C1210X563K201T C1210X563K251T C1812X563K201T C1812X563K251T C2220X563K201T C2220X563K251T C2225X563K201T C2225X563K251T Rated Voltage Vdc 300V MVC Series – Middle Voltage Capacitors Holy Stone Cap. 683 (68nF) 823 (82nF) 104 (100nF) 124 (120nF) Size Thickness 0603 0805 0805 0805 1206 1206 1206 1206 1210 1812 2220 1825 2225 0603 0805 0805 1206 1206 1210 1812 2220 1825 2225 0603 0805 0805 1206 1206 1206 1206 1210 1210 1812 2220 1825 2225 2225 0805 1206 1206 1206 1210 1210 1812 2220 1825 2225 B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm E/1.6+-0.2mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm E/1.6+-0.2mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm E/1.6+-0.2mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm Cap. Rated Voltage Tol. Vdc 100V K K C0805X683K101T K C0805X683K101T K K C1206X683K101T K C1206X683K101T K C1206X683K101T K K C1210X683K101T K C1812X683K101T K C2220X683K101T K C1825X683K101T K C2225X683K101T K K C0805X823K101T K C0805X823K101T K C1206X823K101T K K C1210X823K101T K C1812X823K101T K C2220X823K101T K C1825X823K101T K C2225X823K101T K K C0805X104K101T K C0805X104K101T K C1206X104K101T K C1206X104K101T K C1206X104K101T K C1206X104K101T K C1210X104K101T K K C1812X104K101T K C2220X104K101T K C1825X104K101T K C2225X104K101T K K C0805X124K101T K C1206X124K101T K C1206X124K101T K K C1210X124K101T K K C1812X124K101T K C2220X124K101T K C1825X124K101T K C2225X124K101T Catalog Number Rated Voltage Rated Voltage Vdc 200V Vdc 250V C0805X683K201T C0805X683K251T C1206X683K201T C1206X683K251T C1206X683K201T C1206X683K201T C1210X683K201T C1812X683K201T C2220X683K201T C1206X683K251T C1206X683K251T C1210X683K251T C1812X683K251T C2220X683K251T C2225X683K201T C2225X683K251T C1206X823K201T C1206X823K251T C1210X823K201T C1210X823K251T C1812X823K201T C1812X823K251T C2220X823K201T C2220X823K251T C2225X823K201T C2225X823K251T C1206X104K201T C1206X104K251T C1206X104K251T C1206X104K201T C1206X104K251T C1206X104K201T C1206X104K251T C1210X104K201T C1210X104K251T C1210X104K251T C1812X104K201T C1812X104K251T C2220X104K201T C2220X104K251T C2225X104K201T C2225X104K251T C2225X104K251T C1206X124K201T C1206X124K251T C1210X124K201T C1210X124K251T C1210X124K251T C1812X124K201T C1812X124K251T C2220X124K201T C2220X124K251T C2225X124K201T C2225X124K251T Rated Voltage Vdc 300V MVC Series – Middle Voltage Capacitors Holy Stone Cap. 154 (150nF) 184 (180nF) 224 (220nF) 274 (270nF) Size Thickness 0805 1206 1206 1206 1210 1210 1812 2220 1825 2225 0805 1206 1206 1206 1206 1210 1210 1812 2220 1825 2225 0805 1206 1206 1206 1206 1210 1210 1210 1812 2220 1825 2225 0805 1206 1206 1210 1210 1812 2220 1825 2225 C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm E/1.6+-0.2mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm C/1.0+0.10mm-0.05mm B/0.85+-0.15mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm E/1.6+-0.2mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm E/1.6+-0.2mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm Cap. Rated Voltage Tol. Vdc 100V K C0805X154K101T K C1206X154K101T K C1206X154K101T K K C1210X154K101T K K C1812X154K101T K C2220X154K101T K C1825X154K101T K C2225X154K101T K C0805X184K101T K C1206X184K101T K C1206X184K101T K K K C1210X184K101T K K C1812X184K101T K C2220X184K101T K C1825X184K101T K C2225X184K101T K C0805X224K101T K C1206X224K101T K C1206X224K101T K K C1206X224K101T K C1210X224K101T K K K C1812X224K101T K C2220X224K101T K C1825X224K101T K C2225X224K101T K C0805X274K101T K C1206X274K101T K C1206X274K101T K C1210X274K101T K K C1812X274K101T K C2220X274K101T K C1825X274K101T K C2225X274K101T Catalog Number Rated Voltage Rated Voltage Vdc 200V Vdc 250V C1206X154K201T C1206X154K251T C1210X154K201T C1210X154K251T C1812X154K201T C1812X154K251T C2220X154K201T C2220X154K251T C2225X154K201T C2225X154K251T C1206X184K201T C1206X184K251T C1206X184K251T C1210X184K201T C1210X184K251T C1812X184K201T C1812X184K251T C2220X184K201T C2220X184K251T C2225184K201T C2225X184K251T C1206X224K201T C1206X224K251T C1206X224K201T C1206X224K251T C1210X224K201T C1210X224K251T C1210X224K251T C1812X224K201T C1812X224K251T C2220X224K201T C2220X224K251T C2225X224K201T C2225X224K251T C1210X274K201T C1210X274K251T C1812X274K201T C1812X274K251T C2220X274K201T C2220X274K251T C2225X274K201T C2225X274K251T Rated Voltage Vdc 300V MVC Series – Middle Voltage Capacitors Holy Stone Cap. 334 (330nF) 394 (390nF) 474 (470nF) 564 (560nF) 684 (680nF) Size Thickness 0805 1206 1210 1210 1210 1812 1812 1812 2220 1825 2225 0805 1206 1210 1210 1812 1812 2220 1825 2225 0805 1206 1210 1210 1210 1812 1812 1812 2220 1825 2225 1206 1210 1210 1812 1812 2220 1825 2225 1206 1210 1210 1812 1812 2220 2220 1825 2225 D/1.25+-0.20mm E/1.6+-0.2mm C/1.0+0.10mm-0.05mm D/1.25+-0.20mm E/1.6+-0.2mm D/1.25+-0.20mm E/1.6+-0.2mm F/2.0+-0.2mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm E/1.6+-0.2mm C/1.0+0.10mm-0.05mm E/1.6+-0.2mm D/1.25+-0.20mm E/1.6+-0.2mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm E/1.6+-0.2mm C/1.0+0.10mm-0.05mm E/1.6+-0.2mm F/2.0+-0.2mm D/1.25+-0.20mm E/1.6+-0.2mm F/2.0+-0.2mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm E/1.6+-0.2mm D/1.25+-0.20mm G/2.4+-0.2mm D/1.25+-0.20mm E/1.6+-0.2mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm E/1.6+-0.2mm E/1.6+-0.2mm G/2.4+-0.2mm E/1.6+-0.2mm F/2.0+-0.2mm D/1.25+-0.20mm H/2.8±0.2mm D/1.25+-0.20mm D/1.25+-0.20mm Cap. Rated Voltage Tol. Vdc 100V K C0805X334K101T K C1206X334K101T K C1210X334K101T K K K C1812X334K101T K K K C2220X334K101T K C1825X334K101T K C2225X334K101T K C0805X394K10TT K C1206X394K10TT K C1210X394K10TT K K C1812X394K10TT K K C2220X394K10TT K C1825X394K10TT K C2225X394K10TT K C0805X474K101T K C1206X474K101T K C1210X474K101T K K K C1812X474K101T K K K C2220X474K101T K C1825X474K101T K C2225X474K101T K C1206X564K101T K C1210X564K101T K K C1812X564K101T K K C2220X564K101T K C1825X564K101T K C2225X564K101T K C1206X684K101T K C1210X684K101T K K C1812X684K101T K K C2220X684K101T K K C1825X684K101T K C2225X684K101T Catalog Number Rated Voltage Rated Voltage Vdc 200V Vdc 250V Rated Voltage Vdc 300V C1210X334K251T C1210X334K201T C1210X334K251T C1812X334K201T C1812X334K251T C1812X334K251T C1812X334K301T C1812X334K301T C2220X334K201T C2220X334K251T C2225X334K201T C2225X334K251T C1210X394K201T C1210X394K251T C1812X394K201T C1812X394K251T C1812X394K251T C2220X394K201T C2220X394K251T C2225X394K201T C2225X394K251T C1210X474K201T C1210X474K251T C1812X474K201T C1812X474K251T C1812X474K201T C1812X474K301T C1812X474K301T C2220X474K201T C2220X474K251T C2225X474K201T C2225X474K251T C1210X564K201T C1210X564K251T C1812X564K201T C1812X564K251T C1812X564K251T C2220X564K201T C2220X564K251T C2225X564K201T C2225X564K251T C1210X684K201T C1210X684K251T C1812X684K201T C1812X684K251T C1812X684K251T C2220X684K201T C2220X684K251T C2220X684K251T C2225X684K201T C2225X684K251T MVC Series – Middle Voltage Capacitors Holy Stone Cap. 824 (820nF) 105 (1μF) 225 (2.2μF) 335 (3.3μF) 475 (4.7μF) Size Thickness 1206 1210 1812 1812 2220 1825 2225 0805 1206 1210 1812 1812 1812 2220 2220 1825 2225 2225 1206 1210 1812 1812 2220 2225 2225 1210 1812 2220 2225 1210 1812 2220 2225 E/1.6+-0.2mm F/2.0±0.2mm E/1.6+-0.2mm F/2.0±0.2mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm E/1.6+-0.2mm F/2.0±0.2mm E/1.6+-0.2mm F/2.0±0.2mm G/2.4±0.2mm D/1.25+-0.20mm E/1.6+-0.2mm D/1.25+-0.20mm D/1.25+-0.20mm E/1.6+-0.2mm E/1.6+-0.2mm F/2.0±0.2mm F/2.0±0.2mm G/2.4±0.2mm F/2.0±0.2mm E/1.6+-0.2mm F/2.0±0.2mm F/2.0±0.2mm G/2.4±0.2mm F/2.0±0.2mm E/1.6+-0.2mm F/2.0±0.2mm G/2.4±0.2mm F/2.0±0.2mm E/1.6+-0.2mm 685 2220 F/2.0±0.2mm (6.8μF) 106 2220 F/2.0±0.2mm (10μF) 2220 G/2.4±0.2mm Cap. Rated Voltage Tol. Vdc 100V K C1206X824K101T K C1210X824K101T K C1812X824K101T K K C2220X824K101T K C1825X824K101T K C2225X824K101T K C0805X105K101T K C1206X105K101T K C1210X105K101T K C1812X105K101T K K K C2220X105K101T K C2220X105K101T K C1825X105K101T K C2225X105K101T K K C1206X225K101T K C1210X225K101T K C1812X225K101T K C1812X225K101T K C2220X225K101T K C2225X225K101T K K C1210X335K101T K C1812X335K101T K C2220X335K101T K C2225X335K101T K C1210X475K101T K C1812X475K101T K C2220X475K101T K C2225X475K101T K C2220X685K101T K K C2220X106K101T C2220X106K101T Catalog Number Rated Voltage Rated Voltage Vdc 200V Vdc 250V C1812X824K201T C1812X824K251T C1812X824K251T C2220X824K201T C2220X824K251T C2225X824K201T C2225X824K251T C1812X105K201T C1812X105K251T C1812X105K251T C2220X105K251T C2225X105K201T C2225X105K251T C2225X105K201T C2220X225K201T C2225X225K201T C2225X225K251T Rated Voltage Vdc 300V MVC Series – Middle Voltage Capacitors Holy Stone Cap. Size 0805 221 1206 (220pF) 1206 0805 271 1206 (270pF) 1206 0805 331 0805 (330pF) 1206 1206 391 0805 (390pF) 1206 0805 471 0805 (470pF) 1206 1206 561 0805 (560pF) 1206 681 0805 (680pF) 1206 821 0805 (820pF) 1206 0805 1206 1206 102 1206 (1nF) 1210 1210 1812 2220 0805 1206 122 1210 (1.2nF) 1812 2220 0805 1206 1206 152 1206 (1.5nF) 1210 1812 2220 Thickness B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm B/0.85+-0.15mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm B/0.85+-0.15mm B/0.85+-0.15mm B/0.85+-0.15mm B/0.85+-0.15mm B/0.85+-0.15mm B/0.85+-0.15mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm Cap. Tol. K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage Vdc 450V Rated Voltage Vdc 500V C0805X221K501T C1206X221K501T C1206X221K501T C0805X271K501T C1206X271K501T C1206X271K501T C0805X331K501T C0805X331K501T C1206X331K501T C1206X331K501T C0805X391K501T C1206X391K501T C0805X471K501T Rated Voltage Vdc 630V C0805X221K631T C1206X221K631T C0805X271K631T C1206X271K631T C0805X331K631T C0805X331K631T C1206X331K631T C0805X391K631T C1206X391K631T C0805X471K631T C0805X471K631T C1206X471K501T C1206X471K631T C1206X471K501T C0805X561K501T C0805X561K631T C1206X561K501T C1206X561K631T C0805X681K501T C0805X681K631T C1206X681K501T C1206X681K631T C0805X821K501T C0805X821K631T C1206X821K501T C1206X821K631T C0805X102K501T C0805X102K631T C1206X102K501T C1206X102K631T C1206X102K501T C1206X102K631T C1206X102K501T C1206X102K631T C1210X102K501T C1210X102K501T C1812X102K501T C2220X102K501T C0805X122K501T C0805X122K631T C1206X122K501T C1206X122K631T C1210X122K501T C1812X122K501T C2220X122K501T C0805X152K501T C0805X152K631T C1206X152K501T C1206X152K631T C1206X152K501T C1206X152K631T C1210X152K501T C1812X152K501T C2220X152K501T MVC Series – Middle Voltage Capacitors Holy Stone Cap. 182 (1.8nF) 222 (2.2nF) 272 (2.7nF) 332 (3.3nF) 392 (3.9nF) Size 0805 1206 1206 1210 1812 2220 0805 0805 1206 1206 1206 1210 1210 1808 1812 2220 2225 0805 1206 1206 1210 1808 1812 2220 2225 0805 1206 1206 1206 1210 1210 1808 1812 2220 2225 0805 0805 1206 1210 1808 1812 2220 2225 Thickness B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm Cap. Tol. K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage Vdc 450V Rated Voltage Vdc 500V C0805X182K501T C1206X182K501T C1206X182K501T C1210X182K501T C1812X182K501T C2220X182K501T C0805X222K501T C0805X222K501T C1206X222K501T C1206X222K501T Rated Voltage Vdc 630V C0805X182K631T C1206X182K631T C0805X222K631T C1206X222K631T C1206X222K631T C1210X222K501T C1210X222K501T C1808X222K501T C1812X222K501T C2220X222K501T C2225X222K501T C0805X272K501T C1206X272K501T C1206X272K501T C1210X272K501T C1808X272K501T C1812X272K501T C2220X272K501T C2225X272K501T C0805X332K501T C1206X332K501T C1206X332K501T C0805X272K631T C1206X272K631T C0805X332K631T C1206X332K631T C1206X332K631T C1210X332K501T C1210X332K501T C1808X332K501T C1812X332K501T C2220X332K501T C2225X332K501T C0805X392K501T C0805X392K631T C0805X392K501T C1206X392K501T C1206X392K631T C1210X392K501T C1808X392K501T C1812X392K501T C2220X392K501T C2225X392K501T MVC Series – Middle Voltage Capacitors Holy Stone Cap. 472 (4.7nF) 562 (5.6nF) 682 (6.8nF) 822 (8.2nF) 103 (10nF) Size 0805 0805 1206 1206 1206 1210 1210 1808 1812 2220 2225 0805 1206 1210 1808 1812 2220 2225 0805 0805 1206 1206 1210 1808 1812 2220 2225 0805 1206 1206 1210 1808 1812 2220 2225 0805 0805 1206 1206 1210 1210 1808 1812 2220 2225 Thickness B/0.85+-0.15mm C/1.0+0.1mm-0.05mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm B/0.85+-0.15mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm B/0.85+-0.15mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm B/0.85+-0.15mm C/1.0+0.1mm-0.05mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm Cap. Tol. K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage Vdc 450V Rated Voltage Rated Voltage Vdc 500V Vdc 630V C0805X472K501T C0805X472K631T C0805X472K501T C1206X472K501T C1206X472K631T C1206X472K501T C1206X472K631T C1210X472K501T C1210X472K501T C1210X472K631T C1808X472K501T C1812X472K501T C1812X472K631T C2220X472K501T C2225X472K501T C0805X562K501T C0805X562K631T C1206X562K501T C1206X562K631T C1210X562K501T C1808X562K501T C1812X562K501T C2220X562K501T C2225X562K501T C0805X682K501T C0805X682K631T C0805X682K501T C1206X682K501T C1206X682K631T C1206X682K501T C1206X682K631T C1210X682K501T C1808X682K501T C1812X682K501T C2220X682K501T C2225X682K501T C0805X822K501T C0805X822K631T C1206X822K501T C1206X822K501T C1206X822K631T C1210X822K501T C1808X822K501T C1812X822K501T C2220X822K501T C2225X822K501T C0805X103K501T C0805X103K631T C1206X103K501T C1206X103K631T C1206X103K501T C1206X103K631T C1210X103K501T C1210X103K501T C1808X103K501T C1812X103K501T C2220X103K501T C2225X103K501T MVC Series – Middle Voltage Capacitors Holy Stone Cap. 123 (12nF) 153 (15nF) 183 (18nF) 223 (22nF) 273 (27nF) Size 0805 0805 1206 1206 1210 1808 1812 2220 2225 0805 1206 1206 1210 1808 1812 2220 2225 0805 0805 1206 1206 1210 1808 1812 2220 2225 0805 0805 1206 1206 1210 1210 1808 1812 2220 2220 2225 1206 1206 1210 1210 1808 1812 2220 2225 Thickness C/1.0+0.1mm-0.05mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm E/1.6±0.2mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm Cap. Tol. K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage Vdc 450V Rated Voltage Vdc 500V C0805X123K501T C0805X123K501T C1206X123K501T C1206X123K501T C1210X123K501T C1808X123K501T C1812X123K501T C2220X123K501T C2225X123K501T C0805X153K501T C1206X153K501T C1206X153K501T C1210X153K501T C1808X153K501T C1812X153K501T C2220X153K501T C2225X153K501T C0805X183K501T C0805X183K501T C1206X183K501T C1206X183K501T C1210X183K501T C1808X183K501T C1812X183K501T C2220X183K501T C2225X183K501T C0805X223K501T C0805X223K501T C1206X223K501T C1206X223K501T C1210X223K501T C1210X223K501T C1808X223K501T C1812X223K501T C2220X223K501T Rated Voltage Vdc 630V C1206X123K631T C1206X153K631T C1206X183K631T C1206X223K631T C1210X223K631T C2220X223K631T C2225X223K501T C1206X273K501T C1206X273K501T C1206X273K631T C1210X273K501T C1210X273K501T C1808X273K501T C1812X273K501T C2220X273K501T C2225X273K501T MVC Series – Middle Voltage Capacitors Holy Stone Cap. 333 (33nF) 393 (39nF) 473 (47nF) 563 (56nF) Size 1206 1206 1206 1210 1210 1210 1808 1812 2220 2225 1206 1206 1210 1210 1210 1808 1812 2220 2225 1206 1206 1210 1210 1210 1808 1808 1812 1812 1812 2220 2225 1206 1210 1210 1210 1210 1812 1812 2220 2225 Thickness C/1.0+0.1mm-0.05mm D/1.25+-0.20mm E/1.6±0.2mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm E/1.6±0.2mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm E/1.6±0.2mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm E/1.6±0.2mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm E/1.6±0.2mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm E/1.6±0.2mm D/1.25+-0.20mm F/2.0+-0.2mm D/1.25+-0.20mm E/1.6±0.2mm F/2.0+-0.2mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm E/1.6±0.2mm F/2.0+-0.2mm D/1.25+-0.20mm E/1.6±0.2mm D/1.25+-0.20mm D/1.25+-0.20mm Cap. Tol. K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage Vdc 450V Rated Voltage Rated Voltage Vdc 500V Vdc 630V C1206X333K501T C1206X333K501T C1206X333K631T C1206X333K631T C1210X333K501T C1210X333K501T C1210X333K501T C1210X333K631T C1808X333K501T C1812X333K501T C2220X333K501T C2225X333K501T C1206X393K501T C1206X393K631T C1210X393K501T C1210X393K501T C1210X393K501T C1808X393K501T C1812X393K501T C2220X393K501T C2225X393K501T C1206X473K501T C1206X473K631T C1210X473K501T C1210X473K501T C1210X473K631T C1210X473K501T C1210X473K631T C1808X473K501T C1808X473K501T C1808X473K631T C1812X473K501T C1812X473K501T C1812X473K631T C2220X473K501T C2225X473K501T C1206X563K501T C1210X563K501T C1210X563K501T C1210X563K501T C1210X563K501T C1812X563K501T C1812X563K501T C2220X563K501T C2225X563K501T MVC Series – Middle Voltage Capacitors Holy Stone Cap. 683 (68nF) 823 (82nF) 104 (100nF) 124 (120nF) 154 (150nF) 184 (180nF) 224 (220nF) 274 (270nF) Size 1206 1210 1210 1210 1210 1210 1812 1812 2220 2225 1210 1210 1210 1812 2220 2225 1206 1210 1812 1812 2220 2220 2225 1812 2220 2225 1812 2220 2225 1812 2220 2225 1210 1812 1812 2220 2225 2225 1812 1812 2220 2225 Thickness E/1.6±0.2mm C/1.0+0.1mm-0.05mm D/1.25+-0.20mm E/1.6±0.2mm F/2.0+-0.2mm G/2.4±0.2mm D/1.25+-0.20mm F/2.0+-0.2mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm E/1.6±0.2mm F/2.0+-0.2mm D/1.25+-0.20mm D/1.25+-0.20mm D/1.25+-0.20mm E/1.6+-0.2mm F/2.0+-0.2mm E/1.6+-0.2mm G/2.4+-0.2mm D/1.25+-0.20mm E/1.6+-0.2mm D/1.25+-0.20mm E/1.6+-0.2mm D/1.25+-0.20mm D/1.25+-0.20mm F/2.0+-0.2mm D/1.25+-0.20mm D/1.25+-0.20mm F/2.0+-0.2mm D/1.25+-0.20mm D/1.25+-0.20mm F/2.0+-0.2mm F/2.0+-0.2mm H/2.8+-0.2mm E/1.6+-0.2mm D/1.25+-0.20mm E/1.6+-0.2mm F/2.0+-0.2mm H/2.8+-0.2mm E/1.6+-0.2mm D/1.25+-0.20mm Cap. Tol. K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage Vdc 450V Rated Voltage Rated Voltage Vdc 500V Vdc 630V C1206X683K501T C1210X683K501T C1210X683K501T C1210X683K501T C1210X683K501T C1210X683K631T C1210X683K501T C1210X683K631T C1812X683K501T C1812X683K631T C2220X683K501T C2225X683K501T C1210X823K501T C1210X823K501T C1210X823K501T C1812X823K501T C2220X823K501T C2225X823K501T C1206X104K451T C1210X104K501T C1812X104K501T C1812X104K631T C1812X104K631T C2220X104K501T C2220X104K501T C2225X104K501T C1812X124K501T C2220X124K501T C2225X124K501T C1812X154K501T C2220X154K501T C2225X154K501T C1812X184K501T C2220X184K501T C2225X184K501T C1210X224K451T C1812X224K501T C1812X224K501T C2220X224K501T C2220X224K631T C2225X224K501T C2225X224K501T C1812X274K501T C1812X274K501T C2220X274K501T C2225X274K501T MVC Series – Middle Voltage Capacitors Holy Stone Cap. Cap. Tol. Catalog Number Size Thickness 1812 1812 334 2220 (330nF) 2220 2225 2225 1812 394 2220 (390nF) 2225 1812 1812 474 2220 (470nF) 2220 2225 2225 684 2225 (680nF) F/2.0+-0.2mm H/2.8+-0.2mm E/1.6+-0.2mm G/2.4+-0.2mm D/1.25+-0.20mm F/2.0+-0.2mm G/2.4+-0.2mm F/2.0+-0.2mm E/1.6+-0.2mm G/2.4+-0.2mm H/2.8+-0.2mm G/2.4+-0.2mm H/2.8+-0.2mm E/1.6+-0.2mm G/2.4+-0.2mm K K K K K K K K K K K K K K K Rated Voltage Vdc 500V C1812X334K501T C1812X334K501T C2220X334K501T C2220X334K501T C2225X334K501T C2225X334K501T C1812X394K501T C2220X394K501T C2225X394K501T C1812X474K451T C1812X474K501T C1812X474K501T C2220X474K501T C2220X474K501T C2225X474K501T C2225X474K501T I/3.2±0.2mm K C2225X684K501T Rated Voltage Vdc 450V Rated Voltage Vdc 630V
