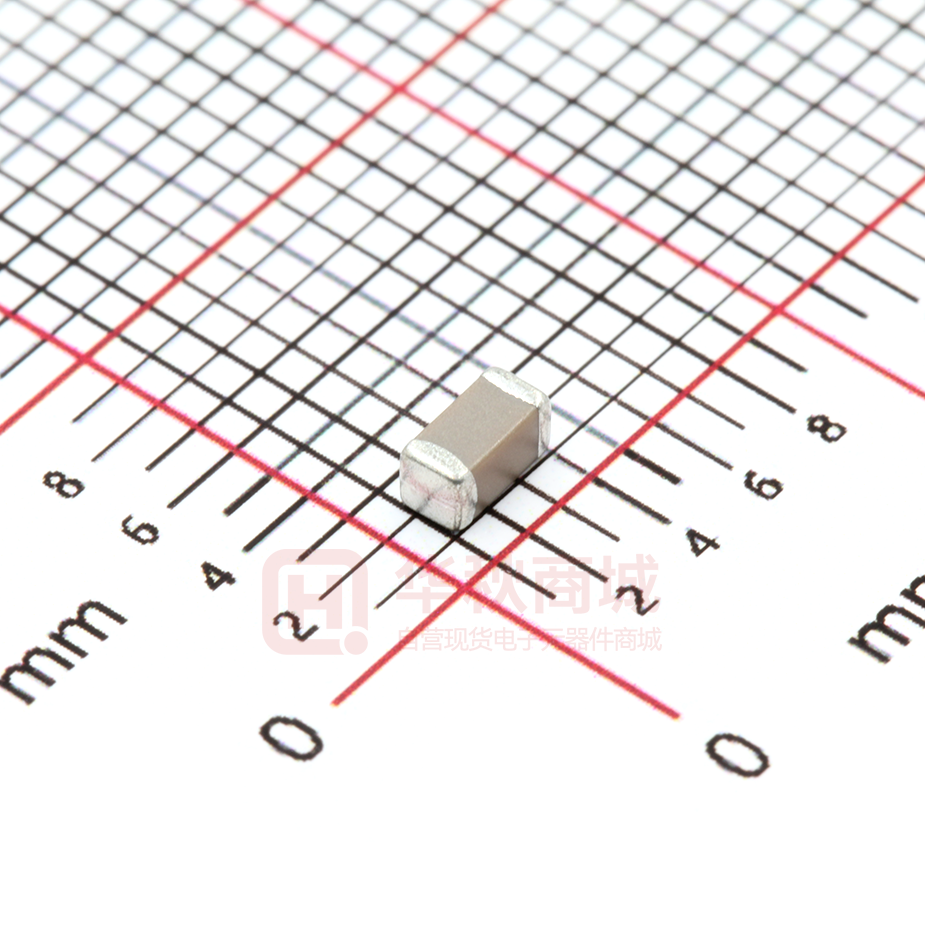

C1206B106K050TX

Holy Stone Enterprise Co., Ltd. CERAMIC CAPACITOR CATALOG HCC Series Commerical grade High Capacitance MLCC www.holystone.com.tw www.holystonecaps.com www.holystonecaps.com HCC Series - High Capacitance MLCC Holy Stone Multilayer Ceramic Chip Capacitors [ High Capacitance MLCC – 1.0uF and above ]  Features  Surface mount suitable for wave and reflow soldering  High reliability  Small size and high capacitance value  Excellent high frequency characteristics  RoHS compliant  Applications  Ideal for smoothing and decoupling circuits  Suitable for DC-DC converter, personal computer and peripherals, telecommunication and general electronic equipment  Summary of Specifications Operation Temperature NP0 & X7R & X7S : -55° ℃ ~ +125 ℃ , X6S : -55 ℃ ~ +105 ℃; Rated Voltage 4.0Vdc to 50Vdc Temperature Coefficient X7R :  ± 15% , -55° ℃ ~ +125 ℃ (EIA Class Ⅱ) X7S :  ± 22% , -55° ℃ ~ +125 ℃ (EIA Class Ⅱ) X6S :  ± 22% , -55 ℃ ~ +105 ℃ (EIA Class Ⅱ) X5R :  ± 15% , -55 ℃ ~ +85 ℃ (EIA Class Ⅱ) Dissipation Factor X7R, X5R, X6S,X7S : Max. 0.15 Insulation Resistance 10GΩ or 500/CΩ whichever is smaller (C in Farads) Aging X7R/X6S/X5R/X7S : typically 1.0% Dielectric Strength 250% Rated Voltage  Dimensions L W 1.00±0.05 0.50±0.05 1.60±0.10 0.80±0.10 2.00±0.20 1.25±0.20 1206 3.20±0.30 1.60±0.20 1210 3.20±0.30 2.50±0.20 2.70 1.60 0.30 [.126±.012] [.098±.008] [.105] [.063] [.012] 4.60±0.3 3.20±0.3 5.7±0.40 5.00±0.40 TYPE BW 0402 BW B 0603 T 0805 W L 1812 2220  How To Order C 0805 B Product Code Chip Size Dielectric C: MLCC (Multilayer Ceramic Chip of Capacitor) Ex. 0402 0603 0805 1206 1210 1812 2220 Ex.: X:X7R S:X6S B:X5R R:X7S T (max) B (min) BW (min) 0.55 0.30 0.15 [.022] [.012] [.006] 0.95 0.40 0.15 [.037] [.016] [.006] 1.45 0.70 0.20 [.057] [.028] [.008] 1.80 1.50 0.30 [.071] [.059] [.012] 3.00 2.50 0.30 [.118] [.098] [.012] 3.00 3.50 0.30 [.118] [.137] [.012] 106 K 010 Capacitance Unit : pF Ex.: 105:10×105 106:10×106 226:22×106 Tolerance Rated Voltage Packaging Ex.: J : +/- 5% K: +/- 10% M:+/- 20% Z :+80/-20% Ex.: 004: 4Vdc 007: 6.3Vdc 010: 10Vdc 016: 16Vdc 025: 25Vdc 035: 35Vdc 050: 50Vdc T: T&R 7” R: T&R 13” B: Bulk T HCC Series-High Capacitance MLCC Holy Stone  Capacitance Range X7R (X) Series Size 0402 Code 105 155 225 335 475 106 226 476 4V O 0603 0805 O B B B B X7S (R) Series Size 0402 B B B 0603 1210 1812 2220 D D D D D D D D D D D D D D D D D D D D E E E E E E E E E E 25V D/E D/E D/E D/E D E E E E E E E E D D E E F F F E E E F F G G F F G F F G 25V 35V D E F F F F F F F F F F F F F F/G F/G F/G F F F F F G F G 1206 1210 50V 16V 6.3V O O O B B B B D D E G X6S (S) Series 0201 Size 0402 Code 4V 6.3V 6.3V 10V 16V 25V 105 S S O O O O 225 O O O O 475 O 106 O 226 476 107 227 X5R (B) Series Size 0201 Code 105 225 335 475 106 226 476 107 227 D 0805 Code 6.3V 10V 10V 16V 25V 105 155 225 335 475 106 226 476 107 1206 6.3V 6.3V 10V 16V 25V 50V 6.3V 10V 16V 25V 35V 50V 6.3V 10V 16V 25V 35V 50V 10V 16V 25V 35V 50V 25V 50V 25V 50V 4V S 0603 4V 6.3V 10V B B B B B B B B B B B 0805 16V 25V 50V B B B B B B B B 4V 6.3V 10V D D 0402 S O O O O O O O O O O O 35V 50V D D D D D D D D D D D D D D D D 0603 O O ` O O 4V E 6.3V 10V E E E E E E 16V E E E E 1210 E E E E B B B B B B B B B B B B B B B B B B B B B B B 4V B B E E E F G G 16V F F G G 1206 25V 35V F F F G D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D D E E E E E E E E E E E E E E E E E E E E E E E E E F F F F F/G F F F F G G G G F/G F/G G F F F F F F F F G G G F F G F/G The yellow indication denotes values that are under development. Please contact Holy Stone office for further details  Other dimensions, capacitance values and voltages ratings are available on request. Please contact Holy Stone.  Thickness Specification S O 0.3±0.03 0.5±0.05 E F F 1210  Symbol Code Thickness(mm) F F F 50V 6.3V 10V 16V 25V 35V 50V 6.3V 10V 16V 25V 50V 6.3V 10V 16V 25V 50V D D D D E E E E 50V 6.3V 10V G G G 0805 6.3V 10V 6.3V 10V 16V 25V 35V 6.3V 10V 16V 25V 35V 50V S S 25V D D D D D D D 1206 16V A B C D E 0.6±0.1 0.85±0.15 1.0+0.1/-0.05 1.25±0.20 1.6±0.2 F 2.0±0.2 G 2.4±0.2 H 2.8±0.2 F HCC Series-High Capacitance MLCC Holy Stone Cap. 105 (1uF) 225 (2.2uF) 335 (3.3uF) 475 (4.7uF) 106 (10uF) 226 (22uF) Size Thickness 0402 O/0.5+-0.05mm 0603 B/0.85+-0.15mm 0805 D/1.25±0.2mm D/1.25±0.2mm 1206 E/1.6±0.2mm 1210 D/1.25±0.2mm 0603 B/0.85+-0.15mm 0805 D/1.25±0.2mm 1206 E/1.6±0.2mm 1210 F/2.0±0.2mm 0805 D/1.25±0.2mm 1206 E/1.6±0.2mm 0805 D/1.25±0.2mm 1206 E/1.6±0.2mm 1210 F/2.0±0.2mm 0805 D/1.25±0.2mm 1206 E/1.6±0.2mm 1210 F/2.0±0.2mm 1206 E/1.6±0.2mm 1210 G/2.4±0.2mm Cap. Tol. K K K K K K K K K K K K K K K K K K K K Catalog Number Rated Voltage Rated Voltage Rated Voltage Vdc 6.3V Vdc 10V Vdc 16V C0402X105K007T C0603X105K007T C0603X105K010T C0603X105K016T C0805X105K007T C0805X105K010T C0805X105K016T C1206X105K007T C1206X105K010T C1206X105K016T C1206X105K016T C1210X105K007T C1210X105K010T C1210X105K016T C0603X225K007T C0603X225K010T C0805X225K007T C0805X225K010T C0805X225K016T C1206X225K007T C1206X225K010T C1206X225K016T C1210X225K007T C1210X225K010T C1210X225K016T C1206X335K007T C1206X335K010T C1206X335K016T C0805X475K007T C0805X475K010T C0805X475K016T C1206X475K007T C1206X475K010T C1206X475K016T C1210X475K010T C1210X475K016T C0805X106K007T C0805X106K010T C0805X106K016T C1206X106K007T C1206X106K010T C1206X106K016T C1210X106K007T C1210X106K010T C1210X106K016T C1206X226K007T C1206X226K010T C1210X226K010T C1210X226K016T HCC Series-High Capacitance MLCC Holy Stone Cap. Size 105 (1uF) 0603 B/0.85+-0.15mm 0805 D/1.25±0.2mm D/1.25±0.2mm 1206 E/1.6±0.2mm D/1.25±0.2mm 1210 E/1.6±0.2mm 1812 F/2.0±0.2mm 2220 F/2.0±0.2mm 155 1812 (1.5uF) 0805 1206 225 1210 (2.2uF) 1812 2220 335 1206 (3.3uF) 1812 0805 1206 475 1210 (4.7uF) 1812 2220 1206 Thickness F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm F/2.0±0.2mm F/2.0±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm F/2.0±0.2mm F/2.0±0.2mm E/1.6±0.2mm F/2.0±0.2mm 1210 106 G/2.4±0.2mm (10uF) F/2.0±0.2mm 1812 G/2.4±0.2mm 2220 G/2.4±0.2mm Cap. Tol. K K K K K K K K Catalog Number Rated Voltage Vdc 25V C0603X105K025T C0805X105K025T C1206X105K025T C1206X105K025T C1210X105K025T Rated Voltage Vdc 35V Rated Voltage Vdc 50V C0603X105K050T C0805X105K035T C0805X105K050T C1206X105K035T C1206X105K050T C1206X105K035T C1206X105K050T C1210X105K035T C1210X105K050T C1812X105K025T C1812X105K050T C2220X105K050T K C1812X155K050T K K K K K K K K K K K K K K K K K K C0805X225K025T C0805X225K035T C0805X225K050T C1206X225K025T C1206X225K035T C1206X225K050T C1210X225K025T C1210X225K035T C1210X225K050T C1812X225K025T C1812X225K050T C2220X225K050T C1206X335K025T C1812X335K050T C0805X475K025T C1206X475K025T C1206X475K035T C1206X475K050T C1210X475K025T C1210X475K035T C1210X475K050T C1812X475K025T C1812X475K050T C2220X475K050T C1206X106K025T C1206X106K035T C1210X106K025T C1210X106K035T C1210X106K050T C1210X106K050T C1812X106K025T C1812X106K050T C1812X106K025T C1812X106K050T C2220X106K050T HCC Series-High Capacitance MLCC Holy Stone Cap. Size Thickness 105 0402 O/0.5+-0.05mm (1uF) 225 0402 O/0.5+-0.05mm (2.2uF) 0603 B/0.85+-0.15mm 475 0603 B/0.85+-0.15mm (4.7uF) 226 1206 E/1.6±0.2mm (22uF) 107 1210 G/2.4±0.2mm (100uF) Cap. Size Thickness 225 0603 B/0.85+-0.15mm (2.2uF) 475 0805 D/1.25±0.2mm (4.7uF) 106 0805 D/1.25±0.2mm (10uF) Cap. Tol. Catalog Number Rated Voltage Vdc 6.3V Rated Voltage Vdc 10V K C0402R105K010T K K C0402R225K007T C0402R225K010T Rated Voltage Vdc 16V C0603R225K016T K C0603R475K010T C0603R475K016T K C1206R226K016T K Cap. Tol. K C1210R107K007T Catalog Number Rated Voltage Vdc 25V C0603R225K025T K K Rated Voltage Vdc 50V C0805R475K050T C0805R106K025T HCC Series-High Capacitance MLCC Holy Stone Cap. 105 (1uF) 225 (2.2uF) 475 (4.7uF) 106 (10uF) 226 (22uF) 476 (47uF) Size Thickness Cap. Tol. 0402 0603 0805 0402 0603 0805 1206 0402 0603 0805 1206 1210 0603 0805 1206 1210 0603 0805 1206 1210 0805 1206 1210 O/0.5+-0.05mm B/0.85+-0.15mm D/1.25±0.2mm O/0.5+-0.05mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm O/0.5+-0.05mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm G/2.4±0.2mm D/1.25±0.2mm E/1.6±0.2mm G/2.4±0.2mm K K K K K K K K K K K K K K K K K K K K K K K 107 1210 G/2.4±0.2mm (100uF) K Catalog Number Rated Voltage Vdc 4V Rated Voltage Rated Voltage Rated Voltage Vdc 6.3V Vdc 10V Vdc 16V C0402S105K007T C0402S105K010T C0402S105K016T C0603S105K007T C0603S105K010T C0603S105K016T C0805S105K016T C0402S225K007T C0402S225K010T C0402S225K016T C0603S225K007T C0603S225K010T C0603S225K016T C0805S225K010T C0805S225K016T C1206S225K016T C0402S475K007T C0603S475K007T C0603S475K010T C0603S475K016T C0805S475K007T C0805S475K010T C0805S475K016T C1206S475K010T C1206S475K016T C1210S475K016T C0603S106K004T C0603S106K007T C0603S106K010T C0603S106K016T C0805S106K007T C0805S106K010T C0805S106K016T C1206S106K007T C1206S106K010T C1206S106K016T C1210S106K010T C1210S106K016T C0603S226K004T C0603S226K007T C0805S226K004T C0805S226K007T C0805S226K010T C0805S226K016T C1206S226K007T C1206S226K010T C1206S226K016T C1210S226K010T C1210S226K016T C0805S476K004T C1206S476K004T C1206S476K007T C1210S476K007T C1210S476K010T C1210S476K016T C1210S107K007T HCC Series-High Capacitance MLCC Holy Stone Cap. Size 0402 0603 105 0805 (1uF) 1206 1210 0603 225 0805 (2.2uF) 1206 1210 0603 475 0805 (4.7uF) 1206 1210 0805 106 1206 (10uF) 1210 Catalog Number Thickness Cap. Tol. O/0.5+-0.05mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm G/2.4±0.2mm K K K K K K K K K K K K K K K K K Rated Voltage Rated Voltage Rated Voltage Vdc 25V Vdc 35V Vdc 50V C0402S105K025T C0603S105K025T C0603S105K050T C0805S105K025T C0805S105K035T C0805S105K050T C1206S105K035T C1206S105K050T C1210S105K050T C0603S225K025T C0805S225K025T C0805S225K035T C0805S225K050T C1206S225K025T C1206S225K035T C1206S225K050T C1210S225K025T C1210S225K035T C1210S225K050T C0603S475K025T C0805S475K025T C0805S225K035T C0805S475K050T C1206S475K025T C1206S475K035T C1206S475K050T C1210S475K025T C1210S475K035T C1210S475K050T C0805S105K025T C0805S106K035T C1206S106K025T C1206S106K035T C1210S106K025T C1210S106K035T C1210S106K050T C1210S106K050T K C1210S226K025T 226 1210 G/2.4±0.2mm (22uF) HCC Series-High Capacitance MLCC Holy Stone Cap. Size 0201 0402 105 0603 (1uF) 0805 1206 1210 0201 0402 225 0603 (2.2uF) 0805 1206 1210 335 0805 (3.3uF) 0402 0603 475 0805 (4.7uF) 1206 1210 0402 0603 106 0805 (10uF) 1206 1210 0603 226 0805 (22uF) 1206 1210 0805 476 1206 (47uF) 1210 0805 107 1206 (100uF) 1210 Catalog Number Thickness Cap. Tol. S/0.3±0.03mm O/0.5+-0.05mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm S/0.3±0.03mm O/0.5+-0.05mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm M M M M M M M M M M M M Rated Voltage Rated Voltage Rated Voltage Vdc 6.3V Vdc 10V Vdc 16V C0201B105M007T C0201B105M010T C0402B105M007T C0402B105M010T C0402B105M016T C0603B105M007T C0603B105M010T C0603B105M016T C0805B105M016T C1206B105M016T C1210B105M007T C1210B105M010T C1210B105M016T C0201B225M007T C0201B225M010T C0402B225M007T C0402B225M010T C0402B225M016T C0603B225M007T C0603B225M010T C0603B225M016T C0805B225M007T C0805B225M010T C0805B225M016T C1206B225M010T C1206B225M016T C1210B225M007T C1210B225M010T C1210B225M016T D/1.25±0.2mm M C0805B335M010T C0805B335M016T O/0.5+-0.05mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm O/0.5+-0.05mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm G/2.4±0.2mm D/1.25±0.2mm E/1.6±0.2mm G/2.4±0.2mm D/1.25±0.2mm E/1.6±0.2mm G/2.4±0.2mm M M M M M M M M M M M M M M M M M M M M C0402B475M007T C0402B475M010T C0603B475M007T C0603B475M010T C0603B475M016T C0805B475M007T C0805B475M010T C0805B475M016T C1206B475M010T C1206B475M016T C1210B475M007T C1210B475M010T C1210B475M016T C0402B106M007T C0402B106M010T C0603B106M007T C0603B106M010T C0603B106M016T C0805B106M007T C0805B106M010T C0805B106M016T C1206B106M007T C1206B106M010T C1206B106M016T C1210B106M007T C1210B106M010T C1210B106M016T C0603B226M007T C0603B226M010T C0805B226M007T C0805B226M010T C0805B226M016T C1206B226M007T C1206B226M010T C1206B226M016T C1210B226M007T C1210B226M010T C1210B226M016T C0805B476M004T C0805B476M007T C0805B476M010T C1206B476M007T C1206B476M010T C1210B476M007T C1210B476M010T C1210B476M016T C0805B107M004T C1206B107M007T C1210B107M007T C1210B107M010T Rated Voltage Vdc 4V HCC Series-High Capacitance MLCC Holy Stone Cap. Size 0402 0603 105 0805 (1uF) 1206 1210 0402 0603 225 0805 (2.2uF) 1206 1210 0603 475 0805 (4.7uF) 1206 1210 0603 0805 106 1206 (10uF) 1210 Thickness O/0.5+-0.05mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm O/0.5+-0.05mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm B/0.85+-0.15mm D/1.25±0.2mm E/1.6±0.2mm F/2.0±0.2mm G/2.4±0.2mm 0805 D/1.25±0.2mm 226 1206 E/1.6±0.2mm (22uF) 1210 G/2.4±0.2mm Cap. Tol. M M M M M M M M M M M M M M M M M M M M M M Catalog Number Rated Voltage Vdc 25V C0402B105M025T C0603B105M025T C0805B105M025T C1206B105M025T C1210B105M025T C0402B225M025T C0603B225M025T C0805B225M025T C1206B225M025T C1210B225M025T C0603B475M025T C0805B475M025T C1206B475M025T C1210B475M025T C0603B106M025T C0805B106M025T C1206B106M025T C1210B106M025T C0805B226M025T C1206B226M025T C1210B226M025T Rated Voltage Rated Voltage Vdc 35V Vdc 50V C0402B105M035T C0603B105M035T C0603B105M050T C0805B105M035T C0805B105M050T C1206B105M050T C1210B105M050T C0603B225M035T C0603B225M050T C0805B225M035T C0805B225M050T C1206B225M050T C1210B225M050T C0603B475M035T C0805B475M035T C0805B475M050T C1206B475M050T C1210B475M050T C0805B106M035T C1206B106M050T C1210B106M050T C1210B106M050T
