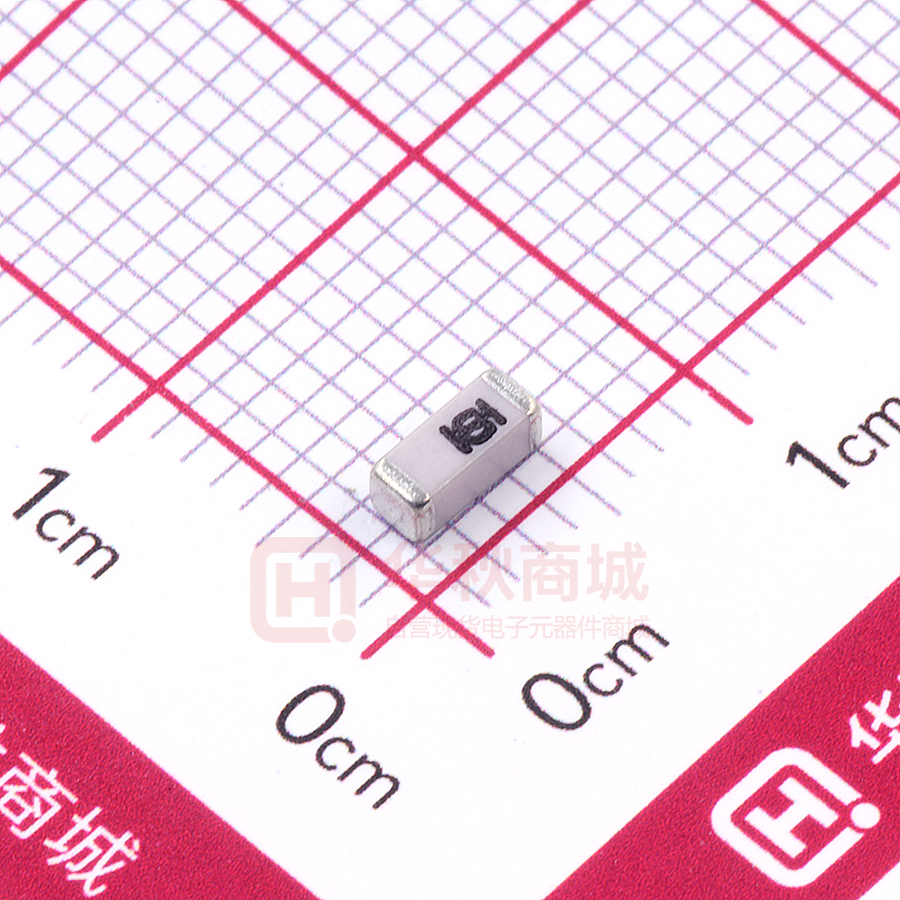

SCC1808N330J502T

Holy Stone Enterprise Co., Ltd. CERAMIC CAPACITOR CATALOG SCC Series Commerical grade Safety Capacitors X2 , X1Y2 www.holystone.com.tw www.holystonecaps.com SCC Series - Safety Capacitors Holy Stone Multilayer Ceramic Chip Capacitors [ Safety Capacitors – X2 and X1/Y2 ] SCC Series Rated up to 305Vac The SCC series X2 and X1/Y2 rated at 250Vrms and X2 rated at 305Vrms safety capacitors are designed specifically for use in modem, facsimile, telephone and other electronic equipment. These parts are compliant to , IEC60384-14 and UL60950-1 and UL60384-14 standards. These capacitors are available in NP0 (C0G) and X7R dielectrics.  Applications  Features  The X2 and X1/Y2 (250Vrms) and X2-  Small size & high capacitance  Suitable for reflow soldering  Surface mount  Safety standard approval by IEC60384-14 and UL 60950-1 and UL60384-14  RoHS compliant and Lead(Pb) free option  Certified to: TUV R50005234, R50103496 & UL E229738 TUV R50162550 & UL E300818 & UL E229738 for Lead(Pb) free (305Vrms) are specially designed for use in Modem, Facsimile, Telephone and other telecommunication equipment, electronic equipment for lighting and surge protection, EMI filtering and Isolation.  Safety Details of Specifications IEC 60384-14：2013, 4th Edition EN 60384-14：2013, 4th Edition UL 60384-14：2014, 2nd Edition UL 60950-1：2007, 2nd Edition Meets the electrical requirements and certification for equipment requiring Class X1/Y2 and X2 devices. Component certified for equipment requiring UL-60384-14 compliance TNV/SELV isolation capacitors certified To UL 60950-1 HowTo ToOrder Order  How SCC 1808 Product Code SCC: Safety Approved MLCC Chip Size Dielectric Ex.: 1808 1812 2208 2211 2220 2825 Ex.: N: NP0 X: X7R X 102 K 502 T Capacitance Unit : pF Ex.: 2R0:2.0pF 100:10×100 471:47×101 182:18×102 Tolerance Class Ex.: J :+/-5% K :+/-10% M :+/-20% Ex.: T: T/R 7” 202: X2 R: T/R 13” 252 :X2 (305Vrms) B: Bulk 502: X1/Y2 602: X1/Y2 for SCC2208N, SCC2211N, SCC2220N Packaging S Special Requirement Ex.: S: Arc Prevention Coating X: Polymer Termination (Super Term) Z: Arc Prevention Coating & Polymer Termination (Super Term) G: Lead (Pb) Free SCC Series - Safety Capacitors Holy Stone  Summary of Specifications Rated Voltage AC 250Vrms and AC 305Vrms NP0 : < 30ppm/ ℃ , -55 ℃ ~ +125 ℃ (EIA Class Ι) X7R : < ± 15% , -55 ℃ ~ +125 ℃ (EIA Class Ⅱ) X1/Y2 : 2.0pF ~ 4700pF X2 – 250Vrms : 2pF ~ 56nF X2 – 305Vrms : 150pF ~ 33nF NP0 : Q≧1000 , X7R : D.F.≦2.5% 55/125/21 10GΩ X Capacitor : Applied Voltage 1075Vdc(4.3Ur),1312Vdc(4.3Ur) Y Capacitor : Applied Voltage 1500Vac X2 : 2.5KV , Y2 : 5KV for three times NP0: 0 % , X7R: 1.0 % per decade hr., typical Temperature Coefficient Capacitance Range Quality and Dissipation Factor Climatic Category Insulation Resistance Voltage Proof Impulse Aging  Application Example Circuit Y Y Tip & Ring TN V 1st SEL V X 2nd X : Across The Line (Ex.: SCC1808N151K202T) Y : Line By Pass (Ex.: SCC2211X102K502T)  Capacitance Range 250Vrms Rated Characteristic Voltage 1808 1808 NP0 X7R 250Vrms 250Vrms TUV/UL TUV/UL 1812 X7R 250Vrms TUV/UL 1808 1808 NP0 X7R 250Vrms 250Vrms TUV/UL TUV/UL 1812 NP0 250Vrms TUV/UL 1812 2208 2208 2211 2211 2220 2220 X7R NP0 X7R NP0 X7R NP0 X7R 250Vrms 250Vrms 250Vrms 250Vrms 250Vrms 250Vrms 250Vrms TUV/UL TUV/UL TUV/UL TUV/UL TUV/UL TUV/UL TUV/UL X2 X1/Y2 Class Size X2 2220 2825 Temperature Rated Characteristic Voltage X7R X7R 250Vrms 250Vrms Certificate Capacitance Range x x x x x x x x x x x x Capacitance Range Certificated 101 121 131 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 472 562 682 822 103 123 153 183 223 273 333 393 473 563 683 823 104 124 Size 2R0 5R0 6R8 8R2 100 120 150 180 220 270 330 360 390 470 560 680 820 101 121 131 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 472 Temperature Class TUV/UL UL ‘X’ denotes values that have been tested to a rated voltage of 305Vac. TUV test report number 28208004 dated 27th May 2010 305Vrms Size X2 2220 Temperature Rated Characteristic Voltage X7R 305Vrms Certificated TUV/UL Capacitance Range 100 120 150 180 220 270 330 360 390 470 560 680 820 101 121 131 151 181 221 271 331 391 471 561 681 821 102 122 152 182 222 272 332 472 103 153 223 333 473 563 Class SCC Series - Safety Capacitors Holy Stone Cap. Size 1808 2R0 (2pF) 1812 2208 2211 2220 1808 5R0 (5pF) 1812 2208 2211 2220 1808 6R8 1812 (6.8pF) 2208 2211 2220 1808 8R2 1812 (8.2pF) 2208 2211 2220 1808 100 1812 (10pF) 2208 2211 2220 1808 120 1812 (10pF) 2208 2211 2220 1808 150 1812 (15pF) 2208 2211 2220 Thickness D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm Cap. X2 Tol. 250Vrms J SCC1808N2R0J202T J J J J J J SCC1808N5R0J202T J J J J J J SCC1808N6R8J202T J J J J J J SCC1808N8R2J202T J J J J J J SCC1808N100J202T J J J J J J SCC1808N120J202T J J J J J J SCC1808N150J202T J J J J J Catalog Number X1/Y2 250Vrms X1/Y2 250Vrms 2208N, 2211N,2220N SCC1808N2R0J502T SCC1812N2R0J502T SCC2208N2R0J602T SCC2211N2R0J602T SCC2220N2R0J602T SCC1808N5R0J502T SCC1812N5R0J502T SCC2208N5R0J602T SCC2211N5R0J602T SCC2220N5R0J602T SCC1808N6R8J502T SCC1812N6R8J502T SCC2208N6R8J602T SCC2211N6R8J602T SCC2220N6R8J602T SCC1808N8R2J502T SCC1812N8R2J502T SCC2208N8R2J602T SCC2211N8R2J602T SCC2220N8R2J602T SCC1808N100J502T SCC1812N100J502T SCC2208N100J602T SCC2211N100J602T SCC2220N100J602T SCC1808N120J502T SCC1812N120J502T SCC2208N120J602T SCC2211N120J602T SCC2220N120J602T SCC1808N150J502T SCC1812N150J502T SCC2208N150J602T SCC2211N150J602T SCC2220N150J602T SCC Series - Safety Capacitors Holy Stone Cap. Size 1808 180 1812 (18pF) 2208 2211 2220 1808 220 1812 (22pF) 2208 2211 2220 1808 270 1812 (27pF) 2208 2211 2220 1808 330 1812 (33pF) 2208 2211 2220 1808 360 1812 (36pF) 2208 2211 2220 1808 390 1812 (39pF) 2208 2211 2220 1808 470 1812 (47pF) 2208 2211 2220 1808 560 1812 (56pF) 2208 2211 2220 Thickness D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm Cap. X2 Tol. 250Vrms J SCC1808N180J202T J J J J J J SCC1808N220J202T J J J J J J SCC1808N270J202T J J J J J J SCC1808N330J202T J J J J J J SCC1808N360J202T J J J J J J SCC1808N390J202T J J J J J J SCC1808N470J202T J J J J J J SCC1808N560J202T J J J J J Catalog Number X1/Y2 250Vrms X1/Y2 250Vrms 2208N, 2211N,2220N SCC1808N180J502T SCC1812N180J502T SCC2208N180J602T SCC2211N180J602T SCC2220N180J602T SCC1808N220J502T SCC1812N220J502T SCC2208N220J602T SCC2211N220J602T SCC2220N220J602T SCC1808N270J502T SCC1812N270J502T SCC2208N270J602T SCC2211N270J602T SCC2220N270J602T SCC1808N330J502T SCC1812N330J502T SCC2208N330J602T SCC2211N330J602T SCC2220N330J602T SCC1808N360J502T SCC1812N360J502T SCC2208N360J602T SCC2211N360J602T SCC2220N360J602T SCC1808N390J502T SCC1812N390J502T SCC2208N390J602T SCC2211N390J602T SCC2220N390J602T SCC1808N470J502T SCC1812N470J502T SCC2208N470J602T SCC2211N470J602T SCC2220N470J602T SCC1808N560J502T SCC1812N560J502T SCC2208N560J602T SCC2211N560J602T SCC2220N560J602T SCC Series - Safety Capacitors Holy Stone Cap. Size 1808 680 1812 (68pF) 2208 2211 2220 1808 820 1812 (82pF) 2208 2211 2220 1808 101 1812 (100pF) 2208 2211 2220 1808 121 1812 (120pF) 2208 2211 2220 1808 131 1812 (130pF) 2208 2211 2220 1808 151 1812 (150pF) 2208 2211 2220 1808 181 1812 (180pF) 2208 2211 2220 1808 221 1812 (220pF) 2208 2211 2220 Thickness D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm F/2.0+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm F/2.0+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm F/2.0+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm F/2.0+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm F/2.0+-0.2mm E/1.6+-0.2mm E/1.6+-0.2mm F/2.0+-0.2mm Cap. X2 Tol. 250Vrms J SCC1808N680J202T J J J J J J SCC1808N820J202T J J J J J J SCC1808N101J202T J J J J J J SCC1808N121J202T J J J J J J SCC1808N131J202T J J J J J J SCC1808N151J202T J J J J J J SCC1808N181J202T J J J J J J SCC1808N221J202T J J J J J Catalog Number X1/Y2 250Vrms X1/Y2 250Vrms 2208N, 2211N,2220N SCC1808N680J502T SCC1812N680J502T SCC2208N680J602T SCC2211N680J602T SCC2220N680J602T SCC1808N820J502T SCC1812N820J502T SCC2208N820J602T SCC2211N820J602T SCC2220N820J602T SCC1808N101J502T SCC1812N101J502T SCC2208N101J602T SCC2211N101J602T SCC2220N101J602T SCC1808N121J502T SCC1812N121J502T SCC2208N121J602T SCC2211N121J602T SCC2220N121J602T SCC1808N131J502T SCC1812N131J502T SCC2208N131J602T SCC2211N131J602T SCC2220N131J602T SCC1808N151J502T SCC1812N151J502T SCC2208N151J602T SCC2211N151J602T SCC2220N151J602T SCC1808N181J502T SCC1812N181J502T SCC2208N181J602T SCC2211N181J602T SCC2220N181J602T SCC1808N221J502T SCC1812N221J502T SCC2208N221J602T SCC2211N221J602T SCC2220N221J602T SCC Series - Safety Capacitors Holy Stone Cap. Cap. Size Thickness X2 Tol. 250Vrms D/1.25+-0.15mm J SCC1808N271J202T 1808 E/1.6+-0.2mm J 271 1812 F/2.0+-0.2mm J J (270pF) 2208 E/1.6+-0.2mm 2211 E/1.6+-0.2mm J 2220 F/2.0+-0.2mm J D/1.25+-0.15mm J SCC1808N331J202T 1808 E/1.6+-0.2mm J 331 1812 F/2.0+-0.2mm J J (330pF) 2208 E/1.6+-0.2mm 2211 E/1.6+-0.2mm J 2220 F/2.0+-0.2mm J 1808 F/2.0+-0.2mm J SCC1808N391J202T 391 1812 F/2.0+-0.2mm J J (390pF) 2211 E/1.6+-0.2mm 2220 F/2.0+-0.2mm J 1808 F/2.0+-0.2mm J SCC1808N471J202T 1812 F/2.0+-0.2mm J 471 2208 E/1.6+-0.2mm J (470pF) 2211 E/1.6+-0.2mm J 2220 F/2.0+-0.2mm J 1808 F/2.0+-0.2mm J SCC1808N561J202T 561 1812 F/2.0+-0.2mm J J (560pF) 2211 F/2.0+-0.2mm 2220 F/2.0+-0.2mm J 1808 F/2.0+-0.2mm J SCC1808N681J202T 681 1812 F/2.0+-0.2mm J J (680pF) 2211 F/2.0+-0.2mm 2220 F/2.0+-0.2mm J 1808 F/2.0+-0.2mm J SCC1808N821J202T 821 2211 G/2.4+-0.2mm J (820pF) 2220 F/2.0+-0.2mm J 1808 F/2.0+-0.2mm J SCC1808N102J202T 102 1812 F/2.0+-0.2mm J J (1nF) 2211 H/2.8+-0.2mm 2220 F/2.0+-0.2mm J 122 2220 F/2.0+-0.2mm J (1.2nF) Catalog Number X1/Y2 250Vrms X1/Y2 250Vrms 2208N, 2211N,2220N SCC1808N271J502T SCC1812N271J502T SCC2208N271J602T SCC2211N271J602T SCC2220N271J602T SCC1808N331J502T SCC1812N331J502T SCC2208N331J602T SCC2211N331J602T SCC2220N331J602T SCC1812N391J502T SCC2211N391J602T SCC2220N391J602T SCC1812N471J502T SCC2211N471J602T SCC2220N471J602T SCC1812N561J502T SCC2211N561J602T SCC2220N561J602T SCC1812N681J502T SCC2211N681J602T SCC2220N681J602T SCC2211N821J602T SCC2220N821J602T SCC2211N102J602T SCC2220N102J602T SCC2220N122J602T SCC Series - Safety Capacitors Holy Stone Cap. Size Thickness 360 2208 D/1.25+-0.15mm (36pF) 390 2208 D/1.25+-0.15mm (39pF) 2208 D/1.25+-0.15mm 470 2211 D/1.25+-0.15mm (47pF) 2220 D/1.25+-0.15mm 560 2208 D/1.25+-0.15mm (56pF) 680 2208 D/1.25+-0.15mm (68pF) 2211 D/1.25+-0.15mm 820 2208 D/1.25+-0.15mm (82pF) 2211 D/1.25+-0.15mm 2208 D/1.25+-0.15mm 101 2211 D/1.25+-0.15mm (100pF) 2220 D/1.25+-0.15mm 2208 D/1.25+-0.15mm 121 2211 D/1.25+-0.15mm (120pF) 2220 D/1.25+-0.15mm 1812 F/2.0+-0.2mm 131 2208 D/1.25+-0.15mm (130pF) 2211 D/1.25+-0.15mm 2220 D/1.25+-0.15mm 1808 D/1.25+-0.15mm 1812 D/1.25+-0.15mm 151 2208 D/1.25+-0.15mm (150pF) 2211 D/1.25+-0.15mm 2220 D/1.25+-0.15mm 1808 D/1.25+-0.15mm 1812 D/1.25+-0.15mm 181 2208 D/1.25+-0.15mm (180pF) 2211 D/1.25+-0.15mm 2220 D/1.25+-0.15mm 1808 D/1.25+-0.15mm 1812 D/1.25+-0.15mm 221 2208 D/1.25+-0.15mm (220pF) 2211 D/1.25+-0.15mm 2220 D/1.25+-0.15mm 1808 D/1.25+-0.15mm 1812 D/1.25+-0.15mm 271 2208 D/1.25+-0.15mm (270pF) 2211 D/1.25+-0.15mm 2220 D/1.25+-0.15mm Cap. X2 Tol. 250Vrms Catalog Number X2 305Vrms X1/Y2 250Vrms K SCC2208X360K502T K SCC2208X390K502T K K K SCC2208X470K502T SCC2211N470K502T SCC2220N470K502T K SCC2208X560K502T K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K K SCC2208X680K502T SCC2211X680K502T SCC2208X820K502T SCC2211X820K502T SCC2208X101K502T SCC2211X101K502T SCC2220X101K502T SCC2208X121K502T SCC2211X121K502T SCC2220X121K502T SCC1808X151K202T SCC2220X151K202T SCC2220X151K252T SCC1808X181K202T SCC2220X181K202T SCC2220X181K252T SCC1808X221K202T SCC2220X221K202T SCC2220X221K252T SCC1808X271K202T SCC2220X271K202T SCC2220X271K252T SCC2208X131K502T SCC2211X131K502T SCC2220X131K502T SCC1808X151K502T SCC1812X151K502T SCC2208X151K502T SCC2211X151K502T SCC2220X151K502T SCC1808X181K502T SCC1812X181K502T SCC2208X181K502T SCC2211X181K502T SCC2220X181K502T SCC1808X221K502T SCC1812X221K502T SCC2208X221K502T SCC2211X221K502T SCC2220X221K502T SCC1808X271K502T SCC1812X271K502T SCC2208X271K502T SCC2211X271K502T SCC2220X271K502T SCC Series - Safety Capacitors Holy Stone Cap. Size 1808 1812 331 2208 (330pF) 2211 2220 1808 391 1812 (390pF) 2208 2211 2220 1808 471 1812 (470pF) 2208 2211 2220 1808 1812 561 (560pF) 2208 2211 2220 1808 1812 681 (680pF) 2208 2211 2220 1808 1812 821 (820pF) 2208 2211 2220 1808 102 (1nF) 1812 2208 2211 2220 Thickness D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm F/2.0+-0.2mm F/2.0+-0.2mm E/1.6+-0.2mm D/1.25+-0.15mm Cap. X2 Tol. 250Vrms K SCC1808X331K202T K SCC1812X331K202T K K K SCC2220X331K202T K SCC1808X391K202T K K SCC1812X391K202T K K K SCC2220X391K202T K SCC1808X471K202T K K SCC1812X471K202T K K K SCC2220X471K202T K SCC1808X561K202T K K SCC1812X561K202T K K K K SCC2220X561K202T K SCC1808X681K202T K K SCC1812X681K202T K K K K SCC2220X681K202T K SCC1808X821K202T K K SCC1812X821K202T K K K K SCC2220X821K202T K SCC1808X102K202T K K SCC1812X102K202T K K K K SCC2220X102K202T Catalog Number X2 305Vrms SCC2220X331K252T X1/Y2 250Vrms SCC1808X331K502T SCC1812X331K502T SCC2208X331K502T SCC2211X331K502T SCC2220X331K502T SCC2220X391K252T SCC1808X391K502T SCC1812X391K502T SCC2208X391K502T SCC2211X391K502T SCC2220X391K502T SCC2220X471K252T SCC1808X471K502T SCC1812X471K502T SCC2208X471K502T SCC2211X471K502T SCC2220X471K502T SCC1808X561K502T SCC2220X561K252T SCC1812X561K502T SCC2208X561K502T SCC2211X561K502T SCC2220X561K502T SCC1808X681K502T SCC2220X681K252T SCC1812X681K502T SCC2208X681K502T SCC2211X681K502T SCC2220X681K502T SCC1808X821K502T SCC2220X821K252T SCC1812X821K502T SCC2208X821K502T SCC2211X821K502T SCC2220X821K502T SCC1808X102K502T SCC2220X102K252T SCC1812X102K502T SCC2208X102K502T SCC2211X102K502T SCC2220X102K502T SCC Series - Safety Capacitors Holy Stone Cap. 122 (1.2nF) 152 (1.5nF) 182 (1.8nF) Size Thickness 1808 1812 2211 2220 1808 1812 2211 2220 1808 1812 2211 D/1.25+-0.15mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm G/2.4+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm G/2.4+-0.2mm D/1.25+-0.15mm E/1.6+-0.2mm D/1.25+-0.15mm D/1.25+-0.15mm F/2.0+-0.2mm E/1.6+-0.2mm F/2.0+-0.2mm 2220 222 (2.2nF) 1808 1812 2211 2220 272 (2.7nF) 332 (3.3nF) 1812 2211 2220 1812 2220 472 1812 (4.7nF) 2220 562 2220 (5.6nF) 682 2220 (6.8nF) 822 2220 (8.2nF) 103 2220 (10nF) 123 2220 (12nF) 153 2220 (15nF) 183 2220 (18nF) 223 2220 (22nF) 273 2220 (27nF) 333 2220 (33nF) 473 2825 (33nF) 563 2825 (33nF) Cap. X2 Tol. 250Vrms K SCC1808X122K202T K SCC1812X122K202T K K SCC2220X122K202T K SCC1808X152K202T K SCC1812X152K202T K K SCC2220X152K202T K SCC1808X182K202T K SCC1812X182K202T K K SCC2220X182K202T K K SCC1808X222K202T K SCC1812X222K202T K K SCC2220X222K202T K K SCC1812X272K202T K K SCC2220X272K202T K K SCC1812X332K202T K SCC2220X332K202T K K SCC1812X472K202T K SCC2220X472K202T Catalog Number X2 305Vrms X1/Y2 250Vrms SCC2211X122K502T SCC2220X122K252T SCC2220X122K502T SCC2211X152K502T SCC2220X152K252T SCC2220X152K502T SCC2211X182K502T SCC2220X182K252T SCC2220X182K502T SCC2211X222K502T SCC2220X222K252T SCC2220X222K502T SCC2211X272K502T SCC2220X272K252T SCC2220X272K502T SCC2220X332K252T SCC2220X332K502T SCC2220X472K252T SCC2220X472K502T D/1.25+-0.15mm K SCC2220X562K202T SCC2220X562K252T D/1.25+-0.15mm K SCC2220X682K202T SCC2220X682K252T D/1.25+-0.15mm K SCC2220X822K202T SCC2220X822K252T D/1.25+-0.15mm K SCC2220X103K202T SCC2220X103K252T D/1.25+-0.15mm K SCC2220X123K202T SCC2220X123K252T E/1.6+-0.2mm K SCC2220X153K202T SCC2220X153K252T E/1.6+-0.2mm K SCC2220X183K202T SCC2220X183K252T E/1.6+-0.2mm K SCC2220X223K202T SCC2220X223K252T E/1.6+-0.2mm K SCC2220X273K202T SCC2220X273K252T E/1.6+-0.2mm K SCC2220X333K202T SCC2220X333K252T E/1.6+-0.2mm K SCC2825X473K202T E/1.6+-0.2mm K SCC2825X563K202T
