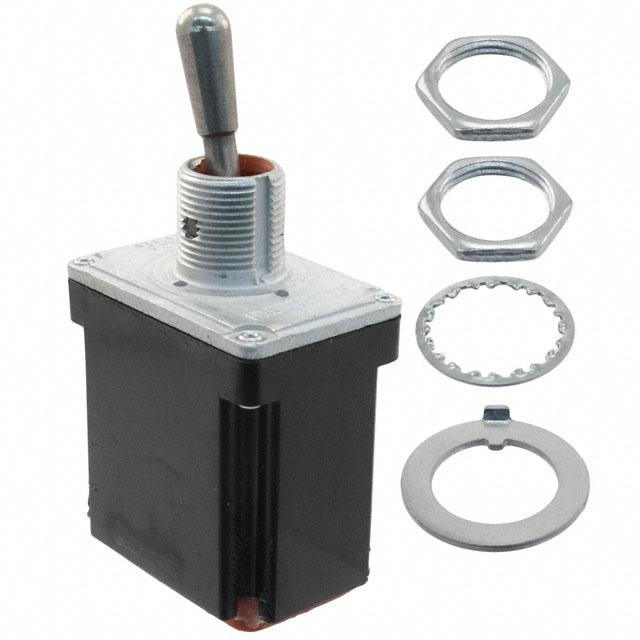

102TL2-10

My Links Home> Products > MICRO SWITCH™ Toggle Switches > TL > Product Page 102TL2-10 Order Product and Get Support U.S. Authorized Distributors TL Series Toggle Switch, 2 pole, 3 position, IWTS (16 -20 Gage) terminal, Standard Lever, Military Part Number MS27785-1 Global Sales & Service N. American Sales Reps Login to iCOM Login as Rep/AD Login as Guest Login to Digital University Keyword Search Search for product and support information. Distributor Inventory Technical Assistance White Papers All Sensing and Control Literature Request Test and Measurement Catalog Actual product appearance may vary. Product Search RoHS Product List Customer Feedback Features ? ? ? ? ? ? ? ? ? ? Potential Applications Qualified to MIL-S-3950 Environment- proof sealing 1,2, and 4 pole circuitry Standard and pull- to-unlock levers 2 and 3 position, maintained and momentary toggle action Temperature range: -85? F to +160? F Completely sealed switching chamber Step-design case provides added space between terminals to help prevent shorting UL recognized, CSA certified CE approved ? ? ? ? ? ? ? Industrial machinery and equipment Military and commercial aviation Construction equipment Test instruments Agricultural machinery Process control Medical instrumentation Description MICRO SWITCH™TL Series toggle switches have high strength, temperature resistant, non-tracking case material and silver cadmium oxide contacts. Pull -toUnlock toggle levers prevent accidental operation; the lever must be pulled approx. 2,3 mm (0.09 inches) to change positions. Supporting Documentation Accessory: Lever Accessory: Seals Sleeve Engineering Drawing Accessory: Nuts Product Specifications Circuitry/Operating action Terms & Conditions | Product Type MICRO SWITCH™ Toggle Switch Ampere/Voltage Range (Resistive Load) 0.75 A at 115 Vdc,0.5 A at 250 Vdc,0.5 A to 15 A at 0.5 Vac to 277 Vac,0.5 A to 20 A at 0.5 Vdc to 28 Vdc Circuitry DPDT Action 3 position Mounting Bushing 15/32 in Termination IWTS (16 Military Part Number MS27785 - 1 Lever Type Standard UL/CSA Rating Code L191: 15 A - 125, 250, 277 Vac; 1/2 Hp Hp - 250, 277 Vac; 5 A - 120 Vac "L" Comment Silver cadmium oxide contacts Availability Global UNSPSC Code 30211908 UNSPSC Commodity 30211908 Toggle switches Series Name TL Privacy Statement | Site Map - 20 Gage) - 125 Vac; 1 Part number search: Use (*) to expand search Specification Search
