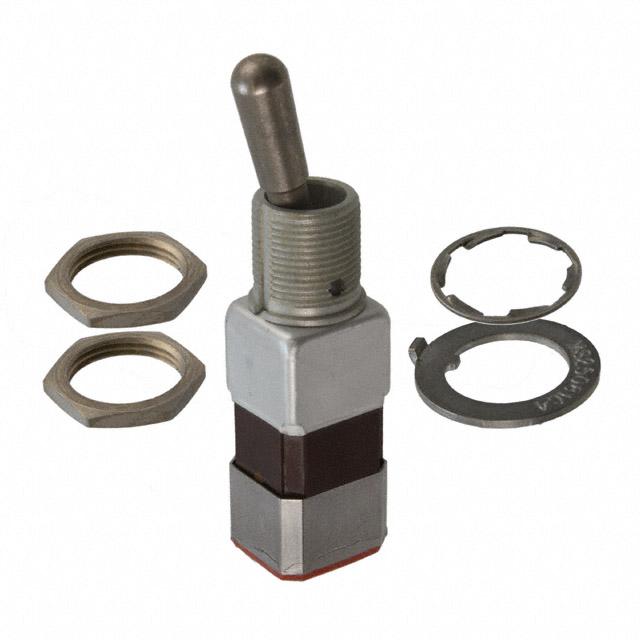

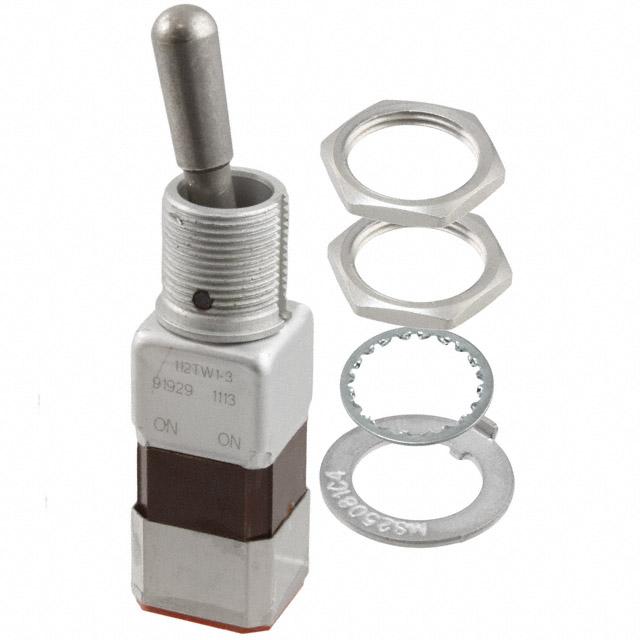

Interactive Catalog Supplements Catalog PDFs If you need detailed product information, or help choosing the right product for your application, see our Interactive Catalog. Use the Interactive Catalog to access the most complete and up-to-date information available. The Interactive Catalog provides an extensive collection of product specifications, application data, and technical literature that can be searched based on criteria you select. Sensing and Control Interactive Catalog... Click this icon to try the Interactive Catalog. This PDF catalog information was published in November 2000. Sensing and Control Honeywell Inc. 11 West Spring Street Freeport, IL 61032 www.honeywell.com/sensing Manual Switches Miniature Toggle Switches TW Series 1TW Standard unsealed toggle lever 1 / 4 N bushing 11TW Standard toggle lever 15 / 32 N bushing 1 1 1 1 1 1 2TW101 Standard sealed toggle lever 1 / 4 N bushing 12TW Pull-to-unlock toggle lever 15 / 32 N bushing Qualified to MIL-S-83781 Save space and weight SPDT and DPDT circuitry Choice of 1⁄4 N or 15⁄32 N bushings 15⁄32 N bushing has lever seal Pull-to-unlock option on 15⁄32 N bushing 1 UL Recognized 1 Temperature range: −85° F to +160° F (−65° C to +71° C) 1 Sealed bushing versions Molded-in terminals are plated for soldering. There is positive return on momentary versions. All switches come with a lockwasher, a keying washer, and two hexnuts. Special ‘‘on-on-on’’ circuitries, similar to those shown for TL, are also available for TW. CIRCUITRY ELECTRICAL RATING 11 Single Pole Double Throw Amperes Volts Resistive Inductive 30 VDC 5 2 1 115 VAC 5 2 1 UL Code 117 21 Two Single Pole Double Throw Circuits 5 amps @ 125 VAC TERMINAL CIRCUIT IDENTIFICATIONS Terminal identifications are referred to in the Ordering Charts to indicate which circuits are made in each toggle position 116 Lamp 1 Refer to order guides. (i.e., ‘‘1-2’’ reference indicates circuit closure through terminals 1 and 2). Honeywell 1 MICRO SWITCH Sensing and Control 1 1-800-537-6945 USA 1 F1-815-235-6847 International 1 1-800-737-3360 Canada Manual Switches Miniature Toggle Switches TW Series 2-POSITION ORDER GUIDES Switches with 15⁄32 N Bushings Circuits Made with Toggle at: No. Poles 1 1 1 2 2 2 Keyway Position Opposite Keyway OFF 2-1 ON 2-1 ON* OFF 2-1 & 5-4 ON 2-1 & 5-4 ON* Sealed Standard Toggle Sealed Pull-to-Unlock Toggle** Catalog Listing Military No. Add Suffix (next page) to Listing Military No.** 2-3 ON 2-3 ON 2-3 ON 11TW1-2 11TW1-3 11TW1-8 MS27718-22-1 MS27718-23-1 MS27718-26-1 D, F, G D, F, G F MS27720-22-1 MS27720-23-1 MS27720-26-1 2-3 & 5-6 ON 12TW1-2 12TW1-3 12TW1-8 MS27719-22-1 MS27719-23-1 MS27719-26-1 D, F, G D, F, G F MS27721-22-1 MS27721-23-1 MS27721-26-1 2-3 & 5-6 ON 2-3 & 5-6 ON * These positions are momentary. All others are maintained. ** Also add appropriate suffix letter to the Military Number. Switches with 1⁄4 N Bushings Circuits Made with Toggle at: No. Poles Keyway Position Opposite Keyway Unsealed Standard Toggle Sealed Standard Toggle Catalog Listing Military No. Catalog Listing 1 1 1 OFF 2-1 ON 2-1 ON* 2-3 ON 2-3 ON 2-3 ON 1TW1-2 1TW1-3 1TW1-8 MS27716-22-1 MS27716-23-1 MS27716-26-1 1TW101-2 1TW101-3 1TW101-8 2 2 2 OFF 2-1 & 5-4 ON 2-1 & 5-4 ON* 2-3 & 5-6 ON 2-3 & 5-6 ON 2-3 & 5-6 ON 2TW1-2 2TW1-3 2TW1-8 MS27717-22-1 MS27717-23-1 MS27717-26-1 2TW101-2 2TW101-3 2TW101-8 * These positions are momentary. All others are maintained. 3-POSITION ORDER GUIDES Switches with 15⁄32 N Bushings Circuits Made with Toggle at: No. Poles 1 1 1 2 2 2 Keyway Position Center Position 2-1 ON 2-1 ON* 2-1 ON* OFF OFF OFF 2-1 & 5-4 ON OFF 2-1 & 5-4 ON* 2-1 & 5-4 ON* OFF OFF Opposite Keyway Sealed Standard Toggle Sealed Pull-to-Unlock Toggle Catalog Listing Military No. Add Suffix (next page) to Listing Military No.** 2-3 ON 2-3 ON 2-3 ON* 11TW1-1 11TW1-5 11TW1-7 MS27718-21-1 MS27718-31-1 MS27718-27-1 ALL E, F, K, L, M, N E, L, N MS27720-21-1 MS27720-31-1 MS27720-27-1 2-3 & 5-6 ON 12TW1-1 12TW1-5 12TW1-7 MS27719-21-1 MS27719-31-1 MS27719-27-1 ALL E, F, K, L, M, N E, L, N MS27721-21-1 MS27721-31-1 MS27721-27-1 2-3 & 5-6 ON 2-3 & 5-6 ON* * These positions only are momentary. All others are maintained. ** Also add appropriate suffix letter to the Military Number. Switches with 1⁄4 N Bushings Circuits Made with Toggle at: Keyway Position Center Position Opposite Keyway Sealed Standard Toggle Catalog Listing Military No. Catalog Listing 1 1 1 2-1 ON 2-1 ON* 2-1 ON* OFF OFF OFF 2-3 ON 2-3 ON 2-3 ON* 1TW1-1 1TW1-5 1TW1-7 MS27716-21-1 MS27716-31-1 MS27716-27-1 1TW101-1 1TW101-5 1TW101-7 2 2 2 2-1 & 5-4 ON 2-1 & 5-4 ON* 2-1 & 5-4 ON* OFF OFF OFF 2-3 & 5-6 ON 2-3 & 5-6 ON 2-3 & 5-6 ON* 2TW1-1 2TW1-5 2TW1-7 MS27717-21-1 MS27717-31-1 MS27717-27-1 2TW101-1 2TW101-5 2TW101-7 Toggle/Rockers No. Poles Unsealed Standard Toggle * These positions are momentary. All others are maintained. Honeywell 1 MICRO SWITCH Sensing and Control 1 1-800-537-6945 USA 1 F1-815-235-6847 International 1 1-800-737-3360 Canada 117 Manual Switches Miniature Toggle Switches TW Series LOCKING CONFIGURATION SUFFIX When ordering pull-to-unlock toggle listings, add the suffix letter shown in this chart to the standard toggle catalog listing and the Military Approval number. A B D Locked In Three Positions Locked In Center and Extreme Position (Keyway Side) Locked Out Of Center Position E F G H Locked In Center Position Locked In Extreme Position (Opposite Keyway) Locked In Extreme Position (Keyway Side) Locked Out Of Center And Extreme Position (Keyway Side) J K L M N P Locked Out Of Center And Extreme Position (Opposite Keyway) Locked In Center And Extreme Position (Opposite Keyway) Locked Out Of Extreme Position (Keyway Side) Locked Out Of And Into Extreme Position (Opposite Keyway) Locked Out Of Extreme Position (Opposite Keyway) Locked Out Of And Into Extreme Position (Keyway Side) WITH IWTS TERMINATION 1 15⁄32 N bushing has lever seal 1 One or two pole circuitry 1 Accepts #20 wire using M39029/1-101 contact pins 1 Connections resist shock, vibration, and high pulling force 2 - POSITION ORDER GUIDE — IWTS TERMINATION Circuits Made with Toggle at: No. Poles Keyway Position Opposite Keyway Standard Toggle Pull-to-Unlock Toggle Catalog Listing Add Suffix to Standard Listing 1 1 2-1 ON 2-1 ON* 2-3 On 2-3 ON 111TW1-3 111TW1-8 D, F, G F 2 2 2-1 & 5-4 ON 2-1 & 5-4 ON* 2-3 & 5-6 ON 2-3 & 5-6 ON 112TW1-3 112TW1-8 D, F, G F 3 - POSITION ORDER GUIDE — IWTS TERMINATION Circuits Made with Toggle at: No. Poles Keyway Position Center Position Opposite Keyway Standard Toggle Pull-to-Unlock Toggle Catalog Listing Add Suffix to Standard Listing 1 1 1 2-1 ON 2-1 ON* 2-1 ON* OFF OFF OFF 2-3 ON 2-3 ON 2-3 ON* 111TW1-1 111TW1-5 111TW1-7 ALL E, F, K, L, M, N E, L, N 2 2 2 2-1 & 5-4 ON 2-1 & 5-4 ON* 2-1 & 5-4 ON* OFF OFF OFF 2-3 & 5-6 ON 2-3 & 5-6 ON 2-3 & 5-6 ON* 112TW1-1 112TW1-5 112TW1-7 ALL E, F, K, L, M, N E, L, N * These positions only are momentary. All others are maintained. 118 Honeywell 1 MICRO SWITCH Sensing and Control 1 1-800-537-6945 USA 1 F1-815-235-6847 International 1 1-800-737-3360 Canada Manual Switches Miniature Toggle Switches TW Series WITH COLORED TAB LEVERS 1 Available in seven colors 1 Affords attractive front-of-panel appearance for graphic display and functional identify 1 Levers made to withstand temperatures up to 160° F (71° C) 1 Switches furnished with decorative knurled nut, a lockwasher, a keying washer, and a hex nut 1 15⁄32 N bushing has lever seal 1 Solder terminals (available with IWTS termination) ORDER GUIDE To order, combine the basic (function) listing from Table 1 with the desired lever color suffix from Table 2. Colored tab levers are not available with in. bushing. 1⁄4 TABLE 1 — TOGGLE POSITION AND CONTACT ARRANGEMENT Circuits Made with Toggle at: Keyway Position Center Position Opposite Keyway Basic Listing Add color suffix from Table 2. Positions No. Poles 2 2 2 1 1 1 OFF 2-1 ON 2-1 ON* NONE NONE NONE 2-3 ON 2-3 ON 2-3 ON 11TW19-2 – 11TW19-3 – 11TW19-8 – 2 2 2 2 2 2 OFF 2-1 & 5-4 2-1 & 5-4* NONE NONE NONE 2-3 & 5-6 ON 2-3 & 5-6 ON 2-3 & 5-6 ON 12TW19-2 – 12TW19-3 – 12TW19-8 – 3 3 3 1 1 1 2-1 ON 2-1 ON* 2-1 ON* OFF OFF OFF 2-3 ON 2-3 ON 2-3 ON* 11TW19-1 – 11TW19-5 – 11TW19-7 – 3 3 3 2 2 2 2-1 & 5-4 ON 2-1 & 5-4 ON* 2-1 & 5-4 ON* OFF OFF OFF 2-3 & 5-6 ON 2-3 & 5-6 ON 2-3 & 5-6 ON* 12TW19-1 – 12TW19-5 – 12TW19-7 – * These positions only are momentary. All others are maintained. TABLE 2 — TAB LEVER COLORS Tab Lever Color White Black Blue Red Green Orange Light Gray Color suffix A001 A002 A003 A004 A005 A006 A007 Toggle/Rockers TW SWITCHES WITH SPECIAL CIRCUITRIES All 2-pole 3-position TW switches are available with special ‘‘on-on-on’’ –10, –50, –70 circuitry options as shown below. 2-Pole 3-Position Switches Sealed Standard Toggle Circuits Made With Toggle At: 15⁄32N bushing 1⁄4N bushing Unsealed Std. Toggle 1⁄4N bushing Sealed Tab Lever 15⁄32N bushing Keyway Position Center Position Opposite Keyway Catalog Listing Catalog Listing Catalog Listing Catalog Listing Add color suffix from Table 2 2-1 & 5-4 ON 2-1 & 5-4 ON* 2-1 & 5-4 ON* 2-1 & 5-6 ON 2-1 & 5-6 ON 2-1 & 5-6 ON 2-3 & 5-6 ON 2-3 & 5-6 ON 2-3 & 5-6 ON* 12TW1-10 12TW1-50 12TW1-70 2TW101-10 2TW101-50 2TW101-70 2TW1-10 2TW1-50 2TW1-70 12TW19-10 – 12TW19-50 – 12TW19-70 – * These positions are momentary. All others are maintained. Honeywell 1 MICRO SWITCH Sensing and Control 1 1-800-537-6945 USA 1 F1-815-235-6847 International 1 1-800-737-3360 Canada 119 Manual Switches Miniature Toggle Switches TW Series MOUNTING DIMENSIONS (For reference only) Mounting detail for 1⁄4 N bushing switches Without locking ring Dimensions for 1⁄4 N bushing switches With locking ring Mounting detail for 15⁄32 N bushing switches With locking ring Note: 1,1/.05 MIN. DEEP TO ACCOMMODATE LOCKING RING. FOR SWITCHES USING PANEL SEAL, DO NOT ALLOW THRU HOLE MOUNTING. Without locking ring Key: 0,0 = mm 0.00 = inches Dimensions for 15⁄32 N switches Standard toggle lever Pull-to-unlock toggle lever Bushing mounting torque is 10–15 in./lbs. 120 Honeywell 1 MICRO SWITCH Sensing and Control 1 1-800-537-6945 USA 1 F1-815-235-6847 International 1 1-800-737-3360 Canada
