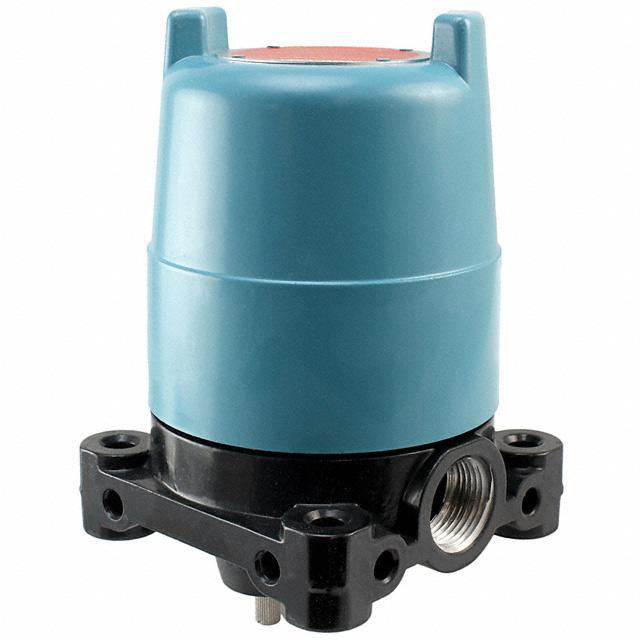

MICRO SWITCH™ Weather-Sealed, Explosion-Proof Switches CX Series Datasheet MICRO SWITCH™ CX Series Weather-Sealed, Explosion-Proof Switches MICRO SWITCH™ CX switches are built especially for outdoor use in hazardous atmospheres. These enclosures are constructed to withstand the pressure of an internal explosion. Flame paths cool the exploded gases to a point less than the lowest safe operating temperature of the surrounding gas. MICRO SWITCH™ 80CX Series switches have rugged bronze housings that are designed to be resistant to salt water and other corrosive environments. They comply with the NEMA 4X requirement for protection against corrosion, in addition to NEMA enclosure standards met by other CX switches. The product’s o-ring seals make the enclosure rain tight, but are outside of required flame paths so explosion proof requirements are maintained. Unless special ordered, all basic switches operate on clockwise and counterclockwise rotation. The actuating mechanism can be field adjusted for CW or CCW operation only. No tools are required. What makes our switches better? Building block design allows for digital switching outputs, or 4 mA to 20 mA analog output, or digital switching outputs with a 4 mA to 20 mA analog output Weather sealed to NEMA and IP ratings UL, CSA, ATEX, IEC Ex, INMETRO certified for hazardous (explosive) environments Designed with the end user in mind, these switches help to create user-friendly interfaces with broad application possibilities to help meet the challenges of many different environments Available with gold contacts, low-temp seals, and bronze corrosion-resistant housing COST OPTIMIZATION RELIABILITY • GLOBALLY ACCEPTED 2 sensing.honeywell.com Features and Benefits WELL-SUITED FOR EXPLOSIVE ENVIRONMENTS MICRO SWITCH™ CX Series switches are certified for applicable portions of NEMA 7 and 9 for hazardous locations (explosive environments). Select CX switches are certified to ATEX, IEC Ex, and INMETRO specifications for global applications. Available with digital or analog outputs WATERTIGHT AND DUST-TIGHT FOR OUTDOOR USE Due to its engineering design and sealing (NEMA 1, 3, 4, 4X, 6, 6P, and 13), the MICRO SWITCH™ CX Series is rated for rain, wind, snow, ice, and blowing dust environments. CORROSION RESISTANT Bronze housing material is available on 80CX Series catalog listings. 4 MA TO 20 MA ANALOG OUTPUT AVAILABLE Allows for use in accurate positioning applications, such as those found on seaside grain and fuel-loading docks, oil and gas wells, refineries, chemical plants, and more. MEETS HAZARDOUS AREA REQUIREMENTS UL Listed, file #E14274, Analog UL file #E68247, CSA Certified, file #LR57324, ATEX certificate KEMA 01ATEX2111 X, IEC Ex certificate IEC Ex TSA 06.003X, and INMETRO certificate TUV 14.0553. OPTIONAL HOUSING CHOICES CX Series switches offer a choice of rugged cast aluminum or bronze housings. Both housings withstand harsh environments, and bronze is available for use in corrosive environments. UNIQUE DESIGN FEATURES Featuring field-adjustability, the CX Series allows pretravel, overtravel, and actuating sequence to be field adjusted without tools (all basics can be adjusted individually). Rotary types convert in seconds to clockwise, counterclockwise, or both-way operation. These features may help to reduce set up time while allowing for quick and easy changes to switch operation. sensing.honeywell.com 3 Potential Applications INDUSTRIAL • Seaside grain and fuel loading docks that may require explosion proof and corrosion resistant switches • Oil and gas wells, refineries, and fuel storage facilities that may require explosion proof and corrosion resistant switches • Chemical plants with corrosive environments  0518 Table 1. Specifications Characteristic Parameter Actuators side rotary (choice of levers), side rotary (with flat shaft), plunger actuator Housing material aluminum with electrostatic epoxy coating or corrosion resistant bronze Termination 3/4 x 14 NPT, M25 x 1,5 mm conduit Sealing NEMA 1, 3, 4, 4X, 6, 6P, and 13; IP66 Hazardous area designations NEMA 7: Class I, Div.1 & Div. 2, Groups B (14CX, 16CX, 24CX, 26CX, 36CX only), C, and D; NEMA 9: Class II, Div.1 & Div. 2, Groups E, F, and G ATEX/IEC Ex, INMETRO (Gas) II 2 G; Exd IIC T6 ATEX/IEC Ex, INMETRO (Dust) II 2 D; Exd tD A21 T85°C Operating temperature -25 °C to 85 °C [-13 °F to 185 °F] UL Listed, file #E14274, Analog UL file #E68247 CSA Certified, file #LR57324 ATEX certificate KEMA 01ATEX2111 X IEC Ex certificate IEC Ex TSA 06.003X INMETRO certiticate TUV 14.0553 Agency approvals Table 2. Electrical Ratings (in amperes) Rating Code Switch Description UL/CSA A BZ basic switch, SPDT 15 A 120/240/480 Vac; 1/8 HP, 120 Vac 1/4 HP, 240 Vac; 0.5 A, 125 Vdc; 0.25 A, 250 Vdc B BA basic switch, SPDT 20 A 120/240/480 Vac; 1 HP, 120 Vac; 2 HP, 240 Vac; 0.5 A, 125 Vdc; 0.25 A, 250 Vdc C DT basic switch, DPDT 10 A 120/240/480 Vac, 0.3 A 125 Vdc; 0.15 A, 250 Vdc D HS basic switch (hermetic sealed), SPDT 1 A, 125 Vac; 5 A, 28 Vdc F BZ basic switch (gold contacts) SPDT 1 A, 125 Vac Table 3. Analog Position Sensing Specifications Specification Voltage compliance range Replacement PC board Current signal output Span Null 4 sensing.honeywell.com Parameter 12.5 Vdc to 40 Vdc 15PA261-CX 4 mA to 20 mA Adjustable from 15 ° to 90 ° of angular rotation 4 mA position may be set at any angular position MICRO SWITCH™ Weather-Sealed, Explosion-Proof Switches PRODUCT NOMENCLATURE Switch Type CX Series Hazardous Area Limit Switch 1 1 CX 2 Housing Style & Actuator Type Circuitry Switch Type Switches Additional Options 1 Short housing, side rotary 1 15 A, SPDT basic switch/es CX Momentary 0 4 mA to 20 mA 2 Standard housing, side rotary 2 20 A, SPDT basic switch/es CX1 Maintained 1 One switch A Side mounting, 5/16-18(8) 3 Short housing, plunger actuator 4 10 A, DPDT basic switch/es 2 Two switches B Thru mounting, 3/8-24(4) 4 Standard housing, plunger actuator 6 1 A, SPDT, hermetically sealed basic switch/es 3 Three switches C Low temperature 6 Short housing, black epoxy 8 4 mA to 20 mA output for position sensing 4 Four switches E ATEX/IEC Ex/ INMETRO certified with cover clamp 7 Stand. housing, bronze material, 5/16-18 UNC-2B mtg holes 172 5 Two switches, one CW oper., one CCW oper. M Metric, M25 x 1.5 conduit 8 Standard housing, bronze material D01 9 Switch assemblies (replacement) 00 various specials 1 A, SPDT, goldplated contacts, basic switch/es Non-threaded thru holes Flat shaft Or other numbers, Other special configurations may be available. For more information, contact your Honeywell representative. sensing.honeywell.com 5 CX Series Table 4. Order Guide When factory assembled, all basic switches operate on a clockwise and counter clockwise rotation. The actuating mechanism can be field adjusted for CW or CCW operation only. No tools are required. For listings not shown, contact your Honeywell representative. Cat. Listing1 Housing Material Cover Size Switch Action2 Basic Switch Type, Quantity, Circuitry Electrical Rating (Page 4) 11CX12 11CX12E 11CX2 11CX2E 1172CX2 11CX5C Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Short Short Short Short Short Short Maintained Maintained Momentary Momentary Momentary Momentary BZ (2), SPDT each BZ (2), SPDT each BZ (2), SPDT each BZ (2), SPDT each BZ (2), SPDT each BZ (2), SPDT each A (15 A) A (15 A) A (15 A) A (15 A) F (1 A) A (15 A) 11CX212 Epoxy-coated aluminum Short Maintained BZ (2), SPDT each A (15 A) 12CX12 12CX12-D01 12CX15-D01 12CX2 12CX2A Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Short Short Short Short Short Maintained Maintained Maintained Momentary Momentary BA (2), SPDT each BA (2), SPDT each BA (2), SPDT each BA (2), SPDT each BA (2), SPDT each B (20 A) B (20 A) B (20 A) B (20 A) B (20 A) 12CX2AE Epoxy-coated aluminum Short Momentary BA (2), SPDT each B (20 A) 12CX5E Epoxy-coated aluminum Short Momentary BA (2), SPDT each B (20 A) 12CX200 Epoxy-coated aluminum Short Maintained BA (2), SPDT each B (20 A) 14CX1E 16CX1 16CX1E 16CX2 16CX2C 16CX12 18CX0 18CX10 21CX4 Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Short Short Short Short Short Short Short Short Standard Momentary Momentary Momentary Momentary Momentary Maintained Momentary Maintained Momentary DT (1), DPDT HS (1), SPDT HS (1), SPDT HS (2), SPDT each HS (2), SPDT each HS (2), SPDT each – – BZ (4), SPDT each C (10 A) D (1 A) D (1 A) D (1 A) D (1 A) D (1 A) – – A (15 A) 21CX12F Epoxy-coated aluminum Standard Maintained BZ (2), SPDT each A (15 A) 21CX14 22CX4 24CX2 26CX4 26CX14 Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Epoxy-coated aluminum Standard Standard Standard Standard Standard Maintained Momentary Momentary Momentary Maintained BZ (4), SPDT each BA (4), SPDT each DT (2), DPDT each HS (4) SPDT each HS (4) SPDT each A (15 A) B (20 A) C (10 A) D (1 A) D (1 A) 26CX16 Epoxy-coated aluminum Standard Maintained HS (4) SPDT each D (1 A) 281CX12 Epoxy-coated aluminum Standard Maintained BZ (2) SPDT each A (15 A) 281CX12E Epoxy-coated aluminum Standard Maintained BZ (2) SPDT each A (15 A) 74CX2 Bronze Standard Momentary DT (2) DPDT each D (10 A) 81CX2 Bronze Standard Momentary BZ (2) SPDT each A (15 A) 82CX2A Bronze Standard Momentary BA (2) SPDT each B (20 A) ¹ Basic switches operate nearly simultaneously in multiple switch devices ² Shafts of devices without spring return can be rotated through 360° 6 sensing.honeywell.com MICRO SWITCH™ Weather-Sealed, Explosion-Proof Switches Operating Torque Nm [In-lb] Pretravel max. Differential Travel max. Overtravel min. Options Comments 0,5 Nm [4.42 in-lb] 0,5 Nm [4.42 in-lb] 1,25 Nm [11.1 in-lb] 1,25 Nm [11.1 in-lb] 1,25 Nm [11.1 in-lb] 1,25 Nm [11.1 in-lb] 15° 15° 15° 15° 15° 15° 10° 10° 10° 10° 10° 10° 90° 90° 90° 90° 90° 90° – ATEX/IEC Ex/INMETRO certified – ATEX/IEC Ex/INMETRO certified – Low temperature seals 0,5 Nm [4.42 in-lb] 15° 10° 90° – 0,5 Nm [4.42 in-lb] 0,5 Nm [4.42 in-lb] 0,5 Nm [4.42 in-lb] 1,25 Nm [11.1 in-lb] 1,25 Nm [11.1 in-lb] 15° 15° 15° 15° 15° 10° 10° 10° 10° 10° 90° 90° 90° 90° 90° 1,25 Nm [11.1 in-lb] 15° 10° 90° 1,25 Nm [11.1 in-lb] 15° 10° 90° – Flat shaft for direct coupling Flat shaft for direct coupling – Threaded mounting holes, side (8) Threaded mounting holes, side (8), ATEX/IEC Ex/INMETRO certified ATEX/IEC Ex/INMETRO certified – – – – Gold-plated switch contacts 1 switch operates CW, 1 switch operates CCW Cam provides ~ 30° actuation in 360° rotation for each basic switch – – 1 switch operates CW, 1 switch operates CCW – – 0,5 Nm [4.42 in-lb] – – – – 1,25 Nm [11.1 in-lb] 1,25 Nm [11.1 in-lb] 1,25 Nm [11.1 in-lb] 1,25 Nm [11.1 in-lb] 1,25 Nm [11.1 in-lb] 0,5 Nm [4.42 in-lb] 0,5 Nm [4.42 in-lb] 0,5 Nm [4.42 in-lb] 1,25 Nm [11.1 in-lb] 30° 30° 30° 30° 30° 30° – – 15° 25° 20° 20° 20° 20° 20° – – 10° 75° 75° 75° 75° 75° 75° – – 90° ATEX/IEC Ex/INMETRO certified – ATEX/IEC Ex/INMETRO certified – Low temperature seals – Analog position sensing Analog position sensing – 0,5 Nm [4.42 in-lb] 15° 10° 90° – 0,5 Nm [4.42 in-lb] 1,25 Nm [11.1 in-lb] 1,25 Nm [11.1 in-lb] 1,25 Nm [11.1 in-lb] 0,5 Nm [4.42 in-lb] 15° 15° 30° 30° 30° 10° 10° 25° 20° 20° 90° 90° 75° 75° 75° – – – – – 0,5 Nm [4.42 in-lb] 30° 20° 75° – 0,5 Nm [4.42 in-lb] 15° 10° 90° 0,5 Nm [4.42 in-lb] 15° 10° 90° 1,25 Nm [11.1 in-lb] 30° 25° 75° – Threaded mounting holes, side (8) 1,25 Nm [11.1 in-lb] 15° 10° 90° – – 1,25 Nm [11.1 in-lb] 15° 10° 90° Threaded mounting holes, side (8) – Analog position sensing (4 mA to 20 mA) Analog position sensing (4 mA to 20 mA), ATEX/IEC Ex/INMETRO certified – 1 switch operates CW, 1 switch operates CCW Cam provides approximately 30° actuation in 360° rotation for each basic switch – Hermetic sealed basic switch Hermetic sealed basic switch Hermetic sealed basic switches Hermetic sealed basic switches Hermetic sealed basic switches 4 mA to 20 mA 4 mA to 20 mA – Two basic switches. 4 sets of cams & return springs – – – Hermetic sealed basic switches Hermetic sealed basic switches Hermetic sealed basic switches, two switches operate CW, two switches operate CCW – – sensing.honeywell.com 7 CX Series ASSEMBLY MODIFICATIONS MODIFIED SHAFT ENABLES DIRECT COUPLING CX switches are available with a 3⁄8 inch diameter by 3⁄4 inch long flatted shaft which conforms to standard NEMA motor shaft specifications. It accepts commercially available shaft couplers, permitting easy, direct coupling to most equipment actuators. To specify a ‘‘direct-couple’’ CX switch: Add-DO1 to catalog listings shown in the order guides, i.e. 11CX12-DO1. Mounting Holes Add the letter A to listings with side mounting holes tapped 5/16-18(8). Example: 11CX2A Add the letter B to listings with thru mounting holes tapped 3/8-24(4). Example: 11CX2B. CX Series Replacement Basic Switch Assemblies These assemblies are factory-adjusted to the same operating characteristics as a new CX switch. They include components subject to mechanical or electrical wear: basic switches, cams, cam followers, and springs. To order, change the first number in the complete switch catalog listing to 9 for rotary switches. For example: Rotary switch 11CX2 Replacement = 91CX2 Note: Basic switch assemblies for rotary actuated switches, with or without spring return, will be the same. For example: 11CX2 and 11CX12 use 91CX2. Low Temperature Switches Add the letter C to listings for low temperature versions MOUNTING BRACKETS 15PA500-CX adapter bracket for mounting CX products to NAMUR footprint is available upon request. For example: 21CX14C = -40 °F [-40 °C] Rotary 4.25 2.250 1.40 1.125 A .750 .721 4X .258 .003 3.150 1.50 2.250 4.00 1.125 4X .625 4X 4X R .25 A 3.150 8 sensing.honeywell.com 4X 45 4X .400 SECTION A-A .406 X .020 MICRO SWITCH™ Weather-Sealed, Explosion-Proof Switches Table 6. Rotary Levers Levers for use with side-rotary-actuated switches are available in a wide choice of sizes and materials. The most common listings are shown below. Rollers may be on either side of the lever to best match the external actuating mechanism. Fixed lever, nylon roller LSZ51A - front mount roller LSZ51C - back mount roller Short fixed lever, nylon roller LSZ59A - front mount roller LSZ59C - back mount roller One-way lever, nylon roller LSZ60A - front mount roller Yoke lever, nylon rollers LSZ53A - front/back mount rollers Adj. lever, nylon roller LSZ52A - back mount roller LSZ52C - front mount roller LSZ52J adjustable lever, nylon roller 25,4 mm [1 in] LSZ52K adjustable lever, nylon roller 38,1 [1.5 in] LSZ54M aluminum rod 140 mm [5.5 in] LSZ61 loop 152 mm [6 in] Offset lever, nylon roller LSZ55A - back mount roller LSZ55C - front mount roller LSZ67CA** Plastic conveyor roller LSZ68 rod w/ spring 305 mm [12 in] ** May require orientation of switch and lever to enable gravity to help restore switch’s free position. Non-sparking rollers and actuators must be used in hazardous areas. sensing.honeywell.com 9 CX Series Table 7. Rotary Levers Order Guide Catalog Listing Material Roller Roller Dia. mm Width mm [in] [in] Fixed – 38,1 [1.5] inch radius LSZ51 Rollerless n/a n/a LSZ51A Nylon 19 [0.75] 6,35 [0.25] LSZ51C Nylon 19 [0.75] 6,35 [0.25] LSZ51F Nylon 25,4 [1.0] 12,7 [0.50] LSZ51G Nylon 38,1 [1.5] 6,35 [0.25] LSZ51J Nylon 25,4 [1.0] 12,7 [0.50] LSZ51M Nylon 19 [0.75] 31,7 [1.25] LSZ51P Nylon 19 [0.75] 12,7 [0.50] LS2Z51A (sst) Nylon 19 [0.75] 6,35 [0.25] LS2Z51C (sst) Nylon 19 [0.75] 6,35 [0.25] LS2Z51E (sst) Copper alloy 19 [0.75] 6,35 [0.25] LS2Z51F (sst) Copper alloy 19 [0.75] 6,35 [0.25] Adjustable – 38,1 [1.5] in to 3.5 in radius LSZ52 Rollerless n/a n/a Roller Mounting n/a Front Back Front Front Back Back Front Front Back Front Back Nylon 19 [0.75] 6,35 [0.25] Back LSZ52C Nylon 19 [0.75] 6,35 [0.25] Front LSZ52E Nylon 19 [0.75] 33,0 [1.30] Front LSZ52J Nylon 25,4 [1.0] 12,7 [0.50] Front LSZ52K Nylon 38,1 [1.5] 6,35 [0.25] Front LSZ52M Nylon 50,8 [2.0] 6,35 [0.25] Front LSZ52N Nylon 19 [0.75] 12,7 [0.50] Front LS2Z52A (sst) Nylon 19 [0.75] 6,35 [0.25] Front LS2Z52C (sst) Nylon 19 [0.75] 6,35 [0.25] Back LS2Z52E (sst) Copper alloy 19 [0.75] 6,35 [0.25] Front LS2Z52F (sst) Copper alloy 19 [0.75] 6,35 [0.25] Back Yoke – 38,1 [1.5] in radius LSZ53A Nylon 19 [0.75] LSZ53E Nylon 19 [0.75] LSZ53M Nylon 19 [0.75] 6,35 [0.25] Front/Back 6,35 [0.25] Back/Front 31,7 [1.25] Back/Front LSZ53S Nylon 19 [0.75] 6,35 [0.25] Back/Back Rod LSZ54 Hub only n/a n/a n/a LSZ54M Alum, 140 mm [5.5 in] Ø 3,2 [Ø 0.125] n/a n/a LSZ54N Stainless, 330 mm [13 in] Ø 3,2 [Ø 0.125] n/a n/a LSZ54W Plastic rod, Ø6,85 305 mm [12 in] [Ø 0.27] n/a Plastic rod, 183 mm [7.2 in] n/a Ø6,85 [Ø 0.27] Material 6,35 [0.25] Front 6,35 [0.25] Back One-way roller lever LSZ60A Nylon 6,35 [0.25] Front 10 sensing.honeywell.com 19 [0.75] n/a n/a Flexible loop LSZ61 Ø 4,8 [Ø 0.19 ] 152 mm [6 in] flexible loop Nylatron LSZ618 Ø 4,8 [Ø 0.19 ] 241 mm [9.5 in] flexible loop Nylatron LSZ54 Hub only n/a n/a n/a Spring rod LSZ68 Ø 6,35 [0.25] Ø 6,35 [0.25] Ø 6,35 [0.25] n/a n/a n/a n/a n/a n/a Rubber roller levers LSZ51Y Rubber 50 [2.0] 12,7 [0.5] front LSZ55Y Rubber 50 [2.0] 12,7 [0.5] front LSZ52Y Rubber 50 [2.0] 12,7 [0.5] front 38,1 [1.5] 96,5 [3.8] n/a LSZ617 LSZ686 Delrin rod, 305 mm [12 in] Delrin rod, 406 mm [16 in] Delrin rod, 152 mm [6 in] 38,1 [1.5] radius (standard) 38,1 [1.5] radius (offset) 38,1 to 89 [1.5 to 3.5] radius n/a 6,35 [0.25] 6,35 [0.25] 12,7 [0.50] 6,35 [0.25] Roller Roller Width mm Mounting [in] Short fixed – 1.3 in radius LSZ59A Nylon 19 [0.75] LSZ59C Nylon 19 [0.75] (adjustable) Plastic roller levers LSZ67AA Plastic (conveyor)* Offset – 38,1 [1.5] in radius LSZ55 Rollerless n/a LSZ55A Nylon 19 [0.75] LSZ55C Nylon 19 [0.75] LSZ55E Nylon 19 [0.75] LSZ55K Nylon 38,1 [1.5] Roller Dia. mm [in] n/a LSZ52A LSZ54P Catalog Listing n/a Back Front Front Front * May require orientation of switch and lever to enable gravity to help restore switch to free position. MICRO SWITCH™ Weather-Sealed, Explosion-Proof Switches DIMENSIONS mm[in] Figure 1. MICRO SWITCH™ CX - side rotary standard housing 145 mm max. [5.71 in max.] 22,3 mm [0.88 in] Ø7,25 mm [Ø0.285 in] straight knurl 133 mm max. [5.24 in max.] 12,7 mm typ. [0.5 in typ.] 9,4 mm [0.37 in] 40,0 mm [1.57 in] 18,3 mm [0.72 in] 2 X 80,0 mm [2 X 3.15 in] Ø98 mm [Ø3.86 in] 60,35 mm typ. [2.38 in typ.] 2 X 101,6 mm [2 X 4.0 in] 50,8 mm [2.0 in] 2 X M25 x 1,5 (6 full threads min.) 2X 3/4-14NPT (5 full threads min.) 8X Ø7,29 mm [0.287 in] x 17,8 mm [0.70 in] hole for 5/16 in - 18 UNC internal formed thread 20,3 mm [0.80 in] 4 X Ø8,5 mm thru [4 X Ø0.33 in thru] 25,4 mm [1.0 in] Figure 2. MICRO SWITCH™ CX - side rotary short housing 40,0 mm [1.57 in] 9,4 mm [0.37 in] 22,3 mm [0.88 in] Ø7,25 mm [Ø0.285 in] straight knurl 104 mm max. [4.09 in max.] 96 mm max. [3.78 in max.] 12,7 mm typ. [0.5 in typ.] 18,3 mm [0.72 in] 2 X 80,0 mm [2 X 3.15 in] 60,35 mm typ. [2.38 in typ.] 2 X 101,6 mm [2 X 4.0 in] Ø98 mm [Ø3.86 in] 50,8 mm [2.0 in] 2 X M25 x 1,5 (6 full threads min.) 2X 3/4-14NPT (5 full threads min.) 20,3 mm [0.80 in] 4 X Ø8,5 mm thru [4 X Ø0.33 in thru] 25,4 mm [1.0 in] 8X Ø7,29 mm [0.287 in] x 17,8 mm [0.70 in] hole for 5/16 in - 18 UNC internal formed thread Non-sparking actuator 145 mm max. [5.71 in max.] 19,4 mm [0.76 in] 104 mm max. [4.09 in max.] 96 mm max. [3.78 in max.] Non-sparking actuator 5,1 mm [0.20 in] 40,0 mm [1.57 in] 5,1 mm [0.20 in] Figure 3. MICRO SWITCH™ CX - plunger standard and short housing 133 mm max. [5.24 in max.] 18,3 mm [0.72 in] 2 X 80,0 mm [2 X 3.15 in] 60,35 mm typ. [2.38 in typ.] 2 X 101,6 mm [2 X 4.0 in] Ø98 mm [Ø3.86 in] Ø98 mm [Ø3.86 in] 60,35 mm typ. [2.38 in typ.] 50,8 mm [2.0 in] 4 X Ø8,5 mm thru [4 X Ø0.33 in thru] 20,3 mm [0.80 in] 25,4 mm [1.0 in] 3/4-14NPT (5 full threads min.) 8X Ø7,29 mm [0.287 in] x 17,8 mm [0.70 in] hole for 5/16 in - 18 UNC internal formed thread 20,3 mm [0.80 in] 25,4 mm [1.0 in] 3/4-14NPT (5 full threads min.) 8X Ø7,29 mm [0.287 in] x 17,8 mm [0.70 in] hole for 5/16 in - 18 UNC internal formed thread sensing.honeywell.com 11 CX Series ATEX COVER CLAMP ASSEMBLY FOR EUROPEAN COMPLIANCE To specify a CX switch with ATEX, IEC Ex, or INMETRO certifications, add the letter “E” to the end of the catalog listing: 11CX2E. 105,3 mm [4.15 in] 12,1 mm [0.48 in] without wire lead C A U T I O N U S E O N L Y N O N - S P A R K I N G A C T U A T O R S 12 sensing.honeywell.com 143,0 mm [5.63 in] ADDITIONAL INFORMATION The following associated literature is available on the Honeywell web site at sensing.honeywell.com: • Product installation instructions • Product range guide • Product nomenclature tree • MICRO SWITCH™ Hazardous Area Switches Brochure WARNING PERSONAL INJURY DO NOT USE these products as safety or emergency stop devices or in any other application where failure of the product could result in personal injury. Failure to comply with these instructions could result in death or serious injury. • Product application-specific information WARNING – Limit and enclosed switch reference standards – Application Note: Sensors and switches for industrial manual process valves MISUSE OF DOCUMENTATION • – Application Note: Sensors and switches in oil rig applications – Application Note: Sensors and switches n valve actuators and valve positioners – Application Note: Sensors and switches in valves and flow meters • The information presented in this product sheet is for reference only. Do not use this document as a product installation guide. Complete installation, operation, and maintenance information is provided in the instructions supplied with each product. Failure to comply with these instructions could result in death or serious injury. WARRANTY/REMEDY Find out more Honeywell serves its customers through a worldwide network of sales offices, representatives and distributors. For application assistance, current specifications, pricing or name of the nearest Authorized Distributor, contact your local sales office. To learn more about Honeywell’s Honeywell warrants goods of its manufacture as being free of defective materials and faulty workmanship. Honeywell’s standard product warranty applies unless agreed to otherwise by Honeywell in writing; please refer to your order acknowledgement or consult your local sales office for specific warranty details. If warranted goods are returned to Honeywell during the period of coverage, Honeywell will repair or replace, at its option, without charge those items it finds defective. The foregoing is buyer’s sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Honeywell be liable for consequential, special, or indirect damages. While we provide application assistance personally, through our literature and the Honeywell website, it is up to the customer to determine the suitability of the product in the application. Specifications may change without notice. The information we supply is believed to be accurate and reliable as of this printing. However, we assume no responsibility for its use. sensing and switching products, call +1-815-235-6847 or 1-800-537-6945, visit sensing.honeywell.com, or e-mail inquiries to info.sc@honeywell.com Sensing and Productivity Solutions Honeywell 1985 Douglas Drive North Golden Valley, MN 55422 honeywell.com 002388-2-EN IL50 GLO  November 2015 Copyright © 2015 Honeywell International Inc. All rights reserved.
