309NPC5MEG

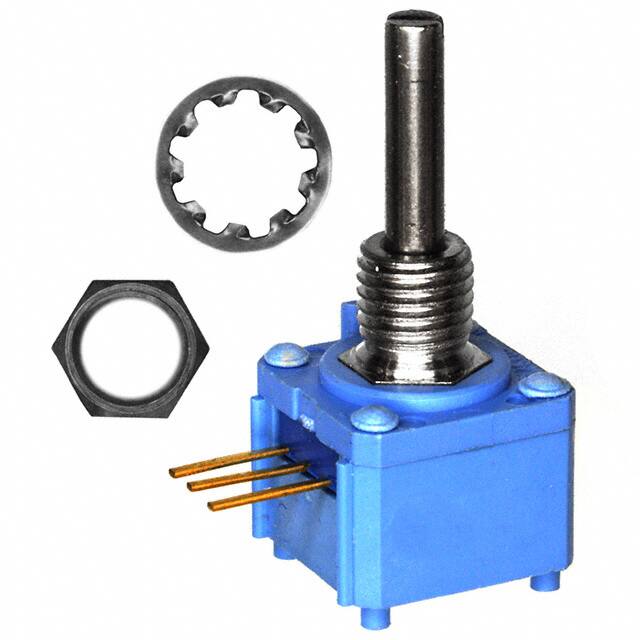

Datasheet -- 309NPC5MEG 309NPC5MEG 309 Series Industrial Potentiometer, Cermet Element, PC Terminals, 1 W Power Rating, 5 MOhm Resistance Value Representative photograph, actual product appearance may vary. Features ● ● ● Due to regional agency approval requirements, some products may not be available in your area. Please contact your regional Honeywell office regarding your product of choice. ● ● ● Compact - 12,7 mm [0.5 in] modular size Robust nickel-plated brass shaft and bushings Cerment element Linear taper Very stable over the operating temperature PC terminals Typical Applications ● ● ● Manual controls Medical equipment Telecommunications Description The 309 Series is a low cost potentiometer that offers the temperature stability of a cermet element and a 1 watt power rating in a compact body. PC and solder hook style terminals available. 309NPC5MEG 309 Series Industrial Potentiometer, Cermet Element, PC Terminals, 1 W Power Rating, 5 MOhm Resistance Value file:///C|/Documents%20and%20Settings/rabab/Desktop/Datasheet%20--%20309NPC5MEG.htm (1 of 4)09/03/2005 12:08:24 ã Datasheet -- 309NPC5MEG Product Specifications Potentiometer Type Industrial Element Type Cermet Terminal Type PC Power Rating 1W Resistance Value 5 MOhm Resistance Tolerance ± 20 % Linearity ±5% Bushing Thread 6,35 mm [0.25 in] x 32 NEF-2A Bushing length 6,35 mm [0.25 in] Bushing Type Standard Shaft Diameter 3,18 mm [0.125 in] Shaft length 19,05 mm [0.75 in] Shaft Ending Slotted Body 12.7 mm [0.5 in] square, ± 0.79 mm [0.031 in] Electrical Taper Linear Operating Temperature -40 °C to 150 °C [-40 °F to 302 °F] Working Voltage (Max.) 350 V Rotational Life 25000 cycles Mechanical Rotation 295° Availability Global Series Name 309 Series UNSPSC Code 4111363300 UNSPSC Commodity 4111363300 Potentiometers 309NPC5MEG 309 Series Industrial Potentiometer, Cermet Element, PC Terminals, 1 W Power Rating, 5 MOhm Resistance Value file:///C|/Documents%20and%20Settings/rabab/Desktop/Datasheet%20--%20309NPC5MEG.htm (2 of 4)09/03/2005 12:08:24 ã Datasheet -- 309NPC5MEG 309NPC5MEG 309 Series Industrial Potentiometer, Cermet Element, PC Terminals, 1 W Power Rating, 5 MOhm Resistance Value PERSONAL INJURY DO NOT USE these products as safety or emergency stop devices, or in any other application where failure of the product could result in personal injury. Failure to comply with these instructions could result in death or serious injury. file:///C|/Documents%20and%20Settings/rabab/Desktop/Datasheet%20--%20309NPC5MEG.htm (3 of 4)09/03/2005 12:08:24 ã Datasheet -- 309NPC5MEG MISUSE OF DOCUMENTATION ● ● The information presented in this product sheet (or catalog) is for reference only. DO NOT USE this document as product installation information. Complete installation, operation and maintenance information is provided in the instructions supplied with each product. Failure to comply with these instructions could result in death or serious injury. © Copyright Honeywell Inc.1998-2004 All rights reserved. file:///C|/Documents%20and%20Settings/rabab/Desktop/Datasheet%20--%20309NPC5MEG.htm (4 of 4)09/03/2005 12:08:24 ã
