MICRO SWITCH™
BAF/DTF Series
High Capacity Enclosed Switches
DESCRIPTION
MICRO SWITCH BAF1 high capacity enclosed switches offer
elastomer boot on sealed actuator verions that protects the actuating mechanism and the internal basic switch from contaminants. There is a seal gasket between the cover plate and the
enclosures on all versions. The cover plate is removed for ease
of wiring and switch replacement without demounting the switch.
The actuator position is designated “right” or “left,” when looking
at the nameplate.
FEATURES
POTENTIAL APPLICATIONS
•
•
•
•
•
•
•
•
•
• Packaging equipment
• Special machinery
• Agricultural machinery
• Conveyors
• Overhead cranes and hoists
Up to 20 ampere capacity
Cast aluminum housing with three-hole mounting
Right or left-handed (sealed or unsealed) actuators
Cover seal, captive cover screws
Momentary or maintained contact
UL recognized, file #E12252
CSA certified, file #LR41372
Sealed to NEMA 1, 3, 4 and 13 requirements
Grounding screw
MICRO SWITCH™ BAF/DTF Series
SPECIFICATIONS
Characteristic
Parameter
Description
High capacity enclosed switch
Actuators
• Straight plunger (with boot seal)
• Top roller plunger (without boot seal)
• Flexible rod (with boot seal)
• Manually operated (with boot seal)
• Roller arm, adjustable (with boot seal)
• One-way roller lever (with boot seal)
• NMaintained contact (reset) plunger (with boot seal)=
Conduit
1/2 in-14 NPT
Switching options
1NO/1NC SPDT maintained
1NO/1NC SPDT snap-action
2NO/2NC DPDT snap-action
Sealing
NEMA 1, 3, 4 and 13
Operating temperature
-32 °C to 71 °C [-25 °F to 160 °F] (standard)
Housing material
Zinc die-cast
Approvals
UL, CSA
SWITCHING
SPDT
ELECTRICAL RATINGS
DPDT
2 Honeywell • Sensing and Control
Rating Code Electrical rating
B
UL/CSA Rating:
10 A, 125 Vac or 250 Vac
0.3 A, 125 Vdc; 0.15 A, 250 Vdc
D
UL/CSA Rating:
20 A, 125 Vac, 250 Vac or 480 Vac
1 HP, 125 Vac; 2 HP, 250 Vac
1/2 A, 125 Vdc; 1/4 A, 250 Vdc
Lamp load, 10 A, 125 Vac
High Capacity Enclosed Switches
Straight Plunger
Maintained Contact Straight
Plunger (Reset) Switch
Description
Pretravel
2,39 mm [0.094 in]
3,59 mm [0.141 in]
2,39 mm [0.094 in]
Different. travel
0,26 mm [0.010 in]
1,53 mm [0.060 in]
–
Overtravel
5,56 mm [0.219 in]
3,96 mm [0.156 in]
4,45 mm [0.219 in]
Operating force
11,2 N [2.5 lb]
11,2 N [2.5 lb]
7,79 N [1.75 lb]
Operating position
53,19 mm ±0,76 mm
[2.094 in ±0.030 in]
52,07 mm ±1,0 mm
[2.05 in ±0.040 in]
–
Actuator
Position
Electric
Rating
Seal boot
Switching
Right
D
Yes
SPDT

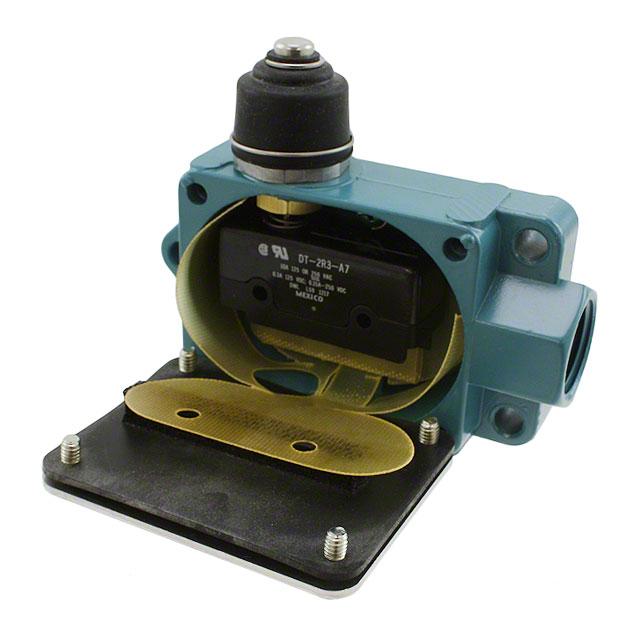

BAF1-2RN-RH
Left
D
Yes
SPDT
BAF1-2RN-LH
Right
B
Yes
DPDT
Left
B
Yes
DPDT
Yes
Maintained
SPDT
Right
D
Options
DTF2-2RN-RH
DTF2-2RN-LH
with boot seal on
both top and bottom
plungers
BAF1-3RNX1
Honeywell • Sensing and Control
3
MICRO SWITCH™ BAF/DTF Series
Roller Plunger
Description
Pretravel
2,39 mm [0.094 in]
Different. travel
0,25 mm [0.010 in]
1,53 mm
[0.060 in]
0,19 mm
[0.0075 in]
1,53 mm
[0.060 in]
Overtravel
3,96 mm [0.156 in]
3,18 mm [0.125 in]
4,75 mm [0.187 in]
3,18 mm [0.125 in]
Operating force
Operating
position
3,18 mm [0.125 in]
11,1 N [2.5 lb]
64,69 mm [2.547 in]
63,88 mm [2.515 in]
35,6 N [8 lb]
64,69 mm [2.547 in]
63,88 mm [2.515 in]
Actuator
Position
Electric
Rating
Seal boot
Switching
Options
Right
D
No
SPDT
field adjustable
360° horizontally
BAF1-2RQ9-RH
Left
D
No
SPDT
field adjustable
360° horizontally
BAF1-2RQ9-LH
Right
D
No
DPDT
field adjustable
360° horizontally
DTF2-2RQ9-RH
Left
D
No
DPDT
field adjustable
360° horizontally
DTF2-2RQ9-LH
Right
D
No
SPDT
has o-ring actuator
seal; field adjustable
360° horizontally
BAF1-2RQN8-RH
Left
D
No
SPDT
has o-ring actuator
seal; field adjustable
360° horizontally
BAF1-2RQN8-LH
Right
D
No
DPDT
has o-ring actuator
seal; field adjustable
360° horizontally
DTF2-2RQN8-RH
Left
D
No
DPDT
has o-ring actuator
seal; field adjustable
360° horizontally
DTF2-2RQN8-LH
4 Honeywell • Sensing and Control
High Capacity Enclosed Switches
Roller Lever
One-Way Roller
Lever
Flexible Rod
Description
Pretravel
5,56 mm [0.219 in]
7,93 mm [0.312 in]
5,56 mm [0.219 in]
15°
Different. travel
0,51 mm [0.020 in]
3,05 mm [0.120 in]
0,51 mm [0.020 in]
–
Overtravel
6,35 mm [0.250 in]
5,56 mm [0.219 in]
6,35 mm [0.250 in]
–
8,90 N [2 lb]
11,1 N [2.5 lb]
8,90 N [2 lb]
–
–
–
–
–
Operating force
Operating
position
Actuator
Position
Electric
Rating
Seal
boot
Switching
Options
Right
D
Yes
SPDT
field adjustable
360° horizontally
and 225° vertically
BAF1-2RN2-RH
Left
D
Yes
SPDT
field adjustable
360° horizontally
and 225° vertically
BAF1-2RN2-LH
Right
D
Yes
DPDT
field adjustable
360° horizontally
and 225° vertically
DTF2-2RN2-RH
Left
D
Yes
DPDT
field adjustable
360° horizontally
and 225° vertically
DTF2-2RN2-LH
Right
D
Yes
SPDT
field adjustable
360° horizontally
and 180° vertically
BAF1-2RN28-RH
Left
D
Yes
SPDT
field adjustable
360° horizontally
and 180° vertically
BAF1-2RN28-LH
Right
D
Yes
SPDT
operates from any
direction, except
direct pull
BAF1-2RN18-RH
Left
D
Yes
SPDT
operates from any
direction, except
direct pull
BAF1-2RN18-LH
Honeywell • Sensing and Control
5
MICRO SWITCH™ BAF/DTF Series
Manually Actuated Palm
Button
Roller Arm Adjustable
(Reset) Switch
Coil Wobble (Reset)
Switch
Pretravel
–
5,56 mm [0.219 in]
15°
Different. travel
–
–
–
Overtravel
–
6,35 mm [0.25 in]
–
8,90 N [2 lb]
6,67 N [1.5 lb]
–
–
60,71 mm [2.390 in]
–
Description
Operating force
Operating
position
Actuator
Position
Electric
Rating
Seal boot
Switching
Options
Right
D
Yes
SPDT
field adjustable
360° horizontally
and 180° vertically
BAF1-2RN4-RH
Left
D
Yes
SPDT
field adjustable
360° horizontally
and 180° vertically
BAF1-2RN4-LH
Right
D
Yes
Maintained
SPDT
with boot seals
on roller arm and
plunger
BAF1-3RNX2-RH
Left
D
Yes
Maintained
SPDT
with boot seals
on roller arm and
plunger
BAF1-3RNX2-LH
Right
D
Yes
Maintained
SPDT
with boot seals on
wobble and plunger
6 Honeywell • Sensing and Control
BAF1-3CN18X1
High Capacity Enclosed Switches
DIMENSIONS
Figure 1. Pin Plunger: BAF1/DTF1-2RN-XX (left-hand version shown)
Figure 2. Roller Plunger: BAF1/DTF-2RQ9-XX (left-hand version shown)
Figure 3. Roller lever: BAF1/DTF1-2RN2-XX (left-hand version shown)
Honeywell • Sensing and Control
7
MICRO SWITCH™ BAF/DTF Series
Figure 4. Maintained Contact Straight Plunger (Reset): BAF1-3RNX1
Figure 5. Roller plunger: BAF1/DTF1-2RQN8-XX (left-hand version
Figure 6. Flexible rod: BAF1/DTF1-2RN18-XX (left-hand version
Figure 7. Coil Wobble (Reset) Switch: BAF1/DTF1-3CN18X1-XX (left-
shown)
8 Honeywell • Sensing and Control
shown)
hand version shown)
High Capacity Enclosed Switches
Figure 8. One-way roller lever: BAF1/DTF1-2RN28-XX (left-hand version shown)
Figure 9. Manually Actuated Palm Button: BAF1/DTF1-2RN4-XX (left-hand version shown)
Figure 10. Roller Arm Adjustable (Reset) Switch: BAF1/DTF1-3RNX2-XX (left-hand version shown)
Honeywell • Sensing and Control
9
MICRO SWITCH™ BAF/DTF Series
PRODUCT NOMENCLATURE
BA
F1
Switch Type
Enclosure
Type
BA Series
Enclosed
Basic Switch
SPDT, 20 A
F1
—
3-hole,
side mount,
die-cast zinc
2
R
N
Contact
Gap
Contact
Plunger
Type
2
0.020 in
3C
0.036 in1
10 Honeywell • Sensing and Control
R
Standard
N
Actuator
Modifications
Seal boot
X1
Additional
Modifications
Pin
plunger
LH
Maintained
contact with
reset plunger1
RH
2
Adjustable
roller lever
4
Manual, palm
button
18
Coil spring
wobble stick
28
One-way
roller lever
Plunger
located to
the left2
Plunger
located to
the right2
MICRO SWITCH™ BAF/DTF Series
