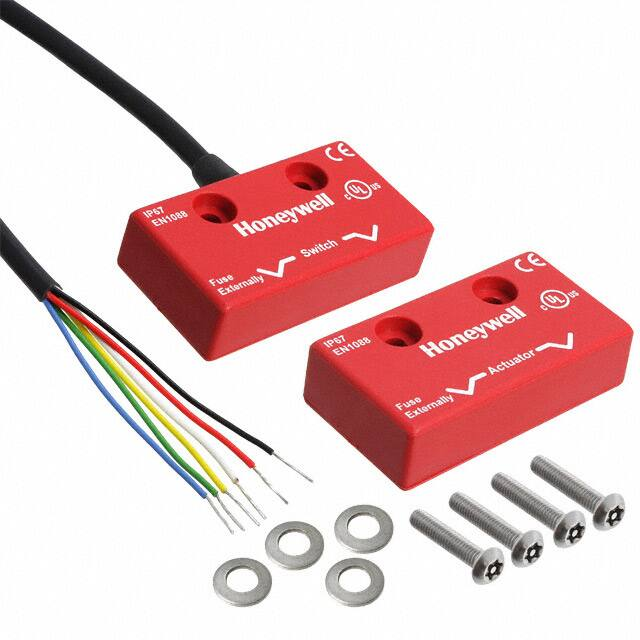

Sensing and Internet of Things Non-Contact Safety Switches 004746 FF5 Series Issue 3 Datasheet FEATURES • Non-contact design requires no operating force to actuate switch • ABS plastic housing or 316 Series stainless steel housing for switch and actuator • Pre-wired cable length of 3 meters or 10 meters • Compact size of 52 mm x 28 mm x 14 mm [2.0 in x 1.1 in x 0.55 in] • IP67 environmentally sealed switch and actuator • CE and UL 508 certifications DIFFERENTIATION DESCRIPTION Honeywell FF5 Series are magnetically actuated, noncontact, pre-wired safety switches for use in machine guarding applications. These switches are designed to monitor the position of the guard and provide inputs to safety relays. The compact rectangular packaged switch and actuator are available with either an ABS plastic or 316 • Non-contact sensing requires no mechanical linkage to actuate switch • Two safety contacts when actuated for inputs to safety relay • Auxiliary contact closes when actuator moves out of the operating range POTENTIAL APPLICATIONS With CE and UL certifications, the switches can be installed Equipment and machinery guards • Can forming and filling (aluminum, plastic, and steel) • Packaging equipment • Pick and place assembly equipment • Plastic molding equipment • Printing machinery • Semiconductor equipment • Textile machinery • Woodworking equipment on machinery for global applications. PORTFOLIO VALUE TO CUSTOMERS Honeywell FF5 Series safety switches are part of a comprehensive line of Honeywell electromechanical and non-contact safety switches. For more details on the extensive line of Honeywell safety switches, click here. Series stainless steel housing. The small housing permits installation on machinery where there is limited space. A magnetic actuator is supplied with each switch. The noncontact switch design allows for flexible installations where misalignment of the machine guard may occur. Installed with two M4 or #8 screws, the FF5 Series is sealed to IP67 for wet and dusty environmental applications. • Non-contact sensing minimizes installation and set-up • Pre-wired cable with color coded individual lead wires simplifies electrical connection • Actuator can approach switch from head-on, slide-by, or rotation/hinge for flexible installation Sensing and Internet of Things Non-Contact Safety Switch, FF5 Series Table 1. Specifications Characteristic Parameter Description Magnetically actuated non-contact safety switch, FF5 Series Certifications cULus/UL 508; File E37138, Industrial control CE; DOC A347 Reference standards: EN60947-5-1; Low voltage switchgear and controlgear EN60947-5-3; Low voltage switchgear and controlgear EN61000-6-2; Electromagnetic compatibility, Immunity EN61000-6-4; Electromagnetic compatibility, Emissions EN60204-1; Safety of machinery, General requirements EN62061; Safety of machinery, Functional safety EN ISO 13849-1; Safety of machinery, Safety-related parts of control systems EN ISO 13850; Safety of machinery, Emergency stop function Switch and actuator housing material FF5; ABS plastic FF5-SS; 316 stainless steel Termination Pre-wired six-conductor color-coded cable Ø 4,55 mm [0.18 in], 3 meters or 10 meters length Contacts (when actuator present) 2NC/1NO Contact design Magnetically actuated Safety contact rating* 300 mA/24 Vdc Safety contact sensing distance** 7 mm [0.28 in] ON/17 mm [0.67 in] OFF Auxiliary contact rating* 300 mA/24 Vdc Auxiliary contact sensing distance** 7 mm [0.28 in] OFF/17 mm [0.67 in] ON External fuse (customer supplied) 0.2 A fast acting Environmental sealing IP67 for switch and actuator Operating temperature -25 °C to 55 °C [-13 °F to 131 °F] Vibration/shock 10 g, 50 Hz to 100 Hz * ** Designed for interfacing to safety relays which has low inrush current to the FF5 Series switch contacts. Sensing distance is front surface of switch to front surface of actuator. When actuated the targets on the surface of the switch and actuator are designed to align. Figure 1. FF5 Contact Configuration Red Figure 2. FF5 Wiring Blue Black White Green Yellow 0.2 Amp Red Blue 0.2 Amp Black White Note: Contact configuration shown under closed condition for guard device. 0.2 Amp Green Yellow Actuator 2 sensing.honeywell.com Switch Normally Closed Normally Closed Normally Open Non-Contact Safety Switch, FF5 Series Figure 3. FF5 Series Sensing Distance 20 [0.79] mm [in] 18 [0.71] 16 [0.63] 14 [0.55] NC off NO on 12 [0.47] 10 [0.39] 8 [0.31] 6 [0.24] mm [in] 4 [0.16] NC on NO off 2 [0.08] Normally closed circuit is the safety contact/switch and is closed when the actuator is sensed by the the switch. 8 [0.31] 10 [0.39] 6 [0.24] 4 [0.16] 0 2 [0.08] -2 [-0.08] -4 [-0.16] -6 [-0.24] -8 [-0.31] -10 [-0.39] 8 [0.31] 10 [0.39] 6 [0.24] 4 [0.16] 0 2 [0.08] -2 [-0.08] -4 [-0.16] -6 [-0.24] -8 [-0.31] -10 [-0.39] 0 Normally open circuit is an optional auxiliary contact which closes when the actuator is no longer sensed. Table 2. FF5 Series Order Guide Catalog Listing Description FF5-21-DC-03 Switch and actuator, ABS plastic housing and actuator, 2NC/1NO, pre-wired with 3 m cable FF5-21-DC-03-SS Switch and actuator, Stainless steel housing and actuator, 2NC/1NO, pre-wired with 3 m cable FF5-21-DC-10 Switch and actuator, ABS plastic housing and actuator, 2NC/1NO, pre-wired with 10 m cable FF5-21-DC-10-SS Switch and actuator, Stainless steel housing and actuator, 2NC/1NO, pre-wired with 3 m cable Figure 4. FF5 Series Dimensions 53,0 [2.08] 52,0 [2.04] 3,0 [0.11] 22,0 [0.86] 28,0 [1.1] 14,0 [0.55] Side View 3,0 [0.11] 22,0 [0.86] 29,0 [1.14] Side View 13,5 [0.53] Ø 4,2 [0.16] Ø 4,2 [0.16] Ø 8,1 [0.32] 6,4 [0.25] FF5 ABS 6,4 [0.25] Ø 8,1 [0.32] FF5 SS Sensing and Internet of Things 3 m WARNING ADDITIONAL MATERIALS The following associated literature is available on the Honeywell web site at sensing.honeywell.com: • Product installation guide • Product range guide RISK TO LIFE OR PROPERTY Never use this product for an application involving serious risk to life or property without ensuring that the system as a whole has been designed to address the risks, and that this product is properly rated and installed for the intended use within the overall system. Failure to comply with these instructions could result in death or serious injury. m WARNING MISUSE OF DOCUMENTATION • • The information presented in this product sheet is for reference only. Do not use this document as a product installation guide. Complete installation, operation, and maintenance information is provided in the instructions supplied with each product. Failure to comply with these instructions could result in death or serious injury. Warranty/Remedy Honeywell warrants goods of its manufacture as being free of defective materials and faulty workmanship during the applicable warranty period. Honeywell’s standard product warranty applies unless agreed to otherwise by Honeywell in writing; please refer to your order acknowledgment or consult your local sales office for specific warranty details. If warranted goods are returned to Honeywell during the period of coverage, Honeywell will repair or replace, at its option, without charge those items that Honeywell, in its sole discretion, finds defective. The foregoing is buyer’s sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Honeywell be liable for consequential, special, or indirect damages. For more information Honeywell Sensing and Internet of Things services its customers through a worldwide network of sales offices and distributors. For application assistance, current specifications, pricing or the While Honeywell may provide application assistance personally, through our literature and the Honeywell web site, it is buyer’s sole responsibility to determine the suitability of the product in the application. Specifications may change without notice. The information we supply is believed to be accurate and reliable as of this writing. However, Honeywell assumes no responsibility for its use. nearest Authorized Distributor, visit sensing.honeywell.com or call: Asia Pacific +65 6355-2828 Europe +44 1698 481481 USA/Canada +1-800-537-6945 Honeywell Sensing and Internet of Things 9680 Old Bailes Road Fort Mill, SC 29707 www.honeywell.com 004746-3-EN | 3 | 02/19 © 2019 Honeywell International Inc.
