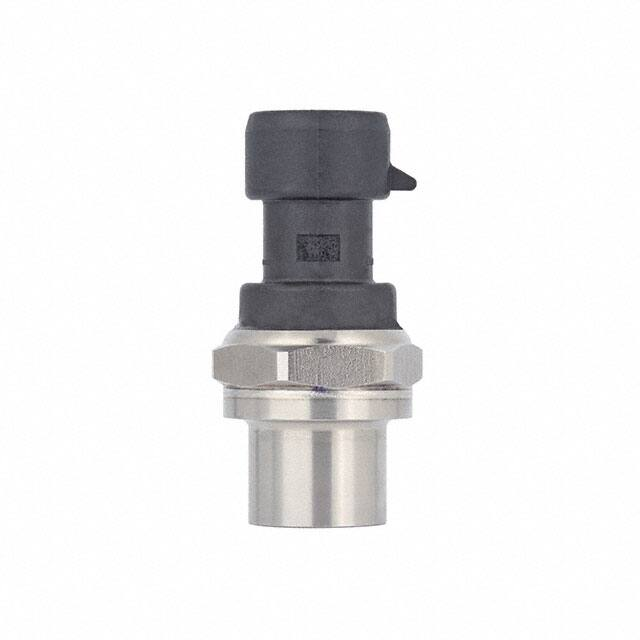

MIP SERIES 32354483 Issue C Heavy Duty, Media-Isolated Pressure Transducers 1 bar to 60 bar | 15 psi to 870 psi DESCRIPTION DIFFERENTIATION The MIP Series offers a heavy duty, media-isolated pressure transducer in a compact, stainless steel construction for use with a wide range of media including aggressive fluids and water. The MIP Series provides a cost-competitive solution for wide-ranging potential applications in tough environments. • Diagnostics: Beneficial in applications where the sensor functionality and the need to know internal or external failure modes is critical. • Great customer value: Multiple configuration possibilities provide flexibility of use in the application with no up front NRE or tooling charges. • Durable: Provides the tough environmental capabilities needed, including long-term stability, insulation resistance and dielectric strength, external freeze-thaw resistance for the Metri-Pack 150 versions and EMC performance. VALUE TO CUSTOMERS • Total Error Band (TEB) ±0.75 %FSS (Full Scale Span) from -40°C to 125°C for ratiometric output: Provides true measurement performance over the compensated temperature range; small error promotes system uptime and efficiency (see Figure 5). • 4 mA to 20 mA output: Supports transmission of output signals over longer distances • EMC performance: Operates reliably in the presence of electromagnetic fields, such as wireless signals, RF communication, and electrical devices. • Hermetically welded design: Supports almost any media without the use of an internal seal. The sensors are designed to be used in harsh environments which see aggressive media. Industrial: pumps compressors process • • • • • • Certified to NSF/ANSI/CAN 61 • • • • • TABLE 1. POTENTIAL APPLICATIONS INDUSTRY FEATURES MEDIA water, hydraulic fluids compressed air food, beverage, oil, gas, steam HVAC/R refrigerants (butane, propane, ammonia, CO2, R134A, R407C, R410A, R448A/Solstice® N40, R32 and R1234ze, R1234yf, glycol + water Transportation gasoline, diesel fuel, engine oil, brake fluid, coolants, CNG Medical O2, N2, CO2, N2O, air Rugged, stainless steel construction Ratiometric output: 0.5 Vdc to 4.5 Vdc Current output: 4 mA to 20 mA Operating temperature: -40°C to 125°C Total Error Band: ±0.75 %FSS to ±1.0 %FSS (-40°C to 125°C) for voltage output Industry-leading accuracy: ±0.15 %FSS BFSL for voltage output Long term stability: ±0.25 %FSS Radiated immunity: 100 V/m Drinking water approval: NSF/ANSI/CAN 61 CE, UKCA, RoHS, REACH compliant Mis-wiring protection PORTFOLIO Honeywell offers a variety of heavy duty pressure transducers for potential use in industrial and transportation applications. To view the entire product portfolio, click here. MIP SERIES HEAVY DUTY, MEDIA-ISOLATED PRESSURE TRANSDUCERS TABLE 2. ELECTRICAL SPECIFICATIONS (AT 25°C [77°F] AND UNDER UNLESS OTHERWISE NOTED.) CHARACTERISTIC RATIOMETRIC OUTPUT (AA) CURRENT OUTPUT (CH) Supply voltage (Vs) 5.0 Vdc ±0.25 Vdc 8 Vdc to 30 Vdc1 Output transfer function 10 % to 90 % of Vs 4 mA to 20 mA > 2 kΩ (Vs - 8) x 50Ω2 Output load (pull up or pull down) Short circuit protection yes Current consumption 6.5 mA ±1 mA _ Over/reverse voltage ±40 Vdc ±35 Vdc Supply voltage: Must be de-rated to 8 Vdc to 25 Vdc for above 100°C to 125°C [212°F to 257°F]. 2 Applies at 25°C [77°F]. See Figure 4 for Current Output Supply Voltage. 1 TABLE 3. PERFORMANCE SPECIFICATIONS (AT 25°C [77°F] AND UNDER UNLESS OTHERWISE NOTED.) CHARACTERISTIC Total Error Band1 Operating temperature range Accuracy BFSL3 Long term stability (1000 hr, 25°C) Typical output resolution Typical response time4 Startup time5 EMC rating (CE Conformity): surge immunity (all leads) electrostatic discharge radiated immunity fast transient burst immunity to conducted disturbances radiated emissions RATIOMETRIC OUTPUT CURRENT OUTPUT >10 bar or >150 psi: ±0.75 %FSS (-40°C to 125°C) ±1.0 %FSS (-20°C to 85°C) 3 to 12 24 >12 to 60 120 BURST PRESSURE2 207 OPERATING PRESSURE OVERPRESSURE1 15 to 43.5 87 >43.5 to 174 348 >174 to 870 1740 BURST PRESSURE2 3000 Overpressure: The maximum pressure which may safely be applied to the product for it to remain in specification once pressure is returned to the operating pressure range. Exposure to higher pressures may cause permanent damage to the product. 2 Burst Pressure: The maximum pressure which may be applied without causing escape of pressure media. The product should not be expected to function after exposure to the burst pressure. 1 FIGURE 2. RATIOMETRIC OUTPUT TRANSFER FUNCTION FIGURE 3. ABSOLUTE VS SEALED GAGE The transfer function shown here is applicable to a ratiometric output ranging between 10 % Vsupply at null pressure to 90 % Vsupply at full scale pressure. Example shown is for 100 psi. 5 4.5 Compensated Pressure Range 97.5 4.875 4.5 10 2.5 Ideal Total Error Band Pmin. 3.5 3 2.5 100 psi absolute 2 100 psi sealed gage 1.5 1 0.5 0.125 Pmax. Pressure 4 Output (V) Output (Vdc) Output (% Vsupply) 90 0.5 0 0 20 40 14.7 0.8 x Vsupply x (Pressureapplied - Pmin.) + 0.10 x Vsupply Output (V) = Pmax.- Pmin. 60 80 100 Pressure (psi Absolute) 120 140 114.7 FIGURE 4. CURRENT OUTPUT SUPPLY VOLTAGE VS TEMPERATURE 32 Supply Voltage (V) 30 28 Load Resistance 26 10 Ohm 24 100 Ohm 22 250 Ohm 20 18 16 100 105 110 115 120 125 Operating Temperature (ºC) MIP Series Heavy Duty, Media-Isolated Pressure Transducers Datasheet | sps.honeywell.com/ast | 4 MIP SERIES HEAVY DUTY, MEDIA-ISOLATED PRESSURE TRANSDUCERS TOTAL ERROR BAND Total Error Band (TEB) is a single specification that includes the major sources of sensor error. TEB should not be confused with accuracy, which is actually a component of TEB. TEB is the maximum error that the sensor could experience. Many competitors do not use TEB—they simply specify the accuracy of their device. Their accuracy specification, however, may exclude certain parameters. On their datasheet, the errors are listed individually. When combined, the total error (or what Honeywell uses the TEB specification in its datasheet because it is would be TEB) could be significant. the most comprehensive measurement of a sensor’s true accuracy. Honeywell also provides the accuracy specification in order to provide a common comparison with competitors’ literature that does not use the TEB specification. FIGURE 5. TEB COMPONENTS FOR THE MIP SERIES Sources of Error Offset Full Scale Span Pressure Non-Linearity Total Error Band (%FSS) Pressure Hysteresis Pressure Non-Repeatability Thermal Effect on Offset Thermal Effect on Span Thermal Hysteresis Accuracy BFSL Total Error Band 3 TABLE 6. OUTPUT DIAGNOSTIC CODE FOR RATIOMETRIC OUTPUT FAULT CONDITION ANALOG DIAGNOSTIC RAIL 2 Sensor internal failures Over pressure 97.5 % of Vsupply (See Figure 2.) 1 97.5 % of Vsupply (See Figure 2.) Total Error Band 2.5 % of V 0 Under pressure (for sealed gage only) supply (See Figure 2.) Power or ground loss -1 high (external pull-up resistor) Power or ground loss low (external pull-down resistor) -2 -3 -40°C [-40°F] -20°C [-4°F] 0°C [32°F] 85°C [185°F] 125°C [257°F] Temperature (°C [°F]) MIP Series Heavy Duty, Media-Isolated Pressure Transducers Datasheet | sps.honeywell.com/ast | 5 Pin B Pin C Current Output Pin A = Return Pin B = Supply Pin C = Not connected MIP SERIES HEAVY DUTY, MEDIA-ISOLATED PRESSURE TRANSDUCERS Pin B (Product marking) FIGURE 6. METRI-PACK 150 MOUNTING DIMENSIONS (FOR REFERENCE ONLY. MM/[IN]) Product Marking Pinout Pin A 22,0 A/F [0.87] Pin C Ratiometric Voltage Output Pin A = Ground Pin B = V+ Pin C = Vout MIPXXXXXXXXXXXXX (Product marking) Current Output Pin A = Return Pin B = Supply Pin C = Not connected 16-Digit product listing H YYMMDD XXXXX Honeywell logo CE Mark UKCA Mark CE 5-Digit serial number 6-Digit date NSF-61 NSF Mark Pin B F1: 7/16-20 UNF 1/4 inch 45° Flare Female Schrader (SAE J512) Seal: 45° cone Mating geometry: SAE J512 Installation torque: 17 N m [12 ft-lb] (Product Weight: 36 g [1.3marking) oz] MIPXXXXXXXXXXXXX 35,0 [1.38] 46,2 CE Mark UKCA Mark [1.82] CE 16-Digit product listing Seal: O-ring (included) and retaining ring ISO 1179-3-G1/4 (not included) H YYMMDD XXXXX Mating geometry: ISO 1179-1 5-Digit serial number Honeywell Installation torque: 20 N m [14.7 ft-lb] logo 6-Digit date Ø17,0 Weight: 33 g [1.1 oz] Ø17,0 35,0 [1.38] NSF-61 CE CE Mark UKCA Mark 16-Digit product listing H YYMMDD XXXXX Honeywell logo G1: G1/4 A-G (ISOMIPXXXXXXXXXXXXX 1179-3) Ø17,0 Ø17,0 [0.67] [0.67] Ø17,0 [0.67] NSF-61 Ø17,0[0.67] [0.67] Ø17,0 [0.67] 35,0 35,0[1.38] [1.38] 35,0 [1.38]number 5-Digit serial 6-Digit date 49,0 [1.93] 10,2 10,2 [0.40] [0.40] 10,2 10,2 [0.40] [0.40] [0.67] NSF Mark 46,2 O-ring [1.82] 35,0 10,2 [1.38] [0.40] 46,2 O-ring Profile ring [1.82] Profile 10,2 [0.40] 10,2 [0.40] G2: G1/4 A-L (ISO 1179-2) M1: M12 x 1.5 (ISO 6149-3) Ø17,0 Ø17,0 Seal: O-ring (included) Ø17,0 [0.67] [0.67] [0.67] Mating geometry: ISO 6149-1 Seal: ISO 9974-2/DIN 3869 profile ring (included) Ø17,0 [0.67] Mating geometry: ISO 1179-1 Installation torque: 20 N m [15 ft-lb] Weight: 36 g [1.3 oz] Ø17,0 [0.67] Ø17,0 [0.67] 35,0 [1.38] 48,535,0 [1.91] [1.38] Ø17,0 [0.67] Ø17,0 10,2 [0.67] [0.40] 35,0 [1.38] 49,0 [1.93] 35,0 35,010,2 [1.38] [1.38] [0.40] O-ring 46,2 [1.82] O-ring 10,2 [0.40] 35,0 [1.38] [1.38] 10,2 [0.40] 35,0 35,0 [1.38] [1.38] 10,2 [0.40] N1: 1/4-18 NPT 35,0 [1.38] 35,0 [1.38] 46,2 35,0[1.82] [1.38] 2 0] 50,0 48,5 [1.97] [1.91] 10,2 [0.40] O-ring Ø17,0 [0.67] 48,5 [1.91] 35,0 [1.38] Ø17,0 [0.67] 35,0 [1.38] 35,0 [1.38] 46,2 [1.82] Ø17,0 [0.67] 10,2 [0.40] 10,2 [0.40] 50,0 [1.97] 10,2 [0.40] 49,0 [1.93] 10,2 [0.40] 10,2 [0.40] O-ring 10,2 [0.40] N2: 1/8-27 O-ring Profile ring NPT Profile ring Seal: Pipe thread Mating geometry: ANSI B1.20.1 Installation torque: Two to three turns from finger tight Weight: 30 g [1.0 oz] Pipe thread Ø17,0 Mating geometry: ANSI B1.20.1 [0.67] Installation torque: Two to three turns from finger tight Weight: 38 g [1.3 oz] Ø17,0 [0.67] 50,0 46,2 [1.97] 35,0 10,2 [1.82] [1.38] [0.40] O-ring O-ring Ø17,0 Seal: [0.67] Ø17,0 [0.67] Ø17,0 [0.67] Ø17,0 [0.67] 35,0 [1.38] 49,0 Profile ring 46,2 [1.93] [1.82] 46,2 [1.82] O-ri Installation torque: 20 N m [15 ft-lb] Weight: 34 g [1.235,0 oz] 50,0 Ø17,0 48,5 [1.97] [0.67] [1.91] 10,2 Ø17,0 10,2 [0.40] [0.67] [0.40] Ø17,0 [0.67] Ø17,0 [0.67] 35,0 [1.38] 49,0 46,235,0 [1.93] [1.82] [1.38] Mark 46,2NSF46,2 [1.82] [1.82] 10,2 [0.40] 2 0] ] Pin C = Not connected [0.87] Ø17,0 [0.67] Ø17,0 [0.67] Ø17,0 [0.67] Ø17,0 [0.67] 35,0 [1.38] 35,0 [1.38] 10,2 [0.40] 50,0 [1.97] 10,2 [0.40] 46,2 [1.82] 10,2 [0.40] 35,0 [1.38] 46,2 [1.82] 10,2 [0.40] 10,2 [0.40] O-ring MIP Series Heavy Duty, Media-Isolated Pressure Transducers Datasheet | sps.honeywell.com/ast | 6 2-wire 3-wire MIP SERIES HEAVY DUTY, MEDIA-ISOLATED PRESSURE TRANSDUCERS FIGURE 7. CABLE HARNESS MOUNTING DIMENSIONS (FOR REFERENCE ONLY. MM/[IN]) Product Marking Wireout with Free Ends MIPXXXXXXXXXXXXX Ratiometric Voltage Output Black = Ground Red = V+ White = Vout 22,0 AF [0.87] H YYMMDD XXXXX Honeywell logo Current Output Black = Return Red = Supply 2-wire CE Mark UKCA Mark CE NSF-61 16-Digit product listing 5-Digit serial number 6-Digit date NSF Mark 3-wire F1: 7/16-20 UNF 1/4 inch 45° Flare Female Schrader (SAE J512) Seal: 45° cone Mating geometry: SAE J512 Installation torque: 17 N m [12 ft-lb] Weight: 68 g [2.4 oz] G1: G1/4 A-G (ISO 1179-3) Seal: O-ring (included) and retaining ring ISO 1179-3-G1/4 (not included) Mating geometry: ISO 1179-1 Installation torque: 20 N m [14.7 ft-lb] Weight: 65 g [2.3 oz] 1000 [39.4] MIPXXXXXXXXXXXXX Ø4,75 H YYMMDD [0.187] XXXXX Honeywell logo 31,9 [1.26] CE Mark UKCA 43,1 Mark CE [1.70] NSF-61 1000 [39.4] 16-Digit product listing Ø4,75 [0.187] 5-Digit serial number 6-Digit date 31,9 [1.26] NSF Mark 43,1 [1.70] 10,2 [0.40] 10,2 [0.40] 11,2 [0.44] 11,2 [0.44] G2: G1/4 A-L (ISO 1179-2) Seal: ISO 9974-2/DIN 3869 profile ring (included) Mating geometry: ISO 1179-1 Installation torque: 20 N m [15 ft-lb] Weight: 68 g [2.4 oz] 0-Ring M1: M12 x 1.5 (ISO 6149-3) Seal: O-ring (included) Mating geometry: ISO 6149-1 Installation torque: 20 N m [15 ft-lb] Weight: 66 g [2.3 oz] 1000 [39.4] 1000 [39.4] Ø4,75 [0.187] Ø4,75 [0.187] 31,9 [1.26] 31,9 [1.26] 45,9 [1.81] 45,4 [1.79] 10,2 [0.40] 14,0 [0.55] 13,5 [0.53] Profile ring N1: 1/4-18 NPT Seal: Pipe thread Mating geometry: ANSI B1.20.1 Installation torque: Two to three turns from finger tight Weight: 79 g [2.5 oz] 10,2 [0.40] O-Ring N2: 1/8-27 NPT Seal: Pipe thread Mating geometry: ANSI B1.20.1 Installation torque: Two to three turns from finger tight Weight: 62 g [2.2 oz] 1000 [39.4] 1000 [39.4] Ø4,75 [0.187] Ø4,75 [0.187] 31,9 [1.26] 46,9 [1.85] 31,9 [1.26] 10,2 [0.40] 15,0 [0.59] 43,1 [1.70] 10,2 [0.40] 11,2 [0.44] MIP Series Heavy Duty, Media-Isolated Pressure Transducers Datasheet | sps.honeywell.com/ast | 7 ADDITIONAL MATERIALS WARRANTY/REMEDY The following associated literature is available on our website: Honeywell warrants goods of its manufacture as being free of defective materials and faulty workmanship during the applicable warranty period. Honeywell’s standard product warranty applies unless agreed to otherwise by Honeywell in writing; please refer to your order acknowledgment or consult your local sales office for specific warranty details. If warranted goods are returned to Honeywell during the period of coverage, Honeywell will repair or replace, at its option, without charge those items that Honeywell, in its sole discretion, finds defective. The foregoing is buyer’s sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Honeywell be liable for consequential, special, or indirect damages. • Product range guide • Application-specific and technical information • CAD Models While Honeywell may provide application assistance personally, through our literature and the Honeywell web site, it is buyer’s sole responsibility to determine the suitability of the product in the application. FOR MORE INFORMATION Honeywell Advanced Sensing Technologies services its customers through a worldwide network of sales offices and distributors. For application assistance, current specifications, pricing or the nearest Authorized Distributor, visit our website or call: USA/Canada Latin America Europe Japan Singapore Greater China Specifications may change without notice. The information we supply is believed to be accurate and reliable as of this writing. However, Honeywell assumes no responsibility for its use. +1 302 613 4491 +1 305 805 8188 +44 1344 238258 +81 (0) 3-6730-7152 +65 6355 2828 +86 4006396841 Honeywell Advanced Sensing Technologies 830 East Arapaho Road Richardson, TX 75081 sps.honeywell.com/ast 32354483-C-EN | C | 10/21 © 2021 Honeywell International Inc. All rights reserved. m WARNING PERSONAL INJURY DO NOT USE these products as safety or emergency stop devices or in any other application where failure of the product could result in personal injury. Failure to comply with these instructions could result in death or serious injury.
