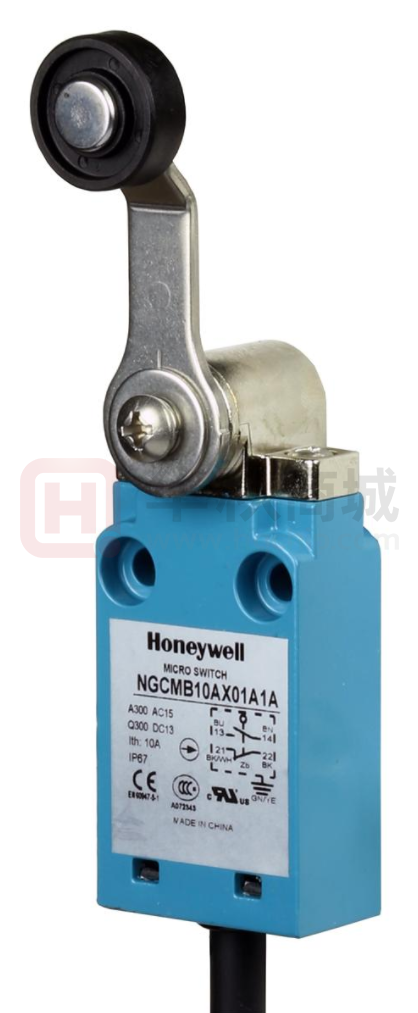

MICRO SWITCH™ Compact Limit Switches NGC Series 002409 Issue 2 Datasheet FEATURES • SPDT or DPDT configurable circuitry • Snap-action, positive-break contacts • Silver alloy and gold plated contact options • UL, CE, cUL, and CCC approvals • NEMA 1, 4, 12, 13; IP67 sealing • Metal and plastic housing options • Cable and connector terminations • Variety of heads and actuator levers POTENTIAL INDUSTRIAL APPLICATIONS DESCRIPTION Honeywell’s MICRO SWITCH™ Compact Limit Switches, NGC Series, are a configurable platform of medium-duty switches that allow the customer to choose SPDT (single pole, double throw) or DPDT (double pole, double throw) circuitry while maintaining the same housing and mounting footprint throughout the NGC Series. MICRO SWITCH™ NGC Series can be configured more than 380,000 ways, carries global approvals, and are sealed to IP67 for potential use in indoor and outdoor applications. VALUE TO CUSTOMERS • Cost-effective: Provides a single source for a compact SPDT and DPDT limit switch, which can help minimize the Original Equipment Manufacturer’s sourcing expenses by simplifying their supply chain • Versatile: Durable packaging allows for use in many harsh indoor or outdoor applications, providing performance confidence • Configurable: Allows design engineers to standardize on a single footprint while meeting a variety of electrical requirements • Application support: Customers with a global footprint can count on Honeywell for regional support for new applications and troubleshooting DIFFERENTIATION • With two times the vibration (10 g) and shock (50 g) ratings of comparable competitive devices, the NGC Series can be implemented in the harshest of environmental conditions, providing enhanced reliability and repeatability • Broader current capacity (up to 10 A) than comparable devices allows for potential use in a wider set of applications, making platform standardization an easier task Sensing and Productivity Solutions • Boom position detection • Elevators and escalators • Machine tools • Mobile light towers • Packaging equipment • Rail doors • Scissor lifts PORTFOLIO The NGC Series joins the 14CE, 914CE, LS, and E6/V6 Series of Medium-Duty Limit Switches. Honeywell also offers a portfolio of MICRO SWITCH™ Heavy-Duty Limit Switches and Global Limit Switches. MICRO SWITCH™ Compact Limit Switches, NGC Series Table 1. Specifications Characteristic Parameter Description compact, medium-duty limit switches Actuators Side Rotary Configurations • Side rotary • Side rotary (short) • Side rotary with adjustable length roller lever • Reversed side rotary (short) • Reversed side rotary with adjustable length roller lever Plunger Configurations • Pin plunger (standard 4,8 mm [0.19 in] and long 7,4 mm [0.29 in]) • Roller plunger (standard 15,3 mm [0.60 in] and long 17,85 mm [0.70 in]) • Cross roller plunger (standard 15,3 mm [0.60 in] and long 17,85 mm [0.70 in]) • Pin plunger with boot seal • Panel-mount pin plunger • Panel-mount roller plunger • Panel-mount cross roller plunger • Panel-mount pin plunger with boot seal Terminations (SPDT) Normal cable, 0,75 mm2 (18 AWG) cable PUR cable, 0,75 mm2 (18 AWG) cable Special application cable, 4 & 5 x 0,75 mm2 (18 AWG) non-halogen cable Connector, 4-pin male, M12 thread Connector, 5-pin male, M12 thread Terminations (DPDT) Normal cable, 0,50 mm2 (20 AWG) cable PUR cable, 0,50 mm2 (20 AWG) cable Special application cable, 8 & 9 x 0,50 mm2 (20 AWG) non-halogen cable Connector, 4-pin male, M12 thread Connector, 5-pin male, M12 thread Material approval standard (only applicable for product with non-halogen cable) DIN5510-2-2009 (flammability rating: S3; smoke rating: > SRI; weld rating: ST2; toxic gas rating: FED(TZUL=15min)< 1) Switching options SPDT, DPDT; snap action contacts (1NC/1NO, 2NC/2NO) Sealing NEMA 1, 4, 12, 13; IP67 per IEC 60529 suitable for outdoor applications Contacts snap action, positive break standard: silver alloy; gold: gold-plated Operating temperature -25 °C to 70 °C [ -13 °F to 158 °F] Storage temperature -40 °C to 85 °C [-40 °F to 185 °F] Mechanical endurance 1NC/1NO: 5 M cycles min. at 120 CPM 2NC/2NO: 5 M cycles min. at 60 CPM Electrical life 1 A 110 Vdc 500,000 cycles applicable only for NC circuit Thermal current 1NC/1NO: 10 A; 2NC/2NO: 5 A Rated insulation voltage (Ui) 1NC/1NO: 400 V as per IEC 60947-5-1 2NC/2NO: 250 V as per IEC 60947-5-1 Dielectric strength 1890 Vac for metal housing; 2890 Vac for plastic housing 1500 Vac between all terminals to enclsoure after durability test Impulse voltage 1NC/1NO: 2500 Vdc as per IEC 60947-5-1 2NC/2NO: 1500 Vac as per IEC 60947-5-1 Pollution degree 3 (III) Humidity 95 %RH max. Operating speed 0,3 mm/s to 2 m/s Switching frequency 1NC/1NO: 120 cpm max. 2NC/2NO: 60 cpm max. Shock 50 g for 11 ms as per IEC 60068-2-27; railway application, per IEC 61373 Class I Car B type Vibration 10 g as per IEC 60068-2-6, frequency range 10 Hz to 500 Hz; railway application per IEC 61373 Class I Car B type Approvals UL (UL508), cUL, CE (IEC 60947-5-1), CCC (GB14048.5-2008) Conforming to IEC Standards IEC 60947-5-1, IEC 61373 2 sensing.honeywell.com MICRO SWITCH™ Compact Limit Switches, NGC Series Table 2. Electrical Ratings Circuitry/contacts Rating, Rated Voltage & Current 1NC/1NO (silver-alloy contacts) A300 AC15: 120 V 6 A; 240 V 3 A per IEC 60947-5-1 and UL 508 Q300 DC13: 125 Vdc 0.55 A; 250 Vdc 0.27 A per IEC 60947-5-1 an UL 508 1NC/1NO (gold-plated contacts) low level current: 30 mVdc 10 mA resistive 2NC/2NO (silver-alloy contacts) C300 AC15: 0.75 A 250 Vac per IEC 60947-5-1 R300 DC13: 0.1 A 250 Vdc per IEC 60947-5-1 2NC/2NO (gold-plated contacts) low level current: 30 mVdc 10 mA resistive Figure 1. Product Nomenclature and Order Guide NGC M A 02 Switch Type Housing Connection Cable Length NGC Series Medium-Duty Compact Limit Switch M Metal A Side exit, right 00 No cable. Internal connector P Plastic B Bottom exit 02 0,25 m [0.82 ft] Q Plastic with mounting ring support C Side exit, left A X Connector/Cable Connector at Exiting Housing End of Cable A Standard cable B Halogen-free cable X None 01 A 1 1 Switch Type Head Type Levers (Optional) Rollers (Optional) 01 1NC/1NO snap action silver contacts A Side rotary 07 1NC/1NO snap action gold contacts B Pin plunger None 1 Standard, fixed length1 A 18 mm nylon roller2 B 18 mm stainless steel roller2 C 18 mm nylon roller, reversed3 D 18 mm stainless steel roller, reversed3 05 0,5 m [1.64 ft] D PUR cable 24 2NC/2NO snap action silver contacts C Roller plunger 2 Adjustable length, roller lever1 07 0,7 m [2.3 ft] N M12 4-pin micro change, dc connector 32 2NC/2NO snap action gold contacts D Long pin plunger 6 Short, fixed length1 10 1,0 m [3.28 ft] P M12 5-pin micro change, dc connector L Cross roller plunger 15 1,5 m [4.92 ft] M Pin plunger w/ boot seal 20 2,0 m [6.56 ft] N Panel-mount pin plunger 30 3,0 m [9.84 ft] P Panel-mount roller plunger 40 4,0 m [13.12 ft] Q Panel-mount cross-roller plunger 50 5,0 m [16.4 ft] R Panel-mount pin plunger w/ boot seal S Long roller plunger T Long cross-roller plunger NOTE: not all combinations of model code are available. Please contact your Honeywell provider/representative for assistance. 1 Only applicable for Head Type “A” Only applicable for Lever Types “1, 2, 6” 3 Only applicable for Lever Types “2, 6” 2 None Modifications Serialized number for specials Common Part Numbers NGCMB10AX01A1A NGCMB10AX01B NGCMB10AX01L NGCMB10AX01M NGCMB10AX01N NGCMB10AX01P NGCMB10AX01Q NGCMB10AX01R NGCMB10AX07A1A NGCMB10AX24A1A NGCMB10AX24C NGCPA00NX01A1A NGCMA00PX01A1A NGCPA00NX01C NGCPB10AX01A1A NGCPB10AX01B NGCPB10AX01C NGCPB10AX01L NGCPB10AX01M NGCPB10AX01N NGCPB10AX01P NGCPB10AX01Q NGCPB10AX01R NGCPB10AX07A1A NGCPB10AX24C NGCMB10AX01A1B NGCMA10AX01C NGCMA10AX01M NGCMB10AX01C NGCPB10AX24A1A NGCMB10AX07C NGCMB10AX32C NGCMA10AX01A1A NGCPB10AX07C NGCPB10AX24C Sensing and Productivity Solutions 3 MICRO SWITCH™ Compact Limit Switches, NGC Series Figure 2. Connector Dimensions and Pin-Out Identification Figure 3. Side Rotary A1A/A1B Dimensions 32,5 [1.28] PT 4-Pin Identification FP 7 [0.28] PT 16,7 [0.66] Ø 18 [Ø 0.71] 65,5 [2.58] 15 [0.59] 12 [0.47] 5-Pin Identification 17 [0.67] 12 [0.47] Side Exit 30 [1.19] Bottom Exit Type A1A/A1B • Side Rotary Figure 4. Side Rotary A6A/A6B Dimensions FP PT Figure 5. Side Rotary A2A/A2B Dimensions 19,9 [0.78] 7 [0.28] PT 67,4 [2.65] 55,8 [2.2] 40,8 [1.6] 20 [0.79] PT FP 29 [1.14] PT 7 [0.28] 51 [2.00] min. 103 [4.05] max. Ø 18 [Ø 0.71] 52 [2.05] 67,4 [2.65] 55,8 [2.2] 20 [0.79] 20 [0.79] PT 52 [2.05] FP PT 7 [0.28] Type A2A/A2B • Side Rotary with Adjustable Length Roller Lever 30 [1.19] Figure 7. Side Rotary A2C/A2D Dimensions 10,8 [0.43] 55,8 [2.2] 40,8 [1.6] 67,4 [2.65] 16,7 [0.66] Type A6C/A6D • Reversed Side Rotary (Short) 4 sensing.honeywell.com PT FP PT 19,6 [0.77] 7 [0.28] 51 [2.00] min. 103 [4.05] max. Ø 18 [Ø 0.71] 20 [0.79] 16,7 [0.66] 40,8 [1.6] Type A6A/A6B • Side Rotary (Short) Figure 6. Side Rotary A6C/A6D Dimensions 67,4 [2.65] 55,8 [2.2] 30 [1.19] 16,7 [0.66] 40,8 [1.6] 30 [1.19] Ø 18 [Ø 0.71] 20 [0.79] 30 [1.19] 55,8 [2.2] 40,8 [1.6] 16,7 [0.66] 67,4 [2.65] Type A2C/A2D • Reversed Side Rotary with Adjustable Length Roller Lever MICRO SWITCH™ Compact Limit Switches, NGC Series Table 2. Side Rotary Operating Characteristics Actuation Side Rotary Catalog Listing Connector/ Cable Exit NGCP*****X01A** A NGCP*****X01A** B NGCP*****X01A** D NGCP*****X07A** A Switch Type 01 NGCP*****X07A** B NGCP*****X07A** D NGCP*****X01A** N 01 NGCP*****X07A** N 07 NGCM*****X01A** A NGCM*****X01A** B NGCM*****X01A** D Circuit Diagram 07 A B NGCM*****X07A** D NGCM*****X01A** P 01 NGCM*****X07A** P 07 A NGCP*****X24A** D NGCP*****X32A** A NGCP*****X32A** B NGCP*****X32A** D NGCM*****X24A** A NGCM*****X24A** B NGCM*****X24A** D NGCM*****X32A** A NGCM*****X32A** B NGCM*****X32A** D 21 Black/ Zb White 22 Black 1 2 3 4 3 13 21 1 Zb 4 14 22 2 21 22 Black Black White Zb Green/Yellow 07 24 1 21-22 13-14 0° 25° 32 Differential Travel max. Operating Force/ Torque max. Release Force/ Torque max. 15° 18 Ncm [1.59 in-lb] 2,5 Ncm [0.22 in-lb] 16.5° 17 Ncm [1.5 in-lb] 2,1 Ncm [0.19 in-lb] 45° 65° DT Contact Closed Contact Open Positive Opening 3 13 21 1 4 14 22 Zb 2 Green/Yellow 2 4 5 Orange Brown Gray White 32 24 Brown 14 Blue 13 3 B Brown 14 01 NGCM*****X07A** NGCP*****X24A** Blue 13 21-22 13-14 NGCM*****X07A** NGCP*****X24A** Bar Charts Blue Red Black Violet 2 Zb White-Violet Gray-Black Brown-Red Orange-Blue 0° 26.5° 45° 65° DT White-Violet Gray-Black Brown-Red Orange-Blue Orange Brown Gray White Blue Red Black Violet 2 Zb Green/Yellow Contact Closed Contact Open Positive Opening How to read and understand the bar chart information The following example relates to a unit which has a snap action basic and which has a roller pin plunger actuator. Follow the black arrows and the black strip on the chart. The black strip indicates that there is a circuit between the terminals whose numbers are shown on the left and when white there is no circuit. Look at Figures A and B as examples. Actuator type used for test is the linear Cam travel type (b) shown left. The start point is at the arrow marked ‘‘A’’ (See fig. B). This shows the free position to be 5.3 mm from the vertical center line of the unit. At this stage there is a circuit between the terminals 21-22 but no circuit between terminals 13-14. The unit can be actuated until it reaches the operating position which is 10,5 mm from the center line – a travel distance of 10,5 – 5,3 = 5,2 mm from the free position. At this point the circuit arrangement changes – no circuit between 21-22 but making a circuit between 13-14. If, however, the contacts of terminals 21-22 weld together and will not separate, a mechanical safety feature will take effect if the switch is travelled past the point from which positive opening is assured, 13,9 mm. As the switch returns it reaches the release position at 8.9 mm from the center line. The circuit will change back to the original state and the difference between the operating position and the release position gives what is known as the differential travel i.e. 10,5 – 8,9 = 1,6 mm. The asterisk (*) indicates the point from which the positive opening is assured. Sensing and Productivity Solutions 5 MICRO SWITCH™ Compact Limit Switches, NGC Series Figure 8. Pin Plunger B & D Dimensions Ø8 2X Ø4,3 thru. [Ø 0.31] 2X Ø8 3,9 PT 2,1 [0.08] FP ±0,5 Figure 9. Roller Plunger C & S Dimensions Ø 12,7 x 4 [Ø 0.5 x 0.16] 2X Ø4,3 thru. 2X Ø8 3,9 Figure 10. Cross Roller Plunger L & T Dimensions FP ±0,5 PT 2,1 [0.08] Ø 12,7 2X Ø4,3 thru. [Ø 0.5] 2X Ø8 3,9 FP ±0,5 20 [0.79] 55,8 [2.2] 30 [1.19] 40,8 [1.6] 55,8 [2.2] 20 [0.79] 40,8 [1.6] NGC_B | FP 19,8 mm NGC_D | FP 22,4 mm Pin Plunger Figure 11. Pin Plunger with Boot Seal M Dimensions PT 2,1 [0.08] Ø 6,7 [Ø 0.26] 2X Ø4,3 thru. 2X Ø8 3,9 30 [1.19] Figure 12. Panel-Mount PIn Plunger N Dimensions Ø8 [Ø 0.31] M12 x 1 7,0 [0.28] max. 2X Ø4,3 thru. 2X Ø8 3,9 20 [0.79] 30 [1.19] NGC_L | FP 30,3 mm NGC_T | FP 32,85 mm Cross Roller Plunger NGC_C | FP 30,3 mm NGC_S | FP 32,85 mm Roller Plunger PT 2,1 [0.08] 36,5 [1.44] Figure 13. Panel-Mount Roller Plunger P Dimensions Ø 12,7 x 4 [Ø 0.5 x 0.16] 2X Ø4,3 thru. 2X Ø8 3,9 PT 2,1 [0.08] 7,0 [0.28] max. 47,5 [1.87] 20 [0.79] 20 [0.79] 30 [1.19] 30 [1.19] NGC_M Pin Plunger with Boot Seal Figure 14. Panel-Mount Cross Roller Plunger Q Dimensions Ø 12,7 [Ø 0.5] 55,8 [2.2] 40,8 [1.6] M12 x 1 32,3 [1.27] 55,8 [2.2] 40,8 [1.6] 4 [0.16] 7,0 [0.28] max. 2X Ø4,3 thru. 2X Ø8 3,9 NGC_N Panel-Mount Pin Plunger Figure 15. Panel-Mount PIn Plunger With Boot Seal R Dimensions Ø 6,7 [Ø 0.26] PT 2,1 [0.08] 47,5 [1.87] 2X Ø4,3 thru. 2X Ø8 3,9 55,8 [2.2] 55,8 [2.2] 40,8 [1.6] 20 [0.79] 30 [1.19] NGC_Q Panel-Mount Cross Roller Plunger sensing.honeywell.com PT 2,1 [0.08] M12 x 1 7,0 [0.28] max. M12 x 1 6 4 [0.16] PT 2,1 [0.08] 40,8 [1.6] 47,5 [1.87] 20 [0.79] 30 [1.19] NGC_R Panel-Mount Pin Plunger with Boot Seal 55,8 [2.2] 40,8 [1.6] 20 [0.79] 30 [1.19] NGC_P Panel-Mount Roller Plunger MICRO SWITCH™ Compact Limit Switches, NGC Series Table 3. Plunger Operating Characteristics A NGCP*****X01 B/C/D/L/M/N/P/Q/R/S/T B NGCP*****X01 B/C/D/L/M/N/P/Q/R/S/T D NGCP*****X07 B/C/D/L/M/N/P/Q/R/S/T A NGCP*****X07 B/C/D/L/M/N/P/Q/R/S/T B NGCP*****X07 B/C/D/L/M/N/P/Q/R/S/T D NGCP*****X01 B/C/D/L/M/N/P/Q/R/S/T N 01 NGCP*****X07 B/C/D/L/M/N/P/Q/R/S/T N 07 NGCM*****X01 B/C/D/L/M/N/P/Q/R/S/T A NGCM*****X01 B/C/D/L/M/N/P/Q/R/S/T B NGCM*****X01 B/C/D/L/M/N/P/Q/R/S/T D NGCM*****X07 B/C/D/L/M/N/P/Q/R/S/T A 01 07 B D NGCM*****X01 B/C/D/L/M/N/P/Q/R/S/T P 01 NGCP*****X07 B/C/D/L/M/N/P/Q/R/S/T P 07 NGCP*****X24 B/C/D/L/M/N/P/Q/R/S/T A B NGCP*****X32 B/C/D/L/M/N/P/Q/R/S/T A NGCP*****X32 B/C/D/L/M/N/P/Q/R/S/T B NGCP*****X32 B/C/D/L/M/N/P/Q/R/S/T D NGCM*****X24 B/C/D/L/M/N/P/Q/R/S/T A NGCM*****X24 B/C/D/L/M/N/P/Q/R/S/T B NGCM*****X24 B/C/D/L/M/N/P/Q/R/S/T D NGCM*****X32 B/C/D/L/M/N/P/Q/R/S/T A NGCM*****X32 B/C/D/L/M/N/P/Q/R/S/T B NGCM*****X32 B/C/D/L/M/N/P/Q/R/S/T D 21 Black/ Zb White 22 Black 1 2 3 4 3 13 21 1 Zb 4 14 22 2 0 2,1 4,9 21 22 Black Black White Zb Green/Yellow 07 24 Brown 14 Blue 13 1 1,2 mm [0.047 in] 11 N [2.47 lb] 3N [0.67 lb] 1,3 mm [0.051 in] 9,5 N [2.14 lb] 2,2 N [0.49 lb] DT Contact Closed Contact Open Positive Opening 4 5 Orange Brown Gray White Blue Red Black Violet 2 Zb 0 2,1 32 Release Force/ Torque max. 4 14 22 Zb 2 Green/Yellow 32 24 Operating Force/ Torque max. 3 13 21 1 2 3 D Brown 14 01 NGCM*****X07 B/C/D/L/M/N/P/Q/R/S/T NGCP*****X24 B/C/D/L/M/N/P/Q/R/S/T Blue 13 4,0 NGCM*****X07 B/C/D/L/M/N/P/Q/R/S/T NGCP*****X24 B/C/D/L/M/N/P/Q/R/S/T Bar Charts 21-22 13-14 NGCP*****X01 B/C/D/L/M/N/P/Q/R/S/T Circuit Diagram Differential Travel max. 21-22 13-14 Switch Type White-Violet Gray-Black Brown-Red Orange-Blue Plunger Head Catalog Listing Connector/ Cable Exit White-Violet Gray-Black Brown-Red Orange-Blue Actuation Orange Brown Gray White Blue Red Black Violet 2 Zb Green/Yellow 4,0 4,9 DT Contact Closed Contact Open Positive Opening Sensing and Productivity Solutions 7 m WARNING ADDITIONAL MATERIALS The following associated literature is available on the Honeywell web site at sensing.honeywell.com: • • • • Product line guide Product part listing/nomenclature tree Product range guide Application note PERSONAL INJURY DO NOT USE these products as safety or emergency stop devices or in any other application where failure of the product could result in personal injury. Failure to comply with these instructions could result in death or serious injury. m WARNING MISUSE OF DOCUMENTATION • • The information presented in this product sheet is for reference only. Do not use this document as a product installation guide. Complete installation, operation, and maintenance information is provided in the instructions supplied with each product. Failure to comply with these instructions could result in death or serious injury. Warranty/Remedy Find out more Honeywell serves its customers through a worldwide network of sales offices, representatives and distributors. For application assistance, current specifications, pricing or name of the nearest Authorized Distributor, Honeywell warrants goods of its manufacture as being free of defective materials and faulty workmanship. Honeywell’s standard product warranty applies unless agreed to otherwise by Honeywell in writing; please refer to your order acknowledgement or consult your local sales office for specific warranty details. If warranted goods are returned to Honeywell during the period of coverage, Honeywell will repair or replace, at its option, without charge those items it finds defective. The foregoing is buyer’s sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose. In no event shall Honeywell be liable for consequential, special, or indirect damages. While we provide application assistance personally, through our literature and the Honeywell web site, it is up to the customer to determine the suitability of the product in the application. Specifications may change without notice. The information we supply is believed to be accurate and reliable as of this printing. However, we assume no responsibility for its use. contact your local sales office. To learn more about Honeywell’s products, call +1-815-235-6847 or 1-800-537-6945, visit sensing.honeywell.com, or e-mail inquiries to info.sc@honeywell.com Sensing and Productivity Solutions Honeywell 1985 Douglas Drive North Golden Valley, MN 55422 honeywell.com 002409-2-EN  IL50 GLO  December 2015 © 2015 Honeywell International Inc. All rights reserved.
