Hex Schmitt Trigger Inverters
74HC14
FEATURES
•
•
•
•
•
•
Wide Operating Voltage Range of 2.0V to 6.0V
Outputs Can Drive up to 10 LSTTL Loads
Low Power Consumption, 20µA Maximum ICC
Typical tpd: 11ns
±4mA Output Drive at 5.0V
Low Input Current of 1µA Maximum

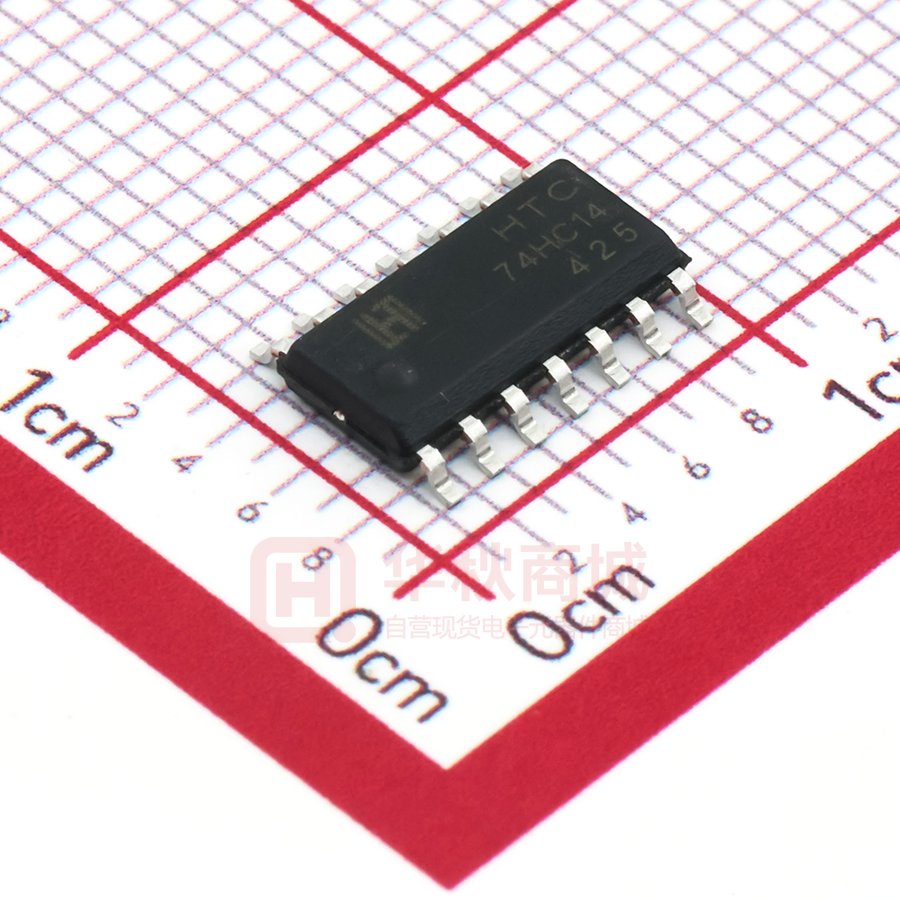

SOP-14
APPLICATIONS
•
•
•
•
•
•
•
Microwave Oven
Mice
Printers
AC Inverter Drives
UPS
AC Servo Drives
Other Motor Drives
DIP-14
ORDERING INFORMATION
Device
Package
74HC14D
SOP-14
74HC14N
DIP-14
DESCRIPTION
The 74HC14 types consist of six inverter circuits with
Schmitt-trigger inputs.
They perform the Boolean
�
function Y = A in positive logic. Each of the six
inverters is a single stage.
ABSOLUTE MAXIMUM RATINGS (Note 1)
CHARACTERISTIC
SYMBOL
MIN.
MAX.
UNIT
VCC
−0.5
7
V
VI < 0 or VI > VCC
IIK
-
±20
mA
VO < 0
IOK
-
±20
mA
VO = 0 to VCC
IIN
-
±25
mA
-
±50
mA
TJ
-
150
°C
TSTG
−65
150
°C
DC Supply Voltage
Input Clamp Current
(Note 2)
Output Clamp Current
(Note 2)
Continuous Output Current
Continuous Current through VCC or GND
Maximum Junction Temperature
Storage Temperature
Note 1. Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These
are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated
under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for
extended periods may affect device reliability.
Note 2. The input and output negative-voltage ratings may be exceeded if the input and output clamp current ratings are
observed.
May. 2020 – R1.0
1/8
HTC
Hex Schmitt Trigger Inverters
74HC14
RECOMMENDED OPERATING CONDITIONS (Note 3)
CHARACTERISTIC
SYMBOL
MIN.
MAX.
UNIT
Supply Voltage
VCC
2
6
V
DC Input Voltage
VIN
0
VCC
V
VOUT
0
VCC
V
TA
−40
85
°C
DC Output Voltage
Operating Free-Air Temperature Range
Note 3. The device is not guaranteed to function outside its operating ratings.
ORDERING INFORMATION
Package
Order No.
Description
Supplied As
Status
SOP-14
74HC14D
Hex Schmitt Trigger Inverters
Tape & Reel
Active
DIP-14
74HC14N
Hex Schmitt Trigger Inverters
Tube
Contact Us
May. 2020 – R1.0
2/8
HTC
Hex Schmitt Trigger Inverters
74HC14
PIN CONFIGURATION
SOP-14
DIP-14
1A
1
14
VCC
1A
1
14
VCC
1Y
2
13
6A
1Y
2
13
6A
2A
3
12
6Y
2A
3
12
6Y
2Y
4
11
5A
2Y
4
11
5A
3A
5
10
5Y
3A
5
10
5Y
3Y
6
9
4A
3Y
6
9
4A
GND
7
8
4Y
GND
7
8
4Y
PIN DESCRIPTION
Pin No.
Pin Name
Pin Function
SOP-14
DIP-14
1
1
1A
Input 1
2
2
1Y
Output 1
3
3
2A
Input 2
4
4
2Y
Output 2
5
5
3A
Input 3
6
6
3Y
Output 3
7
7
GND
Ground
8
8
4Y
Output 4
9
9
4A
Input 4
10
10
5Y
Output 5
11
11
5A
Input 5
12
12
6Y
Output 6
13
13
6A
Input 6
14
14
VCC
May. 2020 – R1.0
Power Supply
3/8
HTC
Hex Schmitt Trigger Inverters
74HC14
BLOCK DIAGRAM
May. 2020 – R1.0
1A
1Y
2A
2Y
3A
3Y
4A
4Y
5A
5Y
6A
6Y
4/8
HTC
Hex Schmitt Trigger Inverters
74HC14
DC ELECTRICAL CHARACTERISTICS
Over operating free-air temperature range (unless otherwise noted); Voltages referenced to GND.
SYMBOL
VTP
VTN
VH
PARAMETER
VCC
MIN
TYP
MAX
2.0 V
0.7
1.2
1.5
4.5 V
1.55
2.5
3.15
6.0 V
2.1
3.3
4.2
2.0 V
0.3
0.6
1
4.5 V
0.9
1.6
2.45
6.0 V
1.2
2
3.2
2.0 V
0.2
0.6
1.2
4.5 V
0.4
0.9
2.1
6.0 V
0.5
1.3
2.5
2.0 V
1.9
1.998
-
4.5 V
4.4
4.499
-
6.0 V
5.9
5.999
-
IOH = −4mA
4.5 V
3.98
4.3
-
IOH = −5.2mA
6.0 V
5.48
5.8
-
2.0 V
-
0.002
0.1
4.5 V
-
0.001
0.1
6.0 V
-
0.001
0.1
IOH = 4mA
4.5 V
-
0.15
0.26
IOH = 5.2mA
6.0 V
-
0.17
0.26
TEST CONDITION
Positive-Going Input
Threshold Voltage
Negative-Going Input
Threshold Voltage
Hysteresis (VTP − VTN)
IOH = −20µA
VOH
Output High Voltage
VIN = VIH or VIL
IOH = 20µA
VOL
Output Low Voltage
VIN = VIH or VIL
UNIT
V
V
V
V
V
IIN
Input Leakage Current
VIN = VCC or GND
6.0 V
-
±0.1
±100
nA
ICC
Quiescent Supply Current
VIN = VCC or GND, IO = 0A
6.0 V
-
-
2.0
µA
UNIT
AC ELECTRICAL CHARACTERISTICS
Over operating free-air temperature range (unless otherwise noted); CL = 50 pF, ZO = 50Ω, Input tr = tf = 6 ns
SYMBOL
tPLH,
tPHL
tTLH,
tTHL
PARAMETER
Propagation Delay, Input A to Output Y
(Figure 3)
Transition Time, Any Output
(Figure 3)
May. 2020 – R1.0
5/8
VCC
MIN
TYP
MAX
2.0 V
-
55
125
4.5 V
-
12
25
6.0 V
-
11
21
2.0 V
-
38
75
4.5 V
-
8
15
6.0 V
-
6
13
ns
ns
HTC
Hex Schmitt Trigger Inverters
74HC14
FUNCTION TABLE
Input (A)
Output (Y)
H
L
L
H
SWITCHING CHARACTERISTICS
VTN
VTP
VDD
VH
VIN
VOUT
VH
VH = VTP - VTN
VSS
VDD
VOUT
VIN
VTN
VSS
Fig. 1. Hysteresis Definition
tr
VTP
Fig. 2. Hysteresis Characteristic
tf
VDD
90%
VIN
50%
10%
VSS
tPHL
tPLH
VOH
90%
VOUT
50%
10%
tTHL
VOL
tTLH
Fig. 3. Switching Time Waveforms
May. 2020 – R1.0
6/8
HTC
Hex Schmitt Trigger Inverters
74HC14
TYPICAL OPERATING CHARACTERISTICS
T.B.D.
May. 2020 – R1.0
7/8
HTC
Hex Schmitt Trigger Inverters
74HC14
REVISION NOTICE
The description in this data sheet is subject to change without any notice to describe its electrical characteristics
properly.
May. 2020 – R1.0
8/8
