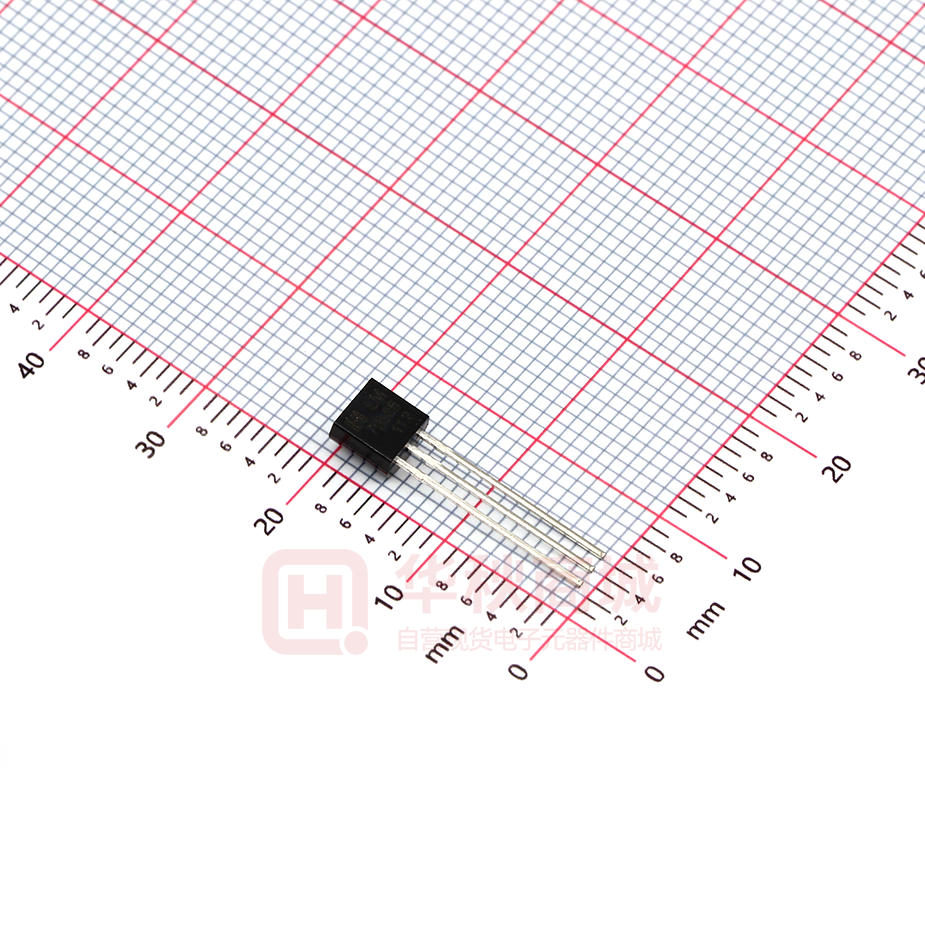

LM79L05

3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR FEATURES Output Current Up to 100mA No External Components Internal Thermal Overload Protection Internal Short-Circuit Limiting Output Voltage of 5V, 6V, 8V, 9V, 12V, 15V, 18V and 24V Moisture Sensitivity Level 3 TO-92 PKG LM79LXX DESCRIPTION This series of fixed-voltage monolithic integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power-pass elements to make high current voltage regulators. Each of these regulators can deliver up to 100mA of output current. The internal limiting and thermal shutdown features of these regulators make them essentially immune to overload. When used as a replacement for a zener diode-resistor combination, an effective improvement in output impedance can be obtained together with lower-bias current. SOT-89 PKG ORDERING INFORMATION Device LM79LXX LM79LXXTA LM79LXXF Package TO-92 (Bulk) TO-92 (Taping) SOT-89 XX : Output Voltage = 05, 06, 08, 09, 12, 15, 18, 24 Absolute Maximum Ratings CHARACTERISTIC LM79L05 ~ LM79L09 Input Voltage LM79L12 ~ LM79L18 LM79L24 Maximum Power Dissipation at TA = 25°C / TO-92 Thermal Resistance Junction-To-Ambient / TO-92 Lead Temperature (Soldering, 10 sec) Storage Temperature Range Operating Junction Temperature Range PDMax θJA TSOL TSTG TJOPR VIN SYMBOL MIN. -65 0 MAX. -30 -35 -40 0.770 162 260 150 150 UNIT V W ℃/W ℃ ℃ ℃ Jan. 2011 - Rev.1.1.1 -1 - HTC 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR Recommended Operating Conditions CHARACTERISTIC LM79L05 LM79L06 LM79L08 Input Voltage LM79L09 LM79L12 LM79L15 LM79L18 LM79L24 Output Current Operating Virtual Junction Temperature Io TJ VIN LM79LXX MAX. -20 -20 -23 -24 -27 -30 -33 -38 100 125 mA ℃ V SYMBOL MIN. -7 -8 -10.5 -11.5 -14.5 -17.5 -20.5 -27 0 UNIT Ordering Information VOUT Package TO-92 SOT-89 TO-92 SOT-89 TO-92 SOT-89 TO-92 SOT-89 TO-92 SOT-89 TO-92 SOT-89 Order No. LM79L05 LM79L05TA LM79L05F LM79L06 LM79L06TA LM79L06F LM79L08 LM79L08TA LM79L08F LM79L09 LM79L09TA LM79L09F LM79L12 LM79L12TA LM79L12F LM79L15 LM79L15TA LM79L15F Description 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative Supplied As Bulk Taping Reel Bulk Taping Reel Bulk Taping Reel Bulk Taping Reel Bulk Taping Reel Bulk Taping Reel Status Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active Active 5.0V 6.0V 8.0V 9.0V 12V 15V Jan. 2011 - Rev.1.1.1 -2 - HTC 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR Ordering Information (Continued) VOUT Package TO-92 SOT-89 TO-92 SOT-89 Order No. LM79L18 LM79L18TA LM79L18F LM79L24 LM79L24TA LM79L24F Description 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative 0.1A, Negative Supplied As Bulk Taping Reel Bulk Taping Reel LM79LXX Status Active Active Active Active Active Active 18V 24V LM 79L XX Package Type Blank : TO-92 (Bulk) TA : TO-92 (Taping) F : SOT-89 Output Voltage (V) : 05 / 06 / 08 / 09 / 12 / 15 / 18 / 24 Root Name Product Code Jan. 2011 - Rev.1.1.1 -3 - HTC 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR PIN CONFIGURATION LM79LXX 1 23 1 2 3 TO-92 SOT-89 PIN DESCRIPTION Pin No. Name 1 2 3 GND VIN VOUT TO-92 / SOT-89 3 LEAD Function Ground Input Voltage Output Voltage TYPICAL APPLICATION INPUT 0.33uF (Note 2) 2 LM79LXX (Note 1) 1 3 OUTPUT 0.1uF (Note 2) Note 1. To specify an output voltage, substitute voltage for "XX". Note 2. Bypass capacitors are recommended for optimum stability and transient response and should be located as close as possible to the regulators. Jan. 2011 - Rev.1.1.1 -4 - HTC 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR ELECTRICAL CHARACTERISTICS LM79L05 (At specified virtual junction temperature, VIN = 10V, Io = 40mA (Unless otherwise noted) PARAMETER SYMBOL TEST CONDITION(Note 1) 25℃ Output Voltage(Note 2) VOUT 1mA ≤ Io ≤ 40mA -7V ≤ VIN ≤ 20V 1mA ≤ Io ≤ 70mA Line Regulation ΔVLINE -7V ≤ VIN ≤ -20V -8V ≤ VIN ≤ -20V 1mA ≤ Io ≤ 100mA 1mA ≤ Io ≤ 40mA 0℃ ~ 125℃ MIN. -4.8 -4.75 -4.75 TYP. -5 -5 -5 32 26 15 8 3.8 LM79LXX MAX. -5.2 -5.25 -5.25 150 100 60 30 6 5.5 1.5 0.1 UNIT V 25℃ mV Load Regulation ΔVLOAD 25℃ 25℃ 125℃ mV Bias Current IB -8V ≤ VIN ≤ -20V 1mA ≤ Io ≤ 40mA 10Hz ≤ f ≤ 100kHz -8V ≤ VIN ≤ -18V, f=120Hz mA Bias Current Change Output Noise Voltage Ripple Rejection Dropout Voltage ΔIB VN RR VD 0℃ ~ 125℃ 25℃ 25℃ 25℃ 41 42 49 1.7 mA uV dB V LM79L06 (At specified virtual junction temperature, VIN = 11V, Io = 40mA (Unless otherwise noted) PARAMETER SYMBOL TEST CONDITION(Note 1) 25℃ Output Voltage(Note 2) VOUT 1mA ≤ Io ≤ 40mA -8V ≤ VIN ≤ -21V 1mA ≤ Io ≤ 70mA Line Regulation ΔVLINE -8V ≤ VIN ≤ -21V -9V ≤ VIN ≤ -21V 1mA ≤ Io ≤ 100mA 1mA ≤ Io ≤ 40mA 0℃ ~ 125℃ MIN. -5.76 -5.7 -5.7 TYP. -6 -6 -6 50 45 12 5.5 MAX. -6.24 -6.3 -6.3 150 110 70 35 6 5.5 1.5 0.1 50 39 47 1.7 mV V UNIT 25℃ Load Regulation ΔVLOAD 25℃ 25℃ 125℃ mV Bias Current IB -9V ≤ VIN ≤ -21V 1mA ≤ Io ≤ 40mA 10Hz ≤ f ≤ 100kHz -9V ≤ VIN ≤ -19V, f=120Hz mA Bias Current Change Output Noise Voltage Ripple Rejection Dropout Voltage ΔIB VN RR VD 0℃ ~ 125℃ 25℃ 25℃ 25℃ mA uV dB V Jan. 2011 - Rev.1.1.1 -5 - HTC 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR LM79L08 (At specified virtual junction temperature, VIN = 14V, Io = 40mA (Unless otherwise noted) PARAMETER SYMBOL TEST CONDITION(Note 1) 25℃ Output Voltage(Note 2) VOUT 1mA ≤ Io ≤ 40mA -10.5V ≤ VIN ≤ -23V 1mA ≤ Io ≤ 70mA Line Regulation ΔVLINE -10.5V ≤ VIN ≤ -23V -11V ≤ VIN ≤ -23V 1mA ≤ Io ≤ 100mA 1mA ≤ Io ≤ 40mA 0℃ ~ 125℃ MIN. -7.7 -7.6 -7.6 TYP. -8 -8 -8 20 12 18 9 LM79LXX MAX. -8.3 -8.4 -8.4 175 125 80 42 6.5 6 1.5 0.1 UNIT V 25℃ mV Load Regulation ΔVLOAD 25℃ 25℃ 125℃ mV Bias Current IB -11V ≤ VIN ≤ -23V 1mA ≤ Io ≤ 40mA 10Hz ≤ f ≤ 100kHz -12V ≤ VIN ≤ -23V, f=120Hz mA Bias Current Change Output Noise Voltage Ripple Rejection Dropout Voltage ΔIB VN RR VD 0℃ ~ 125℃ 25℃ 25℃ 25℃ 42 60 49 1.7 mA uV dB V LM79L09 (At specified virtual junction temperature, VIN = 15V, Io = 40mA (Unless otherwise noted) PARAMETER SYMBOL TEST CONDITION(Note 1) 25℃ Output Voltage(Note 2) VOUT 1mA ≤ Io ≤ 40mA -11V ≤ VIN ≤ -24V 1mA ≤ Io ≤ 70mA Line Regulation ΔVLINE -11V ≤ VIN ≤ -24V -12V ≤ VIN ≤ -24V 1mA ≤ Io ≤ 100mA 1mA ≤ Io ≤ 40mA 0℃ ~ 125℃ MIN. -8.64 -8.55 -8.55 TYP. -9 9 9 80 20 17 8 3.8 MAX. -9.36 -9.45 -9.45 200 160 90 45 6.5 6 1.5 0.1 64 35 43 1.7 mV V UNIT 25℃ Load Regulation ΔVLOAD 25℃ 25℃ 125℃ mV Bias Current IB -12V ≤ VIN ≤ -24V 1mA ≤ Io ≤ 40mA 10Hz ≤ f ≤ 100kHz -8V ≤ VIN ≤ -18V, f=120Hz mA Bias Current Change Output Noise Voltage Ripple Rejection Dropout Voltage ΔIB VN RR VD 0℃ ~ 125℃ 25℃ 25℃ 25℃ mA uV dB V Jan. 2011 - Rev.1.1.1 -6 - HTC 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR LM79L12 (At specified virtual junction temperature, VIN = 19V, Io = 40mA (Unless otherwise noted) PARAMETER SYMBOL TEST CONDITION(Note 1) 25℃ Output Voltage(Note 2) VOUT 1mA ≤ Io ≤ 40mA -14.5V ≤ VIN ≤ -27V 1mA ≤ Io ≤ 70mA Line Regulation ΔVLINE -14.5V ≤ VIN ≤ -27V -16V ≤ VIN ≤ -27V 1mA ≤ Io ≤ 100mA 1mA ≤ Io ≤ 40mA 0℃ ~ 125℃ MIN. -11.5 -11.4 -11.4 TYP. -12 -12 -12 50 40 24 15 LM79LXX MAX. -12.5 -12.6 -12.6 250 200 100 50 6.5 6 1.5 0.1 UNIT V 25℃ mV Load Regulation ΔVLOAD 25℃ 25℃ 125℃ mV Bias Current IB -16V ≤ VIN ≤ -27V 1mA ≤ Io ≤ 40mA 10Hz ≤ f ≤ 100kHz -15V ≤ VIN ≤ -25V, f=120Hz mA Bias Current Change Output Noise Voltage Ripple Rejection Dropout Voltage ΔIB VN RR VD 0℃ ~ 125℃ 25℃ 25℃ 25℃ 37 70 42 1.7 mA uV dB V LM79L15 (At specified virtual junction temperature, VIN = 23V, Io = 40mA (Unless otherwise noted) PARAMETER SYMBOL TEST CONDITION(Note 1) 25℃ Output Voltage(Note 2) VOUT 1mA ≤ Io ≤ 40mA -17.5V ≤ VIN ≤ -30V 1mA ≤ Io ≤ 70mA Line Regulation ΔVLINE -17.5V ≤ VIN ≤ -30V -27V ≤ VIN ≤ -30V 1mA ≤ Io ≤ 100mA 1mA ≤ Io ≤ 40mA 0℃ ~ 125℃ MIN. -14.4 -14.25 -14.25 TYP. -15 -15 -15 65 58 25 15 4.2 MAX. -15.6 -15.75 -15.75 300 250 150 75 6.5 6 1.5 0.1 82 37 44 1.7 mV V UNIT 25℃ Load Regulation ΔVLOAD 25℃ 25℃ 125℃ mV Bias Current IB -20V ≤ VIN ≤ -30V 1mA ≤ Io ≤ 40mA 10Hz ≤ f ≤ 100kHz -18.5V ≤ VIN ≤ -28.5V, f=120Hz mA Bias Current Change Output Noise Voltage Ripple Rejection Dropout Voltage ΔIB VN RR VD 0℃ ~ 125℃ 25℃ 25℃ 25℃ mA uV dB V Jan. 2011 - Rev.1.1.1 -7 - HTC 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR LM79L18 (At specified virtual junction temperature, VIN = 26V, Io = 40mA (Unless otherwise noted) PARAMETER SYMBOL TEST CONDITION(Note 1) 25℃ Output Voltage(Note 2) VOUT 1mA ≤ Io ≤ 40mA -20.5V ≤ VIN ≤ -33V 1mA ≤ Io ≤ 70mA Line Regulation ΔVLINE -20.7V ≤ VIN ≤ -33V -21V ≤ VIN ≤ -33V 1mA ≤ Io ≤ 100mA 1mA ≤ Io ≤ 40mA 0℃ ~ 125℃ MIN. -17.3 -17.1 -17.1 TYP. -18 -18 -18 70 64 27 19 4.7 LM79LXX MAX. -18.7 -18.9 -18.9 360 300 180 90 6.5 6 1.5 0.1 UNIT V 25℃ mV Load Regulation ΔVLOAD 25℃ 25℃ 125℃ mV Bias Current IB -21V ≤ VIN ≤ -33V 1mA ≤ Io ≤ 40mA 10Hz ≤ f ≤ 100kHz -23V ≤ VIN ≤ -33V, f=120Hz mA Bias Current Change Output Noise Voltage Ripple Rejection Dropout Voltage ΔIB VN RR VD 0℃ ~ 125℃ 25℃ 25℃ 25℃ 32 82 36 1.7 mA uV dB V LM79L24 (At specified virtual junction temperature, VIN = 32V, Io = 40mA (Unless otherwise noted) PARAMETER SYMBOL TEST CONDITION(Note 1) 25℃ Output Voltage(Note 2) VOUT 1mA ≤ Io ≤ 40mA -27V ≤ VIN ≤ -38V 1mA ≤ Io ≤ 70mA Line Regulation ΔVLINE -27V ≤ VIN ≤ -38V -28V ≤ VIN ≤ -38V 1mA ≤ Io ≤ 100mA 1mA ≤ Io ≤ 40mA 0℃ ~ 125℃ MIN. -23 -22.8 -22.8 TYP. -24 -24 -24 95 78 41 28 4.8 MAX. -25 -25.2 -25.2 480 400 240 120 6.5 6 1.5 0.1 82 30 33 1.7 mV V UNIT 25℃ Load Regulation ΔVLOAD 25℃ 25℃ 125℃ mV Bias Current IB -21V ≤ VIN ≤ -38V 1mA ≤ Io ≤ 40mA 10Hz ≤ f ≤ 100kHz -29V ≤ VIN ≤ -35V, f=120Hz mA Bias Current Change Output Noise Voltage Ripple Rejection Dropout Voltage ΔIB VN RR VD 0℃ ~ 125℃ 25℃ 25℃ 25℃ mA uV dB V Jan. 2011 - Rev.1.1.1 -8 - HTC 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR Note 1. LM79LXX Note 2. Pulse testing techniques are used to maintain the junction temperature as close to the ambient temperature as possible. Thermal effects must be taken into account separately. All characteristics are measured with a 0.33uF capacitor across the input and a 0.1uF capacitor across the output. This specification applies only for DC power dissipation permitted by absolute maximum ratings. Jan. 2011 - Rev.1.1.1 -9 - HTC 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATOR TYPICAL OPERATING CHARACTERISTICS DROPOUT VOLTAGE |VIN - VOUT| (V) LM79LXX 1.2 MAX POWER DISSIPATION ( W 1 0.8 0.6 0.4 0.2 0 0 25 50 75 100 125 AMBIENT TEMPERATURE TA( ˚C) 2.5 2.25 2 1.75 1.5 1.25 1 0.75 0.5 0.25 0 0 Iout = 1mA Iout = 40mA Iout = 70mA 25 50 75 100 AMBIENT TEMPERATURE TA ( ˚C ) 125 Power Dissipation vs. Ambient Temperature, TO-92 -8 -7 OUTPUT VOLTAGE (V) -6 -5 -4 -3 -2 -1 0 0 -1 -2 -3 -4 -5 -6 -7 INPUT VOLTAGE (V) -8 -9 -10 0 0 5 Dropout Voltage vs. Ambient Temperature QUIESCENT CURRENT (mA ) Iout=1mA Iout=40mA Iout=70mA 4 3 2 1 -5 -10 -15 -20 INPUT VOLTAGE VIN (V) -25 -30 Output Voltage vs. Input Voltage -8 TA = 25˚C -7 OUTPUT VOLTAGE VOUT (V) -6 -5 -4 -3 -2 -1 0 0 25 50 75 100 125 150 175 200 OUTPUT CURRENT IOUT (mA) 225 250 TA = 110˚C Quiescent Current vs. Input Voltage Output Voltage vs. Output Current Jan. 2011 - Rev.1.1.1 - 10 - HTC
