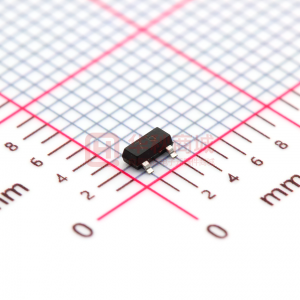

BAS70-06

BAS7 0/-04/-05/-06 SWITCHING DIODE SOT-23 FEATURES Low Turn-on voltage Fast switching Also available in lead free version BAS70 Marking: 73 BAS70-04 Marking: 74 BAS70-05 Marking: 75 BAS70-06 Marking: 76 MAXIMUM RATINGS @TA=25℃ Symbol VR IF PD TJ Tstg DC Voltage Forward Continuous Current Power dissipation Junction Temperature Storage Temperature Parameter Value 70 70 200 150 -55-150 Units V mA mW ℃ ℃ ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified) Parameter Reverse breakdown voltage Reverse voltage Forward Diode voltage capacitance leakage current Symbol V(BR) R IR VF CD trr Test IR= 10µA VR=50V IF=1mA IF=15mA VR=0V f=1MHz conditions MIN 70 120 410 1000 2 5 MAX UNIT V nA mV pF nS Reveres recovery time IF=IR=10mA,Irr=0.1xIR, RL=100Ω １　 JinYu semiconductor www.htsemi.com Ｄａｔｅ：２０１１／０５ BAS7 0/-04/-05/-06 Typical Characteristics ２　 JinYu semiconductor www.htsemi.com Ｄａｔｅ：２０１１／０５
