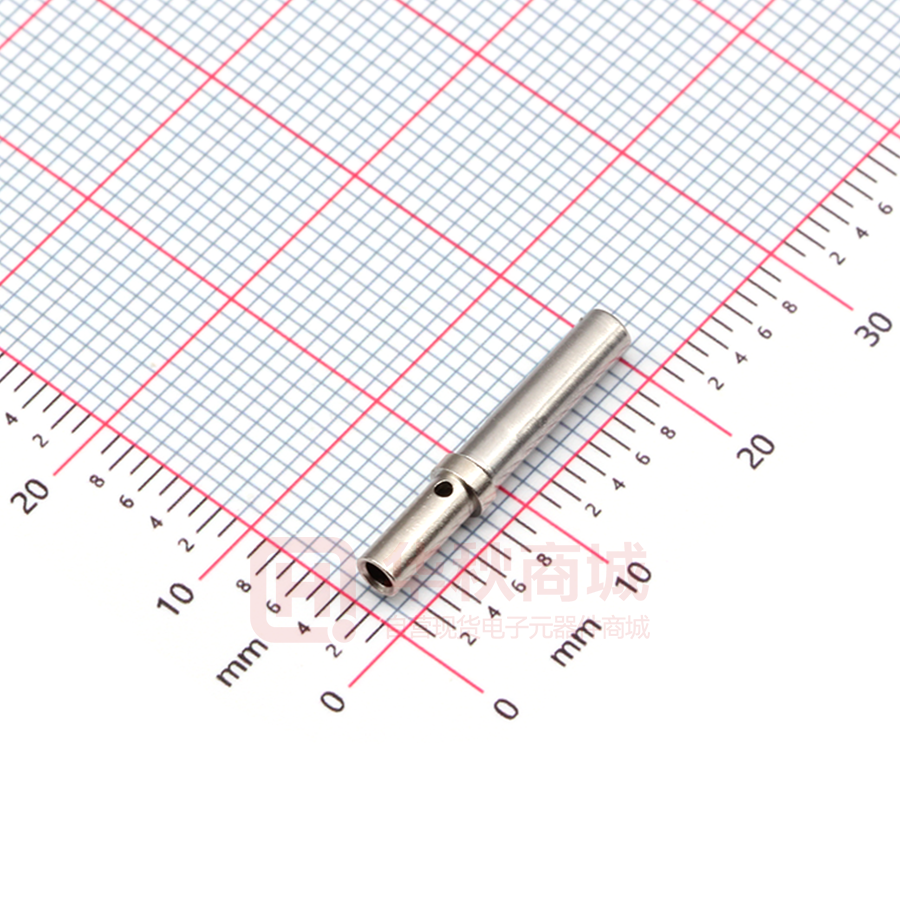

0462-201-16141

4 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 1997 BY TE CONNECTIVITY 2 3 1 2018 RELEASED FOR PUBLICATION REVISIONS ALL RIGHTS RESERVED. P DESCRIPTION LTR NC A D B B1 DATE DWN APVD NEW RELEASE PER E.O. P15506 23DEC1997 DM RDR RELEASED PER E.O. P15996 25MAY1999 DM RDR RELEASED PER PCN E-18-001206 24JAN2018 JA DM REVISED PER PCN E-19-018080 21NOV2019 MK DM D (.759 MAX) [19.28] .493 [12.52] .500 [12.70] C INSPECTION HOLE .133 [3.38] C .103 [2.62] .113 [2.87] .043 [1.09] .048 [1.22] .069 [1.75] OPTIONAL TRACEABILITY ID IN THIS AREA LOCATED ON DIAMETER B B TE INTERNAL PN 0462-201-1631 THIS DRAWING IS A CONTROLLED DOCUMENT. TOLERANCES UNLESS OTHERWISE SPECIFIED: DIMENSIONS: INCHES [mm] A 1. SEE APPLICATION SPECIFICATION 114-151004 FOR CRIMP TOOLS AND WIRE RANGE. NOTES: MATERIAL 0 1 2 3 4 PLC PLC PLC PLC PLC ANGLES FINISH DWN 17DEC1997 CHK 25MAY1999 APVD 25MAY1999 D.MEYER V.TOMSA R.REED PRODUCT SPEC 108-151004 PLATING 0462-201-1631 GOLD 0462-201-16141 NICKEL TE Connectivity NAME CONTACT SOCKET SIZE 16 A APPLICATION SPEC 114-151004 WEIGHT 0.60g CUSTOMER DRAWING 1470-19 (3/13) 0462-201-16141 DEUTSCH PN SIZE CAGE CODE A3 4AFU8 DRAWING NO RESTRICTED TO - 0462-201-16XX SCALE 10:1 SHEET 1 OF 1 REV B1
