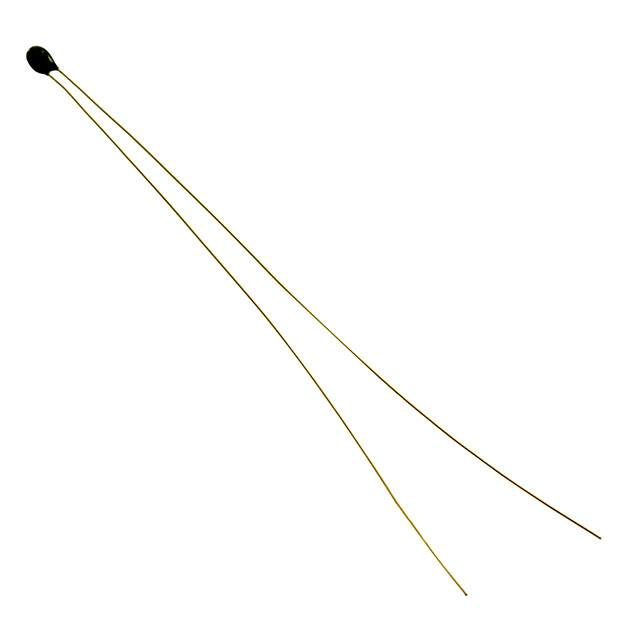

55036 Precision Glass NTC Thermistor • • • • • • • • • • Excellent Long Term Stability Glass Hermetic Seal Use up to 200°C 10,000 ohm Resistance @ 25°C Interchangeable ±0.1°C, 0°C to 70°C, Pressed Disk Ceramic Sensor High sensitivity 0.095″ (2.4 mm) Maximum Diameter 32 AWG, 2.5″ (6.4 cm) long Gold Plated Dumet leads RoHS Compliant DESCRIPTION Moisture-proof Hermetic Glass Encapsulated Precision Interchangeable NTC Thermistor utilizing high stability pressed-disk ceramic sensor for general applications. FEATURES • • • • • • Glass Hermetic Seal 10,000 Ohm Resistance @ 25°C 0.095″ (2.4 mm) Maximum Diameter Interchangeability Excellent High Temperature Performance Excellent Long Term Stability • High Sensitivity • RoHS Compliance APPLICATIONS • • • • • • • • High Moisture Applications Low to Mid Range Temperature Applications Drop in Replacement for 44000 Series Epoxy Tight Tolerance Instrumentation Use up to 200°C Applications Requiring Improved Stability Applications Requiring Sensing Small Changes in Temperature Allows use in Applications World-wide PERFORMANCE SPECS Parameter Units Resistance @ 25°C Ohms Tolerance 0°C to 70°C °C Beta Value 25/85 K Tolerance on Beta Value % Time response in air Seconds Dissipation Constant in air mW/°C Insulation Resistance (Min. of 100Mohms for 1 Sec.) Model Number 55036 Rev A www.meas-spec.com 1/3 Volts Value 10,000 ± 0.1 3978 0.4 < 15 1.5 500 30 June 2008 55036 Precision Glass NTC Thermistor MECHANICAL DETAILS RESISTANCE V TEMPERATURE TABLE Temp °C -55 -54 -53 -52 -51 -50 -49 -48 -47 -46 -45 -44 -43 -42 -41 -40 -39 -38 -37 -36 -35 -34 -33 -32 -31 -30 -29 -28 -27 -26 -25 -24 -23 -22 -21 -20 -19 -18 -17 -16 K-Ohms 964.000 895.600 832.100 774.000 720.200 670.500 624.300 581.700 542.200 505.800 472.000 440.800 411.700 384.800 359.800 336.500 315.000 294.900 276.200 258.900 242.700 227.700 213.600 200.600 188.400 177.000 166.400 156.500 147.200 138.500 130.500 122.900 115.800 109.100 102.900 97.110 91.650 86.500 81.710 77.220 Model Number 55036 Rev A Temp °C K-Ohms Temp °C K-Ohms Temp °C K-Ohms Temp °C K-Ohms -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 72.960 69.010 65.280 61.770 58.440 55.330 52.440 49.690 47.070 44.630 42.340 40.170 38.130 36.190 34.370 32.660 31.030 29.500 28.060 26.690 25.400 24.170 23.020 21.920 20.880 19.900 18.970 18.090 17.260 16.470 15.710 15.000 14.330 13.680 13.070 12.500 11.940 11.420 10.920 10.450 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 10.000 9.574 9.165 8.779 8.410 8.060 7.722 7.402 7.100 6.807 6.532 6.270 6.017 5.777 5.546 5.329 5.116 4.916 4.725 4.543 4.369 4.202 4.042 3.889 3.743 3.603 3.469 3.340 3.217 3.099 2.986 2.878 2.774 2.675 2.580 2.488 2.400 2.316 2.235 2.157 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 2.0830 2.0110 1.9420 1.8760 1.8130 1.7520 1.6930 1.6360 1.5820 1.5300 1.4790 1.4310 1.3850 1.3400 1.2970 1.2550 1.2150 1.1770 1.1400 1.1040 1.0700 1.0360 1.0040 0.9738 0.9441 0.9152 0.8877 0.8610 0.8353 0.8104 0.7864 0.7633 0.7411 0.7194 0.6985 0.6785 0.6590 0.6403 0.6221 0.6044 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 0.5875 0.5710 0.5551 0.5400 0.5249 0.5107 0.4964 0.4831 0.4698 0.4574 0.4449 0.4334 0.4218 0.4107 0.3996 0.3894 0.3792 0.3694 0.3601 0.3508 0.3419 0.3330 0.3246 0.3166 0.3086 0.3011 0.2935 0.2860 0.2793 0.2722 0.2655 0.2593 0.2531 0.2469 0.2411 0.2353 0.2296 0.2242 0.2189 0.2140 145 146 147 148 149 150 0.2087 0.2038 0.1994 0.1945 0.1901 0.1859 www.meas-spec.com 2/3 30 June 2008 55036 Precision Glass NTC Thermistor ORDERING INFORMATION Part Number 055114 055314 Description 55036 GEM THERM 55036-BP (100 PCS) GEM THERM Ω @25ºC 10,000 10,000 MOQ 200 200 * For quantities less than Minimum Order Quantity – contact distribution NORTH AMERICA EUROPE Measurement Specialties, Inc. 910 Turnpike Road Shrewsbury, MA 01545 Tel: 1-508-842-0516 Fax: 1-508-842-0342 Measurement Specialties, Inc Ballybrit Business Park Galway Ireland Tel: +353-91-753238 Fax: +353-91-770789 Sales email: Sales email: temperature.sales.amer@meas-spec.com temperature.sales.emea@meas-spec.com ASIA Measurement Specialties (China) Ltd. No. 26 Langshan Road Shenzhen High-Tech Park (North) Nanshan District, Shenzhen 51807 China Tel: +86 (0) 755 33305088 Fax: +86 (0) 755 33305099 Sales email: temperature.sales.asia@meas-spec.com The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Furthermore, this information does not convey to the purchaser of such devices any license under the patent rights to the manufacturer. Measurement Specialties, Inc. reserves the right to make changes without further notice to any product herein. Measurement Specialties, Inc. makes no warranty, representation or guarantee regarding the suitability of its product for any particular purpose, nor does Measurement Specialties, Inc. assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all liability, including without limitation consequential or incidental damages. Typical parameters can and do vary in different applications. All operating parameters must be validated for each customer application by customer’s technical experts. Measurement Specialties, Inc. does not convey any license under its patent rights nor the rights of others. Model Number 55036 Rev A www.meas-spec.com 3/3 30 June 2008
