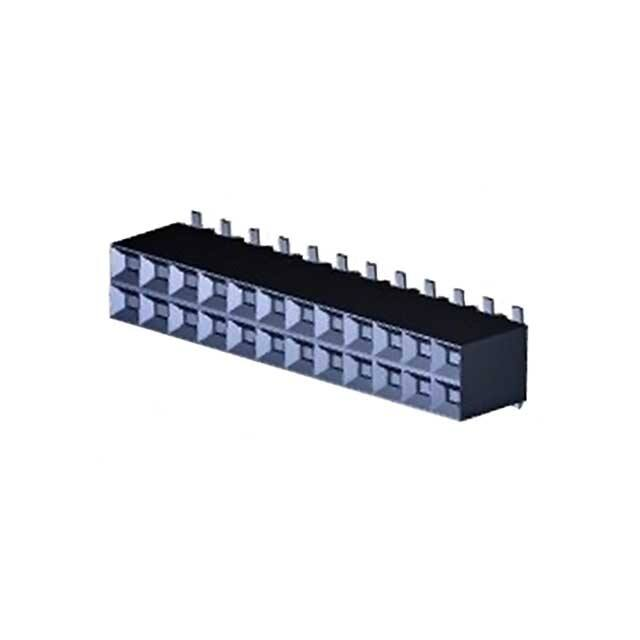

1-147105-2

| | | Search Products Documentation Resources Home > Products > By Type > PCB Connectors My Account > Product Feature Selector Customer Support > Product Details 1 - 147105 - 2 Product Details Quick Links .100 inch AMPMODU Receptacles Not EU RoHS or ELV Compliant Alternates ) 1 - 147105 ( Find RoHS Compliant Product Highlights: ? Receptacle ? Mod IV ? Number of Positions = 24 ? Number of Rows = Dual ? Standard Profile View all Features | Find Similar Products -2 Active Check Pricing & Availability Search for Tooling Product Feature Selector Contact Us About This Product Documentation & Additional Information Product Drawings: ? RECEPTACLE ASSEMBLY, MOD IV, DOUBLE ROW, DUAL ENTRY,... (PDF, English) Additional Information: ? Product Line Information Related Products: ? Tooling Catalog Pages/Data Sheets: ? None Available Product Specifications: ? None Available Application Specifications: ? AMPMODU Mod II and Mod IV Printed Circuit Board Conn... (PDF, English) Instruction Sheets: ? None Available CAD Files: ? None Available List all Documents Product Features (Please use the Product Drawing for all design activity) Product Type Features: ? Product Type = Receptacle ? Connector Series = Mod IV ? Number of Positions = 24 ? Profile = Standard ? Mount Angle = Vertical ? Mounting Pattern (mm [in]) = 2.54 x 2.54 [.100 x .100] ? Sealed = No ? Holddown Feature = Without ? PCB Retention Feature = No ? Closed Entry = With ? Board Standoff = With ? Comment = Pick and place compatible, Kapton dot. Mechanical Attachment: ? Stackable = Yes Electrical Characteristics: ? Voltage (VAC) = 250 ? Termination Resistance (m?) = 12 ? Contact Current Rating (Amps.) = 3 ? Insulation Resistance (M?) = 5,000 ? Dielectric Withstanding Voltage (V) = 750 Termination Related Features: ? Termination Method = Surface Mount ? Solder Tail Contact Plating = Tin - Lead over Nickel Body Related Features: ? Number of Rows = Dual ? Connector Height (mm [in]) ? Centerline, Matrix (mm [in]) [.100 x .100] Contact Related Features: ? Contact Mating Area Plating Material = Gold (30) ? Contact Material = Phosphor Bronze ? Approved Standards = UL E28476, CSA LR7189 Housing Related Features: ? Housing Entry Style = Bottom or Top ? Housing Material = Polyester PCT ? Housing Flammability Rating = UL 94V ? Housing Color = Black Industry Standards: ? Government/Industry Qualification = No ? RoHS/ELV Compliance = Not ELV/RoHS compliant ? Lead Free Solder Processes = Reflow solder capable to 245°C Conditions for Usage: ? Operating Temperature (°C) = - 65 – + 125 ? High Temperature Compatible = Yes Packaging Related Features: ? Packaging Method = Tape & Reel Other: ? Brand = AMP = 6.73 [0.265] = 2.54 x 2.54 Provide Website Feedback -0 | Contact Customer Support Home | Customer Support | Suppliers | Site Map | Privacy Policy © 2008 Tyco Electronics Corporation All Rights Reserved | Browser Support
