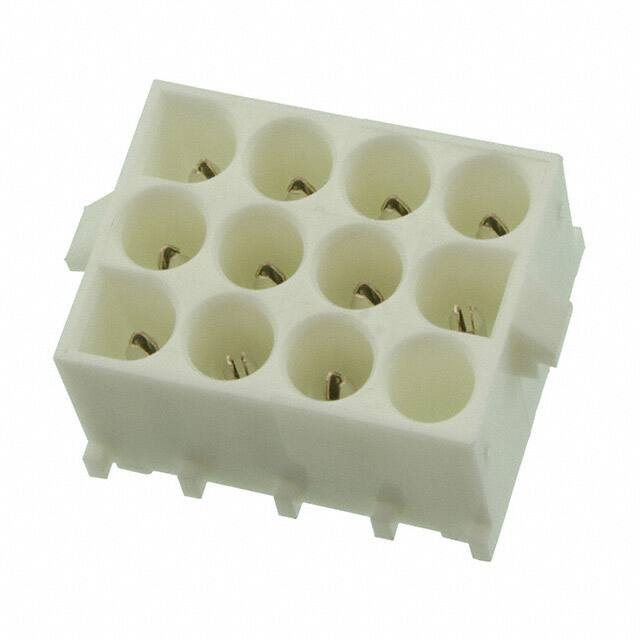

1-1586681-2

7 8 THIS DRAWING IS UNPUBLISHED. C COPYRIGHT 20 RELEASED FOR PUBLICATION BY TYCO ELECTRONICS CORPORATION. 6 5 4 3 2 20 LOC CM ALL RIGHTS RESERVED. 1 REVISIONS DIST 00 P LTR A DESCRIPTION DATE RELEASED PER WR-05-27 A1 REVISED PER ECR-21-119230 DWN APVD 04MAY05 KW SR 05NOV2021 SS VS 1. PARTS COMPLY TO AMP SOLDERABILITY SPECIFICATION 109-11-3. 2 CIRCUIT IDENTIFICATION CHARACTERS ARE ADJACENT TO THE INDICATED CAVITIES, BUT LOCATION AND ORIENTATION MAY DIFFER FROM PRINT. 3. DIMENSIONS IN BRACKETS ARE IN INCHES. 4. DIMENSIONS SHOWN REPRESENT PRODUCT IN DRY CONDITION. ADDITIONAL 2% GROWTH DUE TO END USE LOCATION MOISTURE ABSORPTION MAY OCCUR AND SHOULDE BE ACCOUNTED FOR. D D HOUSING 2 26.67 [ 1.050 ] CONTACT C C SECTION 0.76 TYP [ .030 ] 13.97 [ .550 ] C-C 20.32 [ .800 ] B B 1.86 -1.98 [ .073 -.078 ] 1.78 0.07 [ .070 .003 ] 12 PLC 6.35 [ .250 ] 0.26 -0.63 [ .010 -.025 ] 0.13 [ .005 ] CUT-OFF TAB A 6.35 [ .250 ] RECOMMENDED MOUNTING HOLE PATTERN FOR 1.57 [.062] THICK P.C. BOARD HOLE THAT CORRESPONDS TO REMOVED CONTACT CAN BE OMITTED AMP 4805 REV 31MAR2000 1.52 [ .060 ] 3.94 -4.69 [ .155 -.185 ] SECTION B-B SECTION A-A SCALE 10:1 2.11 -2.23 [ .083 -.088 ] 3 DIMENSIONAL MODEL SCALE 4:1 1586681 -2 SHOWN 12 PHOSPOR BRONZE, PRE-TIN NYLON, UL94V-0, WHITE 1- 1586681 -2 4 PHOSPOR BRONZE, PRE-TIN NYLON, UL94V-0, WHITE 1586681 -4 8 2 PIN NO OMITTED PHOSPOR BRONZE, PRE-TIN NYLON, UL94V-0, WHITE PHOSPOR BRONZE, PRE-TIN NYLON, UL94V-0, WHITE PIN CONTACT MATERIAL AND FINISH THIS DRAWING IS A CONTROLLED DOCUMENT FOR TYCO ELECTRONICS CORPORATION IT IS SUBJECT TO CHANGE AND THE CONTROLLING ENGINEERING ORGANIZATION SHOULD BE CONTACTED FOR THE LATEST REVISION. DIMENSIONS: mm[INCHES] MATERIAL SEE TABLE - TOLERANCES UNLESS OTHERWISE SPECIFIED: 0 PLC 1 PLC 2 PLC 3 PLC 4 PLC ANGLES FINISH 1586681 -8 0.13[.005] 0 $ 30' SEE TABLE - DWN 1586681 -2 HOUSING MATERIAL AND COLOR K. WHITAKER 04MAY2005 CHK 04MAY2005 APVD 04MAY2005 S. RIDGILL S. RIDGILL Tyco Electronics Harrisburg, PA 17105-3608 NAME PRODUCT SPEC - APPLICATION SPEC - WEIGHT SIZE - CUSTOMER DRAWING PART NUMBER PIN HEADER ASSEMBLY, 12 CIRCUIT, SELECTIVELY LOADED, UNIVERSAL MATE-N-LOK(TM) A1 CAGE CODE 00779 DRAWING NO 1586681 SCALE 5:1 SHEET 1 RESTRICTED TO OF - 1 REV A1 A
