1-2232826-3

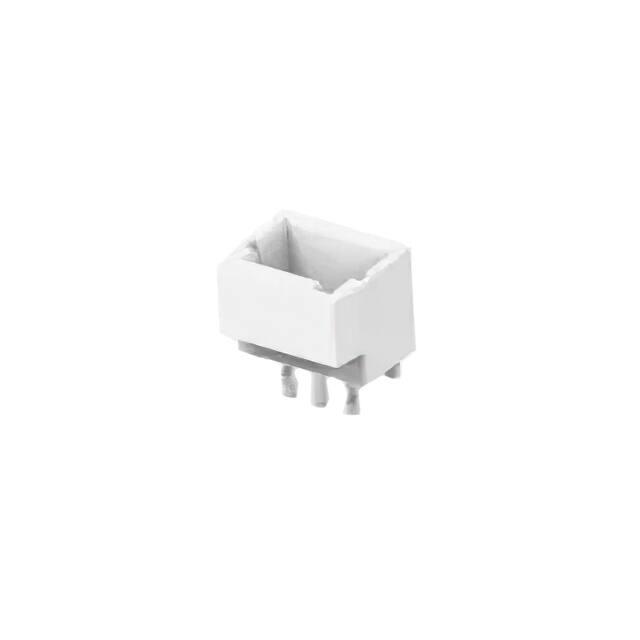

PCB Mount Header, Vertical, Wire-to-Board, 3 Position, .079 in [2 mm] Centerline,
Fully Shrouded, Tin, Through Hole - Solder, GRACE INERTIA 2.0
1-2232826-3
ACTIVE
GRACE INERTIA 2.0
TE Internal #: 1-2232826-3
PCB Mount Header, Vertical, Wire-to-Board, 3 Position, .079 in [2
mm] Centerline, Fully Shrouded, Tin, Through Hole - Solder,
GRACE INERTIA 2.0
View on TE.com >
Connectors > PCB Connectors > PCB Headers & Receptacles
Connector System: Wire-to-Board
Number of Positions: 3
Number of Rows: 1
Centerline (Pitch): 2 mm [ .079 in ]
PCB Mount Orientation: Vertical
Features
Product Type Features
Connector System
Wire-to-Board
Header Type
Fully Shrouded
Sealable
No
Connector & Contact Terminates To
Printed Circuit Board
PCB Connector Assembly Type
PCB Mount Header
Configuration Features
Number of Loaded Positions
3
Number of Positions
3
Number of Rows
1
PCB Mount Orientation
Vertical
Electrical Characteristics
Operating Voltage
50 VAC
Body Features
Connector Profile
For support call+1 800 522 6752
Standard
08/02/2022 11:42AM | Page 1
1-2232826-3
PCB Mount Header, Vertical, Wire-to-Board, 3 Position, .079 in [2 mm] Centerline,
Fully Shrouded, Tin, Through Hole - Solder, GRACE INERTIA 2.0
Connector Profile
Standard
Connector Code
A
Primary Product Color
Natural
Contact Features
Mating Square Post Dimension
.5 mm[.02 in]
Contact Mating Area Plating Material Thickness
2 µm[80 µin]
Contact Mating Area Plating Material Finish
Bright
PCB Contact Termination Area Plating Material
Tin
Contact Mating Area Plating Material
Tin
Contact Type
Pin
Contact Current Rating (Max)
2A
Termination Features
Square Termination Post & Tail Dimension
.5 mm[.02 in]
Termination Method to Printed Circuit Board
Through Hole - Solder
Mechanical Attachment
Mating Alignment Type
Keyed
Mating Retention
With
PCB Mount Retention Type
Kinked Legs
Connector Mounting Type
Board Mount
Mating Alignment
With
PCB Mount Retention
With
Housing Features
Housing Material
66 Nylon
Centerline (Pitch)
2 mm[.079 in]
Dimensions
PCB Thickness (Recommended)
1.6 mm[.063 in]
Usage Conditions
Operating Temperature Range
-40 – 105 °C[-40 – 221 °F]
Operation/Application
Shielded
No
Circuit Application
Signal
Industry Standards
Glow Wire Rating
For support call+1 800 522 6752
Glow Wire
08/02/2022 11:42AM | Page 2
1-2232826-3
PCB Mount Header, Vertical, Wire-to-Board, 3 Position, .079 in [2 mm] Centerline,
Fully Shrouded, Tin, Through Hole - Solder, GRACE INERTIA 2.0
Glow Wire Rating
Glow Wire
Agency/Standard
VDE
Approved Standards
UL E28476
UL Flammability Rating
UL 94V-0
Packaging Features
Packaging Type
Tray
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU
Compliant
EU ELV Directive 2000/53/EC
Compliant
China RoHS 2 Directive MIIT Order No 32, 2016
No Restricted Materials Above Threshold
EU REACH Regulation (EC) No. 1907/2006
Current ECHA Candidate List: JUNE 2022
(224)
Candidate List Declared Against: JAN 2021
(211)
SVHC > Threshold:
Not Yet Reviewed
Halogen Content
Not Low Halogen - contains Br or Cl > 900
ppm.
Solder Process Capability
Not reviewed for solder process capability
Product Compliance Disclaimer
This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge
based on the information they provided. This information is subject to change. The part numbers that TE has identified as
EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent
chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these
limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products
will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part
numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous
materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits
as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides
on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on
requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach
