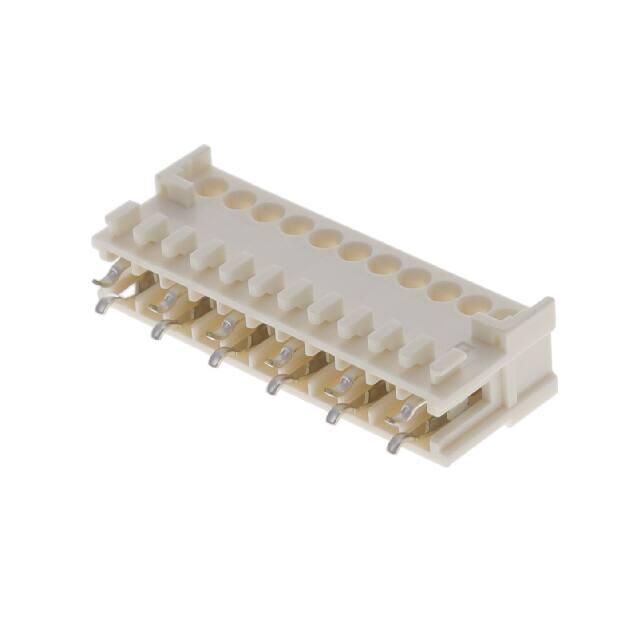

1-2232891-1 Standard Edge Connectors, Wire-to-Board, 11 Position, .098 in [2.5 mm] Centerline, Insulation Displacement (IDC), 1 Row, Natural, PA 66 GF 1-2232891-1  ACTIVE TE Internal #: 1-2232891-1 Standard Edge Connectors, Wire-to-Board, 11 Position, .098 in [2.5 mm] Centerline, Insulation Displacement (IDC), 1 Row, Natural, PA 66 GF View on TE.com > Connectors > PCB Connectors > Card Edge Connectors > Standard Edge Connectors Connector System: Wire-to-Board Number of Positions: 11 Centerline (Pitch): 2.5 mm [ .098 in ] Termination Method to Wire & Cable: Insulation Displacement (IDC) Number of Rows: 1 Features Product Type Features Connector System Wire-to-Board Connector & Housing Type Receptacle Connector & Contact Terminates To Wire & Cable Configuration Features Card Entry Style Side Number of Insulation Displacement Slots 6 Compatible With Wire & Cable Type Discrete Wire Number of Positions 11 Number of Rows 1 Connector Contact Load Condition Selectively Loaded PCB Mount Orientation Straddle Mount Electrical Characteristics Operating Voltage 250 VAC Body Features  Primary Product Color For support call+1 800 522 6752 Natural 01/02/2024 08:43AM | Page 1 1-2232891-1 Standard Edge Connectors, Wire-to-Board, 11 Position, .098 in [2.5 mm] Centerline, Insulation Displacement (IDC), 1 Row, Natural, PA 66 GF Primary Product Color Natural Contact Features Contact Retention Within Housing With Contact Type Socket Contact Base Material Copper Alloy Contact Current Rating (Max) 2A Termination Features Termination Method to Wire & Cable Insulation Displacement (IDC) Mechanical Attachment Mating Alignment Type Keyed Mating Retention Without Mating Alignment With Contact Retention Type Within Housing Locking Lance PCB Mount Alignment Without PCB Mount Retention Without Connector Mounting Type Cable Mount (Free-Hanging) Housing Features Centerline (Pitch) 2.5 mm[.098 in] Housing Material PA 66 GF Dimensions Connector Height 7.3 mm[.287 in] PCB Thickness (Recommended) 1.36 – 1.64 mm[.053 – .064 in] Compatible Insulation Diameter Range 1.2 – 1.6 mm[.047 – .063 in] Wire Size .22 – .35 mm² Usage Conditions Operating Temperature Range -40 – 110 °C[-40 – 230 °F] Operation/Application Circuit Application Signal Industry Standards UL Flammability Rating UL 94V-0 Packaging Features  Packaging Quantity For support call+1 800 522 6752 2176 01/02/2024 08:43AM | Page 2 1-2232891-1 Standard Edge Connectors, Wire-to-Board, 11 Position, .098 in [2.5 mm] Centerline, Insulation Displacement (IDC), 1 Row, Natural, PA 66 GF Packaging Quantity 2176 Packaging Method Tube Product Compliance For compliance documentation, visit the product page on TE.com> EU RoHS Directive 2011/65/EU Compliant EU ELV Directive 2000/53/EC Compliant China RoHS 2 Directive MIIT Order No 32, 2016 No Restricted Materials Above Threshold EU REACH Regulation (EC) No. 1907/2006 Current ECHA Candidate List: JUNE 2023 (235) Candidate List Declared Against: JUNE 2023 (235) Does not contain REACH SVHC Halogen Content Not Low Halogen - contains Br or Cl > 900 ppm. Solder Process Capability Not reviewed for solder process capability Product Compliance Disclaimer This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that TE has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-onreach Compatible Parts TE Part # 1-1971922-1 TE Part # 2-1971922-1 TE Part # 1-2406851-1 6/11P,RAST 2.5 TabHeader,ExLocking,THV 6/11P,RAST 2.5 TabHeader,ExLocking,THV 11P MONOPLUG 2.5 SEL LOADED W TUBE-B Customers Also Bought  For support call+1 800 522 6752 01/02/2024 08:43AM | Page 3 1-2232891-1 Standard Edge Connectors, Wire-to-Board, 11 Position, .098 in [2.5 mm] Centerline, Insulation Displacement (IDC), 1 Row, Natural, PA 66 GF TE Part #C71645-000 TE Part #NB09542001 RMW-10/3-1200/ADH-0 ATUM-16/4-0-STK Documents Product Drawings 11P MONOPLUG 2.5 SELECTIVELY LOADED English CAD Files 3D PDF 3D Customer View Model ENG_CVM_CVM_1-2232891-1_C.2d_dxf.zip English Customer View Model ENG_CVM_CVM_1-2232891-1_C.3d_igs.zip English Customer View Model ENG_CVM_CVM_1-2232891-1_C.3d_stp.zip English By downloading the CAD file I accept and agree to the Terms and Conditions of use. Product Specifications Application Specification English Product Environmental Compliance Product Compliance English Product Compliance English Agency Approvals UL Report English  For support call+1 800 522 6752 01/02/2024 08:43AM | Page 4
