1-2314930-0

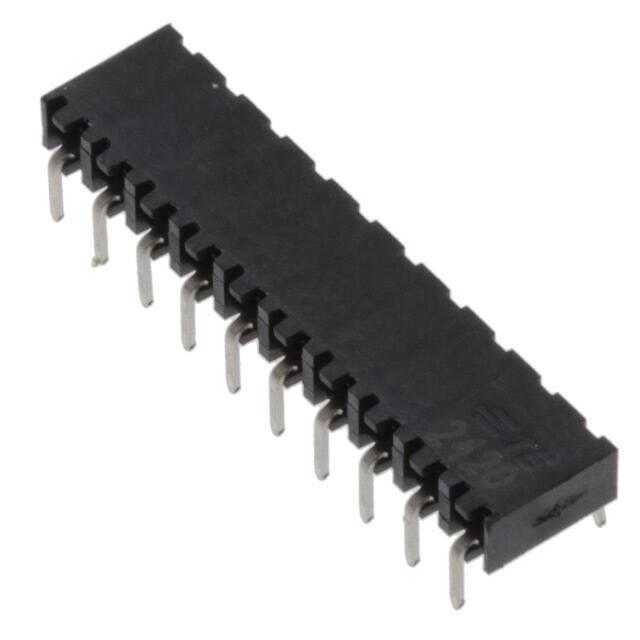

AMPMODU 2mm BOARD-TO-BOARD RECEPTACLES TE Connectivity (TE) AMPMODU 2mm Board-to-Board receptacles utilize phosphor bronze contacts with dual cantilever beams that are available in available in three gold plating options. The dual-beam design provides for an increased contact surface between the header pin and the receptacle contact to allow reliable signal transfer. Housed in a high-temperature-resistant liquid crystal polymer (LCP) plastic, receptacles can be applied in automated surface-mount, through-hole-reflow (Pin-inPaste) and traditional through-hole mount processes. The complete portfolio includes various top- and dual-entry vertical and horizontal receptacles that offer multiple options for Board-to-Board stacking of header and receptacle combinations. KEY FEATURES BENEFITS MECHANICAL • Centerline: 2.00mm [0.079"] • Occupies 38% less space on PCB board compared with 2.54mm [0.1"] centerline, allowing for extended functionality • Operating Temperature: -40°C to 125°C with gold plating • Dual beam receptacle contact • Top- and dual-entry vertical and horizontal receptacle assemblies • Surface-mount and through-hole with multiple solder tail lengths for various PCB thicknesses, 1.6mm to 2.4mm [0.063" to 0.094"] • Available in tube, tape and reel packaging • Two-point electrical stability for reliable header and receptacle interconnection • Multiple options for Board-to-Board stacking by headers and receptacles combination • Up to 25 positions per row, single and dual row offering • Ease of assembly with automated surface-mount and through-holereflow manufacturing • Environmental: UL94V0, halogen free / low halogen ELECTRICAL • Vibration: No electrical discontinuity greater than 1 microsecond • Reflow Solder: Capable to 260°C MATERIALS • Plating: – 30μ" [0.76μm] Gold – 15μ” [0.38μm] Gold – 4μ'' [0.1μm] Gold • Contact Material: Phosphor Bronze • Current Rating: 2A (max.) • Housing Material: High temperature plastic (LCP), UL 94V0, Black • PLC • Dielectric Withstanding Voltage: 650VAC SPECIFICATIONS • Servo Drives • Operating Voltage: 125VDC • RoHS & REACH Compliant APPLICATIONS • Industrial Controls • UL Certified • Material Handling • VDE Approval Pending • Instrumentation and Test Equipment • Product Specification: 108-64040 • Building Automation • Application Specification: 114-32186 INDUSTRIAL /// AMPMODU 2mm BOARD-TO-BOARD RECEPTACLES AMPMODU 2mm Board-to-Board Receptacles PRODUCT OFFERINGS Board-to-Board Single Row Receptacles - Position size 2-25 Product Type Product Image Drawing Solder Tail Length 2.0mm [0.079"] Vertical Top Entry TH/THR 2307764 2.7mm [0.106"] 3.2mm [0.126"] 2.3mm [0.091"] Vertical Dual Entry Outrigger TH/THR 2307832 2.8mm [0.110"] 3.4mm [0.134"] Vertical Dual Entry SMT 2307812 2307700 2.8mm [0.110"] 3.4mm [0.134"] Horizontal SMT 2307724 0.38µm [15µ"] Gold 0.76µm [30µ"] Gold Packaging 2307767 2307770 2307773 Tape & Reel (with Cap) 2314868 2314869 2314870 Tube (with Cap) 2314876 2314877 2314878 Tube (without Cap) 2307768 2307771 2307774 Tape & Reel (with Cap) 2314880 2314881 2314882 Tube (with Cap) 2307769 2307772 2307775 Tube (without Cap) Tape & Reel (with Cap) 2307835 2307838 2307841 2314900 2314901 2314902 Tube (with Cap) 2314908 2314909 2314910 Tube (without Cap) 2307836 2307839 2307842 Tape & Reel (with Cap) 2314912 2338990 2314914 Tube (with Cap) 2307837 2307840 2307843 Tube (without Cap) 2307813 2307814 2307815 Tape & Reel (with Cap) 2314848 2314849 2314850 Tube (with Cap) 2307703 2307706 2307709 Tape & Reel (without Cap) 2314928 2314929 2314930 Tube (without Cap) 2314936 2314937 2314938 Tube (without Cap) 2307704 2307707 2307710 Tape & Reel (without Cap) 2307705 2307708 2307711 Tube (without Cap) 2307725 2307726 2307727 Tape & Reel (without Cap) 2314944 2314945 2314946 Tube (without Cap) SMT 2.1mm [0.083"] Horizontal TH/ THR 0.1µm [4µ"] Gold SMT *Need a tin plated receptacle? Our product specialists are available to help. Contact us now PART NUMBER DEFINITION Single Row [2-25pins] Position Part Number Position Part Number Position Part Number 2 xxxxxxx-2 10 1-xxxxxxx-0 18 1-xxxxxxx-8 3 xxxxxxx-3 11 1-xxxxxxx-1 19 1-xxxxxxx-9 4 xxxxxxx-4 12 1-xxxxxxx-2 20 2-xxxxxxx-0 5 xxxxxxx-5 13 1-xxxxxxx-3 21 2-xxxxxxx-1 6 xxxxxxx-6 14 1-xxxxxxx-4 22 2-xxxxxxx-2 7 xxxxxxx-7 15 1-xxxxxxx-5 23 2-xxxxxxx-3 8 xxxxxxx-8 16 1-xxxxxxx-6 24 2-xxxxxxx-4 9 xxxxxxx-9 17 1-xxxxxxx-7 25 2-xxxxxxx-5 INDUSTRIAL /// AMPMODU 2mm BOARD-TO-BOARD RECEPTACLES PAGE 2 AMPMODU 2mm Board-to-Board Receptacles PRODUCT OFFERINGS Board-to-Board Double Row Receptacles - Position size 4-50 Product Type Product Image Solder Tail Length Drawing 2.0mm [0.079"] Vertical Top Entry TH/THR 2307776 2.7mm [0.106"] 3.2mm [0.126"] 2.3mm [0.091"] Vertical Dual Entry Outrigger TH/THR 2307820 2.8mm [0.110"] 3.4mm [0.134"] Vertical Dual Entry SMT 2307816 2307712 2.8mm [0.110"] 3.4mm [0.134"] 2307728 Horizontal SMT 0.38µm [15µ"] Gold 0.76µm [30µ"] Gold Packaging 2307779 2307782 2307785 Tape & Reel (with Cap) 2314812 2314813 2314814 Tube (with Cap) 2314820 2314821 2314822 Tube (without Cap) 2307780 2307783 2307786 Tape & Reel (with Cap) 2314824 2314825 2314826 Tube (with Cap) 2307781 2307784 2307787 Tube (without Cap) 2307823 2307826 2307829 Tape & Reel (with Cap) 2314852 2314853 2341413 Tube (with Cap) 2314860 2314861 2314862 Tube (without Cap) 2307824 2307827 2307830 Tape & Reel (with Cap) 2314864 2314865 2314866 Tube (with Cap) 2307825 2307828 2307831 Tube (without Cap) 2307817 2307818 2307819 Tape & Reel (with Cap) 2314844 2314845 2314846 Tube (with Cap) 2307715 2307718 2307721 Tape & Reel (without Cap) SMT 2.1mm [0.083"] Horizontal TH/THR 0.1µm [4µ"] Gold 2314916 2314917 2314918 Tube (without Cap) 2314924 2314925 2314926 Tape & Reel (without Cap) 2307716 2307719 2307722 Tape & Reel (without Cap) 2307717 2307720 2307723 Tube (without Cap) 2307729 2307730 2307731 Tape & Reel (without Cap) 2314940 2314941 2314942 Tube (without Cap) SMT *Need a tin plated receptacle? Our product specialists are available to help. Contact us now PART NUMBER DEFINITION Double Row [4-50 pins] Position Part Number Position Part Number Position Part Number 4 (2x2) xxxxxxx-4 20 (10x2) 2-xxxxxxx-0 36 (18x2) 3-xxxxxxx-6 6 (3x2) xxxxxxx-6 22 (11x2) 2-xxxxxxx-2 38 (19x2) 3-xxxxxxx-8 8 (4x2) xxxxxxx-8 24 (12x2) 2-xxxxxxx-4 40 (20x2) 4-xxxxxxx-0 10 (5x2) 1-xxxxxxx-0 26 (13x2) 2-xxxxxxx-6 42 (21x2) 4-xxxxxxx-2 12 (6x2) 1-xxxxxxx-2 28 (14x2) 2-xxxxxxx-8 44 (22x2) 4-xxxxxxx-4 14 (7x2) 1-xxxxxxx-4 30 (15x2) 3-xxxxxxx-0 46 (13x2) 4-xxxxxxx-6 16 (8x2) 1-xxxxxxx-6 32 (16x2) 3-xxxxxxx-2 48 (14x2) 4-xxxxxxx-8 18 (9x2) 1-xxxxxxx-8 34 (17x2) 3-xxxxxxx-4 50 (25x2) 5-xxxxxxx-0 INDUSTRIAL /// AMPMODU 2mm BOARD-TO-BOARD RECEPTACLES PAGE 3 AMPMODU 2mm Board-to-Board Receptacles te.com © 2019 TE Connectivity. All Rights Reserved. AMPMODU, TE, TE Connectivity, and the TE Connectivity (logo) are trademarks of TE Connectivity. Other logos, product and company names mentioned herein may be trademarks of their respective owners. While TE has made every reasonable effort to ensure the accuracy of the information in this brochure, TE does not guarantee that it is error-free, nor does TE make any other representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. The dimensions in this catalog are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions and design specifications. 1-1773968-2  SL  12/19   Tangence INDUSTRIAL /// AMPMODU 2mm BOARD-TO-BOARD RECEPTACLES
